Shared libsndfile-backed implementation used by MP3, Ogg Vorbis, and AIFF codecs. More...

#include <SndFileBackedMetadataAudioFile.h>

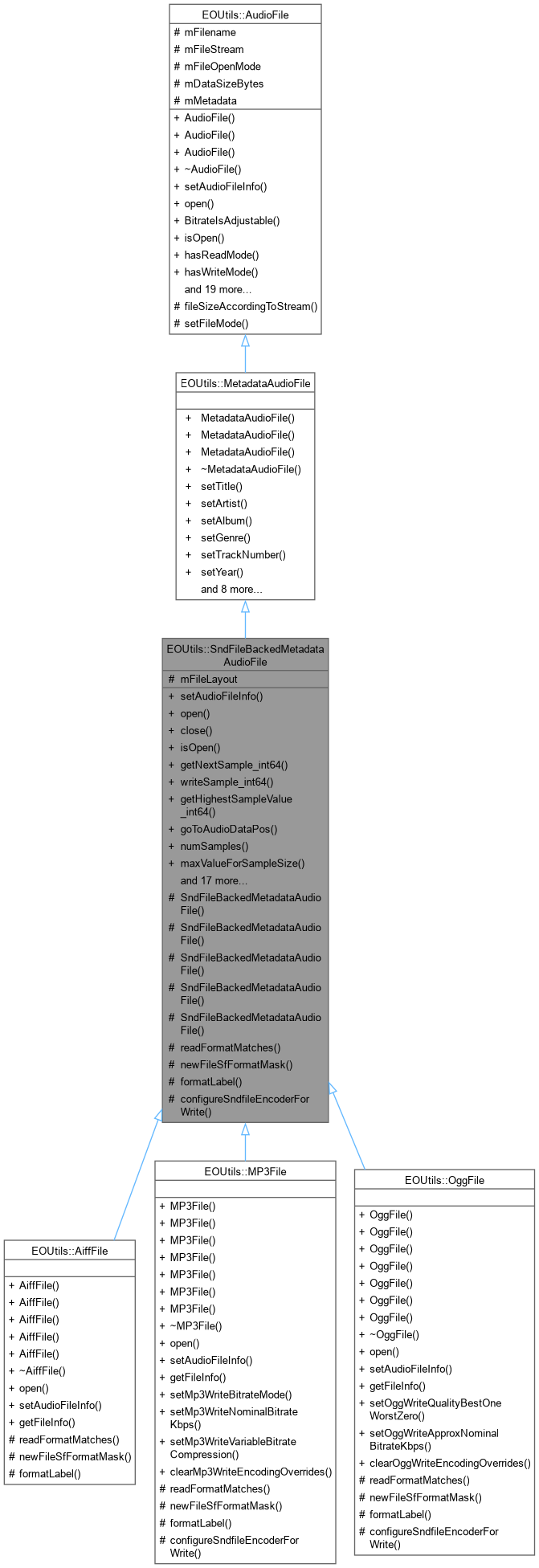

Inheritance diagram for EOUtils::SndFileBackedMetadataAudioFile:

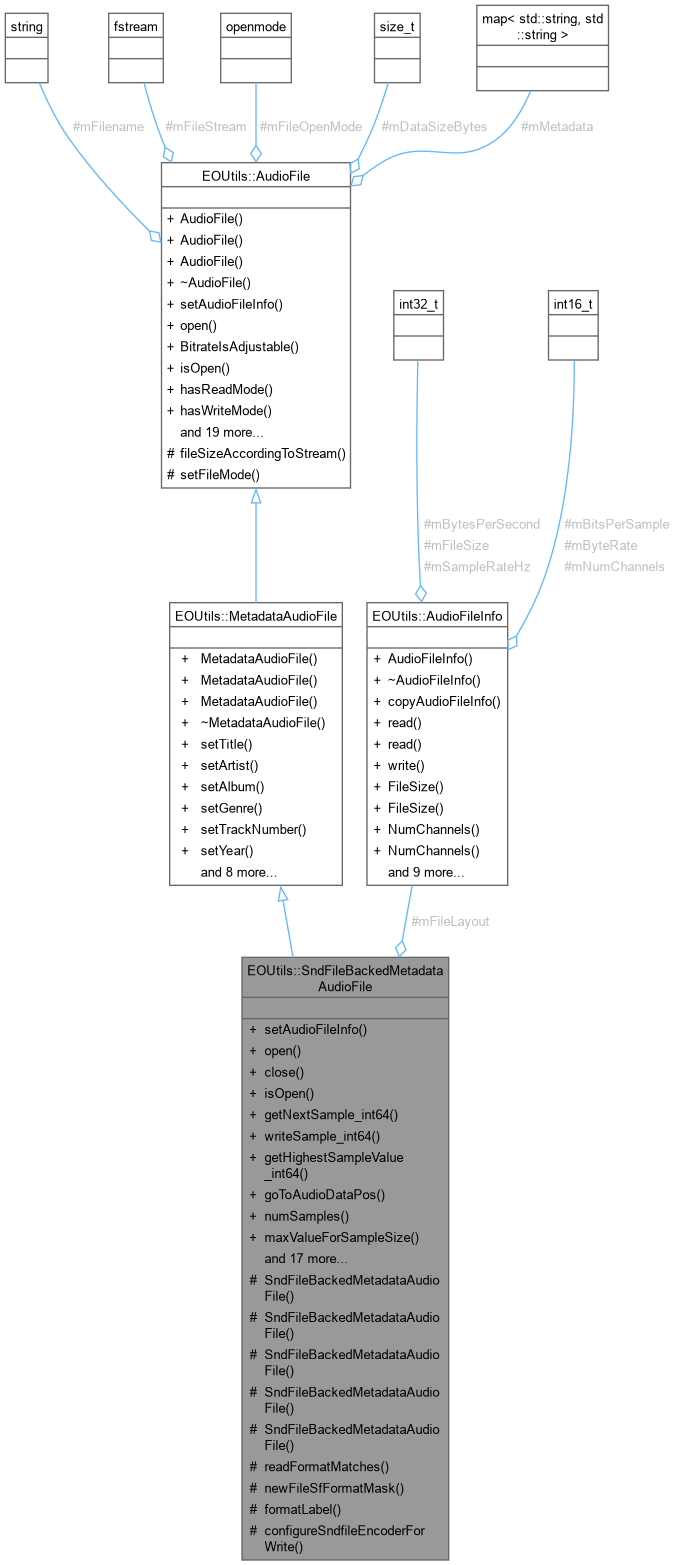

Collaboration diagram for EOUtils::SndFileBackedMetadataAudioFile:

Public Member Functions
void	setAudioFileInfo (const AudioFileInfo &pAudioFileInfo) override
AudioFileResultType	open (AudioFileModes pOpenMode) override
void	close () override
	Closes the audio file.
bool	isOpen () const override
	Returns whether or not the audio file is open.
AudioFileResultType	getNextSample_int64 (std::int64_t &pAudioSample) override
AudioFileResultType	writeSample_int64 (std::int64_t pAudioSample) override
AudioFileResultType	getHighestSampleValue_int64 (std::int64_t &pHighestAudioSample) override
AudioFileResultType	goToAudioDataPos () override
	Goes to the audio data position in the audio file.
std::size_t	numSamples () const override
	Returns the number of audio samples in the audio file.
std::int64_t	maxValueForSampleSize () const override
	Returns the maximum possible positive value of the audio file's sample size.
void	seekOutputToSampleNum (std::size_t pSampleNum) override
AudioFileInfo	getAudioFileInfo () const override
	Returns an AudioFile object with information about the audio file.
AudioFileResultType	setTitle (const std::string &pTitle) override
	Sets the title metadata tag.
AudioFileResultType	setArtist (const std::string &pArtist) override
	Sets the artist metadata tag.
AudioFileResultType	setAlbum (const std::string &pAlbum) override
	Sets the album metadata tag.
AudioFileResultType	setGenre (const std::string &pGenre) override
	Sets the genre metadata tag.
AudioFileResultType	setTrackNumber (std::uint32_t pTrackNumber, std::uint32_t pTotalTracks=0) override
AudioFileResultType	setYear (const std::string &pYear) override
	Sets the year/date metadata tag.
AudioFileResultType	setComment (const std::string &pComment) override
	Sets the comment metadata tag.
AudioFileResultType	getTitle (std::string &pTitle) const override
	Gets the title metadata tag.
AudioFileResultType	getArtist (std::string &pArtist) const override
	Gets the artist metadata tag.
AudioFileResultType	getAlbum (std::string &pAlbum) const override
	Gets the album metadata tag.
AudioFileResultType	getGenre (std::string &pGenre) const override
	Gets the genre metadata tag.
AudioFileResultType	getTrackNumber (std::uint32_t &pTrackNumber, std::uint32_t &pTotalTracks) const override
AudioFileResultType	getYear (std::string &pYear) const override
	Gets the year/date metadata tag.
AudioFileResultType	getComment (std::string &pComment) const override
	Gets the comment metadata tag.
	~SndFileBackedMetadataAudioFile () override
Public Member Functions inherited from EOUtils::MetadataAudioFile
	MetadataAudioFile (const std::string &pFilename)
	MetadataAudioFile (const std::string &pFilename, AudioFileModes pFileMode)
	MetadataAudioFile (const MetadataAudioFile &pOther)
virtual	~MetadataAudioFile ()
virtual AudioFileResultType	setTrackNumber (uint32_t pTrackNumber, uint32_t pTotalTracks=0)=0
	Sets the track number metadata tag.
virtual AudioFileResultType	getTrackNumber (uint32_t &pTrackNumber, uint32_t &pTotalTracks) const =0
	Gets the track number metadata tag.
Public Member Functions inherited from EOUtils::AudioFile
	AudioFile (const std::string &pFilename)
	Constructor.
	AudioFile (const std::string &pFilename, AudioFileModes pFileMode)
	AudioFile (const AudioFile &pAudioFile)
virtual	~AudioFile ()
virtual bool	BitrateIsAdjustable () const =0
	Returns whether or not the audio file bitrate is adjustable.
virtual bool	hasReadMode () const
	Returns whether or not read mode is enabled for the file.
virtual bool	hasWriteMode () const
	Returns whether or not write mode is enabled for the file.
virtual AudioFileResultType	getNextSample_int64 (int64_t &pAudioSample)=0
	Gets the next sample from the file, cast to a 64-bit integer.
virtual AudioFileResultType	writeSample_int64 (int64_t pAudioSample)=0
	Writes an audio sample to the file. The parameter is a 64-bit integer but will be cast to the bitness of the audio samples in the file.
virtual AudioFileResultType	getHighestSampleValue_int64 (int64_t &pHighestAudioSample)=0
	Gets the highest audio sample value from the file, cast to a 64-bit integer.
const std::string &	Filename () const
	Gets the filename of the audio file.
void	Filename (const std::string &pFilename)
	Setter for the filename of the audio file.
void	setMetadata (const std::string &pName, const std::string &pValue)
	Adds a piece of metadata for the audio file.
template<typename T>
void	setMetadataFromVal (const std::string &pName, const T &pValue)
	Adds a piece of metadata for the audio file. Templatized for any value type. The value will be converted to a string to store in the metadata.
AudioFileResultType	getMetadata (const std::string &pName, std::string &pValue) const
	Gets a metadata value as a string.
template<typename T>
AudioFileResultType	getMetadataAs (const std::string &pName, T &pValue) const
	Gets a metadata value. Templatized to capture the value as any type.
std::string	getMetadata (const std::string &pName) const
	Gets a metadata value.
template<typename T>
T	getMetadataAs (const std::string &pName) const
template<typename T>
T	getMetadataAs (const std::string &pName, const T &pDefaultVal) const
	Gets a metadata value. Templatized to return it as any type.
bool	hasMetadata (const std::string &pName) const
	Returns whether or not a metadata item exists.
virtual void	seekOutputToSampleNum (size_t pSampleNum)=0

Protected Member Functions
	SndFileBackedMetadataAudioFile (const std::string &pFilename)
	SndFileBackedMetadataAudioFile (const std::string &pFilename, AudioFileModes pFileMode)
	SndFileBackedMetadataAudioFile (const SndFileBackedMetadataAudioFile &pOther)
	SndFileBackedMetadataAudioFile (SndFileBackedMetadataAudioFile &&pOther) noexcept
	SndFileBackedMetadataAudioFile (const std::string &pFilename, const AudioFileInfo &pLayoutHint)
virtual bool	readFormatMatches (int pSfFullFormat) const =0
virtual int	newFileSfFormatMask () const =0
virtual const char *	formatLabel () const =0
virtual void	configureSndfileEncoderForWrite (SNDFILE *)
Protected Member Functions inherited from EOUtils::AudioFile
virtual std::streampos	fileSizeAccordingToStream ()
virtual void	setFileMode (AudioFileModes pFileMode)

Protected Attributes
AudioFileInfo	mFileLayout
Protected Attributes inherited from EOUtils::AudioFile
std::string	mFilename
std::fstream	mFileStream
std::ios_base::openmode	mFileOpenMode
size_t	mDataSizeBytes
std::map< std::string, std::string >	mMetadata

Detailed Description

Shared libsndfile-backed implementation used by MP3, Ogg Vorbis, and AIFF codecs.

Constructor & Destructor Documentation

◆ ~SndFileBackedMetadataAudioFile()

EOUtils::SndFileBackedMetadataAudioFile::~SndFileBackedMetadataAudioFile ( )

override

References close().

◆ SndFileBackedMetadataAudioFile() [1/5]

EOUtils::SndFileBackedMetadataAudioFile::SndFileBackedMetadataAudioFile ( const std::string & pFilename )

explicitprotected

◆ SndFileBackedMetadataAudioFile() [2/5]

EOUtils::SndFileBackedMetadataAudioFile::SndFileBackedMetadataAudioFile	(	const std::string &	pFilename,
		AudioFileModes	pFileMode )

explicitprotected

References EOUtils::MetadataAudioFile::MetadataAudioFile(), and mFileLayout.

◆ SndFileBackedMetadataAudioFile() [3/5]

EOUtils::SndFileBackedMetadataAudioFile::SndFileBackedMetadataAudioFile ( const SndFileBackedMetadataAudioFile & pOther )

protected

References EOUtils::MetadataAudioFile::MetadataAudioFile(), mFileLayout, and SndFileBackedMetadataAudioFile().

◆ SndFileBackedMetadataAudioFile() [4/5]

EOUtils::SndFileBackedMetadataAudioFile::SndFileBackedMetadataAudioFile ( SndFileBackedMetadataAudioFile && pOther )

protectednoexcept

References EOUtils::MetadataAudioFile::MetadataAudioFile(), mFileLayout, and SndFileBackedMetadataAudioFile().

◆ SndFileBackedMetadataAudioFile() [5/5]

EOUtils::SndFileBackedMetadataAudioFile::SndFileBackedMetadataAudioFile	(	const std::string &	pFilename,
		const AudioFileInfo &	pLayoutHint )

explicitprotected

References EOUtils::MetadataAudioFile::MetadataAudioFile(), and mFileLayout.

Member Function Documentation

◆ close()

void EOUtils::SndFileBackedMetadataAudioFile::close ( )

overridevirtual

Closes the audio file.

Reimplemented from EOUtils::AudioFile.

References EOUtils::AudioFile::close().

Referenced by open(), and ~SndFileBackedMetadataAudioFile().

◆ configureSndfileEncoderForWrite()

virtual void EOUtils::SndFileBackedMetadataAudioFile::configureSndfileEncoderForWrite ( SNDFILE * )

inlineprotectedvirtual

After a successful SFM_WRITE open, codecs may tweak the encoder via sf_command. Default: no-op.

Reimplemented in EOUtils::MP3File, and EOUtils::OggFile.

Referenced by open().

◆ formatLabel()

virtual const char * EOUtils::SndFileBackedMetadataAudioFile::formatLabel ( ) const

protectedpure virtual

Implemented in EOUtils::AiffFile, EOUtils::MP3File, and EOUtils::OggFile.

Referenced by getHighestSampleValue_int64(), getNextSample_int64(), goToAudioDataPos(), open(), and writeSample_int64().

◆ getAlbum()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::getAlbum ( std::string & pAlbum ) const

overridevirtual

Gets the album metadata tag.

Parameters

[out] pAlbum Will receive the album string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ getArtist()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::getArtist ( std::string & pArtist ) const

overridevirtual

Gets the artist metadata tag.

Parameters

[out] pArtist Will receive the artist string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ getAudioFileInfo()

AudioFileInfo EOUtils::SndFileBackedMetadataAudioFile::getAudioFileInfo ( ) const

overridevirtual

Returns an AudioFile object with information about the audio file.

Implements EOUtils::AudioFile.

References mFileLayout.

◆ getComment()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::getComment ( std::string & pComment ) const

overridevirtual

Gets the comment metadata tag.

Parameters

[out] pComment Will receive the comment string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ getGenre()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::getGenre ( std::string & pGenre ) const

overridevirtual

Gets the genre metadata tag.

Parameters

[out] pGenre Will receive the genre string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ getHighestSampleValue_int64()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::getHighestSampleValue_int64 ( std::int64_t & pHighestAudioSample )

override

References EOUtils::AudioFileResultType::addError(), formatLabel(), goToAudioDataPos(), EOUtils::sndfile_detail::maxSampleValueForFormat(), and mFileLayout.

◆ getNextSample_int64()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::getNextSample_int64 ( std::int64_t & pAudioSample )

override

References EOUtils::AudioFileResultType::addError(), formatLabel(), EOUtils::AudioFile::hasReadMode(), EOUtils::sndfile_detail::maxSampleValueForFormat(), mFileLayout, and EOUtils::AudioFile::mFilename.

◆ getTitle()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::getTitle ( std::string & pTitle ) const

overridevirtual

Gets the title metadata tag.

Parameters

[out] pTitle Will receive the title string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ getTrackNumber()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::getTrackNumber	(	std::uint32_t &	pTrackNumber,
		std::uint32_t &	pTotalTracks ) const

override

References EOUtils::AudioFileResultType::addError().

◆ getYear()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::getYear ( std::string & pYear ) const

overridevirtual

Gets the year/date metadata tag.

Parameters

[out] pYear Will receive the year string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ goToAudioDataPos()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::goToAudioDataPos ( )

overridevirtual

Goes to the audio data position in the audio file.

Implements EOUtils::AudioFile.

References EOUtils::AudioFileResultType::addError(), formatLabel(), and EOUtils::AudioFile::mFilename.

Referenced by getHighestSampleValue_int64().

◆ isOpen()

bool EOUtils::SndFileBackedMetadataAudioFile::isOpen ( ) const

overridevirtual

Returns whether or not the audio file is open.

Reimplemented from EOUtils::AudioFile.

◆ maxValueForSampleSize()

std::int64_t EOUtils::SndFileBackedMetadataAudioFile::maxValueForSampleSize ( ) const

overridevirtual

Returns the maximum possible positive value of the audio file's sample size.

Implements EOUtils::AudioFile.

References EOUtils::sndfile_detail::maxSampleValueForFormat(), and mFileLayout.

◆ newFileSfFormatMask()

virtual int EOUtils::SndFileBackedMetadataAudioFile::newFileSfFormatMask ( ) const

protectedpure virtual

Implemented in EOUtils::AiffFile, EOUtils::MP3File, and EOUtils::OggFile.

Referenced by open().

◆ numSamples()

std::size_t EOUtils::SndFileBackedMetadataAudioFile::numSamples ( ) const

overridevirtual

Returns the number of audio samples in the audio file.

Implements EOUtils::AudioFile.

References EOUtils::AudioFile::mDataSizeBytes, mFileLayout, and EOUtils::AudioFile::mFilename.

◆ open()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::open ( AudioFileModes pOpenMode )

overridevirtual

Reimplemented from EOUtils::AudioFile.

References EOUtils::AudioFileResultType::addError(), close(), configureSndfileEncoderForWrite(), formatLabel(), EOUtils::AudioFile::hasReadMode(), EOUtils::AudioFile::hasWriteMode(), EOUtils::AudioFile::mDataSizeBytes, mFileLayout, EOUtils::AudioFile::mFilename, newFileSfFormatMask(), readFormatMatches(), EOUtils::sndfile_detail::safeFileSize(), EOUtils::AudioFile::setFileMode(), and EOUtils::sndfile_detail::sfInfoToAudioFileInfo().

Referenced by EOUtils::AiffFile::open(), EOUtils::MP3File::open(), and EOUtils::OggFile::open().

◆ readFormatMatches()

virtual bool EOUtils::SndFileBackedMetadataAudioFile::readFormatMatches ( int pSfFullFormat ) const

protectedpure virtual

Implemented in EOUtils::AiffFile, EOUtils::MP3File, and EOUtils::OggFile.

Referenced by open().

◆ seekOutputToSampleNum()

void EOUtils::SndFileBackedMetadataAudioFile::seekOutputToSampleNum ( std::size_t pSampleNum )

override

References EOUtils::AudioFile::hasWriteMode(), EOUtils::AudioFile::mDataSizeBytes, and mFileLayout.

◆ setAlbum()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::setAlbum ( const std::string & pAlbum )

overridevirtual

Sets the album metadata tag.

Parameters

[in] pAlbum The album string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ setArtist()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::setArtist ( const std::string & pArtist )

overridevirtual

Sets the artist metadata tag.

Parameters

[in] pArtist The artist string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ setAudioFileInfo()

void EOUtils::SndFileBackedMetadataAudioFile::setAudioFileInfo ( const AudioFileInfo & pAudioFileInfo )

overridevirtual

Implements EOUtils::AudioFile.

References mFileLayout.

Referenced by EOUtils::AiffFile::setAudioFileInfo(), EOUtils::MP3File::setAudioFileInfo(), and EOUtils::OggFile::setAudioFileInfo().

◆ setComment()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::setComment ( const std::string & pComment )

overridevirtual

Sets the comment metadata tag.

Parameters

[in] pComment The comment string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ setGenre()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::setGenre ( const std::string & pGenre )

overridevirtual

Sets the genre metadata tag.

Parameters

[in] pGenre The genre string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ setTitle()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::setTitle ( const std::string & pTitle )

overridevirtual

Sets the title metadata tag.

Parameters

[in] pTitle The title string

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ setTrackNumber()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::setTrackNumber	(	std::uint32_t	pTrackNumber,
		std::uint32_t	pTotalTracks = 0 )

override

◆ setYear()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::setYear ( const std::string & pYear )

overridevirtual

Sets the year/date metadata tag.

Parameters

[in] pYear The year string (e.g., "2024")

Returns: An AudioFileResultType with errors on failure

Implements EOUtils::MetadataAudioFile.

◆ writeSample_int64()

AudioFileResultType EOUtils::SndFileBackedMetadataAudioFile::writeSample_int64 ( std::int64_t pAudioSample )

override

References EOUtils::AudioFileResultType::addError(), EOUtils::sndfile_detail::formatErrorSuffix(), formatLabel(), EOUtils::AudioFile::hasWriteMode(), EOUtils::sndfile_detail::maxSampleValueForFormat(), mFileLayout, and EOUtils::AudioFile::mFilename.

Member Data Documentation

◆ mFileLayout

AudioFileInfo EOUtils::SndFileBackedMetadataAudioFile::mFileLayout

protected

Referenced by EOUtils::AiffFile::AiffFile(), EOUtils::AiffFile::AiffFile(), EOUtils::MP3File::configureSndfileEncoderForWrite(), EOUtils::OggFile::configureSndfileEncoderForWrite(), getAudioFileInfo(), getHighestSampleValue_int64(), getNextSample_int64(), maxValueForSampleSize(), EOUtils::MP3File::MP3File(), EOUtils::MP3File::MP3File(), EOUtils::MP3File::MP3File(), EOUtils::MP3File::MP3File(), EOUtils::AiffFile::newFileSfFormatMask(), numSamples(), EOUtils::OggFile::OggFile(), EOUtils::OggFile::OggFile(), EOUtils::OggFile::OggFile(), EOUtils::OggFile::OggFile(), EOUtils::AiffFile::open(), EOUtils::MP3File::open(), EOUtils::OggFile::open(), open(), seekOutputToSampleNum(), setAudioFileInfo(), SndFileBackedMetadataAudioFile(), SndFileBackedMetadataAudioFile(), SndFileBackedMetadataAudioFile(), SndFileBackedMetadataAudioFile(), SndFileBackedMetadataAudioFile(), and writeSample_int64().

The documentation for this class was generated from the following files:

/home/erico/projects/audio_mixer_cpp/code/common/SndFileBackedMetadataAudioFile.h
/home/erico/projects/audio_mixer_cpp/code/common/SndFileBackedMetadataAudioFile.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~SndFileBackedMetadataAudioFile()

◆ SndFileBackedMetadataAudioFile() [1/5]

◆ SndFileBackedMetadataAudioFile() [2/5]

◆ SndFileBackedMetadataAudioFile() [3/5]

◆ SndFileBackedMetadataAudioFile() [4/5]

◆ SndFileBackedMetadataAudioFile() [5/5]

Member Function Documentation

◆ close()

◆ configureSndfileEncoderForWrite()

◆ formatLabel()

◆ getAlbum()

◆ getArtist()

◆ getAudioFileInfo()

◆ getComment()

◆ getGenre()

◆ getHighestSampleValue_int64()

◆ getNextSample_int64()

◆ getTitle()

◆ getTrackNumber()

◆ getYear()

◆ goToAudioDataPos()

◆ isOpen()

◆ maxValueForSampleSize()

◆ newFileSfFormatMask()

◆ numSamples()

◆ open()

◆ readFormatMatches()

◆ seekOutputToSampleNum()

◆ setAlbum()

◆ setArtist()

◆ setAudioFileInfo()

◆ setComment()

◆ setGenre()

◆ setTitle()

◆ setTrackNumber()

◆ setYear()

◆ writeSample_int64()

Member Data Documentation

◆ mFileLayout
