cx::cxFunction Class Reference

Base class for cxFunction2 and cxFunction4. This class is pure. More...

#include <cxFunction.h>

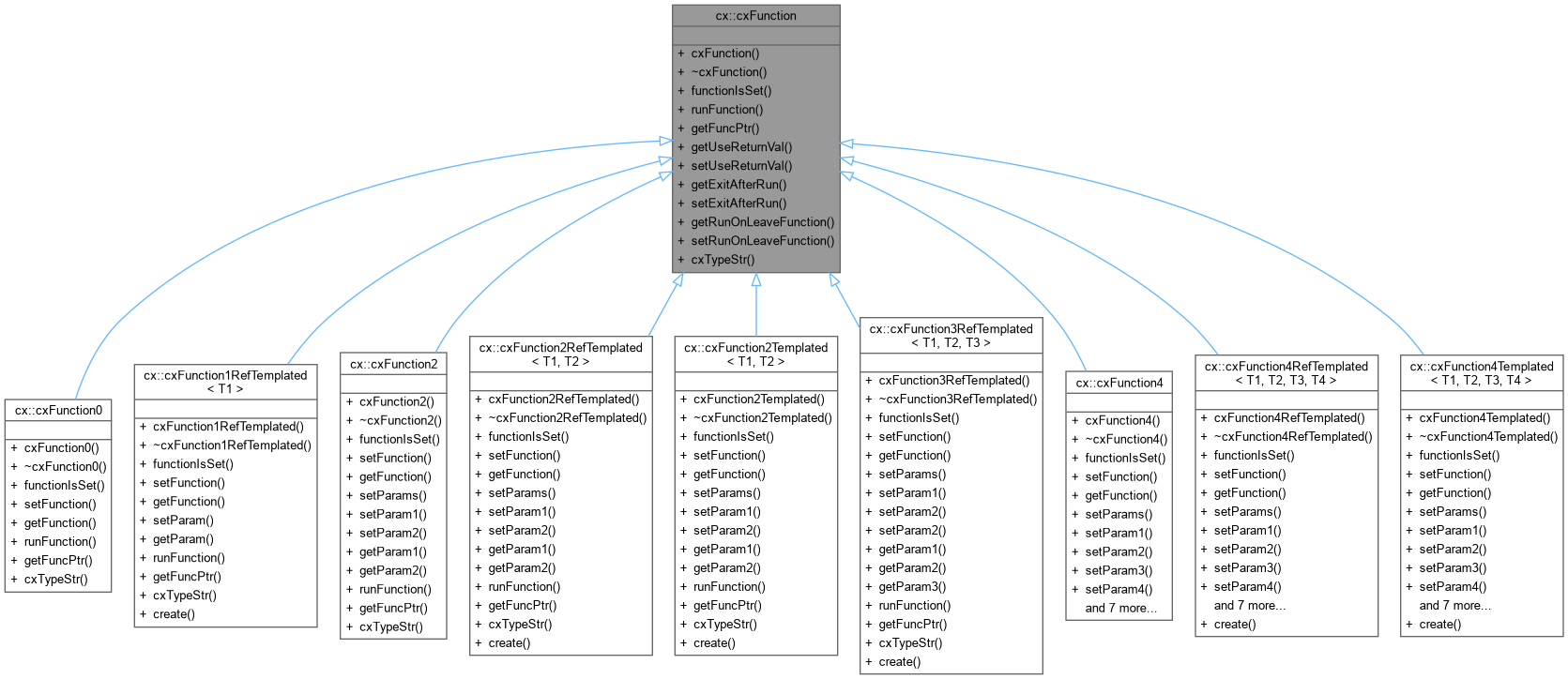

Inheritance diagram for cx::cxFunction:

Collaboration diagram for cx::cxFunction:

Public Member Functions
	cxFunction (bool pUseReturnVal, bool pExitAfterRun, bool pRunOnLeaveFunction)
	Constructor.
virtual	~cxFunction ()
virtual bool	functionIsSet () const =0
virtual std::string	runFunction () const =0
	Runs the function pointed to by the cxFunction. This is a.
virtual void *	getFuncPtr () const =0
virtual bool	getUseReturnVal () const
	Accessor for whether the caller should use the return value.
virtual void	setUseReturnVal (bool pUseReturnVal)
	Setter for whether or not the caller should make use of the return value.
virtual bool	getExitAfterRun () const
	Accessor for whether the caller should exit after the function.
virtual void	setExitAfterRun (bool pExitAfterRun)
	Setter for whether or not the caller should quit what.
virtual bool	getRunOnLeaveFunction () const
	Accessor for whether the caller should run its onLeave function.
virtual void	setRunOnLeaveFunction (bool pRunOnLeaveFunction)
	Setter for whether or not the caller should run its.
virtual std::string	cxTypeStr () const =0
	Returns the name of the class (either "cxFunction2".

Detailed Description

Base class for cxFunction2 and cxFunction4. This class is pure.

virtual, and this can be used in collections where a set of

cxFunction2 and/or cxFunction4 objects are needed.

Constructor & Destructor Documentation

cxFunction()

cx::cxFunction::cxFunction	(	bool	pUseReturnVal,
		bool	pExitAfterRun,
		bool	pRunOnLeaveFunction
	)

Constructor.

Parameters

pUseReturnVal	Whether or not the caller should use the return value of the function
pExitAfterRun	Whether or not the caller should exit after the function is run
pRunOnLeaveFunction	Whether or not the caller should run its onLeave function after the function runs (if pExitAfterRun is true)

~cxFunction()

cx::cxFunction::~cxFunction ( )

virtual

Member Function Documentation

cxTypeStr()

virtual std::string cx::cxFunction::cxTypeStr ( ) const

pure virtual

Returns the name of the class (either "cxFunction2".

or "cxFunction4", depending on the derived implementation).

Returns

The name of the cxWidgets class.

Implemented in cx::cxFunction0, cx::cxFunction2, cx::cxFunction4, cx::cxFunction2Templated< T1, T2 >, cx::cxFunction1RefTemplated< T1 >, cx::cxFunction2RefTemplated< T1, T2 >, cx::cxFunction3RefTemplated< T1, T2, T3 >, cx::cxFunction4Templated< T1, T2, T3, T4 >, and cx::cxFunction4RefTemplated< T1, T2, T3, T4 >.

functionIsSet()

virtual bool cx::cxFunction::functionIsSet ( ) const

pure virtual

Returns whether the internal function pointer is set (non-null).

Returns

Returns true if the internal function pointer is set (not null), or false otherwise.

Implemented in cx::cxFunction0, cx::cxFunction2, cx::cxFunction4, cx::cxFunction2Templated< T1, T2 >, cx::cxFunction1RefTemplated< T1 >, cx::cxFunction2RefTemplated< T1, T2 >, cx::cxFunction3RefTemplated< T1, T2, T3 >, cx::cxFunction4Templated< T1, T2, T3, T4 >, and cx::cxFunction4RefTemplated< T1, T2, T3, T4 >.

getExitAfterRun()

bool cx::cxFunction::getExitAfterRun ( ) const

virtual

Accessor for whether the caller should exit after the function.

is run.

Returns

Whether or not the caller should exit after the function is run

getFuncPtr()

virtual void * cx::cxFunction::getFuncPtr ( ) const

pure virtual

Implemented in cx::cxFunction0, cx::cxFunction2, cx::cxFunction4, cx::cxFunction2Templated< T1, T2 >, cx::cxFunction1RefTemplated< T1 >, cx::cxFunction2RefTemplated< T1, T2 >, cx::cxFunction3RefTemplated< T1, T2, T3 >, cx::cxFunction4Templated< T1, T2, T3, T4 >, and cx::cxFunction4RefTemplated< T1, T2, T3, T4 >.

getRunOnLeaveFunction()

bool cx::cxFunction::getRunOnLeaveFunction ( ) const

virtual

Accessor for whether the caller should run its onLeave function.

after the function is run (if exitAfterRun is true).

Returns

Whether or not the caller should run its onLeav function after the function is run (if exitAfterRun is true).

getUseReturnVal()

bool cx::cxFunction::getUseReturnVal ( ) const

virtual

Accessor for whether the caller should use the return value.

of the function.

Returns

Whether or not the caller should use the return value of the function

runFunction()

virtual std::string cx::cxFunction::runFunction ( ) const

pure virtual

Runs the function pointed to by the cxFunction. This is a.

pure virtual method and must be overridden in deriving classes.

Returns

Returns return value of function pointed to if pointer is not null, otherwise returns empty string.

Implemented in cx::cxFunction0, cx::cxFunction2, cx::cxFunction4, cx::cxFunction2Templated< T1, T2 >, cx::cxFunction1RefTemplated< T1 >, cx::cxFunction2RefTemplated< T1, T2 >, cx::cxFunction3RefTemplated< T1, T2, T3 >, cx::cxFunction4Templated< T1, T2, T3, T4 >, and cx::cxFunction4RefTemplated< T1, T2, T3, T4 >.

setExitAfterRun()

void cx::cxFunction::setExitAfterRun ( bool  pExitAfterRun )

virtual

Setter for whether or not the caller should quit what.

it's doing (i.e., input loops, etc.) after the function is run.

Parameters

pExitAfterRun

Whether or nto the caller should quit what it's doing after the function is run.

setRunOnLeaveFunction()

void cx::cxFunction::setRunOnLeaveFunction ( bool  pRunOnLeaveFunction )

virtual

Setter for whether or not the caller should run its.

onLeave function when it exits after running the function.

This is useful if mExitAfterRun is true.

Parameters

pRunOnLeaveFunction

Whether or not the caller should run its onLeave function when it exits after running the function.

setUseReturnVal()

void cx::cxFunction::setUseReturnVal ( bool  pUseReturnVal )

virtual

Setter for whether or not the caller should make use of the return value.

Parameters

pUseReturnVal

Whether or nto the caller should make use of the return value

---

The documentation for this class was generated from the following files:

• /home/erico/projects/cxWidgets/src/cxFunction.h
• /home/erico/projects/cxWidgets/src/cxFunction.cpp
