#include <cxButton.h>

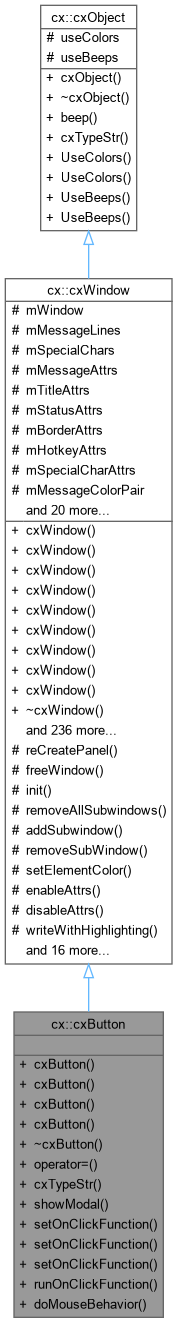

Inheritance diagram for cx::cxButton:

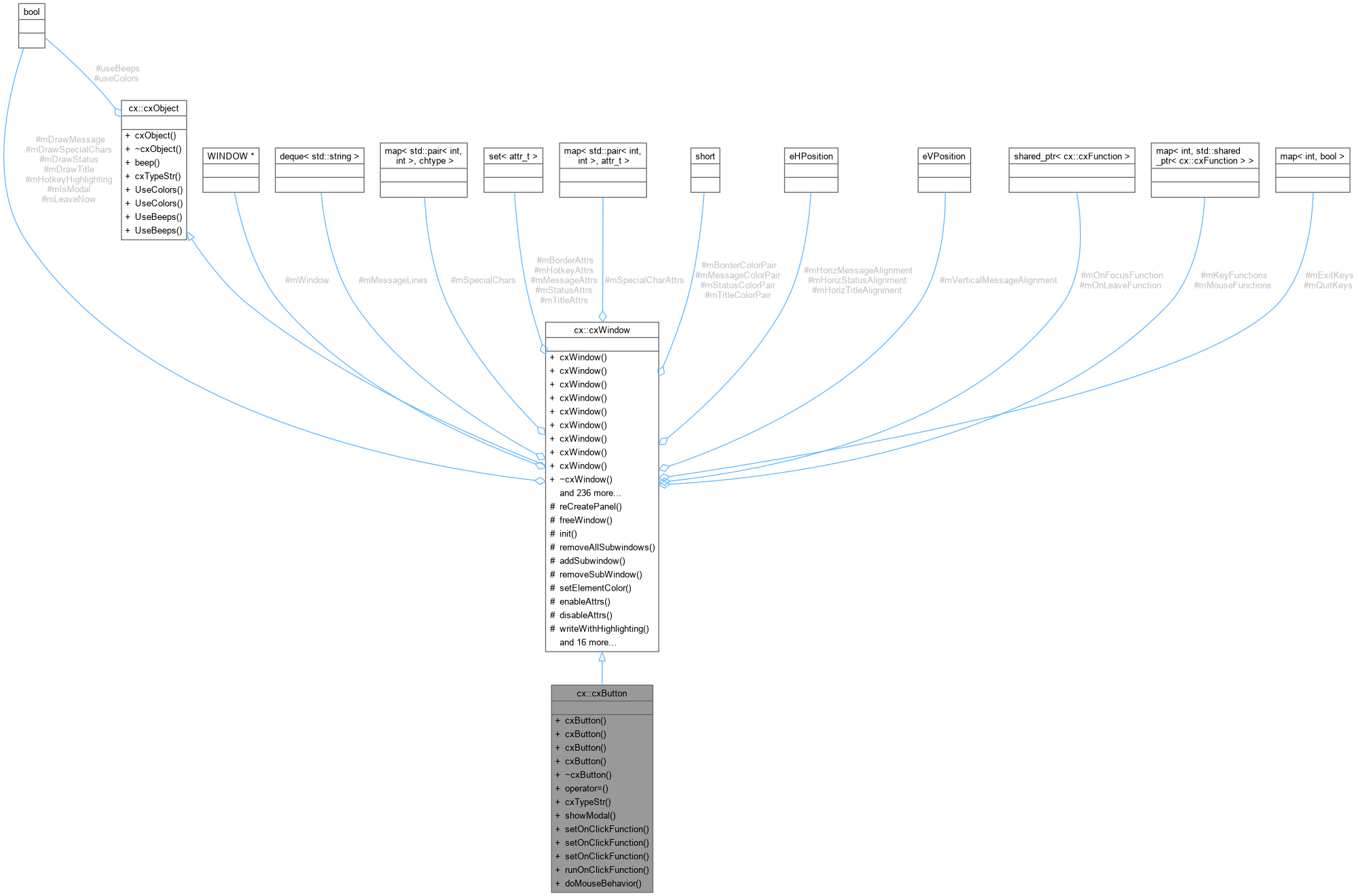

Collaboration diagram for cx::cxButton:

Public Member Functions
	cxButton (cxWindow *pParentWindowPtr=nullptr, int pRow=0, int pCol=0, int pHeight=3, int pWidth=5, const std::string &pLabel="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE)
	Default constructor.

	cxButton (cxWindow pParentWindowPtr, int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, eBorderStyle pBorderStyle, funcPtr4 pFunction, void p1=nullptr, void p2=nullptr, void p3=nullptr, void *p4=nullptr)
	Constructor that sets up the button with a 4-parameter function.

	cxButton (cxWindow pParentWindowPtr, int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, eBorderStyle pBorderStyle, funcPtr2 pFunction, void p1=nullptr, void *p2=nullptr)
	Constructor that sets up the button with a 2-parameter function.

	cxButton (const cxButton &pButton)
	Copy constructor.

virtual	~cxButton ()

cxButton &	operator= (const cxButton &pButton)
	Assignment operator.

virtual std::string	cxTypeStr () const override
	Returns the name of the cxWidgets class. This can be used to.

virtual long	showModal (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true) override
	Shows the button and waits for input. Fires the button's set.

virtual void	setOnClickFunction (funcPtr4 pFunction, void p1, void p2, void p3, void p4)
	Sets the "on click" function pointer for the button. When.

virtual void	setOnClickFunction (funcPtr2 pFunction, void p1, void p2)
	Sets the "on click" function pointer for the button. When.

virtual void	setOnClickFunction (funcPtr0 pFunction)
	Sets the "on click" function pointer for the button. When.

virtual std::string	runOnClickFunction ()
	Runs the onClick function, if it's set.

virtual void	doMouseBehavior () override
	If the last mouse event occurred in the button, this will run.

Public Member Functions inherited from cx::cxWindow
	cxWindow (cxWindow pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", const std::string &pMessage="", const std::string &pStatus="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Default constructor.

	cxWindow (cxWindow pParentWindow, int pRow, int pCol, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor.

	cxWindow (cxWindow pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, const std::string &pMessage, const std::string &pStatus, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, const std::string &pMessage, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, eHPosition pHPosition, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Lets you specify the horizontal position.

	cxWindow (const cxWindow &pThatWindow)
	Copy constructor.

virtual	~cxWindow ()

virtual void	centerHoriz (bool pRefresh=true)
	Centers the window horizontally on the screen.

virtual void	alignHoriz (eHPosition pPosition, bool pRefresh=true)
	Aligns the window horizontally on the screen.

virtual void	centerVert (bool pRefresh=true)
	Centers the window vertically on the screen.

virtual void	alignVert (eVPosition pPosition, bool pRefresh=true)
	Aligns the window vertically on the screen.

virtual void	center (bool pRefresh=true)
	Centers the window on the screen.

virtual std::string	getTitle () const
	Accessor for title text - Returns the first string in the.

virtual void	setTitle (const std::string &pTitle, bool pRefreshTitle=true)
	Setter for the title text - This sets the first string in the.

std::string	getStatus () const
	Accessor for the status line text.

virtual void	setStatus (const std::string &pStatus, bool pRefreshStatus=true)
	Mutator for the status line text.

std::string	getMessage () const
	Returns the message that appears in the window, concatenating all message lines together.

virtual void	setMessage (const std::string &pMessage)
	Sets the text that appears within the window.

virtual void	addMessageLineBelow (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.

virtual void	addMessageLinesBelow (const std::vector< std::string > &pLines)
	Adds lines to the message below the current message text.

virtual void	addMessageLinesBelow (const std::list< std::string > &pLines)
	Adds lines to the message below the current message text.

virtual void	addMessageLinesBelow (const std::deque< std::string > &pLines)
	Adds lines to the message below the current message text.

virtual void	addMessageLineAbove (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.

virtual void	addMessageLinesAbove (const std::vector< std::string > &pLines)
	Adds lines to the message above the current message text.

virtual void	addMessageLinesAbove (const std::list< std::string > &pLines)
	Adds lines to the message above the current message text.

virtual void	addMessageLinesAbove (const std::deque< std::string > &pLines)
	Adds lines to the message above the current message text.

virtual void	setMessageLines (const std::vector< std::string > &pLines)
	Sets the message lines in the window.

virtual void	setMessageLines (const std::list< std::string > &pLines)
	Sets the message lines in the window.

virtual void	setMessageLines (const std::deque< std::string > &pLines)
	Sets the message lines in the window.

virtual void	removeMessageLine (unsigned pIndex)
	Removes a line from the text inside the window (by index).

virtual void	setMessageLine (unsigned pIndex, const std::string &pLine)
	Modifies one of the lines displayed in the window.

void	setHorizTitleAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the title text.

eHPosition	getHorizTitleAlignment () const
	Accessor for the title text alignment.

void	setHorizMessageAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the message text.

eHPosition	getHorizMessageAlignment () const
	Accessor for the horizontal message text alignment.

void	setHorizStatusAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the status text.

eHPosition	getHorizStatusAlignment () const
	Accessor for the horizontal status text alignment.

void	setVerticalMessageAlignment (eVPosition pVAlignment)
	Sets the vertical alignment of the message text.

eVPosition	getVerticalMessageAlignment () const
	Accessor for the vertical message text alignment.

void	setExtTitleWindow (cxWindow *pWindow, bool pRefreshTitle=true)
	Sets an external cxWindow object to be used for the title, rather.

cxWindow *	getExtTitleWindow () const
	Accessor for the external title window pointer.

void	setExtStatusWindow (cxWindow *pWindow, bool pRefreshStatus=true)
	Sets an external cxWindow object to be used for status, rather.

cxWindow *	getExtStatusWindow () const
	Accessor for the external status window pointer.

bool	isHidden () const
	Returns whether or not the window is hidden.

virtual long	show (bool pBringToTop=false, bool pShowSubwindows=true)
	Shows the window.

virtual bool	modalGetsKeypress () const
	Returns whether or not a call to showModal() will wait for a.

virtual long	setFocus (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true)
	Alias for showModal()

virtual void	setFocusColors ()
	Turns on the ncurses attribute A_REVERSE for the window to.

virtual void	setFocusColors (attr_t pAttr)
	Turns on the ncurses attribute pAttr for the window to.

virtual void	unSetFocusColors ()
	Disables focus for this window and unhighlights the message.

virtual void	unSetFocusColors (attr_t pAttr)
	Disables focus for this window and un-highlights the message (using pAttr)

virtual void	erase (bool pEraseSubwindows=true)
	Erases the window.

virtual void	bringToTop (bool pRefresh=true)
	Brings the window to the top.

virtual void	bringToBottom (bool pRefresh=false)
	Puts the window on the bottom of all other windows.

virtual bool	isOnTop () const
	Returns whether the window is on top of all other windows.

virtual bool	isOnBottom () const
	Returns whether the window is on the bottom of all other windows.

virtual bool	isAbove (const cxWindow &pThatWindow) const
	Returns whether the window is above another window.

virtual bool	isBelow (const cxWindow &pThatWindow) const
	Returns whether a window is below another window.

virtual void	hide (bool pHideSubwindows=true)
	Hides the window.

virtual void	unhide (bool pUnhideSubwindows=true)
	Un-hides the window.

void	touchWindow ()
	Marks the window's entire content as dirty so that the next.

virtual void	drawBorder (int pRow, int pCol, int pHeight, int pWidth, bool pTop=true, bool pBottom=true, bool pLeft=true, bool pRight=true)
	Draws the border (based on the border style)

virtual void	drawBorder (int pHeight, int pWidth)
	Draws a box in the window.

virtual void	drawBorder ()
	Draws a box for the window border.

virtual int	top () const
	Returns the top row of the window.

virtual int	centerRow () const
	Returns the center row of the window.

virtual int	bottom () const
	Returns the bottom row of the window.

virtual int	left () const
	Returns the left column of the window.

virtual int	centerCol () const
	Returns the center column of the window.

virtual int	right () const
	Returns the right column of the window.

virtual int	width (int pWidth)
	Changes the width of the window.

virtual int	width () const
	Returns the width of the window.

virtual int	height (int pHeight)
	Changes the height of the window.

virtual int	height () const
	Returns the height of the window.

virtual void	getRect (int &pTop, int &pLeft, int &pBottom, int &pRight)
	Returns the coordinates of the rectangle defining the window.

virtual bool	pointIsInWindow (int pY, int pX) const
	Returns whether a screen location is in the window (including.

virtual bool	pointIsInTitle (int pY, int pX) const
	Returns whether a screen location is in the title of the window.

virtual void	getSize (int &pHeight, int &pWidth)
	Returns the height & width of the window.

virtual void	addAttr (e_WidgetItems pItem, attr_t pAttr)
	Adds an ncurses attribute to use for one of the items in the.

virtual void	setAttr (e_WidgetItems pItem, attr_t pAttr)
	Sets the ncurses attribute to use for one of the items in the.

virtual void	removeAttr (e_WidgetItems pItem, attr_t pAttr)
	Removes an ncurses attribute from one of the item lists.

virtual void	removeAttrs (e_WidgetItems pItem)
	Removes all attributes for a given window item.

virtual void	getAttrs (e_WidgetItems pItem, std::set< attr_t > &pAttrs) const
	Returns the set of ncurses attributes for a given item.

virtual void	resize (int pNewHeight, int pNewWidth, bool pRefresh=true)
	Changes the window's width and height. The window's upper-left.

virtual bool	move (int pNewRow, int pNewCol, bool pRefresh=true)
	Changes the window's position, based on a new upper-left corner.

virtual bool	moveRelative (int pVerticalOffset, int pHorizOffset, bool pRefresh=true)
	Changes the window's position via vertical & horizontal offsets.

unsigned	numSubWindows ()
	Returns the number of subwindows in this window.

void	setSubWinMessage (unsigned pIndex, const std::string &pMessage)
	Sets the message of one of the subwindows (by index).

void	setSubWinMessage (const std::string &pTitle, const std::string &pMessage)
	Sets the message of one of the subwindows (by title).

virtual bool	hasFocus () const
	Returns true if window has focus, false otherwise.

virtual void	setBorderStyle (eBorderStyle pBorderStyle)
	Sets the border style.

eBorderStyle	getBorderStyle () const
	Returns the border style.

bool	hasBorder () const
	Does this window have a border?

virtual cxWindow *	getParent () const
	Returns a pointer to the parent window.

void	setParent (cxWindow *pNewParent)
	Changes the pointer to the parent window; changes the parent window.

virtual void	dump (std::string &pResult)
	Returns a string containing all the characters.

virtual void	showSubwindows (bool pBringToTop=true, bool pShowSubwindows=true)
	Shows the subwindows for the window.

cxWindow &	operator= (const cxWindow &pThatWindow)
	Assignment operator.

virtual void	writeText (int pRow, int pCol, const std::string &pText, bool pRefresh=true)
	Writes text on the window. Note that the text is not permanant, so.

virtual void	setHotkeyHighlighting (bool pHotkeyHighlighting)
	Enables/disables the use of hotkey attributes when writing the message.

bool	getHotkeyHighlighting () const
	Returns whether hotkey attributes are used when writing the message.

virtual bool	isEnabled () const
	Returns whether or not the window is enabled.

virtual void	setEnabled (bool pEnabled)
	Enables or disables the window. If the window is.

virtual void	setDisableCursorOnShow (bool pDisableCursorOnShow)
	Sets whether the window should disable the cursor.

virtual bool	getDisableCursorOnShow () const
	Returns whether or not the window will disable.

virtual bool	getExitOnMouseOutside () const
	Returns whether the window exits its modal input loop when.

virtual void	setExitOnMouseOutside (bool pExitOnMouseOutside)
	Sets whether the window should exit its modal input loop.

virtual int	getLastKey () const
	Returns the last key pressed by the user (for showModal(), etc.)

virtual void	setLastKey (int pLastKey)
	Sets the last keypress.

virtual bool	lastKeyWasMouseEvt () const
	Returns whether or not the last keypress was a mouse event.

virtual void	getLastMouseEvtCoords (int &pY, int &pX)
	Returns the coordinates of the last mouse event in the window.

virtual bool	getChangeColorsOnFocus () const
	Returns whether the window will change.

virtual void	setChangeColorsOnFocus (bool pChangeColorsOnFocus)
	Sets whether colors should change when focus.

virtual void	setOnFocusFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on focus" function.

virtual void	setOnFocusFunction (funcPtr4 pFunction, void p1, void p2, void p3, void p4, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.

virtual void	setOnFocusFunction (funcPtr2 pFunction, void p1, void p2, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.

virtual void	setOnFocusFunction (funcPtr0 pFunction, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.

virtual void	setOnLeaveFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on leave" function.

virtual void	setOnLeaveFunction (funcPtr4 pFunction, void p1, void p2, void p3, void p4)
	Sets the "on leave" function pointer.

virtual void	setOnLeaveFunction (funcPtr2 pFunction, void p1, void p2)
	Sets the "on focus" function pointer.

virtual void	setOnLeaveFunction (funcPtr0 pFunction)
	Sets the "on focus" function pointer.

virtual bool	runOnFocusFunction (std::string *pFunctionRetval=nullptr)
	Runs the onFocus function, if it's set.

virtual bool	runOnLeaveFunction (std::string *pFunctionRetval=nullptr)
	Runs the onLeave function, if it's set. However, if the last.

virtual void	toggleOnFocusFunction (bool pRunOnFocus)
	Sets whether or not the onFocus function should run.

virtual void	toggleOnLeaveFunction (bool pRunOnLeave)
	Sets whether or not the onLeave function should run.

virtual bool	onFocusFunctionEnabled () const
	Returns whether or not the onFocus function is set to run.

virtual bool	onLeaveFunctionEnabled () const
	Returns whether or not the onLeave function is set to run.

virtual const std::shared_ptr< cxFunction > &	getOnFocusFunction () const
	Accessor for the onFocus function.

virtual const std::shared_ptr< cxFunction > &	getOnLeaveFunction () const
	Accessor for the onLeave function.

virtual bool	isModal () const
	Returns whether or not the window is currently.

virtual bool	setKeyFunction (int pKey, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called when a key is pressed.

virtual bool	setKeyFunction (int pKey, funcPtr4 pFunction, void p1, void p2, void p3, void p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed.

virtual bool	setKeyFunction (int pKey, funcPtr2 pFunction, void p1, void p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed.

virtual bool	setKeyFunction (int pKey, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed. This.

virtual void	clearKeyFunction (int pKey)
	Removes a function pointer for a keypress so that it will no.

virtual void	clearKeyFunctionByPtr (funcPtr4 pFunction)
	Removes a keypress function pointer.

virtual void	clearKeyFunctionByPtr (funcPtr2 pFunction)
	Removes a keypress function pointer.

virtual void	clearKeyFunctionByPtr (funcPtr0 pFunction)
	Removes a keypress function pointer.

virtual void	clearKeyFunctions ()
	Clears the list of external functions fired by hotkeys.

virtual bool	hasKeyFunction (int pKey) const
	Returns whether an external function exists for a keypress.

virtual bool	setMouseFunction (int pMouseState, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called for a certain mouse state.

virtual bool	setMouseFunction (int pMouseState, funcPtr4 pFunction, void p1, void p2, void p3, void p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.

virtual bool	setMouseFunction (int pMouseState, funcPtr2 pFunction, void p1, void p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.

virtual bool	setMouseFunction (int pMouseState, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state. This.

virtual void	clearMouseFunction (int pMouseState)
	Removes a function pointer for a mouse event so that it will.

virtual void	clearMouseFunctions ()
	Clears the list of external functions fired by mouse events.

virtual bool	hasMouseFunction (int pMouseState) const
	Returns whether an external function exists for a mouse event.

std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_begin ()
	Returns a begin iterator to the map of cxFunction pointers.

std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_end ()
	Returns an end iterator to the map of cxFunction pointers.

virtual void	getFunctionKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.

virtual void	getFunctionKeys (std::vector< int > &pKeys) const
	Populates a collection with integers representing the keys.

virtual void	setShowSubwinsForward (bool pShowSubwinsForward)
	Toggles the order in which subwindows will be shown.

virtual bool	getShowSubwinsForward () const
	Returns whether or not the subwindows will be shown.

virtual void	setShowSelfBeforeSubwins (bool pShowSelfBeforeSubwins)
	Sets whether the window will show itself before.

virtual bool	getShowSelfBeforeSubwins () const
	Returns whether or not the window will show itself before.

virtual long	getReturnCode () const
	Returns the return code set by the last call to.

virtual bool	addTitleString (int pHPos, const std::string &pStr, bool pRefreshTitle=false)
	Adds/sets a string to appear in the title at.

virtual std::string	getTitleString (int pHPos) const
	Returns the title string set at a given horizontal position.

virtual std::map< int, std::string >	getTitleStrings () const
	Returns the map of title strings for the window.

virtual void	getTitleStrings (std::map< int, std::string > &pTitleStrings) const
	Returns the map of title strings for the window (using an.

virtual void	setTitleStrings (const std::map< int, std::string > &pTitleStrings)
	Sets all the title strings via a map of horizontal.

virtual void	removeTitleString (int pHPos)
	Removes a title string at a given horizontal position.

virtual void	removeTitleStrings ()
	Removes all title strings.

virtual bool	addStatusString (int pHPos, const std::string &pStr, bool pRefreshStatus=false)
	Adds/sets a string to appear in the status line at.

virtual std::string	getStatusString (int pHPos) const
	Returns the status string set at a given horizontal position.

virtual std::map< int, std::string >	getStatusStrings () const
	Returns the map of status strings for the window.

virtual void	getStatusStrings (std::map< int, std::string > &pStatusStrings) const
	Returns the map of status strings for the window (using an.

virtual void	setStatusStrings (const std::map< int, std::string > &pStatusStrings)
	Sets all the status strings via a map of horizontal.

virtual void	removeStatusString (int pHPos)
	Removes a status string at a given horizontal position.

virtual void	removeStatusStrings ()
	Removes all status strings.

virtual bool	addQuitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false)
	Adds a key that will cause the window to quit its input loop.

virtual void	removeQuitKey (int pKey)
	Removes a quit key.

virtual void	removeQuitKeys ()
	Removes all quit keys.

virtual bool	addExitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false)
	Adds a key that will cause the window to quit its input loop.

virtual void	removeExitKey (int pKey)
	Removes an exit key.

virtual void	removeExitKeys ()
	Removes all exit keys.

virtual bool	hasExitKey (int pKey) const
	Returns whether or not a key exists in the.

virtual bool	hasQuitKey (int pKey) const
	Returns whether or not a key exists in the.

virtual void	clear (bool pRefresh=false)
	Clears the text from the window.

virtual void	quitNow ()
	This is mainly for deriving classes. This causes the object.

virtual void	exitNow ()
	This is mainly for deriving classes. It tells the object.

virtual void	getQuitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.

virtual std::string	getQuitKeyListString () const
	Returns a string containing a comma-separated list of the.

virtual void	getExitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.

virtual std::string	getExitKeyListString () const
	Returns a string containing a comma-separated list of the.

virtual std::map< int, bool >	getQuitKeys () const
	Returns the keys that will make the window quit its input.

virtual std::map< int, bool >	getExitKeys () const
	Returns the keys that will make the window exit is input.

void	toggleMessage (bool pDrawMessage)
	Sets whether or not to draw the message area (the area within.

void	toggleTitle (bool pDrawTitle)
	Sets whether or not to draw the title.

void	toggleStatus (bool pDrawStatus)
	Sets whether or not to draw the status line.

bool	messageWillDraw () const
	Returns whether the message will draw or not.

bool	titleWillDraw () const
	Returns whether the title will draw or not.

bool	statusWillDraw () const
	Returns whether the status line will draw or not.

void	toggleSpecialChars (bool pDrawSpecialChars)
	Sets whether or not to draw the "special" characters (these are.

bool	specialCharsWillDraw () const
	Returns whether the "special" characters will be drawn or.

virtual void	drawTitle ()
	Writes the title line.

virtual void	drawStatus ()
	Writes the status line.

virtual void	drawMessage ()
	Writes the message text (in the area within the borders)

virtual void	drawSpecialChars ()
	Writes the set of "special" characters to the window.

virtual void	setReturnCode (const long &pReturnCode)
	Explicitly sets the member return code for the window.

virtual void	setMessageColor (e_cxColors pColor)
	Returns the message color.

virtual void	setTitleColor (e_cxColors pColor)
	Sets the title color.

virtual void	setStatusColor (e_cxColors pColor)
	Sets the color of the status line at bottom of window.

virtual void	setBorderColor (e_cxColors pColor)
	Sets the color of the window border.

virtual void	setColor (e_WidgetItems pItem, e_cxColors pColor)
	Sets the color of one of the window items.

virtual bool	hasAttr (e_WidgetItems pItem, attr_t pAttr)
	Returns whether an attribute is set for a widget item.

bool	getLeaveNow () const
	Returns whether or not something told the window to leave now.

std::string	getName () const

virtual void	setName (const std::string &pName)
	Sets the name of the window. The name is an alternative means.

bool	mouseEvtWasInWindow () const
	Returns whether the current mouse information stored in the.

virtual bool	mouseEvtWasInTitle () const
	Returns whether the current mouse information stored in the.

virtual void	doMouseBehavior (int pMouseY, int pMouseX)
	Triggers the window's mouse event behavior. Also sets the.

std::shared_ptr< cxFunction >	getKeyFunction (int pKey) const
	Returns a cxFunction pointer for a key.

std::shared_ptr< cxFunction0 >	getKeyFunctionAsFunction0 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction0.

std::shared_ptr< cxFunction2 >	getKeyFunctionAsFunction2 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction2.

std::shared_ptr< cxFunction4 >	getKeyFunctionAsFunction4 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction4.

bool	mouseEvtWasButtonEvt () const
	Returns whether or not the mouse event read in mMouse was.

bool	mouseButton1Pressed () const
	Returns whether or not the first mouse button was pressed.

bool	mouseButton1Released () const
	Returns whether or not the first mouse button was released.

bool	mouseButton1Clicked () const
	Returns whether or not the first mouse button was clicked.

bool	mouseButton1DoubleClicked () const
	Returns whether or not the first mouse button was double-clicked.

bool	mouseButton2Clicked () const
	Returns whether or not the second mouse button was clicked.

bool	mouseButton2DoubleClicked () const
	Returns whether or not the second mouse button was double-clicked.

bool	mouseButton3Clicked () const
	Returns whether or not the second mouse button was clicked.

virtual void	mouseButton1Click (int pY, int pX)
	Tells the window that mouse button 1 was clicked at a certain.

virtual void	mouseButton2Click (int pY, int pX)
	Tells the window that mouse button 2 was clicked at a certain.

virtual void	mouseButton3Click (int pY, int pX)
	Tells the window that mouse button 3 was clicked at a certain.

std::string	getString (int pRow, int pCol, int pNumber)
	Get the contents of a portion of the window. (for debugging/testing)

void	info ()
	Display information about a window (for debugging/testing)

virtual void	toggleBorderTop (bool pToggle)
	Sets whether or not to display the top border.

virtual void	toggleBorderBottom (bool pToggle)
	Sets whether or not to display the bottom border.

virtual void	toggleBorderLeft (bool pToggle)
	Sets whether or not to display the left border.

virtual void	toggleBorderRight (bool pToggle)
	Sets whether or not to display the right border.

virtual void	addSpecialChar (int pY, int pX, chtype pChar, attr_t pAttr=A_NORMAL)
	Adds a character to be written somewhere in the window. These.

virtual void	removeSpecialChar (int pY, int pX)
	Removes a character from the set of special characters (by.

virtual void	clearSpecialChars ()
	Clears the collection of special characters.

virtual bool	functionExistsForLastMouseState () const
	Returns whether an external function pointer exists for the.

int	getMouseState () const
	Returns the current mouse state as it was last captured by the.

std::string	getMouseStateStr () const
	Returns a string version of the current mouse state as it was.

virtual e_cxColors	getItemColor (e_WidgetItems pItem) const
	Returns the color of one of the items in a window.

Public Member Functions inherited from cx::cxObject
	cxObject ()

virtual	~cxObject ()

virtual void	beep ()

Additional Inherited Members
Static Public Member Functions inherited from cx::cxObject
static bool	UseColors ()

static void	UseColors (bool useIt)

static bool	UseBeeps ()

static void	UseBeeps (bool useIt)

Protected Member Functions inherited from cx::cxWindow
virtual void	reCreatePanel ()
	Creates mPanel (by calling new_panel()), then sets up.

void	freeWindow ()
	Frees the memory used by the ncurses window and.

virtual void	init (int pRow, int pCol, int pHeight, int pWidth, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pParentWindow=nullptr, bool pResizeVertically=true)
	Initializes the window parameters and sets up the internal.

virtual void	removeAllSubwindows ()
	Removes all subwindow pointers.

virtual void	addSubwindow (cxWindow *pSubWindow)
	Adds a subwindow to the window. Subwindows of a.

virtual void	removeSubWindow (const cxWindow *pSubWindow)
	Removes a window from the subwindow list.

virtual void	setElementColor (short &pColorPair, attr_t &pElementAttr, e_cxColors pColor)
	Sets the color (and attribute, if necessary) of a color element.

virtual void	enableAttrs (WINDOW *pWin, e_WidgetItems pItem)
	Enables the attributes for one of the m*Attrs sets for an ncurses window.

virtual void	disableAttrs (WINDOW *pWin, e_WidgetItems pItem)
	Disables the attributes for one of the m*Attrs sets for an ncurses window.

virtual void	writeWithHighlighting (WINDOW *pWindow, const std::string &pText, const int &pY, const int &pStartX, const int &pEndX, int pNormalTextItem=-1)
	Writes text to an ncurses WINDOW, highlighting any characters.

virtual void	copyCxWinStuff (const cxWindow *pThatWindow, bool pRecreateWin=true)
	Makes a copy of a cxWindow's member variables.

virtual void	getRowColBasedOn (cxWindow *pParentWindow, eHPosition pPosition, const std::string &pTitle, const std::string &pStatus, const std::string &pMessage, int &pRow, int &pCol)
	Figures out how to align text based on a title & message.

virtual bool	handleFunctionForLastKey (bool pFunctionExists=nullptr, bool pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last keypress and.

virtual bool	handleFunctionForLastMouseState (bool pFunctionExists=nullptr, bool pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last mouse state captured.

virtual void	draw ()
	Fills the member ncurses window structure with the current.

void	setKeyFunctions (const cxWindow &pWindow)
	Returns whether or not a mouse event location is within.

void	setFocusFunctions (const cxWindow &pWindow)
	Re-sets the onFocus and onLeave functions from another.

bool	parentIsCxPanel () const
	Returns whether or not the parent window, if there is one, is.

bool	parentIsCxForm () const
	Returns whether or not the parent window, if there is one, is.

bool	parentIsCxNotebook () const
	Returns whether or not the parent window, if there is one, is.

cxWindowPtrContainer::const_iterator	subWindows_begin () const
	Returns a const iterator to the first subwindow.

cxWindowPtrContainer::const_iterator	subWindows_end () const
	Returns a const iterator to the one past the last subwindow.

cxWindowPtrContainer::const_reverse_iterator	subWindows_rbegin () const
	Returns a const reverse begin iterator for the subwindow collection.

cxWindowPtrContainer::const_reverse_iterator	subWindows_rend () const
	Returns a const reverse end iterator for the subwindow collection.

bool	onFocusFunctionIsSet () const
	Returns whether or not the onFocus function is set (if.

bool	onLeaveFunctionIsSet () const
	Returns whether or not the onLeave function is set (if.

Protected Attributes inherited from cx::cxWindow
WINDOW *	mWindow = nullptr
	Everything in the window is written here; this is an nCurses window structure.

messageLineContainer	mMessageLines
	Contains the text to be shown inside the window (note: the.

std::map< std::pair< int, int >, chtype >	mSpecialChars
	Contains "special" characters which are added to the window.

std::set< attr_t >	mMessageAttrs
	Message attributes.

std::set< attr_t >	mTitleAttrs
	Title attributes.

std::set< attr_t >	mStatusAttrs
	Status attributes.

std::set< attr_t >	mBorderAttrs
	Border attributes.

std::set< attr_t >	mHotkeyAttrs
	Hotkey attributes.

std::map< std::pair< int, int >, attr_t >	mSpecialCharAttrs
	Attributes for the "special" characters (which are added to.

short	mMessageColorPair = eWHITE_BLUE

short	mTitleColorPair = eGRAY_BLUE

short	mStatusColorPair = eBROWN_BLUE

short	mBorderColorPair = eGRAY_BLUE

eHPosition	mHorizTitleAlignment = eHP_LEFT

eHPosition	mHorizMessageAlignment = eHP_LEFT

eHPosition	mHorizStatusAlignment = eHP_LEFT

eVPosition	mVerticalMessageAlignment = eVP_TOP

bool	mDrawMessage = true

bool	mDrawTitle = true

bool	mDrawStatus = true

bool	mDrawSpecialChars = true

std::shared_ptr< cxFunction >	mOnFocusFunction = nullptr

std::shared_ptr< cxFunction >	mOnLeaveFunction = nullptr

bool	mIsModal = false

bool	mLeaveNow = false

std::map< int, std::shared_ptr< cxFunction > >	mKeyFunctions

std::map< int, std::shared_ptr< cxFunction > >	mMouseFunctions

std::map< int, bool >	mQuitKeys

std::map< int, bool >	mExitKeys

bool	mHotkeyHighlighting

Static Protected Attributes inherited from cx::cxObject
static bool	useColors
	Whether or not to use colors.

static bool	useBeeps
	Whether or not to enable beeping.

Constructor & Destructor Documentation

◆ cxButton() [1/4]

cx::cxButton::cxButton	(	cxWindow *	pParentWindowPtr = `nullptr`,
		int	pRow = `0`,
		int	pCol = `0`,
		int	pHeight = `3`,
		int	pWidth = `5`,
		const std::string &	pLabel = `""`,
		eBorderStyle	pBorderStyle = `eBS_SINGLE_LINE`
	)

explicit

Default constructor.

Parameters

pParentWindowPtr	A pointer to the parent window.
pRow	The row of the upper-left corner.
pCol	The column of the upper-left corner.
pHeight	The height of the button.
pWidth	The width of the button.
pLabel	The text to appear on the button.
pBorderStyle	The border style - can be eBS_SINGLE_LINE for a single-line border or eBS_NOBORDER for no border. Defaults to eBS_SINGLE_LINE.

◆ cxButton() [2/4]

cx::cxButton::cxButton	(	cxWindow *	pParentWindowPtr,
		int	pRow,
		int	pCol,
		int	pHeight,
		int	pWidth,
		const std::string &	pLabel,
		eBorderStyle	pBorderStyle,
		funcPtr4	pFunction,
		void *	p1 = `nullptr`,
		void *	p2 = `nullptr`,
		void *	p3 = `nullptr`,
		void *	p4 = `nullptr`
	)

Constructor that sets up the button with a 4-parameter function.

Parameters

pParentWindowPtr	A pointer to the parent window.
pRow	The row of the upper-left corner.
pCol	The column of the upper-left corner.
pHeight	The height of the button.
pWidth	The width of the button.
pLabel	The text to appear on the button.
pBorderStyle	The border style - can be eBS_SINGLE_LINE for a single-line border or eBS_NOBORDER for no border. Defaults to eBS_SINGLE_LINE.
pFunction	A pointer to a function to be run when the user presses the enter key on the button. Must have this signature: string func(void, void, void, void)
p1	Pointer to the first parameter for the onClick function. Defaults to nullptr.
p2	Pointer to the second parameter for the onClick function. Defaults to nullptr.
p3	Pointer to the 3rd parameter for the onClick function. Defaults to nullptr.
p4	Pointer to the 4th parameter for the onClick function. Defaults to nullptr.

◆ cxButton() [3/4]

cx::cxButton::cxButton	(	cxWindow *	pParentWindowPtr,
		int	pRow,
		int	pCol,
		int	pHeight,
		int	pWidth,
		const std::string &	pLabel,
		eBorderStyle	pBorderStyle,
		funcPtr2	pFunction,
		void *	p1 = `nullptr`,
		void *	p2 = `nullptr`
	)

Constructor that sets up the button with a 2-parameter function.

Parameters

pParentWindowPtr	A pointer to the parent window.
pRow	The row of the upper-left corner.
pCol	The column of the upper-left corner.
pHeight	The height of the button.
pWidth	The width of the button.
pLabel	The text to appear on the button.
pBorderStyle	The border style - can be eBS_SINGLE_LINE for a single-line border or eBS_NOBORDER for no border. Defaults to eBS_SINGLE_LINE.
pFunction	A pointer to a function to be run when the user presses the enter key on the button. Must have this signature: string func(void, void)
p1	Pointer to the first parameter for the onClick function. Defaults to nullptr.
p2	Pointer to the second parameter for the onClick function. Defaults to nullptr.

◆ cxButton() [4/4]

cxButton::cxButton ( const cxButton & pButton )

Copy constructor.

Parameters

pButton Another cxButton to copy

References cx::height(), cx::left(), cx::top(), and cx::width().

◆ ~cxButton()

cxButton::~cxButton ( )

virtual

Destructor

Member Function Documentation

◆ cxTypeStr()

string cxButton::cxTypeStr ( ) const

overridevirtual

Returns the name of the cxWidgets class. This can be used to.

determine the type of cxWidgets object that deriving classes

derive from in applications.

Returns: The name of the cxWidgets class.

Reimplemented from cx::cxWindow.

◆ doMouseBehavior()

void cxButton::doMouseBehavior ( )

overridevirtual

If the last mouse event occurred in the button, this will run.

the button's event function. Otherwise, this will call

quitNow() on the button so that it will quit out of an input

loop if it's in one.

Reimplemented from cx::cxWindow.

References cx::cxWindow::mouseButton1Clicked(), cx::cxWindow::mouseEvtWasInWindow(), and runOnClickFunction().

◆ operator=()

cxButton & cxButton::operator= ( const cxButton & pButton )

Assignment operator.

Parameters

pButton Another button to copy

Returns: The current button

References cx::cxWindow::copyCxWinStuff().

◆ runOnClickFunction()

string cxButton::runOnClickFunction ( )

virtual

Runs the onClick function, if it's set.

Returns: The return value of the onClick function

Referenced by doMouseBehavior(), and showModal().

◆ setOnClickFunction() [1/3]

void cxButton::setOnClickFunction ( funcPtr0 pFunction )

virtual

Sets the "on click" function pointer for the button. When.

the user presses the enter key on the button, this function

will run after the button loses focus.

Parameters

pFunction The function to run - Must have this signature: string func()

◆ setOnClickFunction() [2/3]

void cxButton::setOnClickFunction	(	funcPtr2	pFunction,
		void *	p1,
		void *	p2
	)

virtual

Sets the "on click" function pointer for the button. When.

the user presses the enter key on the button, this function

will run after the button loses focus.

Parameters

pFunction	The function to run - Must have this signature: string func(void, void)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function

◆ setOnClickFunction() [3/3]

void cxButton::setOnClickFunction	(	funcPtr4	pFunction,
		void *	p1,
		void *	p2,
		void *	p3,
		void *	p4
	)

virtual

Sets the "on click" function pointer for the button. When.

the user presses the enter key on the button, this function

will run after the button loses focus.

Parameters

pFunction	The function to run - Must have this signature: string func(void, void, void, void)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

Referenced by cxButtonOnClick().

◆ showModal()

long cxButton::showModal	(	bool	pShowSelf = `true`,
		bool	pBringToTop = `true`,
		bool	pShowSubwindows = `true`
	)

overridevirtual

Shows the button and waits for input. Fires the button's set.

event if the user presses the enter key.

Parameters

pShowSelf	Whether or not to show the window before running the input loop. Defaults to true.
pBringToTop	Whether or not to bring the window to the top. Defaults to true.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true.

Returns: A return code based on user input. Returns cxID_QUIT if the user presses ESC; otherwise, returns cxID_EXIT.

Reimplemented from cx::cxWindow.

References cx::cxWindow::addAttr(), BUTTON1_CLICKED, BUTTON1_PRESSED, cx::cxWindow::drawMessage(), cx::eMESSAGE, ENTER, cx::cxWindow::getExitOnMouseOutside(), cx::cxWindow::getLastKey(), cx::cxWindow::getLeaveNow(), cx::cxWindow::getReturnCode(), cx::cxWindow::handleFunctionForLastMouseState(), cx::cxWindow::isEnabled(), cx::cxWindow::mouseEvtWasInWindow(), cx::cxWindow::parentIsCxPanel(), cx::cxWindow::removeAttr(), runOnClickFunction(), cx::cxWindow::runOnFocusFunction(), cx::cxWindow::showModal(), and cx::cxWindow::unhide().

Referenced by cxButtonOnClick().

The documentation for this class was generated from the following files:

/home/erico/projects/cxWidgets/src/cxButton.h
/home/erico/projects/cxWidgets/src/cxButton.cpp

Public Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ cxButton() [1/4]

◆ cxButton() [2/4]

◆ cxButton() [3/4]

◆ cxButton() [4/4]

◆ ~cxButton()

Member Function Documentation

◆ cxTypeStr()

◆ doMouseBehavior()

◆ operator=()

◆ runOnClickFunction()

◆ setOnClickFunction() [1/3]

◆ setOnClickFunction() [2/3]

◆ setOnClickFunction() [3/3]

◆ showModal()
