cx::cxMenu Class Reference

Represents a list of items, one of which may be selected. More...

#include <cxMenu.h>

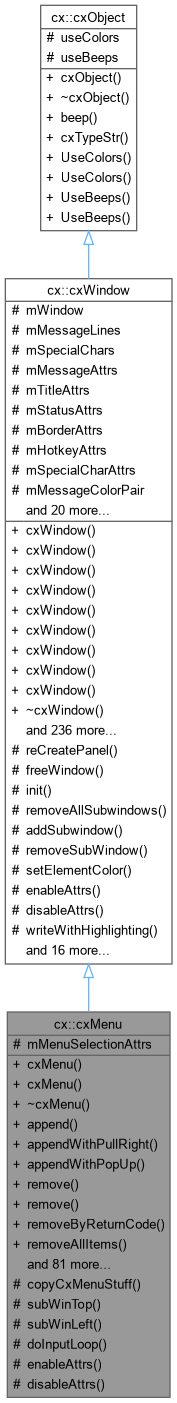

Inheritance diagram for cx::cxMenu:

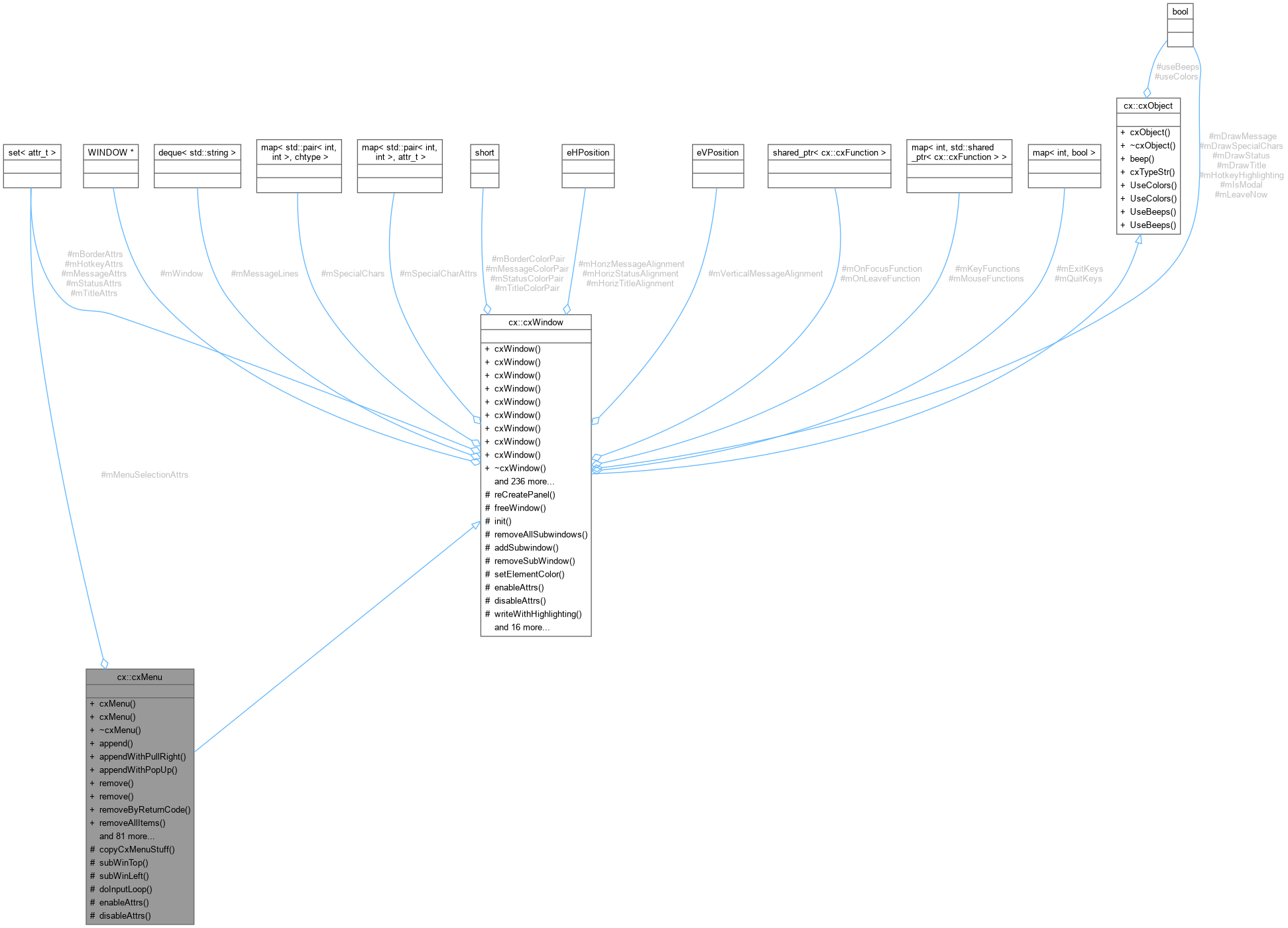

Collaboration diagram for cx::cxMenu:

Public Member Functions
	cxMenu (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, eBorderStyle pBorderStyle=eBS_SINGLE_LINE)
	cxMenu (const cxMenu &pThatMenu)
	Copy constructor.
virtual	~cxMenu ()
virtual void	append (const std::string &pDisplayText, long pReturnCode, const std::string &pHelpString="", cxMenuItemType pType=cxITEM_NORMAL, bool pResize=false, const std::string &pItemText="")
	Adds a string item to the end of the menu.
virtual void	appendWithPullRight (const std::string &pDisplayText, cxMenu *pSubMenu, const std::string &pHelpString="", bool pResize=false)
virtual void	appendWithPopUp (const std::string &pDisplayText, cxMenu *pSubMenu, const std::string &pHelpString="", bool pResize=false)
virtual bool	remove (unsigned pItemIndex, bool pResize=false, bool pRefresh=false)
	Removes a menu item from the menu. If the item has a submenu,.
virtual bool	remove (const std::string &pItemText, bool pUseDisplayText=true, bool pResize=false, bool pRefresh=false)
	Removes a menu item from the menu (by display text or alternate.
virtual bool	removeByReturnCode (long pReturnCode, bool pResize=false, bool pRefresh=false)
	Removes a menu item based on its return code.
virtual void	removeAllItems (bool pResize=false, bool pRefresh=false)
	Removes all items from the menu.
virtual void	clear (bool pRefresh=false) override
	Alias for removeAllItems() (this is here to overload the clear()
virtual long	showModal (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true) override
	Shows the menu, waits for input, and returns the menu item's return.
virtual bool	modalGetsKeypress () const override
	Returns whether or not a call to showModal() will wait for a.
virtual void	scrollItems (int pScrollAmt, bool pRefresh=false)
	Scrolls the menu item list by a certain amount.
virtual void	scrollToTop (bool pRefresh=false)
	Scrolls the menu to the top.
virtual void	scrollToBottom (bool pRefresh=false)
	Scrolls the menu to the bottom.
virtual void	setTopItem (unsigned pTopItem, bool pRefresh=false)
	Sets the item to appear at the top of the menu (by index).
virtual void	setTopItem (const std::string &pItemText, bool pRefresh=false)
	Sets the item to appear at the top of the menu (by item text).
virtual void	setBottomItem (unsigned pItemIndex, bool pRefresh=false)
	Sets the item to appear at the bottom of the menu (by index).
virtual bool	move (int pNewRow, int pNewCol, bool pRefresh=true) override
virtual unsigned	numMenuItems () const
virtual void	resize (int pNewHeight, int pNewWidth, bool pRefresh=false) override
virtual void	drawMessage () override
virtual long	show (bool pBringToTop=true, bool pShowSubwindows=true) override
	Shows the menu.
virtual void	erase (bool pEraseSubwindows=true) override
int	getSubWinWidth () const
int	getSubWinHeight () const
virtual long	getReturnCode () const override
	Returns the return code set by the last call to.
virtual long	getReturnCode (unsigned pIndex) const
virtual long	getReturnCode (const std::string &pItemText, bool pUseDisplayText=true) const
	Returns the return code for a menu item (by item text).
virtual long	getCurrentItemReturnCode () const
	Returns the return code of the currently-highlited item.
virtual std::string	getItemText (int pIndex, bool pGetDisplayText=true) const
	Returns the text for a menu item.
virtual std::string	getCurrentItemText (bool pGetDisplayText=true) const
	Returns the text of the current selected menu item. Could.
virtual void	drawBorder () override
	Draws a border around the menu.
void	toggleSelectability (unsigned pIndex, bool pSelectable)
	Toggles selectability for an item (by index). Selectability.
void	toggleSelectability (const std::string &pItemText, bool pSelectable)
	Toggles selectability for an item (by item text).
void	setClearOnSearch (bool pClearOnSearch)
	Sets whether or not to clear the search text.
void	setCaseSensitiveSearch (bool pCaseSensitiveSearch)
	Sets whether or not item searching should be case-sensitive.
void	setSearchKey (int pSearchKey)
	Changes the key to be used for menu item searching (static)
void	setAltPgUpKey (int pPgUpKey)
	Sets the alternate pageUp key.
int	getAltPgUpKey () const
	Returns the key that is set as the alternate pageUp key.
void	setAltPgDownKey (int pPgDownKey)
	Sets the new alternate pageDown key.
int	getAltPgDownKey () const
	Returns the key that is set as the alternate pageDown key.
virtual void	setStatus (const std::string &pStatus, bool pRefreshStatus=true) override
	Mutator for the status line text. After this method.
void	disableCustomStatus (bool pRefreshStatus=true)
	Turns off the custom status text set with setStatus.
cxMenu &	operator= (const cxMenu &pThatMenu)
	Assignment operator.
virtual void	refreshMenuItems ()
	Refreshes the list of menu items.
virtual bool	setItemTextByReturnCode (long pReturnCode, const std::string &pItemText, bool pSetAll=false, bool pRefresh=false)
	Sets the text of an item (by its return code).
virtual bool	setItemTextByIndex (int pIndex, const std::string &pItemText, bool pRefresh=false)
	Sets the text of an item (by index).
virtual void	setBorderStyle (eBorderStyle pBorderStyle) override
	Sets the border style.
virtual bool	itemExists (const std::string &pItemText, bool pUseDisplayText=true) const
	Returns whether or not an item exists in the menu.
void	setAllowQuit (bool pAllowQuit)
	Sets whether the form should allow the user to quit.
bool	getAllowQuit () const
	Returns whether the user is able to quit out of the form.
void	setAllowExit (bool pAllowExit)
	Sets whether the form should allow the user to exit.
bool	getAllowExit () const
	Returns whether the user is able to exit out of the form.
int	getIndexByReturnCode (long pReturnCode) const
	Returns the index of a menu item by its return code.
std::string	getItemTextByReturnCode (long pReturnCode, bool pGetDisplayText=true)
	Returns an item's text by its return code. If there is no.
void	setLoopStartFunction (const std::shared_ptr< cxFunction > &pFuncPtr)
	Sets a function to be run at the start of each.
void	setLoopEndFunction (const std::shared_ptr< cxFunction > &pFuncPtr)
	Sets a function to be run at the end of each.
virtual bool	runLoopStartFunction ()
	Runs the loop start function, if it's set.
virtual bool	runLoopEndFunction ()
	Runs the loop end function, if it's set.
cxMenuItemType	getItemType (unsigned pIndex) const
	Returns the type of a menu item (by index), or -1 if the given.
cxMenuItemType	getItemType (const std::string &pItemText) const
	Returns the type of a menu item (by item text), or -1 if the.
virtual void	setWrapping (bool pWrap)
	Enables or disables wrapping when trying to scroll beyond.
virtual bool	getWrapping () const
	Returns whether scroll wrapping is enabled.
virtual void	setWaitForInputIfEmpty (bool pWaitForInputIfEmpty)
	Toggles whether or not the menu should display a message.
virtual bool	getWaitForInputIfEmpty () const
	Returns whether or not the menu will display a message.
virtual int	getCurrentMenuItem () const
	Returns the index of the current menu item.
virtual void	setCurrentMenuItem (int pItemIndex, bool pRefresh=false)
	Sets the current menu item (by index)
void	setExitWhenLeaveFirst (bool pExitWhenLeaveFirst)
	Changes the behavior of exiting the input loop when the user.
bool	getExitWhenLeaveFirst () const
	Returns whether the menu will exit its input loop when the.
void	setExitWhenLeaveLast (bool pExitWhenLeaveLast)
	Changes the behavior of exiting the input loop when the user.
void	setExitOnOutsideClick (bool pExitOnOutsideClick)
	When set to true, the menu will exit its input loop whenever a mouse click occurs outside the menu window, regardless of whether the menu has a parent menu or is embedded in a cxPanel. Use this when showing a standalone dropdown that should close on any outside click (e.g., a cxMenuBar dropdown).
bool	getExitWhenLeaveLast () const
	Returns whether the menu will exit its input loop when the.
void	setRefreshItemsWhenModal (bool pRefreshItemsWhenModal)
	Sets whether the list of items should be refreshed when the.
bool	getRefreshItemsWhenModal () const
	Returns whether or not the list of items will be refreshed when.
virtual void	addAttr (e_WidgetItems pItem, attr_t pAttr) override
	Adds an ncurses attribute to use for one of the items in the.
virtual void	setAttr (e_WidgetItems pItem, attr_t pAttr) override
	Sets the ncurses attribute to use for one of the items in the.
virtual void	removeAttr (e_WidgetItems pItem, attr_t pAttr) override
	Removes an ncurses attribute from one of the item lists.
virtual void	removeAttrs (e_WidgetItems pItem) override
	Removes all attributes for a given window item.
virtual void	getAttrs (e_WidgetItems pItem, std::set< attr_t > &pAttrs) const override
	Returns the set of ncurses attributes for a given item.
virtual void	setHotkeyHighlighting (bool pHotkeyHighlighting) override
	Enables/disables the use of hotkey attributes.
virtual std::string	cxTypeStr () const override
	Returns the name of the cxWidgets class, "cxMenu". This can be.
virtual void	sortByReturnCode (bool pRefresh=false)
	Sorts the menu items by their return code. Note: If the same.
long	getHighestReturnCode () const
	Returns the highest return code of the menu items.
virtual bool	itemWasSelected () const
	Returns whether an item was selected the last time the menu was.
bool	mouseEvtWasInItemArea (int &pItemIndex) const
	Returns whether the last mouse event occurred in the area where.
virtual bool	setOnSelectItemFunction (funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pExitAfterRun, bool pRunOnLeaveFunction)
	Sets a function to run when the user selects an item.
virtual bool	setOnSelectItemFunction (funcPtr2 pFunction, void *p1, void *p2, bool pExitAfterRun, bool pRunOnLeaveFunction)
	Sets a function to run when the user selects an item.
virtual bool	setOnSelectItemFunction (funcPtr0 pFunction, bool pExitAfterRun, bool pRunOnLeaveFunction)
	Sets a function to run when the user selects an item.
std::shared_ptr< cxFunction >	getOnSelectItemFunction () const
	Returns the pointer to the onSelectMenuItem function.
Public Member Functions inherited from cx::cxWindow
	cxWindow (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", const std::string &pMessage="", const std::string &pStatus="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Default constructor.
	cxWindow (cxWindow *pParentWindow, int pRow, int pCol, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, eHPosition pHPosition, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Lets you specify the horizontal position.
	cxWindow (const cxWindow &pThatWindow)
	Copy constructor.
virtual	~cxWindow ()
virtual void	centerHoriz (bool pRefresh=true)
	Centers the window horizontally on the screen.
virtual void	alignHoriz (eHPosition pPosition, bool pRefresh=true)
	Aligns the window horizontally on the screen.
virtual void	centerVert (bool pRefresh=true)
	Centers the window vertically on the screen.
virtual void	alignVert (eVPosition pPosition, bool pRefresh=true)
	Aligns the window vertically on the screen.
virtual void	center (bool pRefresh=true)
	Centers the window on the screen.
virtual std::string	getTitle () const
	Accessor for title text - Returns the first string in the.
virtual void	setTitle (const std::string &pTitle, bool pRefreshTitle=true)
	Setter for the title text - This sets the first string in the.
std::string	getStatus () const
	Accessor for the status line text.
std::string	getMessage () const
	Returns the message that appears in the window, concatenating all message lines together.
virtual void	setMessage (const std::string &pMessage)
	Sets the text that appears within the window.
virtual void	addMessageLineBelow (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesBelow (const std::vector< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::list< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::deque< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLineAbove (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesAbove (const std::vector< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::list< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::deque< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	setMessageLines (const std::vector< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::list< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::deque< std::string > &pLines)
	Sets the message lines in the window.
virtual void	removeMessageLine (unsigned pIndex)
	Removes a line from the text inside the window (by index).
virtual void	setMessageLine (unsigned pIndex, const std::string &pLine)
	Modifies one of the lines displayed in the window.
void	setHorizTitleAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the title text.
eHPosition	getHorizTitleAlignment () const
	Accessor for the title text alignment.
void	setHorizMessageAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the message text.
eHPosition	getHorizMessageAlignment () const
	Accessor for the horizontal message text alignment.
void	setHorizStatusAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the status text.
eHPosition	getHorizStatusAlignment () const
	Accessor for the horizontal status text alignment.
void	setVerticalMessageAlignment (eVPosition pVAlignment)
	Sets the vertical alignment of the message text.
eVPosition	getVerticalMessageAlignment () const
	Accessor for the vertical message text alignment.
void	setExtTitleWindow (cxWindow *pWindow, bool pRefreshTitle=true)
	Sets an external cxWindow object to be used for the title, rather.
cxWindow *	getExtTitleWindow () const
	Accessor for the external title window pointer.
void	setExtStatusWindow (cxWindow *pWindow, bool pRefreshStatus=true)
	Sets an external cxWindow object to be used for status, rather.
cxWindow *	getExtStatusWindow () const
	Accessor for the external status window pointer.
bool	isHidden () const
	Returns whether or not the window is hidden.
virtual long	setFocus (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true)
	Alias for showModal()
virtual void	setFocusColors ()
	Turns on the ncurses attribute A_REVERSE for the window to.
virtual void	setFocusColors (attr_t pAttr)
	Turns on the ncurses attribute pAttr for the window to.
virtual void	unSetFocusColors ()
	Disables focus for this window and unhighlights the message.
virtual void	unSetFocusColors (attr_t pAttr)
	Disables focus for this window and un-highlights the message (using pAttr)
virtual void	bringToTop (bool pRefresh=true)
	Brings the window to the top.
virtual void	bringToBottom (bool pRefresh=false)
	Puts the window on the bottom of all other windows.
virtual bool	isOnTop () const
	Returns whether the window is on top of all other windows.
virtual bool	isOnBottom () const
	Returns whether the window is on the bottom of all other windows.
virtual bool	isAbove (const cxWindow &pThatWindow) const
	Returns whether the window is above another window.
virtual bool	isBelow (const cxWindow &pThatWindow) const
	Returns whether a window is below another window.
virtual void	hide (bool pHideSubwindows=true)
	Hides the window.
virtual void	unhide (bool pUnhideSubwindows=true)
	Un-hides the window.
void	touchWindow ()
	Marks the window's entire content as dirty so that the next.
virtual void	drawBorder (int pRow, int pCol, int pHeight, int pWidth, bool pTop=true, bool pBottom=true, bool pLeft=true, bool pRight=true)
	Draws the border (based on the border style)
virtual void	drawBorder (int pHeight, int pWidth)
	Draws a box in the window.
virtual int	top () const
	Returns the top row of the window.
virtual int	centerRow () const
	Returns the center row of the window.
virtual int	bottom () const
	Returns the bottom row of the window.
virtual int	left () const
	Returns the left column of the window.
virtual int	centerCol () const
	Returns the center column of the window.
virtual int	right () const
	Returns the right column of the window.
virtual int	width (int pWidth)
	Changes the width of the window.
virtual int	width () const
	Returns the width of the window.
virtual int	height (int pHeight)
	Changes the height of the window.
virtual int	height () const
	Returns the height of the window.
virtual void	getRect (int &pTop, int &pLeft, int &pBottom, int &pRight)
	Returns the coordinates of the rectangle defining the window.
virtual bool	pointIsInWindow (int pY, int pX) const
	Returns whether a screen location is in the window (including.
virtual bool	pointIsInTitle (int pY, int pX) const
	Returns whether a screen location is in the title of the window.
virtual void	getSize (int &pHeight, int &pWidth)
	Returns the height & width of the window.
virtual bool	moveRelative (int pVerticalOffset, int pHorizOffset, bool pRefresh=true)
	Changes the window's position via vertical & horizontal offsets.
unsigned	numSubWindows ()
	Returns the number of subwindows in this window.
void	setSubWinMessage (unsigned pIndex, const std::string &pMessage)
	Sets the message of one of the subwindows (by index).
void	setSubWinMessage (const std::string &pTitle, const std::string &pMessage)
	Sets the message of one of the subwindows (by title).
virtual bool	hasFocus () const
	Returns true if window has focus, false otherwise.
eBorderStyle	getBorderStyle () const
	Returns the border style.
bool	hasBorder () const
	Does this window have a border?
virtual cxWindow *	getParent () const
	Returns a pointer to the parent window.
void	setParent (cxWindow *pNewParent)
	Changes the pointer to the parent window; changes the parent window.
virtual void	dump (std::string &pResult)
	Returns a string containing all the characters.
virtual void	showSubwindows (bool pBringToTop=true, bool pShowSubwindows=true)
	Shows the subwindows for the window.
cxWindow &	operator= (const cxWindow &pThatWindow)
	Assignment operator.
virtual void	writeText (int pRow, int pCol, const std::string &pText, bool pRefresh=true)
	Writes text on the window. Note that the text is not permanant, so.
bool	getHotkeyHighlighting () const
	Returns whether hotkey attributes are used when writing the message.
virtual bool	isEnabled () const
	Returns whether or not the window is enabled.
virtual void	setEnabled (bool pEnabled)
	Enables or disables the window. If the window is.
virtual void	setDisableCursorOnShow (bool pDisableCursorOnShow)
	Sets whether the window should disable the cursor.
virtual bool	getDisableCursorOnShow () const
	Returns whether or not the window will disable.
virtual bool	getExitOnMouseOutside () const
	Returns whether the window exits its modal input loop when.
virtual void	setExitOnMouseOutside (bool pExitOnMouseOutside)
	Sets whether the window should exit its modal input loop.
virtual int	getLastKey () const
	Returns the last key pressed by the user (for showModal(), etc.)
virtual void	setLastKey (int pLastKey)
	Sets the last keypress.
virtual bool	lastKeyWasMouseEvt () const
	Returns whether or not the last keypress was a mouse event.
virtual void	getLastMouseEvtCoords (int &pY, int &pX)
	Returns the coordinates of the last mouse event in the window.
virtual bool	getChangeColorsOnFocus () const
	Returns whether the window will change.
virtual void	setChangeColorsOnFocus (bool pChangeColorsOnFocus)
	Sets whether colors should change when focus.
virtual void	setOnFocusFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on focus" function.
virtual void	setOnFocusFunction (funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.
virtual void	setOnFocusFunction (funcPtr2 pFunction, void *p1, void *p2, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.
virtual void	setOnFocusFunction (funcPtr0 pFunction, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.
virtual void	setOnLeaveFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on leave" function.
virtual void	setOnLeaveFunction (funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
	Sets the "on leave" function pointer.
virtual void	setOnLeaveFunction (funcPtr2 pFunction, void *p1, void *p2)
	Sets the "on focus" function pointer.
virtual void	setOnLeaveFunction (funcPtr0 pFunction)
	Sets the "on focus" function pointer.
virtual bool	runOnFocusFunction (std::string *pFunctionRetval=nullptr)
	Runs the onFocus function, if it's set.
virtual bool	runOnLeaveFunction (std::string *pFunctionRetval=nullptr)
	Runs the onLeave function, if it's set. However, if the last.
virtual void	toggleOnFocusFunction (bool pRunOnFocus)
	Sets whether or not the onFocus function should run.
virtual void	toggleOnLeaveFunction (bool pRunOnLeave)
	Sets whether or not the onLeave function should run.
virtual bool	onFocusFunctionEnabled () const
	Returns whether or not the onFocus function is set to run.
virtual bool	onLeaveFunctionEnabled () const
	Returns whether or not the onLeave function is set to run.
virtual const std::shared_ptr< cxFunction > &	getOnFocusFunction () const
	Accessor for the onFocus function.
virtual const std::shared_ptr< cxFunction > &	getOnLeaveFunction () const
	Accessor for the onLeave function.
virtual bool	isModal () const
	Returns whether or not the window is currently.
virtual bool	setKeyFunction (int pKey, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called when a key is pressed.
virtual bool	setKeyFunction (int pKey, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed.
virtual bool	setKeyFunction (int pKey, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed.
virtual bool	setKeyFunction (int pKey, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed. This.
virtual void	clearKeyFunction (int pKey)
	Removes a function pointer for a keypress so that it will no.
virtual void	clearKeyFunctionByPtr (funcPtr4 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr2 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr0 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctions ()
	Clears the list of external functions fired by hotkeys.
virtual bool	hasKeyFunction (int pKey) const
	Returns whether an external function exists for a keypress.
virtual bool	setMouseFunction (int pMouseState, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state. This.
virtual void	clearMouseFunction (int pMouseState)
	Removes a function pointer for a mouse event so that it will.
virtual void	clearMouseFunctions ()
	Clears the list of external functions fired by mouse events.
virtual bool	hasMouseFunction (int pMouseState) const
	Returns whether an external function exists for a mouse event.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_begin ()
	Returns a begin iterator to the map of cxFunction pointers.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_end ()
	Returns an end iterator to the map of cxFunction pointers.
virtual void	getFunctionKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual void	getFunctionKeys (std::vector< int > &pKeys) const
	Populates a collection with integers representing the keys.
virtual void	setShowSubwinsForward (bool pShowSubwinsForward)
	Toggles the order in which subwindows will be shown.
virtual bool	getShowSubwinsForward () const
	Returns whether or not the subwindows will be shown.
virtual void	setShowSelfBeforeSubwins (bool pShowSelfBeforeSubwins)
	Sets whether the window will show itself before.
virtual bool	getShowSelfBeforeSubwins () const
	Returns whether or not the window will show itself before.
virtual bool	addTitleString (int pHPos, const std::string &pStr, bool pRefreshTitle=false)
	Adds/sets a string to appear in the title at.
virtual std::string	getTitleString (int pHPos) const
	Returns the title string set at a given horizontal position.
virtual std::map< int, std::string >	getTitleStrings () const
	Returns the map of title strings for the window.
virtual void	getTitleStrings (std::map< int, std::string > &pTitleStrings) const
	Returns the map of title strings for the window (using an.
virtual void	setTitleStrings (const std::map< int, std::string > &pTitleStrings)
	Sets all the title strings via a map of horizontal.
virtual void	removeTitleString (int pHPos)
	Removes a title string at a given horizontal position.
virtual void	removeTitleStrings ()
	Removes all title strings.
virtual bool	addStatusString (int pHPos, const std::string &pStr, bool pRefreshStatus=false)
	Adds/sets a string to appear in the status line at.
virtual std::string	getStatusString (int pHPos) const
	Returns the status string set at a given horizontal position.
virtual std::map< int, std::string >	getStatusStrings () const
	Returns the map of status strings for the window.
virtual void	getStatusStrings (std::map< int, std::string > &pStatusStrings) const
	Returns the map of status strings for the window (using an.
virtual void	setStatusStrings (const std::map< int, std::string > &pStatusStrings)
	Sets all the status strings via a map of horizontal.
virtual void	removeStatusString (int pHPos)
	Removes a status string at a given horizontal position.
virtual void	removeStatusStrings ()
	Removes all status strings.
virtual bool	addQuitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false)
	Adds a key that will cause the window to quit its input loop.
virtual void	removeQuitKey (int pKey)
	Removes a quit key.
virtual void	removeQuitKeys ()
	Removes all quit keys.
virtual bool	addExitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false)
	Adds a key that will cause the window to quit its input loop.
virtual void	removeExitKey (int pKey)
	Removes an exit key.
virtual void	removeExitKeys ()
	Removes all exit keys.
virtual bool	hasExitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual bool	hasQuitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual void	quitNow ()
	This is mainly for deriving classes. This causes the object.
virtual void	exitNow ()
	This is mainly for deriving classes. It tells the object.
virtual void	getQuitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getQuitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual void	getExitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getExitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual std::map< int, bool >	getQuitKeys () const
	Returns the keys that will make the window quit its input.
virtual std::map< int, bool >	getExitKeys () const
	Returns the keys that will make the window exit is input.
void	toggleMessage (bool pDrawMessage)
	Sets whether or not to draw the message area (the area within.
void	toggleTitle (bool pDrawTitle)
	Sets whether or not to draw the title.
void	toggleStatus (bool pDrawStatus)
	Sets whether or not to draw the status line.
bool	messageWillDraw () const
	Returns whether the message will draw or not.
bool	titleWillDraw () const
	Returns whether the title will draw or not.
bool	statusWillDraw () const
	Returns whether the status line will draw or not.
void	toggleSpecialChars (bool pDrawSpecialChars)
	Sets whether or not to draw the "special" characters (these are.
bool	specialCharsWillDraw () const
	Returns whether the "special" characters will be drawn or.
virtual void	drawTitle ()
	Writes the title line.
virtual void	drawStatus ()
	Writes the status line.
virtual void	drawSpecialChars ()
	Writes the set of "special" characters to the window.
virtual void	setReturnCode (const long &pReturnCode)
	Explicitly sets the member return code for the window.
virtual void	setMessageColor (e_cxColors pColor)
	Returns the message color.
virtual void	setTitleColor (e_cxColors pColor)
	Sets the title color.
virtual void	setStatusColor (e_cxColors pColor)
	Sets the color of the status line at bottom of window.
virtual void	setBorderColor (e_cxColors pColor)
	Sets the color of the window border.
virtual void	setColor (e_WidgetItems pItem, e_cxColors pColor)
	Sets the color of one of the window items.
virtual bool	hasAttr (e_WidgetItems pItem, attr_t pAttr)
	Returns whether an attribute is set for a widget item.
bool	getLeaveNow () const
	Returns whether or not something told the window to leave now.
std::string	getName () const
virtual void	setName (const std::string &pName)
	Sets the name of the window. The name is an alternative means.
bool	mouseEvtWasInWindow () const
	Returns whether the current mouse information stored in the.
virtual bool	mouseEvtWasInTitle () const
	Returns whether the current mouse information stored in the.
virtual void	doMouseBehavior ()
	Triggers the window's mouse event behavior. This method can.
virtual void	doMouseBehavior (int pMouseY, int pMouseX)
	Triggers the window's mouse event behavior. Also sets the.
std::shared_ptr< cxFunction >	getKeyFunction (int pKey) const
	Returns a cxFunction pointer for a key.
std::shared_ptr< cxFunction0 >	getKeyFunctionAsFunction0 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction0.
std::shared_ptr< cxFunction2 >	getKeyFunctionAsFunction2 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction2.
std::shared_ptr< cxFunction4 >	getKeyFunctionAsFunction4 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction4.
bool	mouseEvtWasButtonEvt () const
	Returns whether or not the mouse event read in mMouse was.
bool	mouseButton1Pressed () const
	Returns whether or not the first mouse button was pressed.
bool	mouseButton1Released () const
	Returns whether or not the first mouse button was released.
bool	mouseButton1Clicked () const
	Returns whether or not the first mouse button was clicked.
bool	mouseButton1DoubleClicked () const
	Returns whether or not the first mouse button was double-clicked.
bool	mouseButton2Clicked () const
	Returns whether or not the second mouse button was clicked.
bool	mouseButton2DoubleClicked () const
	Returns whether or not the second mouse button was double-clicked.
bool	mouseButton3Clicked () const
	Returns whether or not the second mouse button was clicked.
virtual void	mouseButton1Click (int pY, int pX)
	Tells the window that mouse button 1 was clicked at a certain.
virtual void	mouseButton2Click (int pY, int pX)
	Tells the window that mouse button 2 was clicked at a certain.
virtual void	mouseButton3Click (int pY, int pX)
	Tells the window that mouse button 3 was clicked at a certain.
std::string	getString (int pRow, int pCol, int pNumber)
	Get the contents of a portion of the window. (for debugging/testing)
void	info ()
	Display information about a window (for debugging/testing)
virtual void	toggleBorderTop (bool pToggle)
	Sets whether or not to display the top border.
virtual void	toggleBorderBottom (bool pToggle)
	Sets whether or not to display the bottom border.
virtual void	toggleBorderLeft (bool pToggle)
	Sets whether or not to display the left border.
virtual void	toggleBorderRight (bool pToggle)
	Sets whether or not to display the right border.
virtual void	addSpecialChar (int pY, int pX, chtype pChar, attr_t pAttr=A_NORMAL)
	Adds a character to be written somewhere in the window. These.
virtual void	removeSpecialChar (int pY, int pX)
	Removes a character from the set of special characters (by.
virtual void	clearSpecialChars ()
	Clears the collection of special characters.
virtual bool	functionExistsForLastMouseState () const
	Returns whether an external function pointer exists for the.
int	getMouseState () const
	Returns the current mouse state as it was last captured by the.
std::string	getMouseStateStr () const
	Returns a string version of the current mouse state as it was.
virtual e_cxColors	getItemColor (e_WidgetItems pItem) const
	Returns the color of one of the items in a window.
Public Member Functions inherited from cx::cxObject
	cxObject ()
virtual	~cxObject ()
virtual void	beep ()

Protected Member Functions
void	copyCxMenuStuff (const cxMenu *pThatMenu)
	Makes a copy of a cxMenu's member variables.
int	subWinTop () const
	Returns the top row of the subwindow.
int	subWinLeft () const
	Returns the left column of the subwindow.
long	doInputLoop (bool &pRunOnLeaveFunction)
	Handles the input loop and returns the menu item's return.
virtual void	enableAttrs (WINDOW *pWin, e_WidgetItems pItem) override
	Enables the attributes for one of the m*Attrs sets for an ncurses window.
virtual void	disableAttrs (WINDOW *pWin, e_WidgetItems pItem) override
	Disables the attributes for one of the m*Attrs sets for an ncurses window.
Protected Member Functions inherited from cx::cxWindow
virtual void	reCreatePanel ()
	Creates mPanel (by calling new_panel()), then sets up.
void	freeWindow ()
	Frees the memory used by the ncurses window and.
virtual void	init (int pRow, int pCol, int pHeight, int pWidth, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pParentWindow=nullptr, bool pResizeVertically=true)
	Initializes the window parameters and sets up the internal.
virtual void	removeAllSubwindows ()
	Removes all subwindow pointers.
virtual void	addSubwindow (cxWindow *pSubWindow)
	Adds a subwindow to the window. Subwindows of a.
virtual void	removeSubWindow (const cxWindow *pSubWindow)
	Removes a window from the subwindow list.
virtual void	setElementColor (short &pColorPair, attr_t &pElementAttr, e_cxColors pColor)
	Sets the color (and attribute, if necessary) of a color element.
virtual void	writeWithHighlighting (WINDOW *pWindow, const std::string &pText, const int &pY, const int &pStartX, const int &pEndX, int pNormalTextItem=-1)
	Writes text to an ncurses WINDOW, highlighting any characters.
virtual void	copyCxWinStuff (const cxWindow *pThatWindow, bool pRecreateWin=true)
	Makes a copy of a cxWindow's member variables.
virtual void	getRowColBasedOn (cxWindow *pParentWindow, eHPosition pPosition, const std::string &pTitle, const std::string &pStatus, const std::string &pMessage, int &pRow, int &pCol)
	Figures out how to align text based on a title & message.
virtual bool	handleFunctionForLastKey (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last keypress and.
virtual bool	handleFunctionForLastMouseState (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last mouse state captured.
virtual void	draw ()
	Fills the member ncurses window structure with the current.
void	setKeyFunctions (const cxWindow &pWindow)
	Returns whether or not a mouse event location is within.
void	setFocusFunctions (const cxWindow &pWindow)
	Re-sets the onFocus and onLeave functions from another.
bool	parentIsCxPanel () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxForm () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxNotebook () const
	Returns whether or not the parent window, if there is one, is.
cxWindowPtrContainer::const_iterator	subWindows_begin () const
	Returns a const iterator to the first subwindow.
cxWindowPtrContainer::const_iterator	subWindows_end () const
	Returns a const iterator to the one past the last subwindow.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rbegin () const
	Returns a const reverse begin iterator for the subwindow collection.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rend () const
	Returns a const reverse end iterator for the subwindow collection.
bool	onFocusFunctionIsSet () const
	Returns whether or not the onFocus function is set (if.
bool	onLeaveFunctionIsSet () const
	Returns whether or not the onLeave function is set (if.

Protected Attributes
std::set< attr_t >	mMenuSelectionAttrs
	Menu selection attributes.
Protected Attributes inherited from cx::cxWindow
WINDOW *	mWindow = nullptr
	Everything in the window is written here; this is an nCurses window structure.
messageLineContainer	mMessageLines
	Contains the text to be shown inside the window (note: the.
std::map< std::pair< int, int >, chtype >	mSpecialChars
	Contains "special" characters which are added to the window.
std::set< attr_t >	mMessageAttrs
	Message attributes.
std::set< attr_t >	mTitleAttrs
	Title attributes.
std::set< attr_t >	mStatusAttrs
	Status attributes.
std::set< attr_t >	mBorderAttrs
	Border attributes.
std::set< attr_t >	mHotkeyAttrs
	Hotkey attributes.
std::map< std::pair< int, int >, attr_t >	mSpecialCharAttrs
	Attributes for the "special" characters (which are added to.
short	mMessageColorPair = eWHITE_BLUE
short	mTitleColorPair = eGRAY_BLUE
short	mStatusColorPair = eBROWN_BLUE
short	mBorderColorPair = eGRAY_BLUE
eHPosition	mHorizTitleAlignment = eHP_LEFT
eHPosition	mHorizMessageAlignment = eHP_LEFT
eHPosition	mHorizStatusAlignment = eHP_LEFT
eVPosition	mVerticalMessageAlignment = eVP_TOP
bool	mDrawMessage = true
bool	mDrawTitle = true
bool	mDrawStatus = true
bool	mDrawSpecialChars = true
std::shared_ptr< cxFunction >	mOnFocusFunction = nullptr
std::shared_ptr< cxFunction >	mOnLeaveFunction = nullptr
bool	mIsModal = false
bool	mLeaveNow = false
std::map< int, std::shared_ptr< cxFunction > >	mKeyFunctions
std::map< int, std::shared_ptr< cxFunction > >	mMouseFunctions
std::map< int, bool >	mQuitKeys
std::map< int, bool >	mExitKeys
bool	mHotkeyHighlighting

Additional Inherited Members
Static Public Member Functions inherited from cx::cxObject
static bool	UseColors ()
static void	UseColors (bool useIt)
static bool	UseBeeps ()
static void	UseBeeps (bool useIt)
Static Protected Attributes inherited from cx::cxObject
static bool	useColors
	Whether or not to use colors.
static bool	useBeeps
	Whether or not to enable beeping.

Detailed Description

Represents a list of items, one of which may be selected.

before the menu goes away. The items are one-line text entries. An item can additionally have a sub-menu associated with it. The shortcut characters for the item can be underlined via an ampersand (&) placed before a character when setting the item text.
Each item in a cxMenu has 2 pieces of text: The text that is displayed, and alternate text. When appending an item to the menu, both can be specified. When retrieving item text from the menu, you can retrieve either the displayed text or the item's alternate text.
By default, the menu does not wrap around when the user scrolls beyond the last or first item; however, this behavior can be changed with a call to enableWrapping().
The user can also search for a menu item - by default, the search key is '/', but this can be changed via a call to setSearchKey(). By default, the previous search text is used again for additional searches but can be changed by the user. If you don't want the form to use the previous search text in additional searches, you can change this behavior with a call to setClearOnSearch(), passing true as the parameter. Also, item searching is not case-sensitive by default, but this can be changed with a call to setCaseSensitiveSearch().
Also, cxMenu supports page scrolling with the pageUp and pageDown keys. In addition, cxMenu also uses alternate keys for doing a pageUp and pageDown, which by default are '.' and ',', respectively. These defaults can be changed via setAltPgUpKey() and setAltPgDownKey().
Note that the search key and the alternate pageUp and pageDown keys are static; therefore, when these keys are changed, they are changed for all instances of cxMenu. setSearchKey(), setAltPgUpKey(), and setAltPgDownKey() are static methods; therefore, they can be called without an instance of cxMenu.

Constructor & Destructor Documentation

cxMenu() [1/2]

cx::cxMenu::cxMenu ( cxWindow *  pParentWindow = nullptr, int  pRow = 0, int  pCol = 0, int  pHeight = DEFAULT_HEIGHT, int  pWidth = DEFAULT_WIDTH, const std::string &  pTitle = "", cxWindow *  pExtTitleWindow = nullptr, cxWindow *  pExtStatusWindow = nullptr, eBorderStyle  pBorderStyle = eBS_SINGLE_LINE  )

explicit

Default constructor

Parameters

pParentWindow	Pointer to parent window; defaults to nullptr
pRow	The y location of the upper-left corner of menu; defaults to 0
pCol	the x location of the upper-left corner of menu; defaults to 0
pHeight	The height of the menu; defaults to DEFAULT_HEIGHT
pWidth	The width of the menu; defaults to DEFAULT_WIDTH
pTitle	The title of the menu; blank by default
pExtTitleWindow	A pointer to another cxWindow in which to display the window title.
pExtStatusWindow	A pointer to another cxWindow in which to display the status.
pBorderStyle	The type of border to use - can be eBS_SINGLE_LINE for a single-line border or eBS_NOBORDER for no border.

cxMenu() [2/2]

cx::cxMenu::cxMenu

(

const cxMenu &

pThatMenu

)

Copy constructor.

Parameters

pThatMenu

Another cxMenu to be copied

References copyCxMenuStuff(), cx::height(), cx::left(), cx::mMenuSelectionAttrs, cx::top(), and cx::width().

~cxMenu()

cx::cxMenu::~cxMenu ( )

virtual

Destructor

Member Function Documentation

addAttr()

void cx::cxMenu::addAttr ( e_WidgetItems  pItem, attr_t  pAttr  )

overridevirtual

Adds an ncurses attribute to use for one of the items in the.

window (see the e_WidgetItems enumeration).

Parameters

pItem	The item to add the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses atribute to add.

Reimplemented from cx::cxWindow.

References cx::cxWindow::addAttr(), cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, and mMenuSelectionAttrs.

append()

void cx::cxMenu::append ( const std::string &  pDisplayText, long  pReturnCode, const std::string &  pHelpString = "", cxMenuItemType  pType = cxITEM_NORMAL, bool  pResize = false, const std::string &  pItemText = ""  )

virtual

Adds a string item to the end of the menu.

Parameters

pDisplayText	The text to display for the item
pReturnCode	The integer code that the the menu should return when show() exits
pHelpString	A string to be displayed in the statusbar of the main window when the item is highlighted
pType	The type of menu item - This defines whether it's a regular menu item (cxITEM_NORMAL), a pop-up menu, etc. (see the cxMenuItemType enumeration in cxMenuItemType.h)
pResize	If true, the menu will resize itself so that it can show all the items. Defaults to false.
pItemText	Alternate text to use for the item

References cx::cxITEM_NORMAL, cx::cxITEM_SUBMENU, cx::cxITEM_UNSELECTABLE, cx::eBS_NOBORDER, cx::cxWindow::getBorderStyle(), cx::cxWindow::height(), cx::cxWindow::mMessageLines, resize(), and cx::cxWindow::width().

Referenced by cx::cxComboBox::appendToMenu(), appendWithPopUp(), appendWithPullRight(), attributesSetter(), changeMenuItemText(), cxFormAppendPair(), cxMenuAltItemText(), cxMenuAssignment(), cxMenuFocusFunctions(), cxMenuItemHotkeysOffMenu(), cxMenuMiscTests(), cxMenuMouseFunctionTest(), cxMenuNoMoreSelectableItemsWhileModal(), cxMenuNoQuit(), cxMenuResize(), cxMenuScrolling(), cxMenuWithDuplicateHotkeys(), cxMenuWithMultipleItemHotkeys(), demoPanels(), doMenu(), externalStatusWindow(), externalTitleWindow(), formWithMenu(), menuItemWithMultipleHotkeys(), SpreadsheetApp::run(), sortByReturnCode(), testMenu1(), and unselectableMenuItem().

appendWithPopUp()

void cx::cxMenu::appendWithPopUp ( const std::string &  pDisplayText, cxMenu *  pSubMenu, const std::string &  pHelpString = "", bool  pResize = false  )

virtual

Adds an item with a pop-up submenu

Parameters

pDisplayText	The text to display for the item
pSubMenu	A pointer to the submenu to display
pHelpString	A string to be displayed in the statusbar of the main window when the item is highlighted
pResize	If true, the menu will resize itself so that it can show all the items.

References append(), cx::cxITEM_POPUPMENU, and cx::cxWindow::mMessageLines.

appendWithPullRight()

void cx::cxMenu::appendWithPullRight ( const std::string &  pDisplayText, cxMenu *  pSubMenu, const std::string &  pHelpString = "", bool  pResize = false  )

virtual

Adds an item with a pull-right submenu

Parameters

pDisplayText	The text to display for the item
pSubMenu	A pointer to the submenu to display
pHelpString	A string to be displayed in the statusbar of the main window when the item is highlighted
pResize	If true, the menu will resize itself so that it can show all the items.

References append(), cx::cxITEM_SUBMENU, and cx::cxWindow::mMessageLines.

Referenced by cxMenuItemHotkeysOffMenu(), cxMenuScrolling(), doMenu(), and testMenu1().

clear()

void cx::cxMenu::clear ( bool  pRefresh = false )

overridevirtual

Alias for removeAllItems() (this is here to overload the clear()

inherited from cxWindow). Does not resize the menu, and does

not bring it to the top.

Parameters

pRefresh

Whether or not to refresh the menu (defaults to false)

Reimplemented from cx::cxWindow.

References removeAllItems().

copyCxMenuStuff()

void cx::cxMenu::copyCxMenuStuff ( const cxMenu *  pThatMenu )

protected

Makes a copy of a cxMenu's member variables.

Parameters

pThatMenu

A pointer to another cxMenu whose members to copy

References cx::cxWindow::copyCxWinStuff(), cx::cxWindow::getHotkeyHighlighting(), mMenuSelectionAttrs, and setHotkeyHighlighting().

Referenced by cxMenu(), and operator=().

cxTypeStr()

string cx::cxMenu::cxTypeStr ( ) const

overridevirtual

Returns the name of the cxWidgets class, "cxMenu". This can be.

used to determine the type of cxWidgets object that deriving

classes derive from in applications.

Returns

The name of the cxWidgets class ("cxMenu").

Reimplemented from cx::cxWindow.

disableAttrs()

void cx::cxMenu::disableAttrs ( WINDOW *  pWin, e_WidgetItems  pItem  )

overrideprotectedvirtual

Disables the attributes for one of the m*Attrs sets for an ncurses window.

If the m*Attrs collection is empty, this will disable the cxBase attributes

instead.

Parameters

pWin	A pointer to the ncurses window for which to disable the attributes (will usually be mWindow).
pItem	The item type to retrieve attributes for - see the e_cxWidgetItems enumeration (defined in cxWidgetItems.h).

Reimplemented from cx::cxWindow.

References cx::cxWindow::disableAttrs(), cx::disableAttrs(), cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, and mMenuSelectionAttrs.

Referenced by drawBorder(), and drawMessage().

disableCustomStatus()

void cx::cxMenu::disableCustomStatus

(

bool

pRefreshStatus = true

)

Turns off the custom status text set with setStatus.

After a call to this function, the current status

text will be cleared, and the form will go back to

using the help messages from the inputs in the status line.

Parameters

pRefreshStatus

Whether or not to refresh the status area (defaults to true)

References cx::cxWindow::setStatus().

doInputLoop()

long cx::cxMenu::doInputLoop ( bool &  pRunOnLeaveFunction )

protected

Handles the input loop and returns the menu item's return.

code. Could also return cxID_QUIT if the user presses ESC.

Parameters

pRunOnLeavFunction

(OUT) Whether or not the onLeave function should be run

Returns

The return code associated with the item selected (passed in with the append() function for the item). Could also return cxID_QUIT if the user presses ESC.

References cx::cxWindow::bottom(), BUTTON1_CLICKED, BUTTON1_DOUBLE_CLICKED, BUTTON1_PRESSED, BUTTON1_RELEASED, cx::cxID_EXIT, cx::cxID_QUIT, cx::cxITEM_POPUPMENU, cx::cxITEM_SUBMENU, cx::cxWindow::drawStatus(), ENTER, ESC, ESCAPE, getCurrentItemReturnCode(), getReturnCode(), cx::cxWindow::handleFunctionForLastKey(), cx::cxWindow::handleFunctionForLastMouseState(), cx::cxWindow::hasBorder(), cx::cxWindow::hasExitKey(), cx::cxWindow::hasQuitKey(), cx::cxWindow::height(), cx::cxWindow::hide(), KEY_END2, KEY_END3, cx::cxWindow::left(), cx::cxWindow::mLeaveNow, cx::cxWindow::mMessageLines, cx::cxWindow::mouseEvtWasButtonEvt(), mouseEvtWasInItemArea(), cx::cxWindow::mouseEvtWasInTitle(), cx::cxWindow::mouseEvtWasInWindow(), cx::cxWindow::moveRelative(), cx::cxWindow::mWindow, NOKEY, PAGE_DOWN, PAGE_UP, cx::cxWindow::parentIsCxPanel(), cx::cxWindow::right(), runLoopEndFunction(), runLoopStartFunction(), scrollItems(), setCurrentMenuItem(), cx::cxWindow::setLastKey(), cx::cxWindow::setReturnCode(), SHIFT_TAB, cx::cxWindow::show(), TAB, and cx::cxWindow::top().

Referenced by showModal().

drawBorder()

void cx::cxMenu::drawBorder ( )

overridevirtual

Draws a border around the menu.

Reimplemented from cx::cxWindow.

References disableAttrs(), cx::cxWindow::drawBorder(), cx::eBORDER, enableAttrs(), cx::cxWindow::hasBorder(), cx::cxWindow::height(), cx::cxWindow::mBorderColorPair, cx::cxWindow::mWindow, cx::cxObject::useColors, and cx::cxWindow::width().

drawMessage()

void cx::cxMenu::drawMessage ( )

overridevirtual

Outputs the menu item text lines

Reimplemented from cx::cxWindow.

References disableAttrs(), cx::eBS_NOBORDER, cx::eMESSAGE, enableAttrs(), cx::cxWindow::getBorderStyle(), cx::cxWindow::height(), cx::cxWindow::mMessageColorPair, and cx::cxWindow::mMessageLines.

Referenced by refreshMenuItems(), setTopItem(), and sortByReturnCode().

enableAttrs()

void cx::cxMenu::enableAttrs ( WINDOW *  pWin, e_WidgetItems  pItem  )

overrideprotectedvirtual

Enables the attributes for one of the m*Attrs sets for an ncurses window.

If the m*Attrs collection is empty, this will enable the cxBase attributes

instead.

Parameters

pWin	A pointer to the ncurses window for which to enable the attributes (will usually be mWindow).
pItem	The item type to retrieve attributes for - see the e_cxWidgetItems enumeration (defined in cxWidgetItems.h).

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::cxWindow::enableAttrs(), cx::enableAttrs(), cx::eSTATUS, cx::eTITLE, and mMenuSelectionAttrs.

Referenced by drawBorder(), and drawMessage().

erase()

void cx::cxMenu::erase ( bool  pEraseSubwindows = true )

overridevirtual

Erases the window

Reimplemented from cx::cxWindow.

References cx::cxWindow::erase().

Referenced by cx::cxComboBox::erase(), and remove().

getAllowExit()

bool cx::cxMenu::getAllowExit

(

)

const

Returns whether the user is able to exit out of the form.

Returns

Whether or not the use is able to exit out of the form

getAllowQuit()

bool cx::cxMenu::getAllowQuit

(

)

const

Returns whether the user is able to quit out of the form.

Returns

Whether or not the use is able to quit out of the form

getAltPgDownKey()

int cx::cxMenu::getAltPgDownKey

(

)

const

Returns the key that is set as the alternate pageDown key.

Returns

The key that is set as the alternate pageDown key

getAltPgUpKey()

int cx::cxMenu::getAltPgUpKey

(

)

const

Returns the key that is set as the alternate pageUp key.

Returns

The key that is set as the alternate pageUp key

getAttrs()

void cx::cxMenu::getAttrs ( e_WidgetItems  pItem, std::set< attr_t > &  pAttrs  ) const

overridevirtual

Returns the set of ncurses attributes for a given item.

Parameters

pItem	The item to retrieve attributes for (see the e_WidgetItems enumeration).
pAttrs	This will contain the attributes for the item.

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, cx::cxWindow::getAttrs(), and mMenuSelectionAttrs.

getCurrentItemReturnCode()

long cx::cxMenu::getCurrentItemReturnCode ( ) const

virtual

Returns the return code of the currently-highlited item.

Returns

The return code of the currently-highlighted item.

References getCurrentMenuItem(), and getReturnCode().

Referenced by doInputLoop().

getCurrentItemText()

string cx::cxMenu::getCurrentItemText ( bool  pGetDisplayText = true ) const

virtual

Returns the text of the current selected menu item. Could.

return a blank string if there is no current selected menu

item.

Parameters

pGetDisplayText

If true (default), then this will return the text displayed on the menu for the item. If false, then this will return the alternate text for the item.

Returns

The text of the current selected menu item, or a blank string if there is no current selected menu item.

References getCurrentMenuItem(), getItemText(), and numMenuItems().

Referenced by cxMenuAltItemText().

getCurrentMenuItem()

int cx::cxMenu::getCurrentMenuItem ( ) const

virtual

Returns the index of the current menu item.

Returns

The index of the current menu item

Referenced by getCurrentItemReturnCode(), getCurrentItemText(), and sortByReturnCode().

getExitWhenLeaveFirst()

bool cx::cxMenu::getExitWhenLeaveFirst

(

)

const

Returns whether the menu will exit its input loop when the.

user presses the up arrow on the first menu item.

Returns

Whether or not the menu will exit its input loop when the user prsses the up arrow on the first menu item.

getExitWhenLeaveLast()

bool cx::cxMenu::getExitWhenLeaveLast

(

)

const

Returns whether the menu will exit its input loop when the.

user presses the down arrow on the last menu item.

Returns

Whether or not the menu will exit its input loop when the user prsses the down arrow on the last menu item.

getHighestReturnCode()

long cx::cxMenu::getHighestReturnCode

(

)

const

Returns the highest return code of the menu items.

Returns

The highest return code of the menu items

getIndexByReturnCode()

int cx::cxMenu::getIndexByReturnCode

(

long

pReturnCode

)

const

Returns the index of a menu item by its return code.

Parameters

pReturnCode

The return code of the menu item

Returns

The index of the item, or -1 if it's not found.

Referenced by getItemTextByReturnCode(), itemWasSelected(), and sortByReturnCode().

getItemText()

string cx::cxMenu::getItemText ( int  pIndex, bool  pGetDisplayText = true  ) const

virtual

Returns the text for a menu item.

Parameters

pIndex	The index of the menu item
pGetDisplayText	If true (default), then this will return the text displayed on the menu for the item. If false, then this will return the alternate text for the item.

Returns

The text at the specified index, or a blank string if the index is out of bounds.

References cx::cxWindow::mMessageLines.

Referenced by cxMenuAltItemText(), getCurrentItemText(), cx::cxComboBox::getItemText(), getItemTextByReturnCode(), and sortByReturnCode().

getItemTextByReturnCode()

string cx::cxMenu::getItemTextByReturnCode	(	long	pReturnCode,
		bool	pGetDisplayText = true
	)

Returns an item's text by its return code. If there is no.

item with the given return code, a blank string is returned.

Parameters

pReturnCode	The return code to look for
pGetDisplayText	If true (default), then this will return the text displayed on the menu for the item. If false, then this will return the alternate text for the item.

Returns

The item text for the given return code, or a blank string if there is no item with the given return code.

References getIndexByReturnCode(), and getItemText().

Referenced by cxMenuAltItemText(), and cxMenuMiscTests().

getItemType() [1/2]

cxMenuItemType cx::cxMenu::getItemType

(

const std::string &

pItemText

)

const

Returns the type of a menu item (by item text), or -1 if the.

given item textis not valid.

Parameters

pItemText

The text of the menu item

Returns

The type of the menu item

getItemType() [2/2]

cxMenuItemType cx::cxMenu::getItemType

(

unsigned

pIndex

)

const

Returns the type of a menu item (by index), or -1 if the given.

index is not valid.

Parameters

pIndex

The index of the menu item

Returns

The type of the menu item

getOnSelectItemFunction()

shared_ptr< cxFunction > cx::cxMenu::getOnSelectItemFunction

(

)

const

Returns the pointer to the onSelectMenuItem function.

Returns

The pointer to the onSelectMenuItem function

getRefreshItemsWhenModal()

bool cx::cxMenu::getRefreshItemsWhenModal

(

)

const

Returns whether or not the list of items will be refreshed when.

the menu is shown modally.

Returns

true if the list of items will be refreshed when the menu is shown modally, or false if not.

getReturnCode() [1/3]

long cx::cxMenu::getReturnCode ( ) const

overridevirtual

Returns the return code set by the last call to.

showModal() based on the user's interaction. The

return code is set to cxID_EXIT by default before

the first call to showModal().

Returns

The return code set by the last call to showModal()

Reimplemented from cx::cxWindow.

References cx::cxWindow::getReturnCode().

Referenced by cxMenuAltItemText(), doInputLoop(), getCurrentItemReturnCode(), itemWasSelected(), showModal(), and sortByReturnCode().

getReturnCode() [2/3]

virtual long cx::cxMenu::getReturnCode ( const std::string &  pItemText, bool  pUseDisplayText = true  ) const

virtual

Returns the return code for a menu item (by item text).

Parameters

pItemText	The text of the menu item whose return code to get
pUseDisplayText	If true (default), then this will return the text displayed on the menu for the item. If false, then this will return the alternate text for the item.

Returns

The item's return code (if index is within range). If no item with the given text is not found, -1 is returned.

getReturnCode() [3/3]

long cx::cxMenu::getReturnCode ( unsigned  pIndex ) const

virtual

Returns the return code for a menu item at a specified index.

Parameters

pIndex

The index of the item whose return code to get

Returns

The item's return code (if index is within range). If the index is not within range, -1 is returned.

getSubWinHeight()

int cx::cxMenu::getSubWinHeight

(

)

const

Returns the height of the submenu

Returns

The height of the submenu

getSubWinWidth()

int cx::cxMenu::getSubWinWidth

(

)

const

Returns the width of the submenu

Returns

The width of the submenu

getWaitForInputIfEmpty()

bool cx::cxMenu::getWaitForInputIfEmpty ( ) const

virtual

Returns whether or not the menu will display a message.

and wait for user input if there are no menu items.

Returns

Whether or not the menu will display a message and wait for user input if there are no menu items.

getWrapping()

bool cx::cxMenu::getWrapping ( ) const

virtual

Returns whether scroll wrapping is enabled.

Returns

Whether or not scroll wrapping is enabled

itemExists()

bool cx::cxMenu::itemExists ( const std::string &  pItemText, bool  pUseDisplayText = true  ) const

virtual

Returns whether or not an item exists in the menu.

Parameters

pItemText	The text of the item for which to search
pUseDisplayText	If true (default), then pItemText specifies the text displayed in the menu. If false, then pItemText specifies the alternate item text.

Returns

Whether or not the item exists in the menu

References cx::cxWindow::mMessageLines, and cx::stringWithoutHotkeyChars().

Referenced by cxMenuAltItemText().

itemWasSelected()

bool cx::cxMenu::itemWasSelected ( ) const

virtual

Returns whether an item was selected the last time the menu was.

shown (either from the menu or from a submenu).

Returns

true if an item was selected, or false if not.

References cx::cxID_EXIT, cx::cxID_QUIT, cx::cxITEM_POPUPMENU, cx::cxITEM_SUBMENU, ENTER, getIndexByReturnCode(), cx::cxWindow::getLastKey(), getReturnCode(), cx::cxWindow::lastKeyWasMouseEvt(), cx::cxWindow::mouseButton1Clicked(), cx::cxWindow::mouseButton1DoubleClicked(), and cx::cxWindow::mouseEvtWasInWindow().

Referenced by testMenu1().

modalGetsKeypress()

bool cx::cxMenu::modalGetsKeypress ( ) const

overridevirtual

Returns whether or not a call to showModal() will wait for a.

keypress from the user. A cxmenu will wait for a keypress if

it is enabled and it has at least 1 selectable menu item. If

it is enabled but does not have any selectable items, it may

or may not wait for a keypress, depending on whether

setWaitForInputIfEmpty() has been called.

Returns

Whether or not a call to showModal() will wait for a keypress from the user.

Reimplemented from cx::cxWindow.

References cx::cxWindow::isEnabled(), and cx::cxWindow::mMessageLines.

mouseEvtWasInItemArea()

bool cx::cxMenu::mouseEvtWasInItemArea

(

int &

pItemIndex

)

const

Returns whether the last mouse event occurred in the area where.

the menu items are listed. If so, then this will also get the

index of the menu item that is located there. If there is no

item at that location or if the mouse event didn't occur in

the item, the index this gets will be -1.

Note that the return code of the item can be retrieved using

the version of getReturnCode() that takes an item index.

Parameters

pItemIndex

(OUT) This will be set to the index of the item that was clicked on, or -1 if the mouse event didn't occur at one of the menu items.

Returns

true if the last mouse event occurred in the item area, or false if not.

References cx::cxWindow::bottom(), cx::eBS_NOBORDER, cx::cxWindow::getBorderStyle(), cx::cxWindow::height(), cx::cxWindow::left(), cx::cxWindow::mouseEvtWasInWindow(), numMenuItems(), cx::cxWindow::right(), and cx::cxWindow::top().

Referenced by doInputLoop().

move()

bool cx::cxMenu::move ( int  pNewRow, int  pNewCol, bool  pRefresh = true  )

overridevirtual

Changes the window's position (based on a new upper-left corner).

Parameters

pNewRow	The new topmost row of the form
pNewCol	The new leftmost column of the form
pRefresh	Whether or not to refresh the window (defaults to true)

Returns

Whether or not the move succeeded or not (true/false)

Reimplemented from cx::cxWindow.

References cx::cxWindow::move(), and show().

Referenced by demoPanels(), cx::cxComboBox::move(), and cx::cxComboBox::toggleMenu().

numMenuItems()

unsigned cx::cxMenu::numMenuItems ( ) const

virtual

Returns the number of menu items

Returns

The number of menu items

References cx::cxWindow::mMessageLines.

Referenced by allMenuItemsUnselectable(), cx::cxComboBox::appendToMenu(), attributesSetter(), getCurrentItemText(), mouseEvtWasInItemArea(), cx::cxComboBox::numMenuItems(), remove(), scrollToBottom(), and sortByReturnCode().

operator=()

cxMenu & cx::cxMenu::operator=

(

const cxMenu &

pThatMenu

)

Assignment operator.

Parameters

pThatMenu

Another cxMenu to be copied

Returns

The current cxMenu

References copyCxMenuStuff().

refreshMenuItems()

void cx::cxMenu::refreshMenuItems ( )

virtual

Refreshes the list of menu items.

References drawMessage().

Referenced by showModal().

remove() [1/2]

virtual bool cx::cxMenu::remove ( const std::string &  pItemText, bool  pUseDisplayText = true, bool  pResize = false, bool  pRefresh = false  )

virtual

Removes a menu item from the menu (by display text or alternate.

item text). If the item has a submenu, the submenu will NOT be

deleted and may be reused.

Parameters

pItemText	The text of the item to delete
pUseDisplayText	If true (default), then pItemText specifies the text displayed in the menu. If false, then pItemText specifies the alternate item text.
pResize	If true, the menu will resize itself accordingly
pRefresh	Whether or not to refresh the menu (defaults to false)

Returns

True if the item was deleted; false if not.

remove() [2/2]

bool cx::cxMenu::remove ( unsigned  pItemIndex, bool  pResize = false, bool  pRefresh = false  )

virtual

Removes a menu item from the menu. If the item has a submenu,.

the submenu will NOT be deleted and may be reused.

Parameters

pItemIndex	Index of the item to delete
pResize	If true, the menu will resize itself accordingly
pRefresh	Whether or not to refresh the menu (defaults to false)

Returns

True if the item was deleted; false if not.

References cx::eBS_NOBORDER, erase(), cx::cxWindow::getBorderStyle(), cx::cxWindow::mMessageLines, numMenuItems(), resize(), setTopItem(), and cx::cxWindow::width().

Referenced by cxMenuAltItemText(), removeByReturnCode(), and cx::cxComboBox::removeFromMenu().

removeAllItems()

void cx::cxMenu::removeAllItems ( bool  pResize = false, bool  pRefresh = false  )

virtual

Removes all items from the menu.

Parameters

pResize	Whether or not to resize the menu when done (defaults to false).
pRefresh	Whether or not to refresh the menu (defaults to false)

References cx::eBS_NOBORDER, cx::cxWindow::getBorderStyle(), cx::cxWindow::mMessageLines, resize(), show(), and cx::cxWindow::width().

Referenced by clear(), clearAllMenuItems(), cx::cxComboBox::removeAllItemsFromMenu(), and sortByReturnCode().

removeAttr()

void cx::cxMenu::removeAttr ( e_WidgetItems  pItem, attr_t  pAttr  )

overridevirtual

Removes an ncurses attribute from one of the item lists.

Parameters

pItem	The item to remove the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses attribute to remove

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, mMenuSelectionAttrs, and cx::cxWindow::removeAttr().

removeAttrs()

void cx::cxMenu::removeAttrs ( e_WidgetItems  pItem )

overridevirtual

Removes all attributes for a given window item.

Parameters

pItem

The item to remove attributes for (see the e_WidgetItems enumeration).

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, mMenuSelectionAttrs, and cx::cxWindow::removeAttrs().

removeByReturnCode()

bool cx::cxMenu::removeByReturnCode ( long  pReturnCode, bool  pResize = false, bool  pRefresh = false  )

virtual

Removes a menu item based on its return code.

Parameters

pReturnCode	The return code of the menu item
pResize	If true, the menu will resize itself accordingly
pRefresh	Whether or not to refresh the menu (defaults to false)

Returns

True of the item was removed, or false if not.

References remove().

resize()

void cx::cxMenu::resize ( int  pNewHeight, int  pNewWidth, bool  pRefresh = false  )

overridevirtual

Resizes the menu

Parameters

pNewHeight	New height of the menu
pNewWidth	New width of the menu
pRefresh	Whether or not to refresh the menu (defaults to false)

Reimplemented from cx::cxWindow.

References cx::eBS_NOBORDER, cx::cxWindow::freeWindow(), cx::cxWindow::getBorderStyle(), cx::cxWindow::getStatus(), cx::cxWindow::getTitle(), cx::height(), cx::cxWindow::height(), cx::cxWindow::left(), cx::cxWindow::mMessageLines, cx::cxWindow::mWindow, cx::cxWindow::reCreatePanel(), show(), cx::cxWindow::top(), cx::width(), and cx::cxWindow::width().

Referenced by append(), cxMenuResize(), remove(), removeAllItems(), cx::cxComboBox::resize(), cx::cxComboBox::setMenuHeight(), and cx::cxComboBox::toggleMenu().

runLoopEndFunction()

bool cx::cxMenu::runLoopEndFunction ( )

virtual

Runs the loop end function, if it's set.

Returns

The value of the loop end function's mExitAfterRun, or false if the loop start end isn't set.

Referenced by doInputLoop().

runLoopStartFunction()

bool cx::cxMenu::runLoopStartFunction ( )

virtual

Runs the loop start function, if it's set.

Returns

The value of the loop start function's mExitAfterRun, or false if the loop start function isn't set.

Referenced by doInputLoop().

scrollItems()

void cx::cxMenu::scrollItems ( int  pScrollAmt, bool  pRefresh = false  )

virtual

Scrolls the menu item list by a certain amount.

Parameters

pScrollAmt	The amount by which to scroll. If this is positive, the menu will scroll down (the items will move upwards), and if this is negative, the menu will scroll up.
pRefresh	Whether or not to refresh the menu (defaults to false).

References cx::cxWindow::bottom(), cx::cxWindow::height(), cx::cxWindow::mMessageLines, and show().

Referenced by doInputLoop(), and setBottomItem().

scrollToBottom()

void cx::cxMenu::scrollToBottom ( bool  pRefresh = false )

virtual

Scrolls the menu to the bottom.

Parameters

pRefresh

Whether or not to refresh the menu (defaults to false).

References numMenuItems(), and setBottomItem().

scrollToTop()

void cx::cxMenu::scrollToTop ( bool  pRefresh = false )

virtual

Scrolls the menu to the top.

Parameters

pRefresh

Whether or not to refresh the menu (defaults to false).

References setTopItem().

setAllowExit()

void cx::cxMenu::setAllowExit

(

bool

pAllowExit

)

Sets whether the form should allow the user to exit.

Parameters

pAllowExit

If true, the user will be able to exit out of the form; if false, the user won't be able to exit.

setAllowQuit()

void cx::cxMenu::setAllowQuit

(

bool

pAllowQuit

)

Sets whether the form should allow the user to quit.

Parameters

pAllowQuit

If true, the user will be able to quit out of the form; if false, the user won't be able to quit.

Referenced by cxMenuNoQuit().

setAltPgDownKey()

void cx::cxMenu::setAltPgDownKey

(

int

pPgDownKey

)

Sets the new alternate pageDown key.

Parameters

pPgDownKey

The new alternate pageDown key

setAltPgUpKey()

void cx::cxMenu::setAltPgUpKey

(

int

pPgUpKey

)

Sets the alternate pageUp key.

Parameters

pPgUpKey

The new alternate pageUp key

setAttr()

void cx::cxMenu::setAttr ( e_WidgetItems  pItem, attr_t  pAttr  )

overridevirtual

Sets the ncurses attribute to use for one of the items in the.

window (see the e_WidgetItems enumeration). Clears the current

set of attributes for the item and inserts the given attribute

into the set.

Parameters

pItem	The item to apply the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses atribute to apply.

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, mMenuSelectionAttrs, and cx::cxWindow::setAttr().

setBorderStyle()

void cx::cxMenu::setBorderStyle ( eBorderStyle  pBorderStyle )

overridevirtual

Sets the border style.

Parameters

pBorderStyle

A eBorderStyle enumeration value (see cxBorderStyles.h)

Reimplemented from cx::cxWindow.

References cx::cxWindow::getBorderStyle(), and cx::cxWindow::setBorderStyle().

setBottomItem()

void cx::cxMenu::setBottomItem ( unsigned  pItemIndex, bool  pRefresh = false  )

virtual

Sets the item to appear at the bottom of the menu (by index).

Parameters

pItemIndex	The index of the item to appear at the bottom of the menu
pRefresh	Whether or not to refresh the menu (defaults to false).

References cx::cxWindow::mMessageLines, scrollItems(), and setTopItem().

Referenced by scrollToBottom().

setCaseSensitiveSearch()

void cx::cxMenu::setCaseSensitiveSearch

(

bool

pCaseSensitiveSearch

)

Sets whether or not item searching should be case-sensitive.

Parameters

pCaseSensitiveSearch

If true, item searching will be case-sensitive. If false, item searching will not be case-sensitive.

setClearOnSearch()

void cx::cxMenu::setClearOnSearch

(

bool

pClearOnSearch

)

Sets whether or not to clear the search text.

upon showing the search input box.

Parameters

pClearOnSearch

If true, the previous search text will not be used in new searches. If false, the previous search text will be used in new searches (but can still be changed by the user).

setCurrentMenuItem()

void cx::cxMenu::setCurrentMenuItem ( int  pItemIndex, bool  pRefresh = false  )

virtual

Sets the current menu item (by index)

Parameters

pItemIndex	The index of the new menu item
pRefresh	Whether or not to refresh the menu after setting the menu item (defaults to false)

References cx::cxWindow::mMessageLines, setTopItem(), and show().

Referenced by doInputLoop(), and sortByReturnCode().

setExitOnOutsideClick()

void cx::cxMenu::setExitOnOutsideClick

(

bool

pExitOnOutsideClick

)

When set to true, the menu will exit its input loop whenever a mouse click occurs outside the menu window, regardless of whether the menu has a parent menu or is embedded in a cxPanel. Use this when showing a standalone dropdown that should close on any outside click (e.g., a cxMenuBar dropdown).

Parameters

pExitOnOutsideClick

If true, exit the input loop on any outside mouse click.

setExitWhenLeaveFirst()

void cx::cxMenu::setExitWhenLeaveFirst

(

bool

pExitWhenLeaveFirst

)

Changes the behavior of exiting the input loop when the user.

presses the up arrow on the first menu item.

Parameters

pExitWhenLeaveFirst

If true, then when the user presses the up arrow on the first menu item, the menu will exit its input loop.

setExitWhenLeaveLast()

void cx::cxMenu::setExitWhenLeaveLast

(

bool

pExitWhenLeaveLast

)

Changes the behavior of exiting the input loop when the user.

presses the down arrow on the last menu item.

Parameters

pExitWhenLeaveFirst

If true, then when the user presses the down arrow on the last menu item, the menu will exit its input loop.

setHotkeyHighlighting()

void cx::cxMenu::setHotkeyHighlighting ( bool  pHotkeyHighlighting )

overridevirtual

Enables/disables the use of hotkey attributes.

If true, wherever there's an ampersand (&) before a character in

the message, that character will have hotkey attributes

applied to it.

Parameters

pHotkeyHighlighting

Whether or not to use hotkey attributes.

Reimplemented from cx::cxWindow.

References cx::cxWindow::mHotkeyHighlighting.

Referenced by copyCxMenuStuff().

setItemTextByIndex()

bool cx::cxMenu::setItemTextByIndex ( int  pIndex, const std::string &  pItemText, bool  pRefresh = false  )

virtual

Sets the text of an item (by index).

Parameters

pIndex	The index of the item
pItemText	The new text for the item
pRefresh	Whether or not to refresh the menu (defaults to false).

Returns

If true, the set was successful; if false, the set was unsuccessful (i.e., if pIndex is an invalid index, etc.)

References cx::cxWindow::mMessageLines.

Referenced by changeMenuItemText().

setItemTextByReturnCode()

bool cx::cxMenu::setItemTextByReturnCode ( long  pReturnCode, const std::string &  pItemText, bool  pSetAll = false, bool  pRefresh = false  )

virtual

Sets the text of an item (by its return code).

Parameters

pReturnCode	The return code of the item
pItemText	The new text for the item
pSetAll	If true, will change the text of all items with the given return code (defaults to false).
pRefresh	Whether or not to refresh the menu (defaults to false).

Returns

If true, the set was successful; if false, the set was unsuccessful (i.e., if there are no items with the given return code, etc.)

References cx::cxWindow::isModal(), and cx::cxWindow::mMessageLines.

Referenced by changeMenuItemText().

setLoopEndFunction()

void cx::cxMenu::setLoopEndFunction

(

const std::shared_ptr< cxFunction > &

pFuncPtr

)

Sets a function to be run at the end of each.

cycle through the input loop. The return value

of the function is not used.

Parameters

pFuncPtr

A pointer to the function

Referenced by cxMenuFocusFunctions().

setLoopStartFunction()

void cx::cxMenu::setLoopStartFunction

(

const std::shared_ptr< cxFunction > &

pFuncPtr

)

Sets a function to be run at the start of each.

input loop. The return value of the function is

not used.

Parameters

pFuncPtr

A pointer to the function

Referenced by cxMenuFocusFunctions().

setOnSelectItemFunction() [1/3]

bool cx::cxMenu::setOnSelectItemFunction ( funcPtr0  pFunction, bool  pExitAfterRun, bool  pRunOnLeaveFunction  )

virtual

Sets a function to run when the user selects an item.

Parameters

pFunction	A pointer to the function to run. Must have this signature: string func()
pExitAfterRun	Whether or not the menu should exit after the function runs
pRunOnLeaveFunction	Whether or not the function should run its onLeave function if it exits after the function runs

Returns

true if the function was set, or false if not

setOnSelectItemFunction() [2/3]

bool cx::cxMenu::setOnSelectItemFunction ( funcPtr2  pFunction, void *  p1, void *  p2, bool  pExitAfterRun, bool  pRunOnLeaveFunction  )

virtual

Sets a function to run when the user selects an item.

Parameters

pFunction	A pointer to the function to run. Must have this signature: string func(void*, void*)
p1	A pointer to the first parameter to pass to the function
p2	A pointer to the second parameter to pass to the function
pExitAfterRun	Whether or not the menu should exit after the function runs
pRunOnLeaveFunction	Whether or not the function should run its onLeave function if it exits after the function runs

Returns

true if the function was set, or false if not

setOnSelectItemFunction() [3/3]

bool cx::cxMenu::setOnSelectItemFunction ( funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pExitAfterRun, bool  pRunOnLeaveFunction  )

virtual

Sets a function to run when the user selects an item.

Parameters

pFunction	A pointer to the function to run. Must have this signature: string func(void*, void*, void*, void*)
p1	A pointer to the first parameter to pass to the function
p2	A pointer to the second parameter to pass to the function
p3	A pointer to the 3rd parameter to pass to the function
p4	A pointer to the 4th parameter to pass to the function
pExitAfterRun	Whether or not the menu should exit after the function runs
pRunOnLeaveFunction	Whether or not the function should run its onLeave function if it exits after the function runs

Returns

true if the function was set, or false if not

setRefreshItemsWhenModal()

void cx::cxMenu::setRefreshItemsWhenModal

(

bool

pRefreshItemsWhenModal

)

Sets whether the list of items should be refreshed when the.

menu is shown modally.

Parameters

pRefreshItemsWhenModal

Whether or not the list of htems should be refreshed when the menu is shown modally

setSearchKey()

void cx::cxMenu::setSearchKey

(

int

pSearchKey

)

Changes the key to be used for menu item searching (static)

Parameters

pSearchKey

The new key to be used for searching

setStatus()

void cx::cxMenu::setStatus ( const std::string &  pStatus, bool  pRefreshStatus = true  )

overridevirtual

Mutator for the status line text. After this method.

is called, the status provided with this method will

be used instead of the menu item help messages.

Parameters

pStatus	The new status message for window
pRefreshStatus	Whether or not to refresh the status area (defaults to true)

Reimplemented from cx::cxWindow.

References cx::cxWindow::setStatus().

Referenced by externalStatusWindow(), and externalTitleWindow().

setTopItem() [1/2]

virtual void cx::cxMenu::setTopItem ( const std::string &  pItemText, bool  pRefresh = false  )

virtual

Sets the item to appear at the top of the menu (by item text).

Parameters

pItemtext	The text of the item
pRefresh	Whether or not to refresh the menu (defaults to false).

setTopItem() [2/2]

void cx::cxMenu::setTopItem ( unsigned  pTopItem, bool  pRefresh = false  )

virtual

Sets the item to appear at the top of the menu (by index).

Parameters

pTopItem	The index of the item to appear at the top of the menu
pRefresh	Whether or not to refresh the menu (defaults to false).

References drawMessage(), and cx::cxWindow::mMessageLines.

Referenced by cxMenuScrolling(), remove(), scrollToTop(), setBottomItem(), and setCurrentMenuItem().

setWaitForInputIfEmpty()

void cx::cxMenu::setWaitForInputIfEmpty ( bool  pWaitForInputIfEmpty )

virtual

Toggles whether or not the menu should display a message.

and wait for user input if there are no menu items. This

is the default behavior.

Parameters

pWaitForInputIfEmpty

Whether or not to display a message and wait for user input if there are no menu items.

setWrapping()

void cx::cxMenu::setWrapping ( bool  pWrap )

virtual

Enables or disables wrapping when trying to scroll beyond.

the last or first item.

Parameters

pWrap

Whether or not to enable wrapping

Referenced by doMenu().

show()

long cx::cxMenu::show ( bool  pBringToTop = true, bool  pShowSubwindows = true  )

overridevirtual

Shows the menu.

Parameters

pBringToTop	Whether or not to bring the window to the top. Defaults to true.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true.

Returns

This method returns a long to support overriding in derived classes that might need to return a value. For cxWindow, cxID_EXIT is always returned.

Reimplemented from cx::cxWindow.

References cx::cxFIRST_AVAIL_RETURN_CODE, cx::cxWindow::hide(), cx::cxWindow::isEnabled(), and cx::cxWindow::show().

Referenced by cx::cxComboBox::appendToMenu(), demoPanels(), move(), removeAllItems(), resize(), scrollItems(), setCurrentMenuItem(), cx::cxComboBox::showMenu(), and showModal().

showModal()

long cx::cxMenu::showModal ( bool  pShowSelf = true, bool  pBringToTop = true, bool  pShowSubwindows = true  )

overridevirtual

Shows the menu, waits for input, and returns the menu item's return.

code. Could also return cxID_QUIT if the user presses ESC.

Parameters

pShowSelf	Whether or not to show the window before running the input loop. Defaults to true.
pBringToTop	Whether or not to bring the window to the top. Defaults to false.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true.

Returns

The return code associated with the item selected (passed in with the append() function for the item). Could also return cxID_QUIT if the user presses ESC.

Reimplemented from cx::cxWindow.

References cx::cxID_EXIT, doInputLoop(), cx::cxWindow::getLeaveNow(), getReturnCode(), cx::cxWindow::isEnabled(), cx::cxWindow::mIsModal, refreshMenuItems(), cx::cxWindow::runOnFocusFunction(), cx::cxWindow::runOnLeaveFunction(), cx::cxWindow::setReturnCode(), and show().

Referenced by attributesSetter(), changeMenuItemText(), cxFormAppendPair(), cxMenuAltItemText(), cxMenuAssignment(), cxMenuFocusFunctions(), cxMenuItemHotkeysOffMenu(), cxMenuMouseFunctionTest(), cxMenuNoMoreSelectableItemsWhileModal(), cxMenuNoQuit(), cxMenuResize(), cxMenuScrolling(), cx::cxMenuShowModal(), cxMenuWithDuplicateHotkeys(), cxMenuWithMultipleItemHotkeys(), demoPanels(), doMenu(), externalStatusWindow(), externalTitleWindow(), formWithMenu(), menuItemWithMultipleHotkeys(), testMenu1(), and unselectableMenuItem().

sortByReturnCode()

void cx::cxMenu::sortByReturnCode ( bool  pRefresh = false )

virtual

Sorts the menu items by their return code. Note: If the same.

return code exists for more than 1 item, then other attributes

for those menu items (i.e., a sub-menu, unselectability, help

text, etc.) will be duplicated too. Use with care!

Parameters

pRefresh

Whether or not to refresh the menu. Defaults to false.

References append(), drawMessage(), getCurrentMenuItem(), getIndexByReturnCode(), getItemText(), getReturnCode(), cx::cxWindow::mMessageLines, numMenuItems(), removeAllItems(), and setCurrentMenuItem().

subWinLeft()

int cx::cxMenu::subWinLeft ( ) const

protected

Returns the left column of the subwindow.

Returns

The left column of the subwindow

subWinTop()

int cx::cxMenu::subWinTop ( ) const

protected

Returns the top row of the subwindow.

Returns

The top row of the subwindow

toggleSelectability() [1/2]

void cx::cxMenu::toggleSelectability	(	const std::string &	pItemText,
		bool	pSelectable
	)

Toggles selectability for an item (by item text).

Selectability is currently not dealt with when

showing a cxMenu.

Parameters

pItemText	The text of the item.
pSelectable	If true, the item will be selectable. If true, the item will be selectable. If false, the item will not be selectable.

toggleSelectability() [2/2]

void cx::cxMenu::toggleSelectability	(	unsigned	pIndex,
		bool	pSelectable
	)

Toggles selectability for an item (by index). Selectability.

is currently not dealt with when showing a cxMenu.

Parameters

pIndex	The index of the item
pSelectable	If true, the item will be selectable. If true, the item will be selectable. If false, the item will not be selectable.

References cx::cxWindow::mMessageLines.

Referenced by allMenuItemsUnselectable(), and unselectableMenuItem().

Member Data Documentation

mMenuSelectionAttrs

std::set<attr_t> cx::cxMenu::mMenuSelectionAttrs

protected

Menu selection attributes.

Referenced by addAttr(), copyCxMenuStuff(), disableAttrs(), enableAttrs(), getAttrs(), removeAttr(), removeAttrs(), and setAttr().

---

The documentation for this class was generated from the following files:

• /home/erico/projects/cxWidgets/src/cxMenu.h
• /home/erico/projects/cxWidgets/src/cxMenu.cpp
