cx::cxNotebook Class Reference

This class represents a notebook control, which manages multiple. More...

#include <cxNotebook.h>

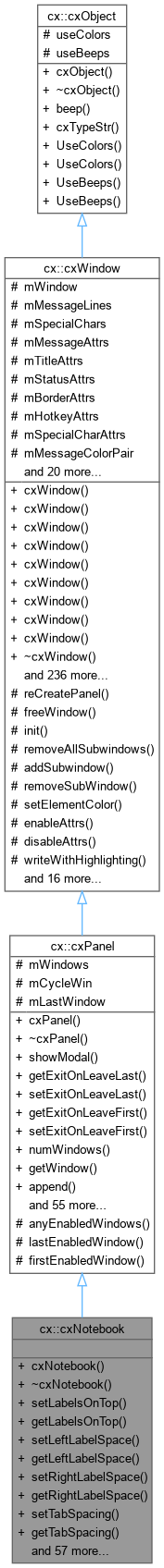

Inheritance diagram for cx::cxNotebook:

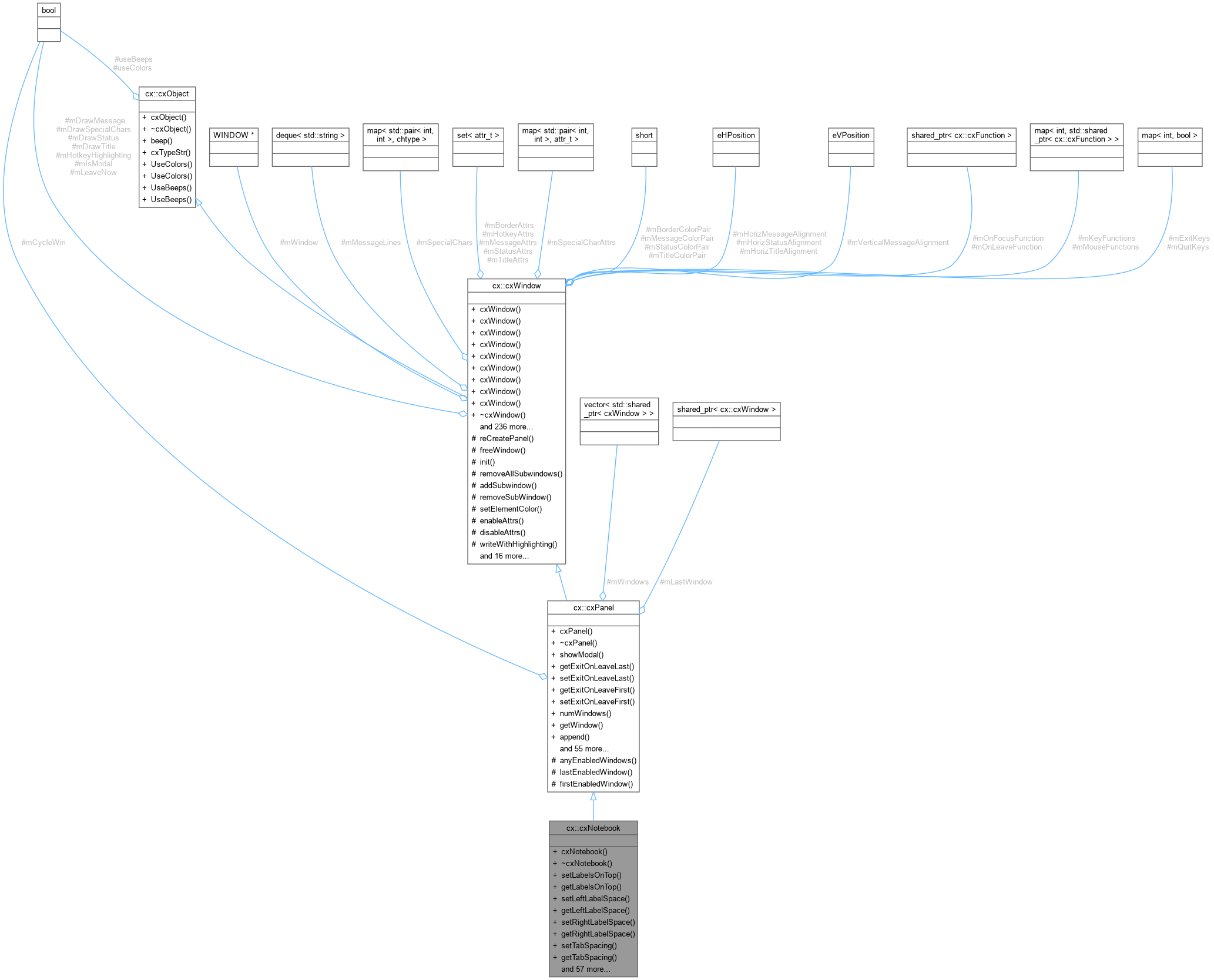

Collaboration diagram for cx::cxNotebook:

Public Member Functions
	cxNotebook (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, bool pLabelsOnTop=true, bool pLeftLabelSpace=true, bool pRightLabelSpace=true, int pTabSpacing=0, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pTabNavWrap=true)
	Constructor.
virtual	~cxNotebook ()
void	setLabelsOnTop (bool pLabelsOnTop, bool pRefresh=false)
	Toggles whether the labels should be on the top or bottom.
bool	getLabelsOnTop () const
	Returns whether the labels are set to appear on top.
void	setLeftLabelSpace (bool pLeftLabelSpace)
	Toggles the option to have a space to the left of label text.
bool	getLeftLabelSpace () const
	Returns the currently-set option of having a space to the left.
void	setRightLabelSpace (bool pRightLabelSpace)
	Toggles the option to have a space to the right of label text.
bool	getRightLabelSpace () const
	Returns the currently-set option of having a space to the right.
bool	setTabSpacing (int pTabSpacing, bool pRefresh=false)
	Sets the number of spaces to use for horizontal alignment of.
int	getTabSpacing () const
	Returns the number of spaces being used for horizontal tab.
void	setTabNavWrap (bool pTabNavWrap)
	Sets whether or not the user will be able to wrap from the.
bool	getTabNavWrap () const
	Returns whether or not wrapping is allowed between the first.
virtual long	show (bool pBringToTop=false, bool pShowSubwindows=true) override
	Shows the notebook.
virtual long	showModal (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true) override
	Shows the notebook and allows the user to interact with the.
virtual void	hide (bool pHideSubwindows=true) override
	Hides the notebook.
virtual void	unhide (bool pUnhideSubwindows=true) override
	Un-hides the notebook.
virtual std::string	cxTypeStr () const override
	Returns the class type as a string ("cxNotebook")
virtual bool	windowIsInNotebook (cxWindow *pWindow) const
	Returns whether a window exists in the notebook.
virtual std::shared_ptr< cxPanel >	append (const std::string &pLabel, const std::string &pPanelName="")
	Appends a new panel & tab to the notebook. Returns a pointer.
virtual cxPanel *	getPanel (unsigned int pIndex) const
	Returns a pointer to one of the panels in the notebook (by.
virtual cxPanel *	getPanel (const std::string &pID, bool pIsLabel=true) const
	Returns a pointer to one of the panels in the notebook (by.
virtual cxPanel *	getCurrentPanelPtr () const
	Returns a pointer to the current panel, or nullptr if there is.
virtual bool	move (int pNewRow, int pNewCol, bool pRefresh=true) override
	Changes the notebok's position, based on a new upper-left.
virtual void	setShowPanelWindow (unsigned int pIndex, bool pShowPanelWindow)
	Sets whether one of the panels in the notebook should show.
virtual void	setShowPanelWindow (const std::string &pID, bool pShowPanelWindow, bool pIsLabel=true)
	Sets whether one of the panels in the notebook should show.
virtual bool	getShowPanelWindow () const override
	Returns whether or not the panel window will be shown.
virtual bool	getShowPanelWindow (unsigned int pIndex) const
	Returns whether or not one of the panels in the notebook will.
virtual bool	getShowPanelWindow (const std::string &pID, bool pIsLabel=true) const
	Returns whether or not one of the panels in the notebook will.
virtual void	showSubwindows (bool pBringToTop=true, bool pShowSubwindows=true) override
	Shows the subwindows for the notebook. This is overidden here.
virtual std::string	getLabel (unsigned int pIndex) const
	Returns the label for one of the panels (by index).
virtual std::string	getLabel (const std::string &pName) const
	Returns the label forone of the panels (by panel name).
virtual bool	setLabel (unsigned int pIndex, const std::string &pLabel, bool pRefresh=false)
	Sets the label for one of the panels (by index). If the new.
virtual bool	setLabel (const std::string &pID, const std::string &pLabel, bool pIsLabel=true, bool pRefresh=false)
	Sets the label for one of the panels (by label/name). If the.
virtual void	setEnabled (bool pEnabled) override
	Enables or disables the notebook.
virtual void	setEnabled (unsigned int pIndex, bool pEnabled) override
	Enables or disables a window in the notebook (by index). (This.
virtual void	setEnabled (const std::string &pID, bool pEnabled, bool pIsTitle=true) override
	Enables or disables a window in the panel (by title/name).
void	setNextTabKey (int pKey)
	Sets the key to be used for navigation to the next tab.
int	getNextTabKey () const
	Returns the key that is used for navigation to the next tab.
void	setPrevTabKey (int pKey)
	Sets the key to be used for navigation to the previous tab.
int	getPrevTabKey () const
	Returns the key that is used for navigation to the previous tab.
void	setTabNavKey (int pKey)
	Sets the key that is used for bringing up a tab selection menu.
int	getTabNavKey () const
	Returns the key currently used for bringing up the tab.
void	setAllDisabledMsg (const std::string &pAllDisabledMsg)
	Sets the message to be displayed when all the panels in the.
const std::string &	getAllDisabledMsg () const
	Returns the message that is displayed when all the panels in.
void	setNoWindowsMsg (const std::string &pNoWindowsMsg)
	Sets the message to be displayed when there are no panels in.
const std::string &	getWindowDisabledMsg () const
	Returns the message that is displayed when one of the panels in.
void	setWindowDisabledMsg (const std::string &pMsg)
	Sets the message to be displayed when a window is disabled.
const std::string &	getNoWindowsMsg () const
	Returns the message that is displayed when there are no panels.
virtual bool	mouseEvtWasInTitle () const override
	Returns whether the current mouse information's coordinates.
virtual std::shared_ptr< cxWindow >	removeWindow (unsigned int pIndex) override
	Removes a panel from the notebook. This returns a cxWindow.
virtual void	removeWindow (cxWindow *pWindow) override
	Removes a panel from the notebook, without freeing its memory.
virtual void	removeWindow (const std::shared_ptr< cxWindow > &pWindow) override
	Removes a panel from the notebook (by shared_ptr), without.
virtual void	delWindow (unsigned int pIndex) override
	Removes a panel from the notebook (by index) and frees up its.
virtual void	delWindow (cxWindow *pWindow)
	Removes a panel from the notebook (by pointer). Does nothing.
virtual void	delWindow (const std::shared_ptr< cxWindow > &pWindow) override
	Removes a panel from the notebook (by shared_ptr).
virtual bool	setCurrentWindow (unsigned int pIndex) override
	Sets which panel will get focus in the next call to.
virtual bool	setCurrentWindow (const std::string &pTitle)
	Sets which panel will get focus in the next call to.
virtual bool	setCurrentWindow (const std::string &pID, bool pIsLabel) override
	Sets which window will get focus in the next call to.
virtual bool	setCurrentWindowByPtr (cxWindow *pWindow) override
	Sets which window will get focus in the next.
virtual bool	setCurrentWindowByPtr (const std::shared_ptr< cxWindow > &pWindow) override
	Sets which window will get focus in the next.
virtual bool	windowIsInPanel (const std::shared_ptr< cxWindow > &pWindow) const override
	Returns whether a cxWindow object is contained in the notebook.
virtual int	lastClickTabIndex () const
	Returns the index of the tab (label window) that was clicked.
virtual bool	swap (int pWindow1Index, int pWindow2Index) override
	Swaps the order of 2 panels (by index). If both indexes are.
virtual bool	swap (const std::shared_ptr< cxWindow > &pWindow1, const std::shared_ptr< cxWindow > &pWindow2) override
	Swaps the order of 2 panels (by pointer). If both pointers are.
virtual bool	swap (cxWindow *pWindow1, cxWindow *pWindow2) override
	Swaps the order of 2 subwindows (by pointer). If both pointers.
bool	selectNextWin ()
	Selects the next available (enabled) window (moving forward),.
bool	selectPrevWin ()
	Selects the previous available (enabled) window (moving.
Public Member Functions inherited from cx::cxPanel
	cxPanel (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", const std::string &pMessage="", const std::string &pStatus="", eBorderStyle pBorderStyle=eBS_NOBORDER, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pMessageUnderlines=false)
	Default constructor.
virtual	~cxPanel ()
virtual unsigned int	numWindows () const
	Returns the number of windows that are contained.
virtual std::shared_ptr< cxWindow >	getWindow (unsigned pIndex) const
	Gets a pointer to one of the subwindows (by index).
virtual void	delWindow (unsigned pIndex)
	Removes a window from the panel (by index) and frees the memory.
virtual void	delAllWindows ()
	Removes all windows from the panel. Also frees the memory used.
virtual bool	setCurrentWindow (unsigned pIndex)
	Sets which window will get focus in the next.
virtual bool	setKeyFunction (int pKey, const std::shared_ptr< cxFunction > &pFunction) override
	Sets a function to be called when a key is pressed.
virtual void	clearKeyFunction (int pKey) override
	Removes a function pointer for a keypress for the panel so that it will no.
virtual bool	setKeyFunction (int pKey, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true) override
	Sets a function to be called when a key is pressed. Note that.
virtual bool	setKeyFunction (int pKey, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true) override
	Sets a function to be called when a key is pressed. Note that.
virtual bool	setKeyFunction (int pKey, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true) override
	Sets a function to be called when a key is pressed. Note that.
virtual int	getCurrentWindowIndex () const
	Returns the index of the current window.
virtual int	getWindowIndex (const std::shared_ptr< cxWindow > &pWindow) const
	Given a cxWindow pointer, this function will return the index.
virtual int	getWindowIndex (cxWindow *pWindow) const
virtual const std::shared_ptr< cxWindow > &	getCurrentWindowPtr () const
	Returns a pointer to the current window.
virtual bool	getAllowExit () const
	Returns whether the user is allowed to exit out.
virtual void	setAllowExit (bool pAllowExit)
	Sets whether the user is allowed to exit out of.
virtual bool	getAllowQuit () const
	Returns whether the user is allowed to quit out.
virtual void	setAllowQuit (bool pAllowQuit)
	Sets whether the user is allowed to quit out of.
virtual bool	windowIsEnabled (unsigned pIndex) const
	Returns whether or not one of the windows in the panel.
virtual void	enableWindow (unsigned pIndex, bool pEnabled=true)
	Enables/disables one of the windows in the panel (by index).
virtual void	clear (bool pRefresh=false) override
	Clears all the window in the panel.
virtual bool	addQuitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false) override
	Adds a key that will cause the window to quit its input loop.
virtual void	removeQuitKey (int pKey) override
	Removes a quit key.
virtual bool	addExitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false) override
	Adds a key that will cause the window to quit its input loop.
virtual void	removeExitKey (int pKey) override
	Removes an exit key.
virtual void	setEnabled (unsigned pIndex, bool pEnabled)
	Enables or disables a window in the panel (by index).
virtual void	setColor (e_WidgetItems pItem, e_cxColors pColor) override
	Sets the color of one of the window items.
virtual void	quitNow () override
	This causes the panel to stop its input loop with a code of.
virtual void	exitNow () override
	This causes the panel to stop its input loop with a code of.
const std::shared_ptr< cxWindow > &	getLastWindow () const
	Returns a pointer to the last window in the panel that was.
virtual void	setName (unsigned pIndex, const std::string &pName)
	Sets the name of one of the windows in the panel (by index).
virtual void	setName (const std::string &pID, const std::string &pName, bool pIsTitle=true)
	Sets the name of one of the windows in the panel (by title/name).
virtual void	setName (const std::string &pName) override
	Sets the name of the panel. The name is an alternative means.
virtual int	top () const override
	Returns the top row of the window.
virtual int	bottom () const override
	Returns the bottom row of the window.
Public Member Functions inherited from cx::cxWindow
	cxWindow (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", const std::string &pMessage="", const std::string &pStatus="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Default constructor.
	cxWindow (cxWindow *pParentWindow, int pRow, int pCol, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, eHPosition pHPosition, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Lets you specify the horizontal position.
	cxWindow (const cxWindow &pThatWindow)
	Copy constructor.
virtual	~cxWindow ()
virtual void	centerHoriz (bool pRefresh=true)
	Centers the window horizontally on the screen.
virtual void	alignHoriz (eHPosition pPosition, bool pRefresh=true)
	Aligns the window horizontally on the screen.
virtual void	centerVert (bool pRefresh=true)
	Centers the window vertically on the screen.
virtual void	alignVert (eVPosition pPosition, bool pRefresh=true)
	Aligns the window vertically on the screen.
virtual void	center (bool pRefresh=true)
	Centers the window on the screen.
virtual std::string	getTitle () const
	Accessor for title text - Returns the first string in the.
virtual void	setTitle (const std::string &pTitle, bool pRefreshTitle=true)
	Setter for the title text - This sets the first string in the.
std::string	getStatus () const
	Accessor for the status line text.
virtual void	setStatus (const std::string &pStatus, bool pRefreshStatus=true)
	Mutator for the status line text.
std::string	getMessage () const
	Returns the message that appears in the window, concatenating all message lines together.
virtual void	setMessage (const std::string &pMessage)
	Sets the text that appears within the window.
virtual void	addMessageLineBelow (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesBelow (const std::vector< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::list< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::deque< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLineAbove (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesAbove (const std::vector< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::list< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::deque< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	setMessageLines (const std::vector< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::list< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::deque< std::string > &pLines)
	Sets the message lines in the window.
virtual void	removeMessageLine (unsigned pIndex)
	Removes a line from the text inside the window (by index).
virtual void	setMessageLine (unsigned pIndex, const std::string &pLine)
	Modifies one of the lines displayed in the window.
void	setHorizTitleAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the title text.
eHPosition	getHorizTitleAlignment () const
	Accessor for the title text alignment.
void	setHorizMessageAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the message text.
eHPosition	getHorizMessageAlignment () const
	Accessor for the horizontal message text alignment.
void	setHorizStatusAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the status text.
eHPosition	getHorizStatusAlignment () const
	Accessor for the horizontal status text alignment.
void	setVerticalMessageAlignment (eVPosition pVAlignment)
	Sets the vertical alignment of the message text.
eVPosition	getVerticalMessageAlignment () const
	Accessor for the vertical message text alignment.
void	setExtTitleWindow (cxWindow *pWindow, bool pRefreshTitle=true)
	Sets an external cxWindow object to be used for the title, rather.
cxWindow *	getExtTitleWindow () const
	Accessor for the external title window pointer.
void	setExtStatusWindow (cxWindow *pWindow, bool pRefreshStatus=true)
	Sets an external cxWindow object to be used for status, rather.
cxWindow *	getExtStatusWindow () const
	Accessor for the external status window pointer.
bool	isHidden () const
	Returns whether or not the window is hidden.
virtual bool	modalGetsKeypress () const
	Returns whether or not a call to showModal() will wait for a.
virtual long	setFocus (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true)
	Alias for showModal()
virtual void	setFocusColors ()
	Turns on the ncurses attribute A_REVERSE for the window to.
virtual void	setFocusColors (attr_t pAttr)
	Turns on the ncurses attribute pAttr for the window to.
virtual void	unSetFocusColors ()
	Disables focus for this window and unhighlights the message.
virtual void	unSetFocusColors (attr_t pAttr)
	Disables focus for this window and un-highlights the message (using pAttr)
virtual void	erase (bool pEraseSubwindows=true)
	Erases the window.
virtual void	bringToTop (bool pRefresh=true)
	Brings the window to the top.
virtual void	bringToBottom (bool pRefresh=false)
	Puts the window on the bottom of all other windows.
virtual bool	isOnTop () const
	Returns whether the window is on top of all other windows.
virtual bool	isOnBottom () const
	Returns whether the window is on the bottom of all other windows.
virtual bool	isAbove (const cxWindow &pThatWindow) const
	Returns whether the window is above another window.
virtual bool	isBelow (const cxWindow &pThatWindow) const
	Returns whether a window is below another window.
void	touchWindow ()
	Marks the window's entire content as dirty so that the next.
virtual void	drawBorder (int pRow, int pCol, int pHeight, int pWidth, bool pTop=true, bool pBottom=true, bool pLeft=true, bool pRight=true)
	Draws the border (based on the border style)
virtual void	drawBorder (int pHeight, int pWidth)
	Draws a box in the window.
virtual void	drawBorder ()
	Draws a box for the window border.
virtual int	centerRow () const
	Returns the center row of the window.
virtual int	left () const
	Returns the left column of the window.
virtual int	centerCol () const
	Returns the center column of the window.
virtual int	right () const
	Returns the right column of the window.
virtual int	width (int pWidth)
	Changes the width of the window.
virtual int	width () const
	Returns the width of the window.
virtual int	height (int pHeight)
	Changes the height of the window.
virtual int	height () const
	Returns the height of the window.
virtual void	getRect (int &pTop, int &pLeft, int &pBottom, int &pRight)
	Returns the coordinates of the rectangle defining the window.
virtual bool	pointIsInWindow (int pY, int pX) const
	Returns whether a screen location is in the window (including.
virtual bool	pointIsInTitle (int pY, int pX) const
	Returns whether a screen location is in the title of the window.
virtual void	getSize (int &pHeight, int &pWidth)
	Returns the height & width of the window.
virtual void	addAttr (e_WidgetItems pItem, attr_t pAttr)
	Adds an ncurses attribute to use for one of the items in the.
virtual void	setAttr (e_WidgetItems pItem, attr_t pAttr)
	Sets the ncurses attribute to use for one of the items in the.
virtual void	removeAttr (e_WidgetItems pItem, attr_t pAttr)
	Removes an ncurses attribute from one of the item lists.
virtual void	removeAttrs (e_WidgetItems pItem)
	Removes all attributes for a given window item.
virtual void	getAttrs (e_WidgetItems pItem, std::set< attr_t > &pAttrs) const
	Returns the set of ncurses attributes for a given item.
virtual void	resize (int pNewHeight, int pNewWidth, bool pRefresh=true)
	Changes the window's width and height. The window's upper-left.
virtual bool	moveRelative (int pVerticalOffset, int pHorizOffset, bool pRefresh=true)
	Changes the window's position via vertical & horizontal offsets.
unsigned	numSubWindows ()
	Returns the number of subwindows in this window.
void	setSubWinMessage (unsigned pIndex, const std::string &pMessage)
	Sets the message of one of the subwindows (by index).
void	setSubWinMessage (const std::string &pTitle, const std::string &pMessage)
	Sets the message of one of the subwindows (by title).
virtual bool	hasFocus () const
	Returns true if window has focus, false otherwise.
virtual void	setBorderStyle (eBorderStyle pBorderStyle)
	Sets the border style.
eBorderStyle	getBorderStyle () const
	Returns the border style.
bool	hasBorder () const
	Does this window have a border?
virtual cxWindow *	getParent () const
	Returns a pointer to the parent window.
void	setParent (cxWindow *pNewParent)
	Changes the pointer to the parent window; changes the parent window.
virtual void	dump (std::string &pResult)
	Returns a string containing all the characters.
cxWindow &	operator= (const cxWindow &pThatWindow)
	Assignment operator.
virtual void	writeText (int pRow, int pCol, const std::string &pText, bool pRefresh=true)
	Writes text on the window. Note that the text is not permanant, so.
virtual void	setHotkeyHighlighting (bool pHotkeyHighlighting)
	Enables/disables the use of hotkey attributes when writing the message.
bool	getHotkeyHighlighting () const
	Returns whether hotkey attributes are used when writing the message.
virtual bool	isEnabled () const
	Returns whether or not the window is enabled.
virtual void	setDisableCursorOnShow (bool pDisableCursorOnShow)
	Sets whether the window should disable the cursor.
virtual bool	getDisableCursorOnShow () const
	Returns whether or not the window will disable.
virtual bool	getExitOnMouseOutside () const
	Returns whether the window exits its modal input loop when.
virtual void	setExitOnMouseOutside (bool pExitOnMouseOutside)
	Sets whether the window should exit its modal input loop.
virtual int	getLastKey () const
	Returns the last key pressed by the user (for showModal(), etc.)
virtual void	setLastKey (int pLastKey)
	Sets the last keypress.
virtual bool	lastKeyWasMouseEvt () const
	Returns whether or not the last keypress was a mouse event.
virtual void	getLastMouseEvtCoords (int &pY, int &pX)
	Returns the coordinates of the last mouse event in the window.
virtual bool	getChangeColorsOnFocus () const
	Returns whether the window will change.
virtual void	setChangeColorsOnFocus (bool pChangeColorsOnFocus)
	Sets whether colors should change when focus.
virtual void	setOnFocusFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on focus" function.
virtual void	setOnFocusFunction (funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.
virtual void	setOnFocusFunction (funcPtr2 pFunction, void *p1, void *p2, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.
virtual void	setOnFocusFunction (funcPtr0 pFunction, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.
virtual void	setOnLeaveFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on leave" function.
virtual void	setOnLeaveFunction (funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
	Sets the "on leave" function pointer.
virtual void	setOnLeaveFunction (funcPtr2 pFunction, void *p1, void *p2)
	Sets the "on focus" function pointer.
virtual void	setOnLeaveFunction (funcPtr0 pFunction)
	Sets the "on focus" function pointer.
virtual bool	runOnFocusFunction (std::string *pFunctionRetval=nullptr)
	Runs the onFocus function, if it's set.
virtual bool	runOnLeaveFunction (std::string *pFunctionRetval=nullptr)
	Runs the onLeave function, if it's set. However, if the last.
virtual void	toggleOnFocusFunction (bool pRunOnFocus)
	Sets whether or not the onFocus function should run.
virtual void	toggleOnLeaveFunction (bool pRunOnLeave)
	Sets whether or not the onLeave function should run.
virtual bool	onFocusFunctionEnabled () const
	Returns whether or not the onFocus function is set to run.
virtual bool	onLeaveFunctionEnabled () const
	Returns whether or not the onLeave function is set to run.
virtual const std::shared_ptr< cxFunction > &	getOnFocusFunction () const
	Accessor for the onFocus function.
virtual const std::shared_ptr< cxFunction > &	getOnLeaveFunction () const
	Accessor for the onLeave function.
virtual bool	isModal () const
	Returns whether or not the window is currently.
virtual void	clearKeyFunctionByPtr (funcPtr4 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr2 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr0 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctions ()
	Clears the list of external functions fired by hotkeys.
virtual bool	hasKeyFunction (int pKey) const
	Returns whether an external function exists for a keypress.
virtual bool	setMouseFunction (int pMouseState, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state. This.
virtual void	clearMouseFunction (int pMouseState)
	Removes a function pointer for a mouse event so that it will.
virtual void	clearMouseFunctions ()
	Clears the list of external functions fired by mouse events.
virtual bool	hasMouseFunction (int pMouseState) const
	Returns whether an external function exists for a mouse event.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_begin ()
	Returns a begin iterator to the map of cxFunction pointers.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_end ()
	Returns an end iterator to the map of cxFunction pointers.
virtual void	getFunctionKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual void	getFunctionKeys (std::vector< int > &pKeys) const
	Populates a collection with integers representing the keys.
virtual void	setShowSubwinsForward (bool pShowSubwinsForward)
	Toggles the order in which subwindows will be shown.
virtual bool	getShowSubwinsForward () const
	Returns whether or not the subwindows will be shown.
virtual void	setShowSelfBeforeSubwins (bool pShowSelfBeforeSubwins)
	Sets whether the window will show itself before.
virtual bool	getShowSelfBeforeSubwins () const
	Returns whether or not the window will show itself before.
virtual long	getReturnCode () const
	Returns the return code set by the last call to.
virtual bool	addTitleString (int pHPos, const std::string &pStr, bool pRefreshTitle=false)
	Adds/sets a string to appear in the title at.
virtual std::string	getTitleString (int pHPos) const
	Returns the title string set at a given horizontal position.
virtual std::map< int, std::string >	getTitleStrings () const
	Returns the map of title strings for the window.
virtual void	getTitleStrings (std::map< int, std::string > &pTitleStrings) const
	Returns the map of title strings for the window (using an.
virtual void	setTitleStrings (const std::map< int, std::string > &pTitleStrings)
	Sets all the title strings via a map of horizontal.
virtual void	removeTitleString (int pHPos)
	Removes a title string at a given horizontal position.
virtual void	removeTitleStrings ()
	Removes all title strings.
virtual bool	addStatusString (int pHPos, const std::string &pStr, bool pRefreshStatus=false)
	Adds/sets a string to appear in the status line at.
virtual std::string	getStatusString (int pHPos) const
	Returns the status string set at a given horizontal position.
virtual std::map< int, std::string >	getStatusStrings () const
	Returns the map of status strings for the window.
virtual void	getStatusStrings (std::map< int, std::string > &pStatusStrings) const
	Returns the map of status strings for the window (using an.
virtual void	setStatusStrings (const std::map< int, std::string > &pStatusStrings)
	Sets all the status strings via a map of horizontal.
virtual void	removeStatusString (int pHPos)
	Removes a status string at a given horizontal position.
virtual void	removeStatusStrings ()
	Removes all status strings.
virtual void	removeQuitKeys ()
	Removes all quit keys.
virtual void	removeExitKeys ()
	Removes all exit keys.
virtual bool	hasExitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual bool	hasQuitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual void	getQuitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getQuitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual void	getExitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getExitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual std::map< int, bool >	getQuitKeys () const
	Returns the keys that will make the window quit its input.
virtual std::map< int, bool >	getExitKeys () const
	Returns the keys that will make the window exit is input.
void	toggleMessage (bool pDrawMessage)
	Sets whether or not to draw the message area (the area within.
void	toggleTitle (bool pDrawTitle)
	Sets whether or not to draw the title.
void	toggleStatus (bool pDrawStatus)
	Sets whether or not to draw the status line.
bool	messageWillDraw () const
	Returns whether the message will draw or not.
bool	titleWillDraw () const
	Returns whether the title will draw or not.
bool	statusWillDraw () const
	Returns whether the status line will draw or not.
void	toggleSpecialChars (bool pDrawSpecialChars)
	Sets whether or not to draw the "special" characters (these are.
bool	specialCharsWillDraw () const
	Returns whether the "special" characters will be drawn or.
virtual void	drawTitle ()
	Writes the title line.
virtual void	drawStatus ()
	Writes the status line.
virtual void	drawMessage ()
	Writes the message text (in the area within the borders)
virtual void	drawSpecialChars ()
	Writes the set of "special" characters to the window.
virtual void	setReturnCode (const long &pReturnCode)
	Explicitly sets the member return code for the window.
virtual void	setMessageColor (e_cxColors pColor)
	Returns the message color.
virtual void	setTitleColor (e_cxColors pColor)
	Sets the title color.
virtual void	setStatusColor (e_cxColors pColor)
	Sets the color of the status line at bottom of window.
virtual void	setBorderColor (e_cxColors pColor)
	Sets the color of the window border.
virtual bool	hasAttr (e_WidgetItems pItem, attr_t pAttr)
	Returns whether an attribute is set for a widget item.
bool	getLeaveNow () const
	Returns whether or not something told the window to leave now.
std::string	getName () const
bool	mouseEvtWasInWindow () const
	Returns whether the current mouse information stored in the.
virtual void	doMouseBehavior ()
	Triggers the window's mouse event behavior. This method can.
virtual void	doMouseBehavior (int pMouseY, int pMouseX)
	Triggers the window's mouse event behavior. Also sets the.
std::shared_ptr< cxFunction >	getKeyFunction (int pKey) const
	Returns a cxFunction pointer for a key.
std::shared_ptr< cxFunction0 >	getKeyFunctionAsFunction0 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction0.
std::shared_ptr< cxFunction2 >	getKeyFunctionAsFunction2 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction2.
std::shared_ptr< cxFunction4 >	getKeyFunctionAsFunction4 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction4.
bool	mouseEvtWasButtonEvt () const
	Returns whether or not the mouse event read in mMouse was.
bool	mouseButton1Pressed () const
	Returns whether or not the first mouse button was pressed.
bool	mouseButton1Released () const
	Returns whether or not the first mouse button was released.
bool	mouseButton1Clicked () const
	Returns whether or not the first mouse button was clicked.
bool	mouseButton1DoubleClicked () const
	Returns whether or not the first mouse button was double-clicked.
bool	mouseButton2Clicked () const
	Returns whether or not the second mouse button was clicked.
bool	mouseButton2DoubleClicked () const
	Returns whether or not the second mouse button was double-clicked.
bool	mouseButton3Clicked () const
	Returns whether or not the second mouse button was clicked.
virtual void	mouseButton1Click (int pY, int pX)
	Tells the window that mouse button 1 was clicked at a certain.
virtual void	mouseButton2Click (int pY, int pX)
	Tells the window that mouse button 2 was clicked at a certain.
virtual void	mouseButton3Click (int pY, int pX)
	Tells the window that mouse button 3 was clicked at a certain.
std::string	getString (int pRow, int pCol, int pNumber)
	Get the contents of a portion of the window. (for debugging/testing)
void	info ()
	Display information about a window (for debugging/testing)
virtual void	toggleBorderTop (bool pToggle)
	Sets whether or not to display the top border.
virtual void	toggleBorderBottom (bool pToggle)
	Sets whether or not to display the bottom border.
virtual void	toggleBorderLeft (bool pToggle)
	Sets whether or not to display the left border.
virtual void	toggleBorderRight (bool pToggle)
	Sets whether or not to display the right border.
virtual void	addSpecialChar (int pY, int pX, chtype pChar, attr_t pAttr=A_NORMAL)
	Adds a character to be written somewhere in the window. These.
virtual void	removeSpecialChar (int pY, int pX)
	Removes a character from the set of special characters (by.
virtual void	clearSpecialChars ()
	Clears the collection of special characters.
virtual bool	functionExistsForLastMouseState () const
	Returns whether an external function pointer exists for the.
int	getMouseState () const
	Returns the current mouse state as it was last captured by the.
std::string	getMouseStateStr () const
	Returns a string version of the current mouse state as it was.
virtual e_cxColors	getItemColor (e_WidgetItems pItem) const
	Returns the color of one of the items in a window.
Public Member Functions inherited from cx::cxObject
	cxObject ()
virtual	~cxObject ()
virtual void	beep ()

Additional Inherited Members
Static Public Member Functions inherited from cx::cxObject
static bool	UseColors ()
static void	UseColors (bool useIt)
static bool	UseBeeps ()
static void	UseBeeps (bool useIt)
Protected Types inherited from cx::cxPanel
typedef std::vector< std::shared_ptr< cxWindow > >	cxWindowPtrCollection
Protected Member Functions inherited from cx::cxPanel
bool	anyEnabledWindows () const
	Returns whether any of the windows contained in mWindows are.
bool	lastEnabledWindow (int pIndex) const
	Returns whether or not a window in the panel with a given index.
bool	firstEnabledWindow (int pIndex) const
	Returns whether or not a window in the panel with a given index.
Protected Member Functions inherited from cx::cxWindow
virtual void	reCreatePanel ()
	Creates mPanel (by calling new_panel()), then sets up.
void	freeWindow ()
	Frees the memory used by the ncurses window and.
virtual void	init (int pRow, int pCol, int pHeight, int pWidth, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pParentWindow=nullptr, bool pResizeVertically=true)
	Initializes the window parameters and sets up the internal.
virtual void	removeAllSubwindows ()
	Removes all subwindow pointers.
virtual void	addSubwindow (cxWindow *pSubWindow)
	Adds a subwindow to the window. Subwindows of a.
virtual void	removeSubWindow (const cxWindow *pSubWindow)
	Removes a window from the subwindow list.
virtual void	setElementColor (short &pColorPair, attr_t &pElementAttr, e_cxColors pColor)
	Sets the color (and attribute, if necessary) of a color element.
virtual void	enableAttrs (WINDOW *pWin, e_WidgetItems pItem)
	Enables the attributes for one of the m*Attrs sets for an ncurses window.
virtual void	disableAttrs (WINDOW *pWin, e_WidgetItems pItem)
	Disables the attributes for one of the m*Attrs sets for an ncurses window.
virtual void	writeWithHighlighting (WINDOW *pWindow, const std::string &pText, const int &pY, const int &pStartX, const int &pEndX, int pNormalTextItem=-1)
	Writes text to an ncurses WINDOW, highlighting any characters.
virtual void	copyCxWinStuff (const cxWindow *pThatWindow, bool pRecreateWin=true)
	Makes a copy of a cxWindow's member variables.
virtual void	getRowColBasedOn (cxWindow *pParentWindow, eHPosition pPosition, const std::string &pTitle, const std::string &pStatus, const std::string &pMessage, int &pRow, int &pCol)
	Figures out how to align text based on a title & message.
virtual bool	handleFunctionForLastKey (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last keypress and.
virtual bool	handleFunctionForLastMouseState (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last mouse state captured.
virtual void	draw ()
	Fills the member ncurses window structure with the current.
void	setKeyFunctions (const cxWindow &pWindow)
	Returns whether or not a mouse event location is within.
void	setFocusFunctions (const cxWindow &pWindow)
	Re-sets the onFocus and onLeave functions from another.
bool	parentIsCxPanel () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxForm () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxNotebook () const
	Returns whether or not the parent window, if there is one, is.
cxWindowPtrContainer::const_iterator	subWindows_begin () const
	Returns a const iterator to the first subwindow.
cxWindowPtrContainer::const_iterator	subWindows_end () const
	Returns a const iterator to the one past the last subwindow.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rbegin () const
	Returns a const reverse begin iterator for the subwindow collection.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rend () const
	Returns a const reverse end iterator for the subwindow collection.
bool	onFocusFunctionIsSet () const
	Returns whether or not the onFocus function is set (if.
bool	onLeaveFunctionIsSet () const
	Returns whether or not the onLeave function is set (if.
Protected Attributes inherited from cx::cxPanel
cxWindowPtrCollection	mWindows
bool	mCycleWin = true
std::shared_ptr< cxWindow >	mLastWindow
Protected Attributes inherited from cx::cxWindow
WINDOW *	mWindow = nullptr
	Everything in the window is written here; this is an nCurses window structure.
messageLineContainer	mMessageLines
	Contains the text to be shown inside the window (note: the.
std::map< std::pair< int, int >, chtype >	mSpecialChars
	Contains "special" characters which are added to the window.
std::set< attr_t >	mMessageAttrs
	Message attributes.
std::set< attr_t >	mTitleAttrs
	Title attributes.
std::set< attr_t >	mStatusAttrs
	Status attributes.
std::set< attr_t >	mBorderAttrs
	Border attributes.
std::set< attr_t >	mHotkeyAttrs
	Hotkey attributes.
std::map< std::pair< int, int >, attr_t >	mSpecialCharAttrs
	Attributes for the "special" characters (which are added to.
short	mMessageColorPair = eWHITE_BLUE
short	mTitleColorPair = eGRAY_BLUE
short	mStatusColorPair = eBROWN_BLUE
short	mBorderColorPair = eGRAY_BLUE
eHPosition	mHorizTitleAlignment = eHP_LEFT
eHPosition	mHorizMessageAlignment = eHP_LEFT
eHPosition	mHorizStatusAlignment = eHP_LEFT
eVPosition	mVerticalMessageAlignment = eVP_TOP
bool	mDrawMessage = true
bool	mDrawTitle = true
bool	mDrawStatus = true
bool	mDrawSpecialChars = true
std::shared_ptr< cxFunction >	mOnFocusFunction = nullptr
std::shared_ptr< cxFunction >	mOnLeaveFunction = nullptr
bool	mIsModal = false
bool	mLeaveNow = false
std::map< int, std::shared_ptr< cxFunction > >	mKeyFunctions
std::map< int, std::shared_ptr< cxFunction > >	mMouseFunctions
std::map< int, bool >	mQuitKeys
std::map< int, bool >	mExitKeys
bool	mHotkeyHighlighting
Static Protected Attributes inherited from cx::cxObject
static bool	useColors
	Whether or not to use colors.
static bool	useBeeps
	Whether or not to enable beeping.

Detailed Description

This class represents a notebook control, which manages multiple.

cxPanels with associated tabs. This derives from cxPanel; this

class is similar to a cxPanel, except that this class does not

automatically go to the next/previous window - the user has to click

on the associated tab or press the pageUp/pageDown keys to go between

tabs (and those keys may be changed).

An alternate way to navigate between the tabs is with a keypress,

which brings up a menu listing the tab labels, allowing the user to

choose a tab. By default, this key is F5; however, this can be

changed with the setTabNavKey() method.

By default, the user is able to wrap between the first and last

ediable tabs using the tab navigation keys. This behavior can be

changed with a call to setTabNavWrap().

Constructor & Destructor Documentation

cxNotebook()

cx::cxNotebook::cxNotebook ( cxWindow *  pParentWindow = nullptr, int  pRow = 0, int  pCol = 0, int  pHeight = DEFAULT_HEIGHT, int  pWidth = DEFAULT_WIDTH, bool  pLabelsOnTop = true, bool  pLeftLabelSpace = true, bool  pRightLabelSpace = true, int  pTabSpacing = 0, cxWindow *  pExtTitleWindow = nullptr, cxWindow *  pExtStatusWindow = nullptr, bool  pTabNavWrap = true  )

explicit

Constructor.

Parameters

pParentWindow	A pointer to the parent window. Can be nullptr.
pRow	The row of the upper-left corner.
pCol	The column of the upper-left corner.
pHeight	The height of the window.
pWidth	The width of the window.
pLabelsOnTop	Whether or not the labels should be on top. If false, the labels will be on the bottom. This defaults to true (labels on top).
pLeftLabelSpace	Whether or not to have a space to the left of label text. Defaults to true.
pRightLabelSpace	Whether or not to have a space to the right of label text. Defaults to true.
pTabSpacing	The number of spaces to use for horizontal alignment of the tabs (label windows). 0 would be sharing left/right borders, 1 would be right next to each other, etc. This defaults to 0.
pExtTitleWindow	A pointer to another cxWindow in which to display the window title.
pExtStatusWindow	A pointer to another cxWindow in which to display the status.
pTabNavWrap	Whether or not to enable the user to wrap between the first and last enabled tabs using the navigation keys. Defaults to true.

References setShowPanelWindow().

~cxNotebook()

cx::cxNotebook::~cxNotebook ( )

virtual

Member Function Documentation

append()

virtual std::shared_ptr< cxPanel > cx::cxNotebook::append ( const std::string &  pLabel, const std::string &  pPanelName = ""  )

virtual

Appends a new panel & tab to the notebook. Returns a pointer.

to the cxPanel that was added. If the panel can't be added

(i.e., if the label is too long for the tab to fit on the

screen), this won't create the panel, and this will return

nullptr.

Parameters

pLabel	The label for the panel
pPanelName	This can specify a name for the panel to allow identification later. This is optional and defaults to a blank string.

Returns

A smart pointer to the cxPanel that was added. If it couldn't be added, the smart pointer's pointer will be null.

Referenced by cxNotebookRemoveWindowTest(), cxNotebookSetTabSpacing(), cxNotebookSwapTest(), cxNotebookTest1(), cxNotebookTest2(), and cxNotebookWithEmptyPanelTest().

cxTypeStr()

string cx::cxNotebook::cxTypeStr ( ) const

overridevirtual

Returns the class type as a string ("cxNotebook")

Returns

The class type as a string ("cxNotebook")

Reimplemented from cx::cxPanel.

delWindow() [1/3]

void cx::cxNotebook::delWindow ( const std::shared_ptr< cxWindow > &  pWindow )

overridevirtual

Removes a panel from the notebook (by shared_ptr).

Overridden from cxPanel to prevent hiding.

Parameters

pWindow

A shared_ptr to a panel to remove from the notebook

Reimplemented from cx::cxPanel.

References cx::cxPanel::delWindow().

delWindow() [2/3]

void cx::cxNotebook::delWindow ( cxWindow *  pWindow )

virtual

Removes a panel from the notebook (by pointer). Does nothing.

if the panel does not reside in the notebook. Note: If you

want to re-use the panel, you can use removeWindow() instead.

Parameters

pWindow

A pointer to a panel to remove from the notebook

References cx::cxPanel::getWindowIndex(), and removeWindow().

delWindow() [3/3]

void cx::cxNotebook::delWindow ( unsigned int  pIndex )

overridevirtual

Removes a panel from the notebook (by index) and frees up its.

memory. Does nothing if the index is out of bounds. Note:

If you want to re-use the window, you can use removeWindow()

instead.

Parameters

pIndex

The index of the panel to remove from the notebook

References removeWindow().

Referenced by cxNotebookRemoveWindowTest().

getAllDisabledMsg()

const string & cx::cxNotebook::getAllDisabledMsg

(

)

const

Returns the message that is displayed when all the panels in.

the notebook are disabled.

Returns

The message that is displayed when all the panels in the notebook are disabled

getCurrentPanelPtr()

cxPanel * cx::cxNotebook::getCurrentPanelPtr ( ) const

virtual

Returns a pointer to the current panel, or nullptr if there is.

no current panel for some reason (i.e., if the notebook has

no panels).

Returns

A pointer to the current panel, or nullptr if there is none

References cx::cxPanel::getCurrentWindowPtr().

getLabel() [1/2]

virtual std::string cx::cxNotebook::getLabel ( const std::string &  pName ) const

virtual

Returns the label forone of the panels (by panel name).

Parameters

pName

The name of the panel

Returns

The label of the panel. If there is no panel with the given name, this will return a blank string.

getLabel() [2/2]

string cx::cxNotebook::getLabel ( unsigned int  pIndex ) const

virtual

Returns the label for one of the panels (by index).

Parameters

pIndex

The index of the panel

Returns

The label of the panel. If pIndex is out of bounds, this will return a blank string.

getLabelsOnTop()

bool cx::cxNotebook::getLabelsOnTop

(

)

const

Returns whether the labels are set to appear on top.

Returns

Boolean: true if the labels are set to appear on top, or false if they are to appear on the bottom.

getLeftLabelSpace()

bool cx::cxNotebook::getLeftLabelSpace

(

)

const

Returns the currently-set option of having a space to the left.

of label text.

Returns

Boolean: true if it's enabled, false if not.

getNextTabKey()

int cx::cxNotebook::getNextTabKey

(

)

const

Returns the key that is used for navigation to the next tab.

Returns

The key that is used for navigation to the next tab

getNoWindowsMsg()

const string & cx::cxNotebook::getNoWindowsMsg

(

)

const

Returns the message that is displayed when there are no panels.

in the notebook.

Returns

The message that is displayed when there are no panels in the notebook

getPanel() [1/2]

virtual cxPanel * cx::cxNotebook::getPanel ( const std::string &  pID, bool  pIsLabel = true  ) const

virtual

Returns a pointer to one of the panels in the notebook (by.

label/name).

Parameters

pID	The label/name of the panel
pIsLabel	If true, this will treat pID as a label. If false, this will treat pID as a name for a panel. This defaults to true.

Returns

A pointer to the panel with the given label/name. If there is no panel for the given label/name, this will return nullptr.

getPanel() [2/2]

cxPanel * cx::cxNotebook::getPanel ( unsigned int  pIndex ) const

virtual

Returns a pointer to one of the panels in the notebook (by.

index).

Parameters

pIndex

The index of the panel to retrieve

Returns

A pointer to the panel with the given index. If there is no panel for the given index, this will return nullptr.

References cx::cxPanel::getWindow(), and cx::cxPanel::numWindows().

Referenced by setShowPanelWindow().

getPrevTabKey()

int cx::cxNotebook::getPrevTabKey

(

)

const

Returns the key that is used for navigation to the previous tab.

Returns

The key that is used for navigation to the previous tab

getRightLabelSpace()

bool cx::cxNotebook::getRightLabelSpace

(

)

const

Returns the currently-set option of having a space to the right.

of label text.

Returns

Boolean: true if it's enabled, false if not.

getShowPanelWindow() [1/3]

bool cx::cxNotebook::getShowPanelWindow ( ) const

overridevirtual

Returns whether or not the panel window will be shown.

Overridden from cxPanel to prevent hiding.

Returns

Whether or not the panel window will be shown

Reimplemented from cx::cxPanel.

References cx::cxPanel::getShowPanelWindow().

getShowPanelWindow() [2/3]

virtual bool cx::cxNotebook::getShowPanelWindow ( const std::string &  pID, bool  pIsLabel = true  ) const

virtual

Returns whether or not one of the panels in the notebook will.

show its window when it gets focus (by label/name).

Parameters

pID	The label/name of the panel in the notebook
pShowPanelWindow	Whether or not the panel should show its window when it gets focus.
pIsLabel	If true, this will treat pID as a label. If false, this will treat pID as a name for a panel. This defaults to true.

Returns

Whether or not the panel in the notebook will show its window when it gets focus.

getShowPanelWindow() [3/3]

bool cx::cxNotebook::getShowPanelWindow ( unsigned int  pIndex ) const

virtual

Returns whether or not one of the panels in the notebook will.

show its window when it gets focus (by index).

Parameters

pIndex

The index of the panel

Returns

Whether or not the panel in the notebook will show its window when it gets focus.

References cx::cxPanel::getShowPanelWindow(), cx::cxPanel::getWindow(), and cx::cxPanel::mWindows.

getTabNavKey()

int cx::cxNotebook::getTabNavKey

(

)

const

Returns the key currently used for bringing up the tab.

selection menu

Returns

The key currently used for bringing up the tab selection menu

getTabNavWrap()

bool cx::cxNotebook::getTabNavWrap

(

)

const

Returns whether or not wrapping is allowed between the first.

and last enabled tabs using the navigation keys.

Returns

Whether or not wrapping is allowed between the first and last enabled tabs using the navigation keys

getTabSpacing()

int cx::cxNotebook::getTabSpacing

(

)

const

Returns the number of spaces being used for horizontal tab.

alignment.

Returns

The number of spaces being used for horizontal tab alignment

getWindowDisabledMsg()

const string & cx::cxNotebook::getWindowDisabledMsg

(

)

const

Returns the message that is displayed when one of the panels in.

the notebook is disabled.

Returns

The message that is displayed when one of the panels in the notebook is disabled.

hide()

void cx::cxNotebook::hide ( bool  pHideSubwindows = true )

overridevirtual

Hides the notebook.

Parameters

pHideSubwindows

Whether or not to also hide the subwindows (defaults to true)

Reimplemented from cx::cxPanel.

References cx::cxPanel::hide().

Referenced by show().

lastClickTabIndex()

int cx::cxNotebook::lastClickTabIndex ( ) const

virtual

Returns the index of the tab (label window) that was clicked.

on. If the user didn't click on a tab window, then this will

return -1.

Returns

The index of the tab that was clicked on, or -1 if the user didn't click on a tab window.

mouseEvtWasInTitle()

bool cx::cxNotebook::mouseEvtWasInTitle ( ) const

overridevirtual

Returns whether the current mouse information's coordinates.

are within the top row of the notebook.

Returns

Whether or not the last mouse event occurred in the top row of the notebook

Reimplemented from cx::cxWindow.

References cx::left(), cx::right(), and cx::cxPanel::top().

move()

bool cx::cxNotebook::move ( int  pNewRow, int  pNewCol, bool  pRefresh = true  )

overridevirtual

Changes the notebok's position, based on a new upper-left.

corner. Also moves all the contained windows accordingly.

Parameters

pNewRow	The new topmost row for the notebook
pNewCol	The new leftmost column for the notebook
pRefresh	Whether or not to refresh the window (defaults to true)

Returns

Whether or not the move succeeded or not (true/false)

Reimplemented from cx::cxPanel.

References cx::cxPanel::move().

removeWindow() [1/3]

void cx::cxNotebook::removeWindow ( const std::shared_ptr< cxWindow > &  pWindow )

overridevirtual

Removes a panel from the notebook (by shared_ptr), without.

freeing its memory. Overridden from cxPanel to prevent hiding.

Parameters

pWindow

A shared_ptr to a panel to be removed from the notebook

Reimplemented from cx::cxPanel.

References cx::cxPanel::removeWindow().

removeWindow() [2/3]

void cx::cxNotebook::removeWindow ( cxWindow *  pWindow )

overridevirtual

Removes a panel from the notebook, without freeing its memory.

so that it may be used elsewhere. Note: If you don't want to

re-use the window, use delWindow() instead, as this frees up

the window's memory using delete. This takes a cxWindow*

rather than a cxPanel* so that this method will override the

version from cxPanel.

Parameters

pWindow

A pointer to a panel to be removed from the notebook

Reimplemented from cx::cxPanel.

References cx::cxPanel::getWindowIndex(), and removeWindow().

removeWindow() [3/3]

shared_ptr< cxWindow > cx::cxNotebook::removeWindow ( unsigned int  pIndex )

overridevirtual

Removes a panel from the notebook. This returns a cxWindow.

pointer rather than a cxPanel pointer so that this method

will override the version from cxPanel.

Parameters

pIndex

The index of the window in the panel to remove

Returns

A pointer to the panel removed. If pIndex is not a valid index, the smart pointer returned will have a null value for its pointer.

Reimplemented from cx::cxPanel.

References cx::cxPanel::numWindows(), and cx::cxPanel::removeWindow().

Referenced by delWindow(), delWindow(), and removeWindow().

selectNextWin()

bool cx::cxNotebook::selectNextWin

(

)

Selects the next available (enabled) window (moving forward),.

if there is one. Returns whether or not there was an enabled

window.

Returns

true if there is an enabled window, or false if not.

References cx::cxPanel::getWindow(), cx::cxPanel::numWindows(), and setCurrentWindow().

selectPrevWin()

bool cx::cxNotebook::selectPrevWin

(

)

Selects the previous available (enabled) window (moving.

backward), if there is one. Returns whether or not there was

an enabled window.

Returns

true if there is an enabled window, or false if not.

References cx::cxPanel::getWindow(), cx::cxPanel::numWindows(), and setCurrentWindow().

setAllDisabledMsg()

void cx::cxNotebook::setAllDisabledMsg

(

const std::string &

pAllDisabledMsg

)

Sets the message to be displayed when all the panels in the.

notebook are disabled.

Parameters

pAllDisabledMsg

A new message to display

setCurrentWindow() [1/3]

virtual bool cx::cxNotebook::setCurrentWindow ( const std::string &  pID, bool  pIsLabel  )

overridevirtual

Sets which window will get focus in the next call to.

showModal() (by label or name).

This is separate from the previous setCurrentWindow() because

the previous setCurrentWindow() must be here to override

the one inherited from cxPanel. This method also sets by

label/name, whereas the other sets by the title.

Parameters

pTitle

The label/name of the window that should get the focus

Returns

True if successful or false if not

Reimplemented from cx::cxPanel.

setCurrentWindow() [2/3]

virtual bool cx::cxNotebook::setCurrentWindow ( const std::string &  pTitle )

virtual

Sets which panel will get focus in the next call to.

showModal() (by title).

Parameters

pTitle

The title of the window that should get the focus

Returns

True if successful or false if not

setCurrentWindow() [3/3]

bool cx::cxNotebook::setCurrentWindow ( unsigned int  pIndex )

overridevirtual

Sets which panel will get focus in the next call to.

showModal() (by index).

Parameters

pIndex

The index of the window that should get the focus

Returns

True if successful or false if not

References cx::cxPanel::numWindows(), and cx::cxPanel::setCurrentWindow().

Referenced by selectNextWin(), selectPrevWin(), and setCurrentWindowByPtr().

setCurrentWindowByPtr() [1/2]

bool cx::cxNotebook::setCurrentWindowByPtr ( const std::shared_ptr< cxWindow > &  pWindow )

overridevirtual

Sets which window will get focus in the next.

cycle through showModal() (by shared_ptr).

Overridden from cxPanel to prevent hiding.

Parameters

pWindow

A shared_ptr to a cxWindow (if it exists in the panel, it will then be the current window).

Returns

True if successful or false if not

Reimplemented from cx::cxPanel.

References cx::cxPanel::setCurrentWindowByPtr().

setCurrentWindowByPtr() [2/2]

bool cx::cxNotebook::setCurrentWindowByPtr ( cxWindow *  pWindow )

overridevirtual

Sets which window will get focus in the next.

cycle through showModal() (by pointer). This

has a different function name so as not to

be ambiguous to the compiler.

Parameters

pWindow

A pointer to a cxWindow (if it exists in the panel, it will then be the current window).

Returns

True if successful or false if not

Reimplemented from cx::cxPanel.

References cx::cxPanel::mWindows, and setCurrentWindow().

setEnabled() [1/3]

void cx::cxNotebook::setEnabled ( bool  pEnabled )

overridevirtual

Enables or disables the notebook.

Parameters

pEnabled

Whether the notebook should be enabled or not (true/false)

Reimplemented from cx::cxPanel.

References cx::cxPanel::setEnabled().

setEnabled() [2/3]

virtual void cx::cxNotebook::setEnabled ( const std::string &  pID, bool  pEnabled, bool  pIsTitle = true  )

overridevirtual

Enables or disables a window in the panel (by title/name).

Enables or disables a window in the notebook (by title/name).

(This should be inherited from cxPanel, but the compiler

doesn't see it).

Parameters

pID	The title/name of the window in the panel
pEnabled	Boolean: If true, the window will be enabled, and if false, the window will be disabled.
pIsTitle	If this is true (default), then pID will refer to the window's title. If this is false, then pID will refer to the window's name.

Reimplemented from cx::cxPanel.

setEnabled() [3/3]

void cx::cxNotebook::setEnabled ( unsigned int  pIndex, bool  pEnabled  )

overridevirtual

Enables or disables a window in the notebook (by index). (This.

should be inherited from cxPanel, but the compiler doesn't see

it).

Parameters

pIndex	The index of the window in the panel
pEnabled	Boolean: If true, the window will be enabled, and if false, the window will be disabled.

References cx::cxPanel::setEnabled().

setLabel() [1/2]

virtual bool cx::cxNotebook::setLabel ( const std::string &  pID, const std::string &  pLabel, bool  pIsLabel = true, bool  pRefresh = false  )

virtual

Sets the label for one of the panels (by label/name). If the.

new label would result in the label windows being too large to

fit on the screen, however, the label will not be updated.

Parameters

pID	The label/name of the panel
pLabel	The new label
pIsLabel	Boolean: true if pID is a label, or false if it's a panel name.
pRefresh	Whether or not to refresh the screen. Defaults to false.

Returns

true if the label was set, or false if not.

setLabel() [2/2]

virtual bool cx::cxNotebook::setLabel ( unsigned int  pIndex, const std::string &  pLabel, bool  pRefresh = false  )

virtual

Sets the label for one of the panels (by index). If the new.

label would result in the label windows being too large to

fit on the screen, however, the label will not be updated.

Parameters

pIndex	The index of the panel
pLabel	The new label
pRefresh	Whether or not to refresh the screen. Defaults to false.

Returns

true if the label was set, or false if not.

Referenced by cxNotebookTest1(), and cxNotebookTest2().

setLabelsOnTop()

void cx::cxNotebook::setLabelsOnTop	(	bool	pLabelsOnTop,
		bool	pRefresh = false
	)

Toggles whether the labels should be on the top or bottom.

Parameters

pLabelsOnTop	Boolean: If true, the labels should be on top. If false, the labels should be on the bottom.
pRefresh	Whether or not to refresh the screen. Defaults to false.

References cx::cxPanel::bottom(), cx::left(), cx::cxPanel::mWindows, show(), and cx::cxPanel::top().

Referenced by cxNotebookSetTabSpacing(), and cxNotebookTest2().

setLeftLabelSpace()

void cx::cxNotebook::setLeftLabelSpace

(

bool

pLeftLabelSpace

)

Toggles the option to have a space to the left of label text.

Parameters

pLeftLabelSpace

Boolean: If true, then new label text will have a space to the left. If false, new label text will not.

setNextTabKey()

void cx::cxNotebook::setNextTabKey

(

int

pKey

)

Sets the key to be used for navigation to the next tab.

Parameters

pKey	A key to use to navigate to the next tab

References cx::cxPanel::mWindows.

setNoWindowsMsg()

void cx::cxNotebook::setNoWindowsMsg

(

const std::string &

pNoWindowsMsg

)

Sets the message to be displayed when there are no panels in.

the notebook.

Parameters

pNoWindowsMsg

A new message to display

setPrevTabKey()

void cx::cxNotebook::setPrevTabKey

(

int

pKey

)

Sets the key to be used for navigation to the previous tab.

Parameters

pKey	A key to use to navigate to the previous tab

References cx::cxPanel::mWindows.

setRightLabelSpace()

void cx::cxNotebook::setRightLabelSpace

(

bool

pRightLabelSpace

)

Toggles the option to have a space to the right of label text.

Parameters

pRightLabelSpace

Boolean: If true, then new label text will have a space to the right. If false, new label text will not.

setShowPanelWindow() [1/2]

virtual void cx::cxNotebook::setShowPanelWindow ( const std::string &  pID, bool  pShowPanelWindow, bool  pIsLabel = true  )

virtual

Sets whether one of the panels in the notebook should show.

its window when it gets focus (by label/name). This is for a

screen refresh optimization.

Parameters

pID	The label/name of the panel in the notebook
pShowPanelWindow	Whether or not the panel should show its window when it gets focus.
pIsLabel	If true, this will treat pID as a label. If false, this will treat pID as a name for a panel. This defaults to true.

setShowPanelWindow() [2/2]

void cx::cxNotebook::setShowPanelWindow ( unsigned int  pIndex, bool  pShowPanelWindow  )

virtual

Sets whether one of the panels in the notebook should show.

its window when it gets focus (by index). This is for a

screen refresh optimization.

Parameters

pIndex	The index of the panel in the notebook
pShowPanelWindow	Whether or not the panel should show its window when it gets focus.

References getPanel(), and cx::cxPanel::setShowPanelWindow().

Referenced by cxNotebook().

setTabNavKey()

void cx::cxNotebook::setTabNavKey

(

int

pKey

)

Sets the key that is used for bringing up a tab selection menu.

Parameters

pKey	A key to use to bring up the tab selection menu

References cx::cxPanel::mWindows.

setTabNavWrap()

void cx::cxNotebook::setTabNavWrap

(

bool

pTabNavWrap

)

Sets whether or not the user will be able to wrap from the.

last enabled tab to the first, or from the first enabled tab

to the last, when using the tab navigation keys.

Parameters

pTabNavWrap

Whether or not to allow tab "wrapping" using the tab navigation keys

setTabSpacing()

bool cx::cxNotebook::setTabSpacing	(	int	pTabSpacing,
		bool	pRefresh = false
	)

Sets the number of spaces to use for horizontal alignment of.

the tabs (label windows).

Parameters

pTabSpacing	The number of spaces to use for horizontal tab alignment. 0 would be sharing left/right borders, 1 would be right next to each other, 2 means there is 1 space between the tabs, etc.
pRefresh	Whether or not to refresh the screen. Defaults to false.

Returns

Boolean: true if the tab spacing was set, or false if not. For example, this may not set the tab spacing if the new spacing would make any of the label windows go past the right edge of the notebook window. If pTabSpacing is the same as what is already set, then this will return true.

References cx::left(), and cx::right().

Referenced by cxNotebookSetTabSpacing().

setWindowDisabledMsg()

void cx::cxNotebook::setWindowDisabledMsg

(

const std::string &

pMsg

)

Sets the message to be displayed when a window is disabled.

Parameters

pMsg	A new message

show()

long cx::cxNotebook::show ( bool  pBringToTop = false, bool  pShowSubwindows = true  )

overridevirtual

Shows the notebook.

Parameters

pBringToTop	Whether or not to bring the window to the top. Defaults to false.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true.

Returns

This method returns a long to support overriding in derived classes that might need to return a value. For cxWindow, cxID_EXIT is always returned.

Reimplemented from cx::cxPanel.

References cx::cxID_EXIT, cx::cxWindow::getShowSelfBeforeSubwins(), cx::cxPanel::getWindow(), hide(), cx::cxWindow::isEnabled(), and showSubwindows().

Referenced by cxNotebookSetTabSpacing(), setLabelsOnTop(), and showModal().

showModal()

long cx::cxNotebook::showModal ( bool  pShowSelf = true, bool  pBringToTop = true, bool  pShowSubwindows = true  )

overridevirtual

Shows the notebook and allows the user to interact with the.

pages. Shows the current page.

Parameters

pShowSelf	Whether or not to show the window before running the input loop. Defaults to true.
pBringToTop	Whether or not to bring the window to the top. Defaults to true.
pShowSubwindows

Returns

A return code based on user input. Returns cxID_QUIT if the user presses ESC; otherwise, returns cxID_EXIT.

Reimplemented from cx::cxPanel.

References cx::bringToTop(), cx::cxID_EXIT, cx::cxWindow::cxTypeStr(), cx::cxWindow::getLeaveNow(), cx::cxWindow::getParent(), cx::cxWindow::getReturnCode(), cx::cxWindow::isEnabled(), cx::cxWindow::mIsModal, cx::cxWindow::runOnFocusFunction(), cx::cxWindow::runOnLeaveFunction(), cx::cxWindow::setReturnCode(), and show().

Referenced by cxNotebookRemoveWindowTest(), cxNotebookSwapTest(), cxNotebookTest1(), cxNotebookTest2(), and cxNotebookWithEmptyPanelTest().

showSubwindows()

void cx::cxNotebook::showSubwindows ( bool  pBringToTop = true, bool  pShowSubwindows = true  )

overridevirtual

Shows the subwindows for the notebook. This is overidden here.

for screen optimization, since this method is called from

show(). It doesn't show the panels inside the notebook, which

are considered subwindows. This method will only draw the

subwindows that are outside the notebook.

Parameters

pBringToTop	Whether or not to bring the subwindow to the top. Defaults to true.
pShowSubwindows	Whether or not to show the subwindows for the subwindows. Defaults to true.

Reimplemented from cx::cxWindow.

References cx::cxWindow::getShowSubwinsForward(), cx::cxWindow::subWindows_begin(), cx::cxWindow::subWindows_end(), cx::cxWindow::subWindows_rbegin(), cx::cxWindow::subWindows_rend(), and windowIsInPanel().

Referenced by show().

swap() [1/3]

bool cx::cxNotebook::swap ( const std::shared_ptr< cxWindow > &  pWindow1, const std::shared_ptr< cxWindow > &  pWindow2  )

overridevirtual

Swaps the order of 2 panels (by pointer). If both pointers are.

the same, or one or both don't exist in the panel, nothing will

be changed. This overrides the swap() inherited from cxPanel.

This does not refresh the screen.

Parameters

pWindow1	A pointer to the first window
pWindow2	A pointer to the second window

Returns

Whether or not the windows got swapped

Reimplemented from cx::cxPanel.

References swap().

swap() [2/3]

bool cx::cxNotebook::swap ( cxWindow *  pWindow1, cxWindow *  pWindow2  )

overridevirtual

Swaps the order of 2 subwindows (by pointer). If both pointers.

are the same, or one or both don't exist in the panel, nothing

will be changed. This does not refresh the screen.

Parameters

pWindow1	A pointer to the first window
pWindow2	A pointer to the second window

Returns

Whether or not the windows got swapped

Reimplemented from cx::cxPanel.

References cx::cxPanel::mWindows, cx::cxPanel::numWindows(), and swap().

swap() [3/3]

bool cx::cxNotebook::swap ( int  pWindow1Index, int  pWindow2Index  )

overridevirtual

Swaps the order of 2 panels (by index). If both indexes are.

the same, or one or both is out of bounds, nothing will be

changed. This overrides the swap() inherited from cxPanel.

This does not refresh the screen.

Parameters

pWindow1Index	The index of the first window
pWindow2Index	The index of the second window

Returns

Whether or not the windows got swapped

Reimplemented from cx::cxPanel.

References cx::cxPanel::numWindows(), and cx::cxPanel::swap().

Referenced by cxNotebookSwapTest(), swap(), and swap().

unhide()

void cx::cxNotebook::unhide ( bool  pUnhideSubwindows = true )

overridevirtual

Un-hides the notebook.

Parameters

pUnhideSubwindows

Whether or not to also unhide the subwindows (defaults to true)

Reimplemented from cx::cxPanel.

References cx::cxPanel::unhide().

windowIsInNotebook()

bool cx::cxNotebook::windowIsInNotebook ( cxWindow *  pWindow ) const

virtual

Returns whether a window exists in the notebook.

Parameters

pWindow

A pointer to a window to add to the notebook

Returns

true if the window is in the notebook, or false if not

References cx::cxPanel::windowIsInPanel().

windowIsInPanel()

bool cx::cxNotebook::windowIsInPanel ( const std::shared_ptr< cxWindow > &  pWindow ) const

overridevirtual

Returns whether a cxWindow object is contained in the notebook.

Overridden from cxPanel to prevent hiding.

Parameters

pWindow

A shared_ptr to a cxWindow object

Returns

Whether or not the cxWindow is contained in the notebook

Reimplemented from cx::cxPanel.

References cx::cxPanel::windowIsInPanel().

Referenced by showSubwindows().

---

The documentation for this class was generated from the following files:

• /home/erico/projects/cxWidgets/src/cxNotebook.h
• /home/erico/projects/cxWidgets/src/cxNotebook.cpp
