cx::cxGrid Class Reference

This is a class representing a grid of data, similar to a spreadsheet, with rows & columns of cells where data can be entered. More...

#include <cxGrid.h>

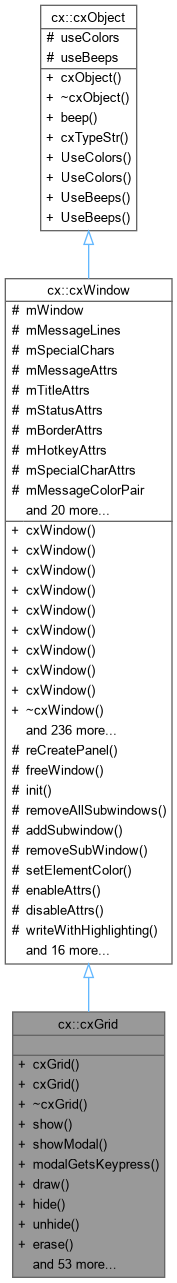

Inheritance diagram for cx::cxGrid:

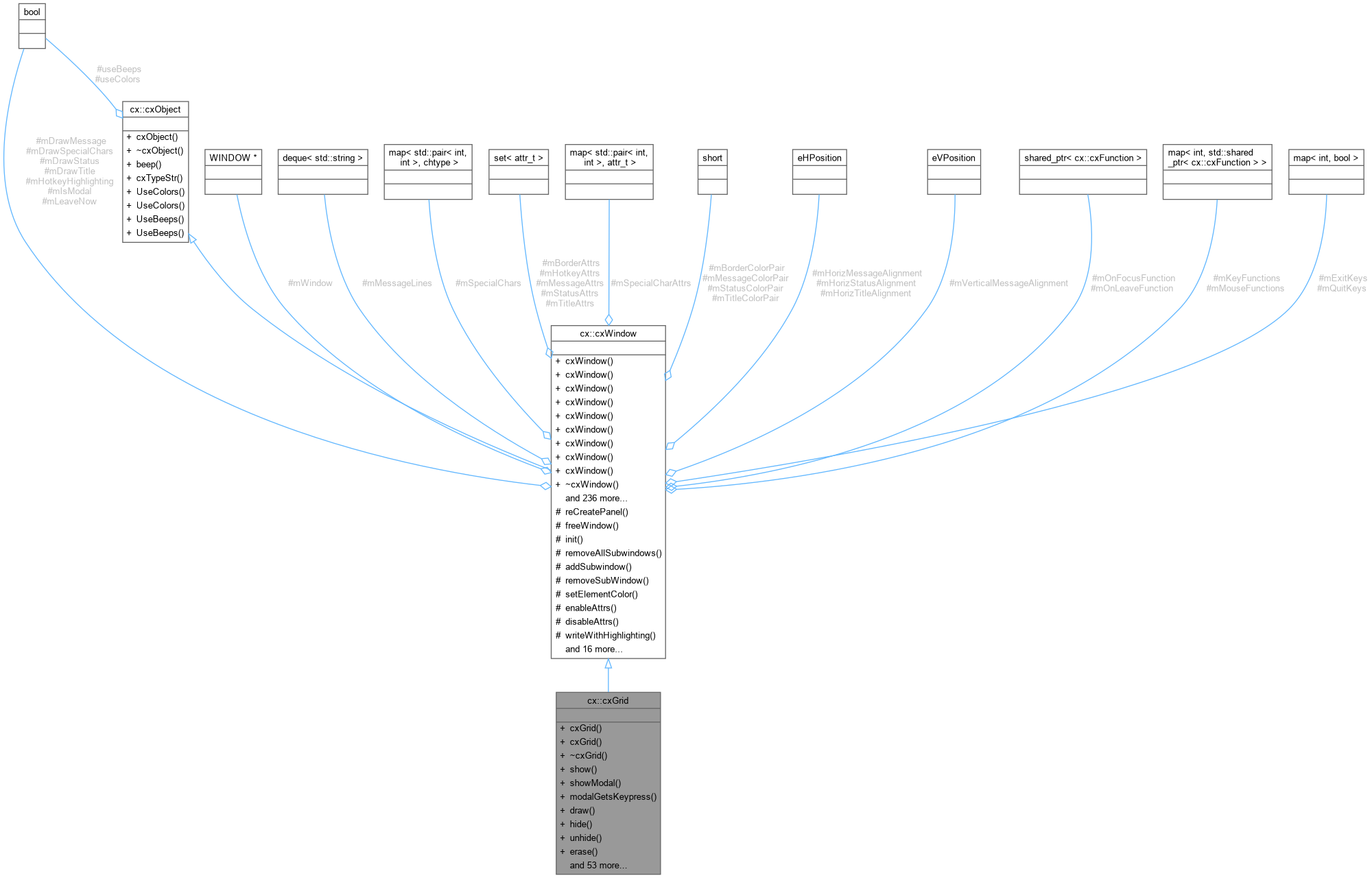

Collaboration diagram for cx::cxGrid:

Public Member Functions
	cxGrid (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, int pNumRows=10, int pNumCols=5, int pDefaultColWidth=12, const std::string &pTitle="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE)
	Constructor.
	cxGrid (const cxGrid &pThatGrid)
	Copy constructor.
virtual	~cxGrid ()
	Destructor.
virtual long	show (bool pBringToTop=false, bool pShowSubwindows=true) override
	Shows the window.
virtual long	showModal (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true) override
	Shows the window and waits for input.
virtual bool	modalGetsKeypress () const override
	Returns whether or not a call to showModal() will wait for a.
virtual void	draw () override
	Fills the member ncurses window structure with the current.
virtual void	hide (bool pHideSubwindows=true) override
	Hides the window.
virtual void	unhide (bool pUnhideSubwindows=true) override
	Un-hides the window.
virtual void	erase (bool pEraseSubwindows=true) override
	Erases the window.
virtual bool	move (int pNewRow, int pNewCol, bool pRefresh=true) override
	Changes the window's position, based on a new upper-left corner.
virtual void	resize (int pNewHeight, int pNewWidth, bool pRefresh=true) override
	Changes the window's width and height. The window's upper-left.
virtual void	clear (bool pRefresh=false) override
	Clears the text from the window.
virtual void	bringToTop (bool pRefresh=true) override
	Brings the window to the top.
virtual bool	hasFocus () const override
	Returns true if window has focus, false otherwise.
virtual void	setColor (e_WidgetItems pItem, e_cxColors pColor) override
	Sets the color of one of the window items.
virtual void	setBorderStyle (eBorderStyle pBorderStyle) override
	Sets the border style.
virtual void	setLastKey (int pLastKey) override
	Sets the last keypress.
virtual void	quitNow () override
	This is mainly for deriving classes. This causes the object.
virtual void	exitNow () override
	This is mainly for deriving classes. It tells the object.
virtual bool	setKeyFunction (int pKey, const std::shared_ptr< cxFunction > &pFunction) override
	Sets a function to be called when a key is pressed.
virtual void	clearKeyFunction (int pKey) override
	Removes a function pointer for a keypress so that it will no.
virtual void	clearKeyFunctions () override
	Clears the list of external functions fired by hotkeys.
virtual void	removeQuitKey (int pKey) override
	Removes a quit key.
virtual void	removeExitKey (int pKey) override
	Removes an exit key.
virtual void	setEnabled (bool pEnabled) override
	Enables or disables the window. If the window is.
virtual void	setDisableCursorOnShow (bool pDisableCursorOnShow) override
	Sets whether the window should disable the cursor.
virtual std::string	cxTypeStr () const override
	Returns the name of the cxWidgets class. This is overridden.
virtual cxWindow *	getParent () const override
	Returns a pointer to the parent window.
virtual void	addAttr (e_WidgetItems pItem, attr_t pAttr) override
	Adds an ncurses attribute to use for one of the items in the.
virtual void	setAttr (e_WidgetItems pItem, attr_t pAttr) override
	Sets the ncurses attribute to use for one of the items in the.
virtual void	removeAttr (e_WidgetItems pItem, attr_t pAttr) override
	Removes an ncurses attribute from one of the item lists.
virtual void	removeAttrs (e_WidgetItems pItem) override
	Removes all attributes for a given window item.
virtual void	getAttrs (e_WidgetItems pItem, std::set< attr_t > &pAttrs) const override
	Returns the set of ncurses attributes for a given item.
virtual void	enableAttrs (WINDOW *pWin, e_WidgetItems pItem) override
	Enables the attributes for one of the m*Attrs sets for an ncurses window.
virtual void	disableAttrs (WINDOW *pWin, e_WidgetItems pItem) override
	Disables the attributes for one of the m*Attrs sets for an ncurses window.
virtual e_cxColors	getItemColor (e_WidgetItems pItem) const override
	Returns the color of one of the items in a window.
virtual long	showModal (int pFocusRow, int pFocusCol, bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true)
	Sets cell focus, then shows the grid modally to allow user interaction.
int	getNumRows () const
	Returns the number of data rows in the grid.
int	getNumCols () const
	Returns the number of data columns in the grid.
void	setNumRows (int pNumRows)
	Sets the number of rows in the grid. Adds or removes rows as needed.
void	setNumCols (int pNumCols)
	Sets the number of columns in the grid. Adds or removes columns as needed.
std::shared_ptr< cxWindow >	getCell (int pRow, int pCol) const
	Gets the cell widget at the specified row and column.
bool	setCell (int pRow, int pCol, const std::shared_ptr< cxWindow > &pWidget)
	Sets (adds/replaces) the cell widget at the specified row and column.
std::string	getCellValue (int pRow, int pCol) const
	Gets the value of a cell (as a string). Works for cxInput cells.
bool	setCellValue (int pRow, int pCol, const std::string &pValue)
	Sets the value of a cell (as a string). Works for cxInput cells.
void	setColLabel (int pCol, const std::string &pLabel)
	Sets a column header label.
std::string	getColLabel (int pCol) const
	Gets a column header label.
void	setRowLabel (int pRow, const std::string &pLabel)
	Sets a row header label.
std::string	getRowLabel (int pRow) const
	Gets a row header label.
void	setColWidth (int pCol, int pWidth)
	Sets the width of a specific column.
int	getColWidth (int pCol) const
	Gets the width of a specific column.
void	setRowHeaderWidth (int pWidth)
	Sets the width of the row header column.
int	getRowHeaderWidth () const
	Gets the width of the row header column.
int	getFocusRow () const
	Gets the currently focused cell row.
int	getFocusCol () const
	Gets the currently focused cell column.
void	setFocusCell (int pRow, int pCol)
	Sets the focus to a specific cell.
void	setHeaderColor (e_cxColors pColor)
	Sets the color for the column/row header labels.
void	setGridLineColor (e_cxColors pColor)
	Sets the color for the grid lines/separators.
void	showColHeaders (bool pShow)
	Toggles whether column headers are displayed.
bool	getShowColHeaders () const
	Returns whether column headers are displayed.
void	showRowHeaders (bool pShow)
	Toggles whether row headers are displayed.
bool	getShowRowHeaders () const
	Returns whether row headers are displayed.
Public Member Functions inherited from cx::cxWindow
	cxWindow (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", const std::string &pMessage="", const std::string &pStatus="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Default constructor.
	cxWindow (cxWindow *pParentWindow, int pRow, int pCol, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, eHPosition pHPosition, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Lets you specify the horizontal position.
	cxWindow (const cxWindow &pThatWindow)
	Copy constructor.
virtual	~cxWindow ()
virtual void	centerHoriz (bool pRefresh=true)
	Centers the window horizontally on the screen.
virtual void	alignHoriz (eHPosition pPosition, bool pRefresh=true)
	Aligns the window horizontally on the screen.
virtual void	centerVert (bool pRefresh=true)
	Centers the window vertically on the screen.
virtual void	alignVert (eVPosition pPosition, bool pRefresh=true)
	Aligns the window vertically on the screen.
virtual void	center (bool pRefresh=true)
	Centers the window on the screen.
virtual std::string	getTitle () const
	Accessor for title text - Returns the first string in the.
virtual void	setTitle (const std::string &pTitle, bool pRefreshTitle=true)
	Setter for the title text - This sets the first string in the.
std::string	getStatus () const
	Accessor for the status line text.
virtual void	setStatus (const std::string &pStatus, bool pRefreshStatus=true)
	Mutator for the status line text.
std::string	getMessage () const
	Returns the message that appears in the window, concatenating all message lines together.
virtual void	setMessage (const std::string &pMessage)
	Sets the text that appears within the window.
virtual void	addMessageLineBelow (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesBelow (const std::vector< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::list< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::deque< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLineAbove (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesAbove (const std::vector< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::list< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::deque< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	setMessageLines (const std::vector< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::list< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::deque< std::string > &pLines)
	Sets the message lines in the window.
virtual void	removeMessageLine (unsigned pIndex)
	Removes a line from the text inside the window (by index).
virtual void	setMessageLine (unsigned pIndex, const std::string &pLine)
	Modifies one of the lines displayed in the window.
void	setHorizTitleAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the title text.
eHPosition	getHorizTitleAlignment () const
	Accessor for the title text alignment.
void	setHorizMessageAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the message text.
eHPosition	getHorizMessageAlignment () const
	Accessor for the horizontal message text alignment.
void	setHorizStatusAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the status text.
eHPosition	getHorizStatusAlignment () const
	Accessor for the horizontal status text alignment.
void	setVerticalMessageAlignment (eVPosition pVAlignment)
	Sets the vertical alignment of the message text.
eVPosition	getVerticalMessageAlignment () const
	Accessor for the vertical message text alignment.
void	setExtTitleWindow (cxWindow *pWindow, bool pRefreshTitle=true)
	Sets an external cxWindow object to be used for the title, rather.
cxWindow *	getExtTitleWindow () const
	Accessor for the external title window pointer.
void	setExtStatusWindow (cxWindow *pWindow, bool pRefreshStatus=true)
	Sets an external cxWindow object to be used for status, rather.
cxWindow *	getExtStatusWindow () const
	Accessor for the external status window pointer.
bool	isHidden () const
	Returns whether or not the window is hidden.
virtual long	setFocus (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true)
	Alias for showModal()
virtual void	setFocusColors ()
	Turns on the ncurses attribute A_REVERSE for the window to.
virtual void	setFocusColors (attr_t pAttr)
	Turns on the ncurses attribute pAttr for the window to.
virtual void	unSetFocusColors ()
	Disables focus for this window and unhighlights the message.
virtual void	unSetFocusColors (attr_t pAttr)
	Disables focus for this window and un-highlights the message (using pAttr)
virtual void	bringToBottom (bool pRefresh=false)
	Puts the window on the bottom of all other windows.
virtual bool	isOnTop () const
	Returns whether the window is on top of all other windows.
virtual bool	isOnBottom () const
	Returns whether the window is on the bottom of all other windows.
virtual bool	isAbove (const cxWindow &pThatWindow) const
	Returns whether the window is above another window.
virtual bool	isBelow (const cxWindow &pThatWindow) const
	Returns whether a window is below another window.
void	touchWindow ()
	Marks the window's entire content as dirty so that the next.
virtual void	drawBorder (int pRow, int pCol, int pHeight, int pWidth, bool pTop=true, bool pBottom=true, bool pLeft=true, bool pRight=true)
	Draws the border (based on the border style)
virtual void	drawBorder (int pHeight, int pWidth)
	Draws a box in the window.
virtual void	drawBorder ()
	Draws a box for the window border.
virtual int	top () const
	Returns the top row of the window.
virtual int	centerRow () const
	Returns the center row of the window.
virtual int	bottom () const
	Returns the bottom row of the window.
virtual int	left () const
	Returns the left column of the window.
virtual int	centerCol () const
	Returns the center column of the window.
virtual int	right () const
	Returns the right column of the window.
virtual int	width (int pWidth)
	Changes the width of the window.
virtual int	width () const
	Returns the width of the window.
virtual int	height (int pHeight)
	Changes the height of the window.
virtual int	height () const
	Returns the height of the window.
virtual void	getRect (int &pTop, int &pLeft, int &pBottom, int &pRight)
	Returns the coordinates of the rectangle defining the window.
virtual bool	pointIsInWindow (int pY, int pX) const
	Returns whether a screen location is in the window (including.
virtual bool	pointIsInTitle (int pY, int pX) const
	Returns whether a screen location is in the title of the window.
virtual void	getSize (int &pHeight, int &pWidth)
	Returns the height & width of the window.
virtual bool	moveRelative (int pVerticalOffset, int pHorizOffset, bool pRefresh=true)
	Changes the window's position via vertical & horizontal offsets.
unsigned	numSubWindows ()
	Returns the number of subwindows in this window.
void	setSubWinMessage (unsigned pIndex, const std::string &pMessage)
	Sets the message of one of the subwindows (by index).
void	setSubWinMessage (const std::string &pTitle, const std::string &pMessage)
	Sets the message of one of the subwindows (by title).
eBorderStyle	getBorderStyle () const
	Returns the border style.
bool	hasBorder () const
	Does this window have a border?
void	setParent (cxWindow *pNewParent)
	Changes the pointer to the parent window; changes the parent window.
virtual void	dump (std::string &pResult)
	Returns a string containing all the characters.
virtual void	showSubwindows (bool pBringToTop=true, bool pShowSubwindows=true)
	Shows the subwindows for the window.
cxWindow &	operator= (const cxWindow &pThatWindow)
	Assignment operator.
virtual void	writeText (int pRow, int pCol, const std::string &pText, bool pRefresh=true)
	Writes text on the window. Note that the text is not permanant, so.
virtual void	setHotkeyHighlighting (bool pHotkeyHighlighting)
	Enables/disables the use of hotkey attributes when writing the message.
bool	getHotkeyHighlighting () const
	Returns whether hotkey attributes are used when writing the message.
virtual bool	isEnabled () const
	Returns whether or not the window is enabled.
virtual bool	getDisableCursorOnShow () const
	Returns whether or not the window will disable.
virtual bool	getExitOnMouseOutside () const
	Returns whether the window exits its modal input loop when.
virtual void	setExitOnMouseOutside (bool pExitOnMouseOutside)
	Sets whether the window should exit its modal input loop.
virtual int	getLastKey () const
	Returns the last key pressed by the user (for showModal(), etc.)
virtual bool	lastKeyWasMouseEvt () const
	Returns whether or not the last keypress was a mouse event.
virtual void	getLastMouseEvtCoords (int &pY, int &pX)
	Returns the coordinates of the last mouse event in the window.
virtual bool	getChangeColorsOnFocus () const
	Returns whether the window will change.
virtual void	setChangeColorsOnFocus (bool pChangeColorsOnFocus)
	Sets whether colors should change when focus.
virtual void	setOnFocusFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on focus" function.
virtual void	setOnFocusFunction (funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.
virtual void	setOnFocusFunction (funcPtr2 pFunction, void *p1, void *p2, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.
virtual void	setOnFocusFunction (funcPtr0 pFunction, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.
virtual void	setOnLeaveFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on leave" function.
virtual void	setOnLeaveFunction (funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
	Sets the "on leave" function pointer.
virtual void	setOnLeaveFunction (funcPtr2 pFunction, void *p1, void *p2)
	Sets the "on focus" function pointer.
virtual void	setOnLeaveFunction (funcPtr0 pFunction)
	Sets the "on focus" function pointer.
virtual bool	runOnFocusFunction (std::string *pFunctionRetval=nullptr)
	Runs the onFocus function, if it's set.
virtual bool	runOnLeaveFunction (std::string *pFunctionRetval=nullptr)
	Runs the onLeave function, if it's set. However, if the last.
virtual void	toggleOnFocusFunction (bool pRunOnFocus)
	Sets whether or not the onFocus function should run.
virtual void	toggleOnLeaveFunction (bool pRunOnLeave)
	Sets whether or not the onLeave function should run.
virtual bool	onFocusFunctionEnabled () const
	Returns whether or not the onFocus function is set to run.
virtual bool	onLeaveFunctionEnabled () const
	Returns whether or not the onLeave function is set to run.
virtual const std::shared_ptr< cxFunction > &	getOnFocusFunction () const
	Accessor for the onFocus function.
virtual const std::shared_ptr< cxFunction > &	getOnLeaveFunction () const
	Accessor for the onLeave function.
virtual bool	isModal () const
	Returns whether or not the window is currently.
virtual bool	setKeyFunction (int pKey, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed.
virtual bool	setKeyFunction (int pKey, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed.
virtual bool	setKeyFunction (int pKey, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed. This.
virtual void	clearKeyFunctionByPtr (funcPtr4 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr2 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr0 pFunction)
	Removes a keypress function pointer.
virtual bool	hasKeyFunction (int pKey) const
	Returns whether an external function exists for a keypress.
virtual bool	setMouseFunction (int pMouseState, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state. This.
virtual void	clearMouseFunction (int pMouseState)
	Removes a function pointer for a mouse event so that it will.
virtual void	clearMouseFunctions ()
	Clears the list of external functions fired by mouse events.
virtual bool	hasMouseFunction (int pMouseState) const
	Returns whether an external function exists for a mouse event.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_begin ()
	Returns a begin iterator to the map of cxFunction pointers.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_end ()
	Returns an end iterator to the map of cxFunction pointers.
virtual void	getFunctionKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual void	getFunctionKeys (std::vector< int > &pKeys) const
	Populates a collection with integers representing the keys.
virtual void	setShowSubwinsForward (bool pShowSubwinsForward)
	Toggles the order in which subwindows will be shown.
virtual bool	getShowSubwinsForward () const
	Returns whether or not the subwindows will be shown.
virtual void	setShowSelfBeforeSubwins (bool pShowSelfBeforeSubwins)
	Sets whether the window will show itself before.
virtual bool	getShowSelfBeforeSubwins () const
	Returns whether or not the window will show itself before.
virtual long	getReturnCode () const
	Returns the return code set by the last call to.
virtual bool	addTitleString (int pHPos, const std::string &pStr, bool pRefreshTitle=false)
	Adds/sets a string to appear in the title at.
virtual std::string	getTitleString (int pHPos) const
	Returns the title string set at a given horizontal position.
virtual std::map< int, std::string >	getTitleStrings () const
	Returns the map of title strings for the window.
virtual void	getTitleStrings (std::map< int, std::string > &pTitleStrings) const
	Returns the map of title strings for the window (using an.
virtual void	setTitleStrings (const std::map< int, std::string > &pTitleStrings)
	Sets all the title strings via a map of horizontal.
virtual void	removeTitleString (int pHPos)
	Removes a title string at a given horizontal position.
virtual void	removeTitleStrings ()
	Removes all title strings.
virtual bool	addStatusString (int pHPos, const std::string &pStr, bool pRefreshStatus=false)
	Adds/sets a string to appear in the status line at.
virtual std::string	getStatusString (int pHPos) const
	Returns the status string set at a given horizontal position.
virtual std::map< int, std::string >	getStatusStrings () const
	Returns the map of status strings for the window.
virtual void	getStatusStrings (std::map< int, std::string > &pStatusStrings) const
	Returns the map of status strings for the window (using an.
virtual void	setStatusStrings (const std::map< int, std::string > &pStatusStrings)
	Sets all the status strings via a map of horizontal.
virtual void	removeStatusString (int pHPos)
	Removes a status string at a given horizontal position.
virtual void	removeStatusStrings ()
	Removes all status strings.
virtual bool	addQuitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false)
	Adds a key that will cause the window to quit its input loop.
virtual void	removeQuitKeys ()
	Removes all quit keys.
virtual bool	addExitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false)
	Adds a key that will cause the window to quit its input loop.
virtual void	removeExitKeys ()
	Removes all exit keys.
virtual bool	hasExitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual bool	hasQuitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual void	getQuitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getQuitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual void	getExitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getExitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual std::map< int, bool >	getQuitKeys () const
	Returns the keys that will make the window quit its input.
virtual std::map< int, bool >	getExitKeys () const
	Returns the keys that will make the window exit is input.
void	toggleMessage (bool pDrawMessage)
	Sets whether or not to draw the message area (the area within.
void	toggleTitle (bool pDrawTitle)
	Sets whether or not to draw the title.
void	toggleStatus (bool pDrawStatus)
	Sets whether or not to draw the status line.
bool	messageWillDraw () const
	Returns whether the message will draw or not.
bool	titleWillDraw () const
	Returns whether the title will draw or not.
bool	statusWillDraw () const
	Returns whether the status line will draw or not.
void	toggleSpecialChars (bool pDrawSpecialChars)
	Sets whether or not to draw the "special" characters (these are.
bool	specialCharsWillDraw () const
	Returns whether the "special" characters will be drawn or.
virtual void	drawTitle ()
	Writes the title line.
virtual void	drawStatus ()
	Writes the status line.
virtual void	drawMessage ()
	Writes the message text (in the area within the borders)
virtual void	drawSpecialChars ()
	Writes the set of "special" characters to the window.
virtual void	setReturnCode (const long &pReturnCode)
	Explicitly sets the member return code for the window.
virtual void	setMessageColor (e_cxColors pColor)
	Returns the message color.
virtual void	setTitleColor (e_cxColors pColor)
	Sets the title color.
virtual void	setStatusColor (e_cxColors pColor)
	Sets the color of the status line at bottom of window.
virtual void	setBorderColor (e_cxColors pColor)
	Sets the color of the window border.
virtual bool	hasAttr (e_WidgetItems pItem, attr_t pAttr)
	Returns whether an attribute is set for a widget item.
bool	getLeaveNow () const
	Returns whether or not something told the window to leave now.
std::string	getName () const
virtual void	setName (const std::string &pName)
	Sets the name of the window. The name is an alternative means.
bool	mouseEvtWasInWindow () const
	Returns whether the current mouse information stored in the.
virtual bool	mouseEvtWasInTitle () const
	Returns whether the current mouse information stored in the.
virtual void	doMouseBehavior ()
	Triggers the window's mouse event behavior. This method can.
virtual void	doMouseBehavior (int pMouseY, int pMouseX)
	Triggers the window's mouse event behavior. Also sets the.
std::shared_ptr< cxFunction >	getKeyFunction (int pKey) const
	Returns a cxFunction pointer for a key.
std::shared_ptr< cxFunction0 >	getKeyFunctionAsFunction0 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction0.
std::shared_ptr< cxFunction2 >	getKeyFunctionAsFunction2 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction2.
std::shared_ptr< cxFunction4 >	getKeyFunctionAsFunction4 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction4.
bool	mouseEvtWasButtonEvt () const
	Returns whether or not the mouse event read in mMouse was.
bool	mouseButton1Pressed () const
	Returns whether or not the first mouse button was pressed.
bool	mouseButton1Released () const
	Returns whether or not the first mouse button was released.
bool	mouseButton1Clicked () const
	Returns whether or not the first mouse button was clicked.
bool	mouseButton1DoubleClicked () const
	Returns whether or not the first mouse button was double-clicked.
bool	mouseButton2Clicked () const
	Returns whether or not the second mouse button was clicked.
bool	mouseButton2DoubleClicked () const
	Returns whether or not the second mouse button was double-clicked.
bool	mouseButton3Clicked () const
	Returns whether or not the second mouse button was clicked.
virtual void	mouseButton1Click (int pY, int pX)
	Tells the window that mouse button 1 was clicked at a certain.
virtual void	mouseButton2Click (int pY, int pX)
	Tells the window that mouse button 2 was clicked at a certain.
virtual void	mouseButton3Click (int pY, int pX)
	Tells the window that mouse button 3 was clicked at a certain.
std::string	getString (int pRow, int pCol, int pNumber)
	Get the contents of a portion of the window. (for debugging/testing)
void	info ()
	Display information about a window (for debugging/testing)
virtual void	toggleBorderTop (bool pToggle)
	Sets whether or not to display the top border.
virtual void	toggleBorderBottom (bool pToggle)
	Sets whether or not to display the bottom border.
virtual void	toggleBorderLeft (bool pToggle)
	Sets whether or not to display the left border.
virtual void	toggleBorderRight (bool pToggle)
	Sets whether or not to display the right border.
virtual void	addSpecialChar (int pY, int pX, chtype pChar, attr_t pAttr=A_NORMAL)
	Adds a character to be written somewhere in the window. These.
virtual void	removeSpecialChar (int pY, int pX)
	Removes a character from the set of special characters (by.
virtual void	clearSpecialChars ()
	Clears the collection of special characters.
virtual bool	functionExistsForLastMouseState () const
	Returns whether an external function pointer exists for the.
int	getMouseState () const
	Returns the current mouse state as it was last captured by the.
std::string	getMouseStateStr () const
	Returns a string version of the current mouse state as it was.
Public Member Functions inherited from cx::cxObject
	cxObject ()
virtual	~cxObject ()
virtual void	beep ()

Additional Inherited Members
Static Public Member Functions inherited from cx::cxObject
static bool	UseColors ()
static void	UseColors (bool useIt)
static bool	UseBeeps ()
static void	UseBeeps (bool useIt)
Protected Member Functions inherited from cx::cxWindow
virtual void	reCreatePanel ()
	Creates mPanel (by calling new_panel()), then sets up.
void	freeWindow ()
	Frees the memory used by the ncurses window and.
virtual void	init (int pRow, int pCol, int pHeight, int pWidth, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pParentWindow=nullptr, bool pResizeVertically=true)
	Initializes the window parameters and sets up the internal.
virtual void	removeAllSubwindows ()
	Removes all subwindow pointers.
virtual void	addSubwindow (cxWindow *pSubWindow)
	Adds a subwindow to the window. Subwindows of a.
virtual void	removeSubWindow (const cxWindow *pSubWindow)
	Removes a window from the subwindow list.
virtual void	setElementColor (short &pColorPair, attr_t &pElementAttr, e_cxColors pColor)
	Sets the color (and attribute, if necessary) of a color element.
virtual void	writeWithHighlighting (WINDOW *pWindow, const std::string &pText, const int &pY, const int &pStartX, const int &pEndX, int pNormalTextItem=-1)
	Writes text to an ncurses WINDOW, highlighting any characters.
virtual void	copyCxWinStuff (const cxWindow *pThatWindow, bool pRecreateWin=true)
	Makes a copy of a cxWindow's member variables.
virtual void	getRowColBasedOn (cxWindow *pParentWindow, eHPosition pPosition, const std::string &pTitle, const std::string &pStatus, const std::string &pMessage, int &pRow, int &pCol)
	Figures out how to align text based on a title & message.
virtual bool	handleFunctionForLastKey (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last keypress and.
virtual bool	handleFunctionForLastMouseState (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last mouse state captured.
void	setKeyFunctions (const cxWindow &pWindow)
	Returns whether or not a mouse event location is within.
void	setFocusFunctions (const cxWindow &pWindow)
	Re-sets the onFocus and onLeave functions from another.
bool	parentIsCxPanel () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxForm () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxNotebook () const
	Returns whether or not the parent window, if there is one, is.
cxWindowPtrContainer::const_iterator	subWindows_begin () const
	Returns a const iterator to the first subwindow.
cxWindowPtrContainer::const_iterator	subWindows_end () const
	Returns a const iterator to the one past the last subwindow.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rbegin () const
	Returns a const reverse begin iterator for the subwindow collection.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rend () const
	Returns a const reverse end iterator for the subwindow collection.
bool	onFocusFunctionIsSet () const
	Returns whether or not the onFocus function is set (if.
bool	onLeaveFunctionIsSet () const
	Returns whether or not the onLeave function is set (if.
Protected Attributes inherited from cx::cxWindow
WINDOW *	mWindow = nullptr
	Everything in the window is written here; this is an nCurses window structure.
messageLineContainer	mMessageLines
	Contains the text to be shown inside the window (note: the.
std::map< std::pair< int, int >, chtype >	mSpecialChars
	Contains "special" characters which are added to the window.
std::set< attr_t >	mMessageAttrs
	Message attributes.
std::set< attr_t >	mTitleAttrs
	Title attributes.
std::set< attr_t >	mStatusAttrs
	Status attributes.
std::set< attr_t >	mBorderAttrs
	Border attributes.
std::set< attr_t >	mHotkeyAttrs
	Hotkey attributes.
std::map< std::pair< int, int >, attr_t >	mSpecialCharAttrs
	Attributes for the "special" characters (which are added to.
short	mMessageColorPair = eWHITE_BLUE
short	mTitleColorPair = eGRAY_BLUE
short	mStatusColorPair = eBROWN_BLUE
short	mBorderColorPair = eGRAY_BLUE
eHPosition	mHorizTitleAlignment = eHP_LEFT
eHPosition	mHorizMessageAlignment = eHP_LEFT
eHPosition	mHorizStatusAlignment = eHP_LEFT
eVPosition	mVerticalMessageAlignment = eVP_TOP
bool	mDrawMessage = true
bool	mDrawTitle = true
bool	mDrawStatus = true
bool	mDrawSpecialChars = true
std::shared_ptr< cxFunction >	mOnFocusFunction = nullptr
std::shared_ptr< cxFunction >	mOnLeaveFunction = nullptr
bool	mIsModal = false
bool	mLeaveNow = false
std::map< int, std::shared_ptr< cxFunction > >	mKeyFunctions
std::map< int, std::shared_ptr< cxFunction > >	mMouseFunctions
std::map< int, bool >	mQuitKeys
std::map< int, bool >	mExitKeys
bool	mHotkeyHighlighting
Static Protected Attributes inherited from cx::cxObject
static bool	useColors
	Whether or not to use colors.
static bool	useBeeps
	Whether or not to enable beeping.

Detailed Description

This is a class representing a grid of data, similar to a spreadsheet, with rows & columns of cells where data can be entered.

Constructor & Destructor Documentation

cxGrid() [1/2]

cx::cxGrid::cxGrid ( cxWindow *  pParentWindow = nullptr, int  pRow = 0, int  pCol = 0, int  pHeight = DEFAULT_HEIGHT, int  pWidth = DEFAULT_WIDTH, int  pNumRows = 10, int  pNumCols = 5, int  pDefaultColWidth = 12, const std::string &  pTitle = "", eBorderStyle  pBorderStyle = eBS_SINGLE_LINE  )

explicit

Constructor.

Parameters

pParentWindow	A pointer to the parent window (can be nullptr)
pRow	The top row position on the screen
pCol	The left column position on the screen
pHeight	The height of the grid widget (including border and headers)
pWidth	The width of the grid widget (including border and headers)
pNumRows	The number of data rows in the grid
pNumCols	The number of data columns in the grid
pDefaultColWidth	The default width of each column (in characters)
pTitle	The title for the grid window
pBorderStyle	The border style for the outer grid window

cxGrid() [2/2]

cx::cxGrid::cxGrid

(

const cxGrid &

pThatGrid

)

Copy constructor.

References cx::height(), cx::left(), cx::top(), and cx::width().

~cxGrid()

cx::cxGrid::~cxGrid ( )

virtual

Destructor.

Member Function Documentation

addAttr()

void cx::cxGrid::addAttr ( e_WidgetItems  pItem, attr_t  pAttr  )

overridevirtual

Adds an ncurses attribute to use for one of the items in the.

window (see the e_WidgetItems enumeration).

Parameters

pItem	The item to add the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses atribute to add.

Reimplemented from cx::cxWindow.

References cx::cxWindow::addAttr().

bringToTop()

void cx::cxGrid::bringToTop ( bool  pRefresh = true )

overridevirtual

Brings the window to the top.

Parameters

pRefresh

Whether to refresh the screen (defaults to true)

Reimplemented from cx::cxWindow.

References cx::cxWindow::bringToTop(), and cx::updateWindows().

clear()

void cx::cxGrid::clear ( bool  pRefresh = false )

overridevirtual

Clears the text from the window.

Parameters

pRefresh

Whether or not to refresh the window after clearing it (defaults to false)

Reimplemented from cx::cxWindow.

References cx::cxWindow::clear().

clearKeyFunction()

void cx::cxGrid::clearKeyFunction ( int  pKey )

overridevirtual

Removes a function pointer for a keypress so that it will no.

longer fire a function.

Parameters

pKey	The hotkey for the function to remove

Reimplemented from cx::cxWindow.

References cx::cxWindow::clearKeyFunction().

clearKeyFunctions()

void cx::cxGrid::clearKeyFunctions ( )

overridevirtual

Clears the list of external functions fired by hotkeys.

Reimplemented from cx::cxWindow.

References cx::cxWindow::clearKeyFunctions().

cxTypeStr()

string cx::cxGrid::cxTypeStr ( ) const

overridevirtual

Returns the name of the cxWidgets class. This is overridden.

in cxWindow-based classes. This can be used to determine

the type of cxWidgets object that deriving classes derive from

in applications.

Returns

The name of the cxWidgets class.

Reimplemented from cx::cxWindow.

disableAttrs()

void cx::cxGrid::disableAttrs ( WINDOW *  pWin, e_WidgetItems  pItem  )

overridevirtual

Disables the attributes for one of the m*Attrs sets for an ncurses window.

If the m*Attrs collection is empty, this will disable the cxBase attributes

instead.

Parameters

pWin	A pointer to the ncurses window for which to disable the attributes (will usually be mWindow).
pItem	The item type to retrieve attributes for - see the e_cxWidgetItems enumeration (defined in cxWidgetItems.h).

Reimplemented from cx::cxWindow.

References cx::cxWindow::disableAttrs().

draw()

void cx::cxGrid::draw ( )

overridevirtual

Fills the member ncurses window structure with the current.

window text, but does not actually show it on the screen.

This is useful for optimization purposes.

Reimplemented from cx::cxWindow.

References cx::cxWindow::draw().

Referenced by show().

enableAttrs()

void cx::cxGrid::enableAttrs ( WINDOW *  pWin, e_WidgetItems  pItem  )

overridevirtual

Enables the attributes for one of the m*Attrs sets for an ncurses window.

If the m*Attrs collection is empty, this will enable the cxBase attributes

instead.

Parameters

pWin	A pointer to the ncurses window for which to enable the attributes (will usually be mWindow).
pItem	The item type to retrieve attributes for - see the e_cxWidgetItems enumeration (defined in cxWidgetItems.h).

Reimplemented from cx::cxWindow.

References cx::cxWindow::enableAttrs().

erase()

void cx::cxGrid::erase ( bool  pEraseSubwindows = true )

overridevirtual

Erases the window.

Parameters

pEraseSubwindows

Whether or not to erase the subwindows (defaults to true)

Reimplemented from cx::cxWindow.

References cx::cxWindow::erase().

exitNow()

void cx::cxGrid::exitNow ( )

overridevirtual

This is mainly for deriving classes. It tells the object.

to stop its input loop with a code of cxID_EXIT.

Reimplemented from cx::cxWindow.

References cx::cxWindow::exitNow().

getAttrs()

void cx::cxGrid::getAttrs ( e_WidgetItems  pItem, std::set< attr_t > &  pAttrs  ) const

overridevirtual

Returns the set of ncurses attributes for a given item.

Parameters

pItem	The item to retrieve attributes for (see the e_WidgetItems enumeration).
pAttrs	This will contain the attributes for the item.

Reimplemented from cx::cxWindow.

References cx::cxWindow::getAttrs().

getCell()

shared_ptr< cxWindow > cx::cxGrid::getCell	(	int	pRow,
		int	pCol
	)		const

Gets the cell widget at the specified row and column.

Parameters

pRow	Row index (0-based)
pCol	Column index (0-based)

Returns

A shared_ptr to the cxWindow in that cell, or nullptr if out of range

Referenced by SpreadsheetApp::run().

getCellValue()

string cx::cxGrid::getCellValue	(	int	pRow,
		int	pCol
	)		const

Gets the value of a cell (as a string). Works for cxInput cells.

Parameters

pRow	Row index (0-based)
pCol	Column index (0-based)

Returns

The cell's text value, or empty string if not applicable

References cx::cxInput::getValue().

Referenced by collectValues(), evaluateFormula(), getCellNumericValue(), and saveToFile().

getColLabel()

string cx::cxGrid::getColLabel

(

int

pCol

)

const

Gets a column header label.

Parameters

pCol	Column index (0-based)

Returns

The column label

getColWidth()

int cx::cxGrid::getColWidth

(

int

pCol

)

const

Gets the width of a specific column.

Parameters

pCol	Column index (0-based)

Returns

The column width

Referenced by cxGridTest().

getFocusCol()

int cx::cxGrid::getFocusCol

(

)

const

Gets the currently focused cell column.

Returns

The focused column index (0-based)

Referenced by SpreadsheetApp::run().

getFocusRow()

int cx::cxGrid::getFocusRow

(

)

const

Gets the currently focused cell row.

Returns

The focused row index (0-based)

Referenced by SpreadsheetApp::run().

getItemColor()

e_cxColors cx::cxGrid::getItemColor ( e_WidgetItems  pItem ) const

overridevirtual

Returns the color of one of the items in a window.

Parameters

pItem

The item type (a member of the e_WidgetItems enumeration see cxWidgetItems.h)

Returns

A member of the e_cxColors enumeration representing the color of the item (see cxColors.h)

Reimplemented from cx::cxWindow.

References cx::cxWindow::getItemColor().

getNumCols()

int cx::cxGrid::getNumCols

(

)

const

Returns the number of data columns in the grid.

Referenced by getCellNumericValue(), loadFromFile(), and saveToFile().

getNumRows()

int cx::cxGrid::getNumRows

(

)

const

Returns the number of data rows in the grid.

Referenced by getCellNumericValue(), loadFromFile(), and saveToFile().

getParent()

cxWindow * cx::cxGrid::getParent ( ) const

overridevirtual

Returns a pointer to the parent window.

Returns

A pointer to the parent window

Reimplemented from cx::cxWindow.

References cx::cxWindow::getParent().

getRowHeaderWidth()

int cx::cxGrid::getRowHeaderWidth

(

)

const

Gets the width of the row header column.

Returns

The row header width

getRowLabel()

string cx::cxGrid::getRowLabel

(

int

pRow

)

const

Gets a row header label.

Parameters

pRow	Row index (0-based)

Returns

The row label

getShowColHeaders()

bool cx::cxGrid::getShowColHeaders

(

)

const

Returns whether column headers are displayed.

Returns

true if column headers are shown

getShowRowHeaders()

bool cx::cxGrid::getShowRowHeaders

(

)

const

Returns whether row headers are displayed.

Returns

true if row headers are shown

hasFocus()

bool cx::cxGrid::hasFocus ( ) const

overridevirtual

Returns true if window has focus, false otherwise.

Returns

A bool indicating whether or not the window has focus

Reimplemented from cx::cxWindow.

hide()

void cx::cxGrid::hide ( bool  pHideSubwindows = true )

overridevirtual

Hides the window.

Parameters

pHideSubwindows

Whether or not to also hide the subwindows (defaults to true)

Reimplemented from cx::cxWindow.

References cx::cxWindow::hide().

modalGetsKeypress()

bool cx::cxGrid::modalGetsKeypress ( ) const

overridevirtual

Returns whether or not a call to showModal() will wait for a.

keypress from the user. (Some windows may be set not do wait

for a keypress in some situations).

Returns

Whether or not a call to showModal() will wait for a keypress from the user.

Reimplemented from cx::cxWindow.

move()

bool cx::cxGrid::move ( int  pNewRow, int  pNewCol, bool  pRefresh = true  )

overridevirtual

Changes the window's position, based on a new upper-left corner.

Parameters

pNewRow	The new topmost row of the form
pNewCol	The new leftmost column of the form
pRefresh	Whether or not to refresh the window (defaults to true)

Returns

Whether or not the move succeeded or not (true/false)

Reimplemented from cx::cxWindow.

References cx::cxWindow::move().

quitNow()

void cx::cxGrid::quitNow ( )

overridevirtual

This is mainly for deriving classes. This causes the object.

to stop its input loop with a code of cxID_QUIT.

Reimplemented from cx::cxWindow.

References cx::cxWindow::quitNow().

removeAttr()

void cx::cxGrid::removeAttr ( e_WidgetItems  pItem, attr_t  pAttr  )

overridevirtual

Removes an ncurses attribute from one of the item lists.

Parameters

pItem	The item to remove the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses attribute to remove

Reimplemented from cx::cxWindow.

References cx::cxWindow::removeAttr().

removeAttrs()

void cx::cxGrid::removeAttrs ( e_WidgetItems  pItem )

overridevirtual

Removes all attributes for a given window item.

Parameters

pItem

The item to remove attributes for (see the e_WidgetItems enumeration).

Reimplemented from cx::cxWindow.

References cx::cxWindow::removeAttrs().

removeExitKey()

void cx::cxGrid::removeExitKey ( int  pKey )

overridevirtual

Removes an exit key.

Parameters

pKey	The key to remove from the list of exit keys

Reimplemented from cx::cxWindow.

References cx::cxWindow::removeExitKey().

removeQuitKey()

void cx::cxGrid::removeQuitKey ( int  pKey )

overridevirtual

Removes a quit key.

Parameters

pKey	The key to remove from the list of quit keys

Reimplemented from cx::cxWindow.

References cx::cxWindow::removeQuitKey().

resize()

void cx::cxGrid::resize ( int  pNewHeight, int  pNewWidth, bool  pRefresh = true  )

overridevirtual

Changes the window's width and height. The window's upper-left.

coordinate stays the same.

Parameters

pNewHeight	The new height
pNewWidth	The new width
pRefresh	Whether or not to refresh the window (defaults to true)

Reimplemented from cx::cxWindow.

References cx::cxWindow::resize().

setAttr()

void cx::cxGrid::setAttr ( e_WidgetItems  pItem, attr_t  pAttr  )

overridevirtual

Sets the ncurses attribute to use for one of the items in the.

window (see the e_WidgetItems enumeration). Clears the current

set of attributes for the item and inserts the given attribute

into the set.

Parameters

pItem	The item to apply the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses atribute to apply.

Reimplemented from cx::cxWindow.

References cx::cxWindow::setAttr().

setBorderStyle()

void cx::cxGrid::setBorderStyle ( eBorderStyle  pBorderStyle )

overridevirtual

Sets the border style.

Parameters

pBorderStyle

A eBorderStyle enumeration value (defined in cxBorderStyles.h): eBS_NOBORDER: No border eBS_SINGLE_LINE: Single line eBS_DOUBLE_LINE: Double line (only supported on terminals that support high ASCII/Codepage 437) eBS_SPACE: Spaces

Reimplemented from cx::cxWindow.

References cx::cxWindow::setBorderStyle().

setCell()

bool cx::cxGrid::setCell	(	int	pRow,
		int	pCol,
		const std::shared_ptr< cxWindow > &	pWidget
	)

Sets (adds/replaces) the cell widget at the specified row and column.

Parameters

pRow	Row index (0-based)
pCol	Column index (0-based)
pWidget	A shared_ptr to the cxWindow to place in the cell

Returns

true if successful, false if out of range

Referenced by cxGridTest().

setCellValue()

bool cx::cxGrid::setCellValue	(	int	pRow,
		int	pCol,
		const std::string &	pValue
	)

Sets the value of a cell (as a string). Works for cxInput cells.

Parameters

pRow	Row index (0-based)
pCol	Column index (0-based)
pValue	The value to set

Returns

true if successful

References cx::cxInput::setValue().

Referenced by loadFromFile().

setColLabel()

void cx::cxGrid::setColLabel	(	int	pCol,
		const std::string &	pLabel
	)

Sets a column header label.

Parameters

pCol	Column index (0-based)
pLabel	The label text

setColor()

void cx::cxGrid::setColor ( e_WidgetItems  pItem, e_cxColors  pColor  )

overridevirtual

Sets the color of one of the window items.

Parameters

pItem	The item to set the color of (see the e_WidgetItems enumeration in cxWidgetItems.h).
pColor	The color to set the item to (see the e_cxColors enumeration in cxColors.h)

Reimplemented from cx::cxWindow.

References cx::cxWindow::setColor().

setColWidth()

void cx::cxGrid::setColWidth	(	int	pCol,
		int	pWidth
	)

Sets the width of a specific column.

Parameters

pCol	Column index (0-based)
pWidth	The new column width

setDisableCursorOnShow()

void cx::cxGrid::setDisableCursorOnShow ( bool  pDisableCursorOnShow )

overridevirtual

Sets whether the window should disable the cursor.

when it's shown (this is the default behavior).

Parameters

pDisableCursorOnShow

Whether or not to disable the cursor when shown

Reimplemented from cx::cxWindow.

References cx::cxWindow::setDisableCursorOnShow().

setEnabled()

void cx::cxGrid::setEnabled ( bool  pEnabled )

overridevirtual

Enables or disables the window. If the window is.

disabled, it won't show or process input (it will

remain hidden, even after a call to show() or

unhide()). Note that if you are deriving a class

from cxWindow, the 'enabled'-ness should be

honored if the class has any methods that process

user input (i.e., showModal() or setFocus()).

Parameters

pEnabled

Whether the window should be enabled or not (true/false)

Reimplemented from cx::cxWindow.

References cx::cxWindow::setEnabled().

setFocusCell()

void cx::cxGrid::setFocusCell	(	int	pRow,
		int	pCol
	)

Sets the focus to a specific cell.

Parameters

pRow	Row index (0-based)
pCol	Column index (0-based)

Referenced by showModal().

setGridLineColor()

void cx::cxGrid::setGridLineColor

(

e_cxColors

pColor

)

Sets the color for the grid lines/separators.

Parameters

pColor

The color to use

setHeaderColor()

void cx::cxGrid::setHeaderColor

(

e_cxColors

pColor

)

Sets the color for the column/row header labels.

Parameters

pColor

The color to use

setKeyFunction()

bool cx::cxGrid::setKeyFunction ( int  pKey, const std::shared_ptr< cxFunction > &  pFunction  )

overridevirtual

Sets a function to be called when a key is pressed.

Parameters

pKey	The key to use for the function
pFunction	The function to call. This can be an instance of one of the derived cxFunction classes as well.

Returns

True if the key & function was added or false if not

Reimplemented from cx::cxWindow.

References cx::cxWindow::setKeyFunction().

setLastKey()

void cx::cxGrid::setLastKey ( int  pLastKey )

overridevirtual

Sets the last keypress.

Parameters

pLastKey

A key (represented by an int)

Reimplemented from cx::cxWindow.

References cx::cxWindow::setLastKey().

setNumCols()

void cx::cxGrid::setNumCols

(

int

pNumCols

)

Sets the number of columns in the grid. Adds or removes columns as needed.

Parameters

pNumCols

The new number of columns

Referenced by loadFromFile().

setNumRows()

void cx::cxGrid::setNumRows

(

int

pNumRows

)

Sets the number of rows in the grid. Adds or removes rows as needed.

Parameters

pNumRows

The new number of rows

Referenced by loadFromFile().

setRowHeaderWidth()

void cx::cxGrid::setRowHeaderWidth

(

int

pWidth

)

Sets the width of the row header column.

Parameters

pWidth

The width for row headers

setRowLabel()

void cx::cxGrid::setRowLabel	(	int	pRow,
		const std::string &	pLabel
	)

Sets a row header label.

Parameters

pRow	Row index (0-based)
pLabel	The label text

show()

long cx::cxGrid::show ( bool  pBringToTop = false, bool  pShowSubwindows = true  )

overridevirtual

Shows the window.

Parameters

pBringToTop	Whether or not to bring the window to the top. Defaults to false.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true.

Returns

This method returns a long to support overriding in derived classes that might need to return a value. For cxWindow, cxID_EXIT is always returned.

Reimplemented from cx::cxWindow.

References draw(), cx::cxWindow::show(), and cx::updateWindows().

Referenced by SpreadsheetApp::run(), and showModal().

showColHeaders()

void cx::cxGrid::showColHeaders

(

bool

pShow

)

Toggles whether column headers are displayed.

Parameters

pShow

true to show column headers

Referenced by SpreadsheetApp::run().

showModal() [1/2]

long cx::cxGrid::showModal ( bool  pShowSelf = true, bool  pBringToTop = true, bool  pShowSubwindows = true  )

overridevirtual

Shows the window and waits for input.

Parameters

pShowSelf	Whether or not to show the window before running the input loop. Defaults to true.
pBringToTop	Whether or not to bring the window to the top. Defaults to true.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true.

Returns

A return code based on user input. Returns cxID_QUIT if the user presses ESC; otherwise, returns cxID_EXIT.

Reimplemented from cx::cxWindow.

References cx::cxID_EXIT, cx::cxWindow::getLeaveNow(), cx::cxWindow::getReturnCode(), cx::cxWindow::isEnabled(), cx::cxWindow::mIsModal, cx::cxWindow::runOnFocusFunction(), cx::cxWindow::runOnLeaveFunction(), cx::cxWindow::setReturnCode(), and show().

Referenced by cxGridTest(), SpreadsheetApp::run(), and showModal().

showModal() [2/2]

long cx::cxGrid::showModal ( int  pFocusRow, int  pFocusCol, bool  pShowSelf = true, bool  pBringToTop = true, bool  pShowSubwindows = true  )

virtual

Sets cell focus, then shows the grid modally to allow user interaction.

Parameters

pFocusRow	Row index (0-based) for the cell to set focus to
pFocusCol	Column index (0-based) for the cell to set focus to
pShowSelf	Whether or not to show the window before running the input loop. Defaults to true.
pBringToTop	Whether or not to bring the window to the top. Defaults to true.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true.

Returns

A return code based on user input.

References setFocusCell(), and showModal().

showRowHeaders()

void cx::cxGrid::showRowHeaders

(

bool

pShow

)

Toggles whether row headers are displayed.

Parameters

pShow

true to show row headers

Referenced by SpreadsheetApp::run().

unhide()

void cx::cxGrid::unhide ( bool  pUnhideSubwindows = true )

overridevirtual

Un-hides the window.

Parameters

pUnhideSubwindows

Whether or not to also unhide the subwindows (defaults to true)

Reimplemented from cx::cxWindow.

References cx::cxWindow::unhide().

---

The documentation for this class was generated from the following files:

• /home/erico/projects/cxWidgets/src/cxGrid.h
• /home/erico/projects/cxWidgets/src/cxGrid.cpp
