Represents a single-line input box with a label. This class. More...

#include <cxInput.h>

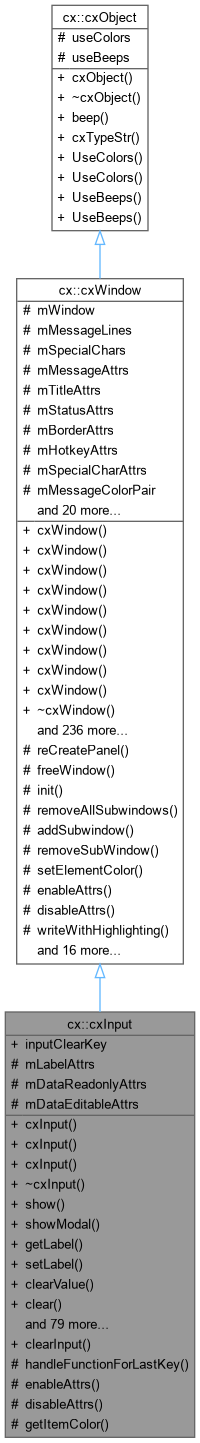

Inheritance diagram for cx::cxInput:

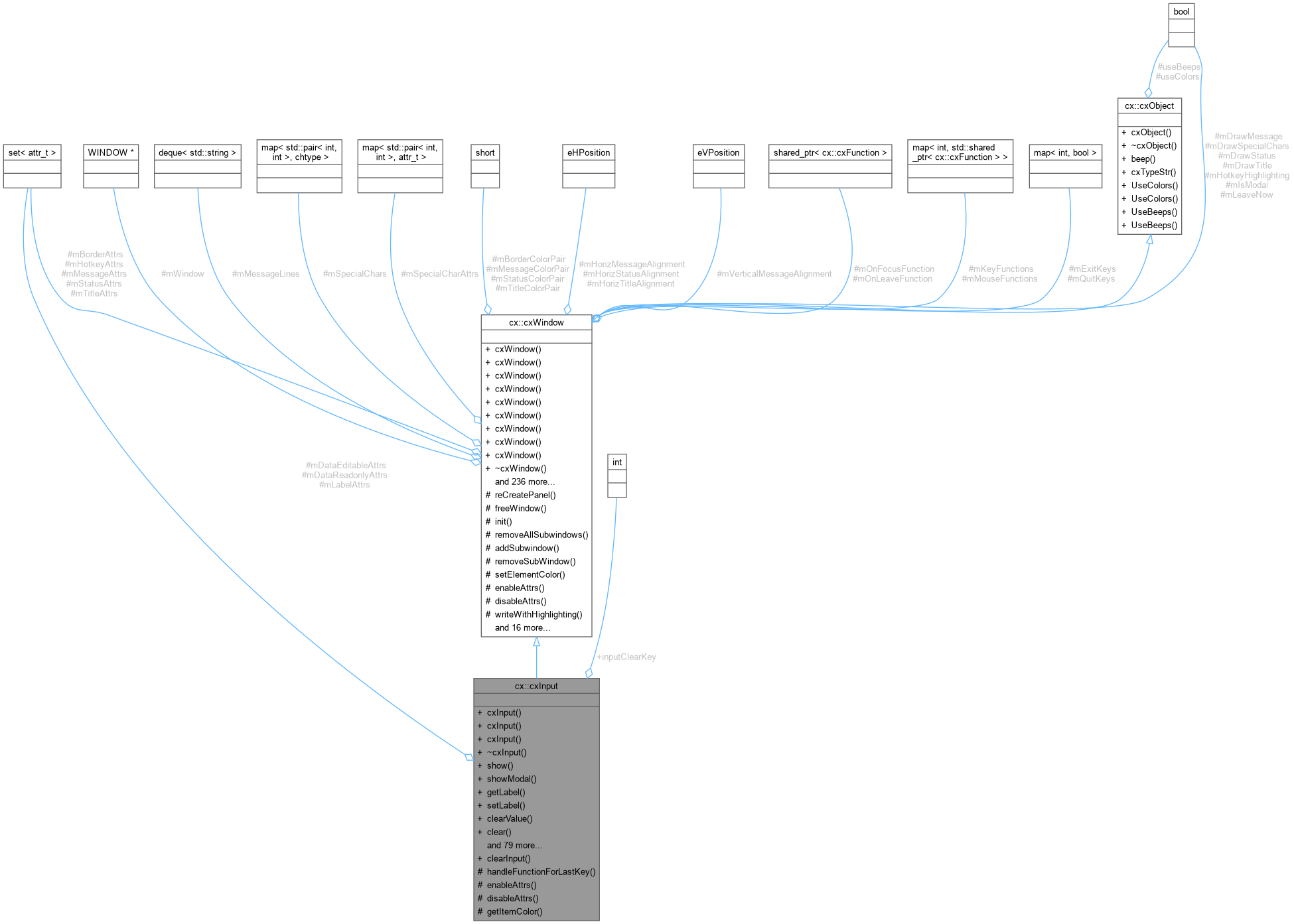

Collaboration diagram for cx::cxInput:

Public Member Functions
	cxInput (cxWindow pParentWindow=nullptr, int pRow=0, int pCol=0, int pWidth=DEFAULT_WIDTH, const std::string &pLabel="", eBorderStyle pBorderStyle=eBS_NOBORDER, eInputOptions pInputOption=eINPUT_EDITABLE, bool pExitOnFull=false, std::string pExtVal=nullptr)
	Default constructor.

	cxInput (const cxInput &pThatInput)
	Copy constructor.

	cxInput (const cxInput &pThatInput, cxMultiLineInput *pParentMLInput)
	Copy constructor that will be used by cxMultiLineInput when.

virtual	~cxInput ()
	Destructor.

virtual long	show (bool pBringToTop=false, bool pShowSubwindows=false) override
	Shows the window, along with the user's input.

virtual long	showModal (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=false) override
	Handles user input for the form.

virtual std::string	getLabel () const

virtual void	setLabel (const std::string &pLabel)

virtual void	clearValue (bool pRefresh=false)
	Clears the input value.

virtual void	clear (bool pRefresh=false) override
	Alias for clearValue() (this is here to overload the clear()

virtual std::string	getValue (bool pRemoveLeadingSpaces=false, bool pRemoveTrailingSpaces=false) const

virtual bool	setValue (const std::string &pValue, bool pRefresh=false)

std::string *	getExtValue () const

void	setExtValue (std::string *pExtVal, bool pRefresh=false)

bool	getExitOnFull () const

void	setExitOnFull (bool pExitOnFull)
	Sets whether the input should leave the input loop when it's.

bool	getExitOnBackspaceAtFront () const
	Returns whether the input will exit the input loop when the.

void	setExitOnBackspaceAtFront (bool pExitOnBackspaceAtFront)
	Sets whether the input should exit the input loop when the.

bool	getExitOnMouseOutside () const override
	Returns whether the input exits its input loop when a mouse.

void	setExitOnMouseOutside (bool pExitOnMouseOutside) override
	Sets whether the input should exit its input loop when a.

bool	getExitOnArrowAtBoundary () const
	Returns whether the input exits when the left arrow key is.

void	setExitOnArrowAtBoundary (bool pExitOnArrowAtBoundary)
	Sets whether the input should exit its input loop when the.

bool	getMustFill () const

void	setMustFill (bool pMustFill)

bool	getMasked () const

void	toggleMasking (bool pMasking)

char	getMaskChar () const

void	setMaskChar (char pMaskChar)

int	getInputOption () const
	Accessor for mInputOption; Returns an int representing the.

void	setInputOption (eInputOptions pInputOption)
	Sets the input editability (i.e., eINPUT_EDITABLE, eINPUT_READONLY) -.

void	setValidator (const std::string &pVString)

const std::string &	getValidatorStr () const

int	getInputLen () const

void	setCursorX (int pCursorX)

virtual bool	move (int pNewRow, int pNewCol, bool pRefresh=true) override

virtual void	resize (int pNewHeight, int pNewWidth, bool pRefresh=true) override
	Changes the input's width. The upper-left coordinate stays.

void	setExitOnFKey (bool pExitOnFunctionKey)

virtual bool	textIsValid () const

virtual bool	textIsValid (const std::string &pText) const

void	setLabelColor (e_cxColors pColor)
	Sets the label color.

e_cxColors	getLabelColor () const

void	setValueColor (e_cxColors pColor)
	Sets the color of the value typed into the input.

e_cxColors	getValueColor () const

virtual void	setColor (e_WidgetItems pItem, e_cxColors pColor) override
	Sets the color of one of the window items.

void	toggleCursor (bool pShowCursor)
	Enables/disables the display of the cursor.

bool	setValidatorFunction (funcPtr4 pFunction, void p1, void p2, void p3, void p4)

bool	setValidatorFunction (funcPtr2 pFunction, void p1, void p2)

bool	setValidatorFunction (funcPtr0 pFunction)

void	clearValidatorFunction ()
	Un-sets the validator function.

virtual bool	setOnKeyFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be run whenever a key is pressed (referred.

virtual bool	setOnKeyFunction (funcPtr4 pFunction, void p1, void p2, void p3, void p4)
	Sets a function to be run whenever a key is pressed (referred.

virtual bool	setOnKeyFunction (funcPtr2 pFunction, void p1, void p2)
	Sets a function to be run whenever a key is pressed (referred.

virtual bool	setOnKeyFunction (funcPtr0 pFunction)
	Sets a function to be run whenever a key is pressed (referred.

virtual void	toggleOnKeyFunction (bool pRunOnKeyFunction)
	Sets whether the onKey function should be fired or not.

virtual void	clearOnKeyFunction ()
	Un-sets the onKey function.

virtual bool	onKeyFunctionEnabled () const
	Returns whether or not the onKey function will be run.

virtual bool	isFull () const
	Returns whether the value in the input takes up the maximum possible space in the input.

virtual int	maxValueLen () const
	Returns the maximum length of the value that may be set.

virtual bool	hasFocus () const override
	Returns whether or not the input currently has focus.

virtual void	setReadOnlyOnLeave (bool pReadOnlyOnLeave)
	Sets whether the input should go read-only when setFocus() exits.

bool	canBeEditable () const
	Returns whether the input can be editable.

void	setCanBeEditable (bool pCanBeEditable)
	Sets whether the input can be set editable.

virtual void	setBorderStyle (eBorderStyle pBorderStyle) override
	Sets the border style.

virtual void	refreshValue (bool pRefresh=true)
	Refreshes just the value portion of the input.

void	trapNonAssignedFKeys (bool pTrapNonAssignedFKeys)
	Sets whether non-assigned function keys should.

virtual void	enableInputLoop (bool pDoInputLoop)
	Enables or disables the input loop.

virtual bool	inputLoopEnabled () const
	Returns whether the input loop is enabled.

bool	isEditable () const
	Returns whether or not the input is editable. An input is editable if it passes the 3 following criteria:

virtual bool	getCursorLeftAlign () const
	Returns whether the cursor will be left-aligned when the.

virtual void	setCursorLeftAlign (bool pCursorLeftAlign)
	Sets whether the cursor should be left-aligned when the.

virtual void	setValidateOnReverse (bool pValidateOnReverse)
	Sets whether or not to run the validator function.

virtual bool	getValidateOnReverse () const
	Returns whether or not the validator function will.

virtual void	setLastKey (int pLastKey) override
	Sets the last keypress.

virtual bool	modalGetsKeypress () const override
	Returns whether or not a call to showModal() will wait for a.

virtual bool	runOnFocusFunction (std::string *pFunctionRetval=nullptr) override
	Runs the onFocus function, if it's set. If the.

virtual cxWindow *	getParent () const override
	Returns a pointer to the parent window. If the cxInput.

virtual void	addAttr (e_WidgetItems pItem, attr_t pAttr) override
	Adds an ncurses attribute to use for one of the items in the.

virtual void	setAttr (e_WidgetItems pItem, attr_t pAttr) override
	Sets the ncurses attribute to use for one of the items in the.

virtual void	removeAttr (e_WidgetItems pItem, attr_t pAttr) override
	Removes an ncurses attribute from one of the item lists.

virtual void	removeAttrs (e_WidgetItems pItem) override
	Removes all attributes for a given window item.

virtual void	getAttrs (e_WidgetItems pItem, std::set< attr_t > &pAttrs) const override
	Returns the set of ncurses attributes for a given item.

virtual std::string	runValidatorFunction () const
	Runs the input's validator function and returns its return.

virtual void	setTimeout (int pTimeout)
	Sets the amount of time (in seconds) that the input should.

int	getTimeout () const
	Returns the amount of time that the.

virtual std::string	cxTypeStr () const override
	Returns the name of the cxWidgets class. This can be used to.

void	setForceUpper (bool pForceUpper)
	Toggles the option to force text to be upper-case.

bool	getForceUpper () const
	Returns the option for forcing text to upper-case.

void	setMaxInputLength (int pLength)
	Sets the maximum text length that can be accepted by the input.

int	getMaxInputLength () const
	Returns the currently-set maximum input length.

Public Member Functions inherited from cx::cxWindow
	cxWindow (cxWindow pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", const std::string &pMessage="", const std::string &pStatus="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Default constructor.

	cxWindow (cxWindow pParentWindow, int pRow, int pCol, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor.

	cxWindow (cxWindow pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, const std::string &pMessage, const std::string &pStatus, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, const std::string &pMessage, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.

	cxWindow (cxWindow pParentWindow, eHPosition pHPosition, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Lets you specify the horizontal position.

	cxWindow (const cxWindow &pThatWindow)
	Copy constructor.

virtual	~cxWindow ()

virtual void	centerHoriz (bool pRefresh=true)
	Centers the window horizontally on the screen.

virtual void	alignHoriz (eHPosition pPosition, bool pRefresh=true)
	Aligns the window horizontally on the screen.

virtual void	centerVert (bool pRefresh=true)
	Centers the window vertically on the screen.

virtual void	alignVert (eVPosition pPosition, bool pRefresh=true)
	Aligns the window vertically on the screen.

virtual void	center (bool pRefresh=true)
	Centers the window on the screen.

virtual std::string	getTitle () const
	Accessor for title text - Returns the first string in the.

virtual void	setTitle (const std::string &pTitle, bool pRefreshTitle=true)
	Setter for the title text - This sets the first string in the.

std::string	getStatus () const
	Accessor for the status line text.

virtual void	setStatus (const std::string &pStatus, bool pRefreshStatus=true)
	Mutator for the status line text.

std::string	getMessage () const
	Returns the message that appears in the window, concatenating all message lines together.

virtual void	setMessage (const std::string &pMessage)
	Sets the text that appears within the window.

virtual void	addMessageLineBelow (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.

virtual void	addMessageLinesBelow (const std::vector< std::string > &pLines)
	Adds lines to the message below the current message text.

virtual void	addMessageLinesBelow (const std::list< std::string > &pLines)
	Adds lines to the message below the current message text.

virtual void	addMessageLinesBelow (const std::deque< std::string > &pLines)
	Adds lines to the message below the current message text.

virtual void	addMessageLineAbove (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.

virtual void	addMessageLinesAbove (const std::vector< std::string > &pLines)
	Adds lines to the message above the current message text.

virtual void	addMessageLinesAbove (const std::list< std::string > &pLines)
	Adds lines to the message above the current message text.

virtual void	addMessageLinesAbove (const std::deque< std::string > &pLines)
	Adds lines to the message above the current message text.

virtual void	setMessageLines (const std::vector< std::string > &pLines)
	Sets the message lines in the window.

virtual void	setMessageLines (const std::list< std::string > &pLines)
	Sets the message lines in the window.

virtual void	setMessageLines (const std::deque< std::string > &pLines)
	Sets the message lines in the window.

virtual void	removeMessageLine (unsigned pIndex)
	Removes a line from the text inside the window (by index).

virtual void	setMessageLine (unsigned pIndex, const std::string &pLine)
	Modifies one of the lines displayed in the window.

void	setHorizTitleAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the title text.

eHPosition	getHorizTitleAlignment () const
	Accessor for the title text alignment.

void	setHorizMessageAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the message text.

eHPosition	getHorizMessageAlignment () const
	Accessor for the horizontal message text alignment.

void	setHorizStatusAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the status text.

eHPosition	getHorizStatusAlignment () const
	Accessor for the horizontal status text alignment.

void	setVerticalMessageAlignment (eVPosition pVAlignment)
	Sets the vertical alignment of the message text.

eVPosition	getVerticalMessageAlignment () const
	Accessor for the vertical message text alignment.

void	setExtTitleWindow (cxWindow *pWindow, bool pRefreshTitle=true)
	Sets an external cxWindow object to be used for the title, rather.

cxWindow *	getExtTitleWindow () const
	Accessor for the external title window pointer.

void	setExtStatusWindow (cxWindow *pWindow, bool pRefreshStatus=true)
	Sets an external cxWindow object to be used for status, rather.

cxWindow *	getExtStatusWindow () const
	Accessor for the external status window pointer.

bool	isHidden () const
	Returns whether or not the window is hidden.

virtual long	setFocus (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true)
	Alias for showModal()

virtual void	setFocusColors ()
	Turns on the ncurses attribute A_REVERSE for the window to.

virtual void	setFocusColors (attr_t pAttr)
	Turns on the ncurses attribute pAttr for the window to.

virtual void	unSetFocusColors ()
	Disables focus for this window and unhighlights the message.

virtual void	unSetFocusColors (attr_t pAttr)
	Disables focus for this window and un-highlights the message (using pAttr)

virtual void	erase (bool pEraseSubwindows=true)
	Erases the window.

virtual void	bringToTop (bool pRefresh=true)
	Brings the window to the top.

virtual void	bringToBottom (bool pRefresh=false)
	Puts the window on the bottom of all other windows.

virtual bool	isOnTop () const
	Returns whether the window is on top of all other windows.

virtual bool	isOnBottom () const
	Returns whether the window is on the bottom of all other windows.

virtual bool	isAbove (const cxWindow &pThatWindow) const
	Returns whether the window is above another window.

virtual bool	isBelow (const cxWindow &pThatWindow) const
	Returns whether a window is below another window.

virtual void	hide (bool pHideSubwindows=true)
	Hides the window.

virtual void	unhide (bool pUnhideSubwindows=true)
	Un-hides the window.

void	touchWindow ()
	Marks the window's entire content as dirty so that the next.

virtual void	drawBorder (int pRow, int pCol, int pHeight, int pWidth, bool pTop=true, bool pBottom=true, bool pLeft=true, bool pRight=true)
	Draws the border (based on the border style)

virtual void	drawBorder (int pHeight, int pWidth)
	Draws a box in the window.

virtual void	drawBorder ()
	Draws a box for the window border.

virtual int	top () const
	Returns the top row of the window.

virtual int	centerRow () const
	Returns the center row of the window.

virtual int	bottom () const
	Returns the bottom row of the window.

virtual int	left () const
	Returns the left column of the window.

virtual int	centerCol () const
	Returns the center column of the window.

virtual int	right () const
	Returns the right column of the window.

virtual int	width (int pWidth)
	Changes the width of the window.

virtual int	width () const
	Returns the width of the window.

virtual int	height (int pHeight)
	Changes the height of the window.

virtual int	height () const
	Returns the height of the window.

virtual void	getRect (int &pTop, int &pLeft, int &pBottom, int &pRight)
	Returns the coordinates of the rectangle defining the window.

virtual bool	pointIsInWindow (int pY, int pX) const
	Returns whether a screen location is in the window (including.

virtual bool	pointIsInTitle (int pY, int pX) const
	Returns whether a screen location is in the title of the window.

virtual void	getSize (int &pHeight, int &pWidth)
	Returns the height & width of the window.

virtual bool	moveRelative (int pVerticalOffset, int pHorizOffset, bool pRefresh=true)
	Changes the window's position via vertical & horizontal offsets.

unsigned	numSubWindows ()
	Returns the number of subwindows in this window.

void	setSubWinMessage (unsigned pIndex, const std::string &pMessage)
	Sets the message of one of the subwindows (by index).

void	setSubWinMessage (const std::string &pTitle, const std::string &pMessage)
	Sets the message of one of the subwindows (by title).

eBorderStyle	getBorderStyle () const
	Returns the border style.

bool	hasBorder () const
	Does this window have a border?

void	setParent (cxWindow *pNewParent)
	Changes the pointer to the parent window; changes the parent window.

virtual void	dump (std::string &pResult)
	Returns a string containing all the characters.

virtual void	showSubwindows (bool pBringToTop=true, bool pShowSubwindows=true)
	Shows the subwindows for the window.

cxWindow &	operator= (const cxWindow &pThatWindow)
	Assignment operator.

virtual void	writeText (int pRow, int pCol, const std::string &pText, bool pRefresh=true)
	Writes text on the window. Note that the text is not permanant, so.

bool	getHotkeyHighlighting () const
	Returns whether hotkey attributes are used when writing the message.

virtual bool	isEnabled () const
	Returns whether or not the window is enabled.

virtual void	setEnabled (bool pEnabled)
	Enables or disables the window. If the window is.

virtual void	setDisableCursorOnShow (bool pDisableCursorOnShow)
	Sets whether the window should disable the cursor.

virtual bool	getDisableCursorOnShow () const
	Returns whether or not the window will disable.

virtual int	getLastKey () const
	Returns the last key pressed by the user (for showModal(), etc.)

virtual bool	lastKeyWasMouseEvt () const
	Returns whether or not the last keypress was a mouse event.

virtual void	getLastMouseEvtCoords (int &pY, int &pX)
	Returns the coordinates of the last mouse event in the window.

virtual bool	getChangeColorsOnFocus () const
	Returns whether the window will change.

virtual void	setChangeColorsOnFocus (bool pChangeColorsOnFocus)
	Sets whether colors should change when focus.

virtual void	setOnFocusFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on focus" function.

virtual void	setOnFocusFunction (funcPtr4 pFunction, void p1, void p2, void p3, void p4, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.

virtual void	setOnFocusFunction (funcPtr2 pFunction, void p1, void p2, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.

virtual void	setOnFocusFunction (funcPtr0 pFunction, bool pUseVal=false, bool pExitAfterRun=false)
	Sets the "on focus" function pointer.

virtual void	setOnLeaveFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets the window's "on leave" function.

virtual void	setOnLeaveFunction (funcPtr4 pFunction, void p1, void p2, void p3, void p4)
	Sets the "on leave" function pointer.

virtual void	setOnLeaveFunction (funcPtr2 pFunction, void p1, void p2)
	Sets the "on focus" function pointer.

virtual void	setOnLeaveFunction (funcPtr0 pFunction)
	Sets the "on focus" function pointer.

virtual bool	runOnLeaveFunction (std::string *pFunctionRetval=nullptr)
	Runs the onLeave function, if it's set. However, if the last.

virtual void	toggleOnFocusFunction (bool pRunOnFocus)
	Sets whether or not the onFocus function should run.

virtual void	toggleOnLeaveFunction (bool pRunOnLeave)
	Sets whether or not the onLeave function should run.

virtual bool	onFocusFunctionEnabled () const
	Returns whether or not the onFocus function is set to run.

virtual bool	onLeaveFunctionEnabled () const
	Returns whether or not the onLeave function is set to run.

virtual const std::shared_ptr< cxFunction > &	getOnFocusFunction () const
	Accessor for the onFocus function.

virtual const std::shared_ptr< cxFunction > &	getOnLeaveFunction () const
	Accessor for the onLeave function.

virtual bool	isModal () const
	Returns whether or not the window is currently.

virtual bool	setKeyFunction (int pKey, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called when a key is pressed.

virtual bool	setKeyFunction (int pKey, funcPtr4 pFunction, void p1, void p2, void p3, void p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed.

virtual bool	setKeyFunction (int pKey, funcPtr2 pFunction, void p1, void p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed.

virtual bool	setKeyFunction (int pKey, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called when a key is pressed. This.

virtual void	clearKeyFunction (int pKey)
	Removes a function pointer for a keypress so that it will no.

virtual void	clearKeyFunctionByPtr (funcPtr4 pFunction)
	Removes a keypress function pointer.

virtual void	clearKeyFunctionByPtr (funcPtr2 pFunction)
	Removes a keypress function pointer.

virtual void	clearKeyFunctionByPtr (funcPtr0 pFunction)
	Removes a keypress function pointer.

virtual void	clearKeyFunctions ()
	Clears the list of external functions fired by hotkeys.

virtual bool	hasKeyFunction (int pKey) const
	Returns whether an external function exists for a keypress.

virtual bool	setMouseFunction (int pMouseState, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called for a certain mouse state.

virtual bool	setMouseFunction (int pMouseState, funcPtr4 pFunction, void p1, void p2, void p3, void p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.

virtual bool	setMouseFunction (int pMouseState, funcPtr2 pFunction, void p1, void p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.

virtual bool	setMouseFunction (int pMouseState, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state. This.

virtual void	clearMouseFunction (int pMouseState)
	Removes a function pointer for a mouse event so that it will.

virtual void	clearMouseFunctions ()
	Clears the list of external functions fired by mouse events.

virtual bool	hasMouseFunction (int pMouseState) const
	Returns whether an external function exists for a mouse event.

std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_begin ()
	Returns a begin iterator to the map of cxFunction pointers.

std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_end ()
	Returns an end iterator to the map of cxFunction pointers.

virtual void	getFunctionKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.

virtual void	getFunctionKeys (std::vector< int > &pKeys) const
	Populates a collection with integers representing the keys.

virtual void	setShowSubwinsForward (bool pShowSubwinsForward)
	Toggles the order in which subwindows will be shown.

virtual bool	getShowSubwinsForward () const
	Returns whether or not the subwindows will be shown.

virtual void	setShowSelfBeforeSubwins (bool pShowSelfBeforeSubwins)
	Sets whether the window will show itself before.

virtual bool	getShowSelfBeforeSubwins () const
	Returns whether or not the window will show itself before.

virtual long	getReturnCode () const
	Returns the return code set by the last call to.

virtual bool	addTitleString (int pHPos, const std::string &pStr, bool pRefreshTitle=false)
	Adds/sets a string to appear in the title at.

virtual std::string	getTitleString (int pHPos) const
	Returns the title string set at a given horizontal position.

virtual std::map< int, std::string >	getTitleStrings () const
	Returns the map of title strings for the window.

virtual void	getTitleStrings (std::map< int, std::string > &pTitleStrings) const
	Returns the map of title strings for the window (using an.

virtual void	setTitleStrings (const std::map< int, std::string > &pTitleStrings)
	Sets all the title strings via a map of horizontal.

virtual void	removeTitleString (int pHPos)
	Removes a title string at a given horizontal position.

virtual void	removeTitleStrings ()
	Removes all title strings.

virtual bool	addStatusString (int pHPos, const std::string &pStr, bool pRefreshStatus=false)
	Adds/sets a string to appear in the status line at.

virtual std::string	getStatusString (int pHPos) const
	Returns the status string set at a given horizontal position.

virtual std::map< int, std::string >	getStatusStrings () const
	Returns the map of status strings for the window.

virtual void	getStatusStrings (std::map< int, std::string > &pStatusStrings) const
	Returns the map of status strings for the window (using an.

virtual void	setStatusStrings (const std::map< int, std::string > &pStatusStrings)
	Sets all the status strings via a map of horizontal.

virtual void	removeStatusString (int pHPos)
	Removes a status string at a given horizontal position.

virtual void	removeStatusStrings ()
	Removes all status strings.

virtual bool	addQuitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false)
	Adds a key that will cause the window to quit its input loop.

virtual void	removeQuitKey (int pKey)
	Removes a quit key.

virtual void	removeQuitKeys ()
	Removes all quit keys.

virtual bool	addExitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false)
	Adds a key that will cause the window to quit its input loop.

virtual void	removeExitKey (int pKey)
	Removes an exit key.

virtual void	removeExitKeys ()
	Removes all exit keys.

virtual bool	hasExitKey (int pKey) const
	Returns whether or not a key exists in the.

virtual bool	hasQuitKey (int pKey) const
	Returns whether or not a key exists in the.

virtual void	quitNow ()
	This is mainly for deriving classes. This causes the object.

virtual void	exitNow ()
	This is mainly for deriving classes. It tells the object.

virtual void	getQuitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.

virtual std::string	getQuitKeyListString () const
	Returns a string containing a comma-separated list of the.

virtual void	getExitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.

virtual std::string	getExitKeyListString () const
	Returns a string containing a comma-separated list of the.

virtual std::map< int, bool >	getQuitKeys () const
	Returns the keys that will make the window quit its input.

virtual std::map< int, bool >	getExitKeys () const
	Returns the keys that will make the window exit is input.

void	toggleMessage (bool pDrawMessage)
	Sets whether or not to draw the message area (the area within.

void	toggleTitle (bool pDrawTitle)
	Sets whether or not to draw the title.

void	toggleStatus (bool pDrawStatus)
	Sets whether or not to draw the status line.

bool	messageWillDraw () const
	Returns whether the message will draw or not.

bool	titleWillDraw () const
	Returns whether the title will draw or not.

bool	statusWillDraw () const
	Returns whether the status line will draw or not.

void	toggleSpecialChars (bool pDrawSpecialChars)
	Sets whether or not to draw the "special" characters (these are.

bool	specialCharsWillDraw () const
	Returns whether the "special" characters will be drawn or.

virtual void	drawTitle ()
	Writes the title line.

virtual void	drawStatus ()
	Writes the status line.

virtual void	drawMessage ()
	Writes the message text (in the area within the borders)

virtual void	drawSpecialChars ()
	Writes the set of "special" characters to the window.

virtual void	setReturnCode (const long &pReturnCode)
	Explicitly sets the member return code for the window.

virtual void	setMessageColor (e_cxColors pColor)
	Returns the message color.

virtual void	setTitleColor (e_cxColors pColor)
	Sets the title color.

virtual void	setStatusColor (e_cxColors pColor)
	Sets the color of the status line at bottom of window.

virtual void	setBorderColor (e_cxColors pColor)
	Sets the color of the window border.

virtual bool	hasAttr (e_WidgetItems pItem, attr_t pAttr)
	Returns whether an attribute is set for a widget item.

bool	getLeaveNow () const
	Returns whether or not something told the window to leave now.

std::string	getName () const

virtual void	setName (const std::string &pName)
	Sets the name of the window. The name is an alternative means.

bool	mouseEvtWasInWindow () const
	Returns whether the current mouse information stored in the.

virtual bool	mouseEvtWasInTitle () const
	Returns whether the current mouse information stored in the.

virtual void	doMouseBehavior ()
	Triggers the window's mouse event behavior. This method can.

virtual void	doMouseBehavior (int pMouseY, int pMouseX)
	Triggers the window's mouse event behavior. Also sets the.

std::shared_ptr< cxFunction >	getKeyFunction (int pKey) const
	Returns a cxFunction pointer for a key.

std::shared_ptr< cxFunction0 >	getKeyFunctionAsFunction0 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction0.

std::shared_ptr< cxFunction2 >	getKeyFunctionAsFunction2 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction2.

std::shared_ptr< cxFunction4 >	getKeyFunctionAsFunction4 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction4.

bool	mouseEvtWasButtonEvt () const
	Returns whether or not the mouse event read in mMouse was.

bool	mouseButton1Pressed () const
	Returns whether or not the first mouse button was pressed.

bool	mouseButton1Released () const
	Returns whether or not the first mouse button was released.

bool	mouseButton1Clicked () const
	Returns whether or not the first mouse button was clicked.

bool	mouseButton1DoubleClicked () const
	Returns whether or not the first mouse button was double-clicked.

bool	mouseButton2Clicked () const
	Returns whether or not the second mouse button was clicked.

bool	mouseButton2DoubleClicked () const
	Returns whether or not the second mouse button was double-clicked.

bool	mouseButton3Clicked () const
	Returns whether or not the second mouse button was clicked.

virtual void	mouseButton1Click (int pY, int pX)
	Tells the window that mouse button 1 was clicked at a certain.

virtual void	mouseButton2Click (int pY, int pX)
	Tells the window that mouse button 2 was clicked at a certain.

virtual void	mouseButton3Click (int pY, int pX)
	Tells the window that mouse button 3 was clicked at a certain.

std::string	getString (int pRow, int pCol, int pNumber)
	Get the contents of a portion of the window. (for debugging/testing)

void	info ()
	Display information about a window (for debugging/testing)

virtual void	toggleBorderTop (bool pToggle)
	Sets whether or not to display the top border.

virtual void	toggleBorderBottom (bool pToggle)
	Sets whether or not to display the bottom border.

virtual void	toggleBorderLeft (bool pToggle)
	Sets whether or not to display the left border.

virtual void	toggleBorderRight (bool pToggle)
	Sets whether or not to display the right border.

virtual void	addSpecialChar (int pY, int pX, chtype pChar, attr_t pAttr=A_NORMAL)
	Adds a character to be written somewhere in the window. These.

virtual void	removeSpecialChar (int pY, int pX)
	Removes a character from the set of special characters (by.

virtual void	clearSpecialChars ()
	Clears the collection of special characters.

virtual bool	functionExistsForLastMouseState () const
	Returns whether an external function pointer exists for the.

int	getMouseState () const
	Returns the current mouse state as it was last captured by the.

std::string	getMouseStateStr () const
	Returns a string version of the current mouse state as it was.

Public Member Functions inherited from cx::cxObject
	cxObject ()

virtual	~cxObject ()

virtual void	beep ()

Static Public Member Functions
static std::string	clearInput (void theInput, void unused)
	Clears the value of a cxInput.

Static Public Member Functions inherited from cx::cxObject
static bool	UseColors ()

static void	UseColors (bool useIt)

static bool	UseBeeps ()

static void	UseBeeps (bool useIt)

Static Public Attributes
static int	inputClearKey = KEY_F(10)
	inputClearKey is a default key to be used to clear inputs.

Protected Member Functions
virtual bool	handleFunctionForLastKey (bool pFunctionExists=nullptr, bool pRunOnLeaveFunction=nullptr) override
	Looks for a function tied to the last keypress and.

virtual void	enableAttrs (WINDOW *pWin, e_WidgetItems pItem) override
	Enables the attributes for one of the m*Attrs sets for an ncurses window.

virtual void	disableAttrs (WINDOW *pWin, e_WidgetItems pItem) override
	Disables the attributes for one of the m*Attrs sets for an ncurses window.

virtual e_cxColors	getItemColor (e_WidgetItems pItem) const override
	Returns the color of one of the items in a window.

Protected Member Functions inherited from cx::cxWindow
virtual void	reCreatePanel ()
	Creates mPanel (by calling new_panel()), then sets up.

void	freeWindow ()
	Frees the memory used by the ncurses window and.

virtual void	init (int pRow, int pCol, int pHeight, int pWidth, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pParentWindow=nullptr, bool pResizeVertically=true)
	Initializes the window parameters and sets up the internal.

virtual void	removeAllSubwindows ()
	Removes all subwindow pointers.

virtual void	addSubwindow (cxWindow *pSubWindow)
	Adds a subwindow to the window. Subwindows of a.

virtual void	removeSubWindow (const cxWindow *pSubWindow)
	Removes a window from the subwindow list.

virtual void	setElementColor (short &pColorPair, attr_t &pElementAttr, e_cxColors pColor)
	Sets the color (and attribute, if necessary) of a color element.

virtual void	writeWithHighlighting (WINDOW *pWindow, const std::string &pText, const int &pY, const int &pStartX, const int &pEndX, int pNormalTextItem=-1)
	Writes text to an ncurses WINDOW, highlighting any characters.

virtual void	copyCxWinStuff (const cxWindow *pThatWindow, bool pRecreateWin=true)
	Makes a copy of a cxWindow's member variables.

virtual void	getRowColBasedOn (cxWindow *pParentWindow, eHPosition pPosition, const std::string &pTitle, const std::string &pStatus, const std::string &pMessage, int &pRow, int &pCol)
	Figures out how to align text based on a title & message.

virtual bool	handleFunctionForLastMouseState (bool pFunctionExists=nullptr, bool pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last mouse state captured.

void	setKeyFunctions (const cxWindow &pWindow)
	Returns whether or not a mouse event location is within.

void	setFocusFunctions (const cxWindow &pWindow)
	Re-sets the onFocus and onLeave functions from another.

bool	parentIsCxPanel () const
	Returns whether or not the parent window, if there is one, is.

bool	parentIsCxForm () const
	Returns whether or not the parent window, if there is one, is.

bool	parentIsCxNotebook () const
	Returns whether or not the parent window, if there is one, is.

cxWindowPtrContainer::const_iterator	subWindows_begin () const
	Returns a const iterator to the first subwindow.

cxWindowPtrContainer::const_iterator	subWindows_end () const
	Returns a const iterator to the one past the last subwindow.

cxWindowPtrContainer::const_reverse_iterator	subWindows_rbegin () const
	Returns a const reverse begin iterator for the subwindow collection.

cxWindowPtrContainer::const_reverse_iterator	subWindows_rend () const
	Returns a const reverse end iterator for the subwindow collection.

bool	onFocusFunctionIsSet () const
	Returns whether or not the onFocus function is set (if.

bool	onLeaveFunctionIsSet () const
	Returns whether or not the onLeave function is set (if.

Protected Attributes
std::set< attr_t >	mLabelAttrs
	Label attributes.

std::set< attr_t >	mDataReadonlyAttrs
	Read-only data attributes.

std::set< attr_t >	mDataEditableAttrs
	Editable data attributes.

Protected Attributes inherited from cx::cxWindow
WINDOW *	mWindow = nullptr
	Everything in the window is written here; this is an nCurses window structure.

messageLineContainer	mMessageLines
	Contains the text to be shown inside the window (note: the.

std::map< std::pair< int, int >, chtype >	mSpecialChars
	Contains "special" characters which are added to the window.

std::set< attr_t >	mMessageAttrs
	Message attributes.

std::set< attr_t >	mTitleAttrs
	Title attributes.

std::set< attr_t >	mStatusAttrs
	Status attributes.

std::set< attr_t >	mBorderAttrs
	Border attributes.

std::set< attr_t >	mHotkeyAttrs
	Hotkey attributes.

std::map< std::pair< int, int >, attr_t >	mSpecialCharAttrs
	Attributes for the "special" characters (which are added to.

short	mMessageColorPair = eWHITE_BLUE

short	mTitleColorPair = eGRAY_BLUE

short	mStatusColorPair = eBROWN_BLUE

short	mBorderColorPair = eGRAY_BLUE

eHPosition	mHorizTitleAlignment = eHP_LEFT

eHPosition	mHorizMessageAlignment = eHP_LEFT

eHPosition	mHorizStatusAlignment = eHP_LEFT

eVPosition	mVerticalMessageAlignment = eVP_TOP

bool	mDrawMessage = true

bool	mDrawTitle = true

bool	mDrawStatus = true

bool	mDrawSpecialChars = true

std::shared_ptr< cxFunction >	mOnFocusFunction = nullptr

std::shared_ptr< cxFunction >	mOnLeaveFunction = nullptr

bool	mIsModal = false

bool	mLeaveNow = false

std::map< int, std::shared_ptr< cxFunction > >	mKeyFunctions

std::map< int, std::shared_ptr< cxFunction > >	mMouseFunctions

std::map< int, bool >	mQuitKeys

std::map< int, bool >	mExitKeys

bool	mHotkeyHighlighting

Friends
class	cxMultiLineInput

Additional Inherited Members
Static Protected Attributes inherited from cx::cxObject
static bool	useColors
	Whether or not to use colors.

static bool	useBeeps
	Whether or not to enable beeping.

Detailed Description

Represents a single-line input box with a label. This class.

generally should not be used directly, since cxMultiLineInput

uses this class, and cxMultiLineInput can do everything that

this class does, plus more.

This class allows you to get typed input from a user - the methods showModal() and setFocus() make the input appear on the screen and process input. They also return a return code, depending on the user's action. If the user pressed ESC, cxID_QUIT is returned to signify that the user quit out of the input and didn't want to do anything. If the user presses ENTER, cxID_EXIT is returned to signify that the value in the input should be used. getLastKey() can be called to get the last key typed by the user (see cxKeyDefines and the ncurses list of key definitions (man getch)).
There is also a set of functions that may be set, that will be run at various times. The order of the functions is as follows:

The "on focus" function is executed immediately at the start of showModal() (see setOnFocusFunction() in cxWindow).
A function can be set up to fire after each keypress with setOnKeyFunction(). This function can be toggled to run or not with toggleOnKeyFunction().
When certain hotkeys (set up with setKeyFunction()) are pressed, functions associated with those keys are run.
After the user is finished entering text, the validator function is run (see setValidatorFunction()). The purpose of this function is to do any validation of the input that requires special logic.
Just before showModal() exits, the "on leave" function is executed (see setOnLeaveFunction() in cxWindow).

Note that the functions used must have the following signatures:

onFocus function: string func(void*, void*, void*, void*)
onKey function: string func(void*, void*, void*, void)
"field" (hotkey) functions: string func(void*, void*, void*, void*) or string func(void*, void*)
Validator function: string func(void*, void*, void*, void)
onLeave function: string func(void*, void*, void*, void)

Also, you can force an input never to be editable with the function setCanBeEditable(). If you call this with false, then the input can never be set editable, even with a call to setInputOption() with a parameter of eINPUT_EDITABLE.
Also, note that if you call setValue() to set a value that is too long to be displayed in the input, the input will only display what can fit inside the input, although getValue() will return the entire string that was set by setValue(). For example:
cxInput iInput(nullptr, 0, 0, 10, "Text:");
iInput.setValue("Some text for the input to hold");
iInput.getValue(); // Returns "Some text for the input to hold"
iInput.setFocus(); // Can only display "Some " in the input, since the width is 10
Setting a value longer than the input can display can cause some behavior that you may not expect, however. If you set a value too long for the input to display and then call setFocus(), the input will leave focus as soon as the user types something, because the input is full. However, being able to store more than the input can display can be useful if you are using a cxInput for display purposes only, and you still need to be able to store the entire value.
This class has an overloaded setBorderStyle(), which changes the border style and re-calculates some of the internal data structures. One side-effect of this is that the acceptable length of input may increase. If you start out with a borderless input and turn on borders, the acceptable length of input will stay the same, but if you then turn the borders back off, the length of the input will increase because the borders are now gone, and there are 2 more available spaces for input; thus, the input will be 2 spaces wider than it originally started.
By default, when the user presses any function keys that aren't assigned to any functions, cxInput will exit its input loop so that calling code can process the function keys. This can be changed with a call to trapNonAssignedFKeys().

Constructor & Destructor Documentation

◆ cxInput() [1/3]

cx::cxInput::cxInput	(	cxWindow *	pParentWindow = `nullptr`,
		int	pRow = `0`,
		int	pCol = `0`,
		int	pWidth = `DEFAULT_WIDTH`,
		const std::string &	pLabel = `""`,
		eBorderStyle	pBorderStyle = `eBS_NOBORDER`,
		eInputOptions	pInputOption = `eINPUT_EDITABLE`,
		bool	pExitOnFull = `false`,
		std::string *	pExtVal = `nullptr`
	)

explicit

Default constructor.

Parameters

pParentWindow	Pointer to parent window; defaults to nullptr
pRow	Y location of input window; defaults to 0
pCol	X location of input window; defaults to 0
pWidth	Width of input window; defaults to DEFAULT_WIDTH (defined as 80 in cxObject.h)
pLabel	Label for input window; defaults to blank
pBorderStyle	The type of border to use - Defaults to eBS_NOBORDER; See the enumeration in cxBorderStyles.h
pInputOption	The editibility option - Defaults to eINPUT_EDITABLE. See the enumeration in cxEditoptions.h
pExitOnFull	Whether setFocus() should return when the input is full; defaults to false
pExtVal	An external value that the input should be set to; defaults to nullptr

◆ cxInput() [2/3]

cx::cxInput::cxInput ( const cxInput & pThatInput )

Copy constructor.

Parameters

pThatInput Another cxInput object to be copied

References cx::left(), cx::mDataEditableAttrs, cx::mDataReadonlyAttrs, cx::mLabelAttrs, setValue(), cx::top(), and cx::width().

◆ cxInput() [3/3]

cx::cxInput::cxInput	(	const cxInput &	pThatInput,
		cxMultiLineInput *	pParentMLInput
	)

Copy constructor that will be used by cxMultiLineInput when.

copying a cxMultiLineInput. This was originally meant to be

private (with cxMultiLineInput as a friend class), but when

updating the code to use shared_ptr instead of raw

dynamically-allocated pointers, it looked like make_shared()

has trouble accessing private constructors.

Parameters

pThatInput Another cxInput object to be copied

References setValue().

◆ ~cxInput()

cx::cxInput::~cxInput ( )

virtual

Destructor.

Member Function Documentation

◆ addAttr()

void cx::cxInput::addAttr	(	e_WidgetItems	pItem,
		attr_t	pAttr
	)

overridevirtual

Adds an ncurses attribute to use for one of the items in the.

window (see the e_WidgetItems enumeration).

Parameters

pItem	The item to add the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses atribute to add.

Reimplemented from cx::cxWindow.

References cx::cxWindow::addAttr(), cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, mDataEditableAttrs, mDataReadonlyAttrs, and mLabelAttrs.

Referenced by setValueColor(), and testInput1().

◆ canBeEditable()

bool cx::cxInput::canBeEditable ( ) const

Returns whether the input can be editable.

Returns: Whether or not the input can be editable

◆ clear()

void cx::cxInput::clear ( bool pRefresh = false )

overridevirtual

Alias for clearValue() (this is here to overload the clear()

inherited from cxWindow).

Parameters

pRefresh Whether or not to refresh the input (defaults to false)

Reimplemented from cx::cxWindow.

References clearValue().

◆ clearInput()

string cx::cxInput::clearInput	(	void *	theInput,
		void *	unused
	)

static

Clears the value of a cxInput.

Parameters

theInput	A pointer to a cxInput object
unused	Not used

Returns: A blank string

References setValue(), and show().

◆ clearOnKeyFunction()

void cx::cxInput::clearOnKeyFunction ( )

virtual

Un-sets the onKey function.

Referenced by setOnKeyFunction(), setOnKeyFunction(), and setOnKeyFunction().

◆ clearValidatorFunction()

void cx::cxInput::clearValidatorFunction ( )

Un-sets the validator function.

Referenced by setValidatorFunction(), setValidatorFunction(), and setValidatorFunction().

◆ clearValue()

void cx::cxInput::clearValue ( bool pRefresh = false )

virtual

Clears the input value.

Parameters

pRefresh Whether or not to refresh the input (defaults to false)

References refreshValue().

Referenced by clear().

◆ cxTypeStr()

string cx::cxInput::cxTypeStr ( ) const

overridevirtual

Returns the name of the cxWidgets class. This can be used to.

determine the type of cxWidgets object that deriving classes

derive from in applications.

Returns: The name of the cxWidgets class.

Reimplemented from cx::cxWindow.

◆ disableAttrs()

void cx::cxInput::disableAttrs	(	WINDOW *	pWin,
		e_WidgetItems	pItem
	)

overrideprotectedvirtual

Disables the attributes for one of the m*Attrs sets for an ncurses window.

If the m*Attrs collection is empty, this will disable the cxBase attributes

instead.

Parameters

pWin	A pointer to the ncurses window for which to disable the attributes (will usually be mWindow).
pItem	The item type to retrieve attributes for - see the e_cxWidgetItems enumeration (defined in cxWidgetItems.h).

Reimplemented from cx::cxWindow.

References cx::cxWindow::disableAttrs(), cx::disableAttrs(), cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, mDataEditableAttrs, mDataReadonlyAttrs, and mLabelAttrs.

Referenced by showModal().

◆ enableAttrs()

void cx::cxInput::enableAttrs	(	WINDOW *	pWin,
		e_WidgetItems	pItem
	)

overrideprotectedvirtual

Enables the attributes for one of the m*Attrs sets for an ncurses window.

If the m*Attrs collection is empty, this will enable the cxBase attributes

instead.

Parameters

pWin	A pointer to the ncurses window for which to enable the attributes (will usually be mWindow).
pItem	The item type to retrieve attributes for - see the e_cxWidgetItems enumeration (defined in cxWidgetItems.h).

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::cxWindow::enableAttrs(), cx::enableAttrs(), cx::eSTATUS, cx::eTITLE, mDataEditableAttrs, mDataReadonlyAttrs, and mLabelAttrs.

Referenced by refreshValue(), and showModal().

◆ enableInputLoop()

void cx::cxInput::enableInputLoop ( bool pDoInputLoop )

virtual

Enables or disables the input loop.

If the input loop is disabled, you can still

call setFocus() and showModal() on the

input - the onFocus and onLeave functions

will still run, but the input won't

wait for user input.

Parameters

pDoInputLoop Whether to enable or disable brief the input loop (true/false)

◆ getAttrs()

void cx::cxInput::getAttrs	(	e_WidgetItems	pItem,
		std::set< attr_t > &	pAttrs
	)		const

overridevirtual

Returns the set of ncurses attributes for a given item.

Parameters

pItem	The item to retrieve attributes for (see the e_WidgetItems enumeration).
pAttrs	This will contain the attributes for the item.

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, cx::cxWindow::getAttrs(), mDataEditableAttrs, mDataReadonlyAttrs, and mLabelAttrs.

◆ getCursorLeftAlign()

bool cx::cxInput::getCursorLeftAlign ( ) const

virtual

Returns whether the cursor will be left-aligned when the.

input is shown modally.

Returns: Whether or not the cursor will be left-aligned when the input is shown modally.

◆ getExitOnArrowAtBoundary()

bool cx::cxInput::getExitOnArrowAtBoundary ( ) const

Returns whether the input exits when the left arrow key is.

pressed at position 0 or the right arrow key is pressed at

the end of the text.

◆ getExitOnBackspaceAtFront()

bool cx::cxInput::getExitOnBackspaceAtFront ( ) const

Returns whether the input will exit the input loop when the.

user presses backspace in the first input position.

Returns: Whether or not the input will exit the input loop when the user presses backspace in the first input position.

◆ getExitOnFull()

bool cx::cxInput::getExitOnFull ( ) const

Accessor for mExitOnFull

Returns: Whether setFocus() should return when the input is full

◆ getExitOnMouseOutside()

bool cx::cxInput::getExitOnMouseOutside ( ) const

overridevirtual

Returns whether the input exits its input loop when a mouse.

click occurs outside the input window.

Returns: true if the input exits on outside mouse clicks

Reimplemented from cx::cxWindow.

◆ getExtValue()

string * cx::cxInput::getExtValue ( ) const

Returns the pointer to the "external" variable storing user input.

Returns: Pointer to location of input, if external input set

◆ getForceUpper()

bool cx::cxInput::getForceUpper ( ) const

Returns the option for forcing text to upper-case.

Returns: Whether or not upper-casing text is enabled

◆ getInputLen()

int cx::cxInput::getInputLen ( ) const

Returns the maximum length of input that can be accepted

Returns: Maximum lenght of input that can be accepted by this input line

◆ getInputOption()

int cx::cxInput::getInputOption ( ) const

Accessor for mInputOption; Returns an int representing the.

editability option for the input - See the eInputOptions

enumeration in cxInputOptions.h

Returns: The edit option for this input (i.e., eINPUT_EDITABLE, eINPUT_READONLY)

Referenced by isEditable(), and modalGetsKeypress().

◆ getItemColor()

e_cxColors cx::cxInput::getItemColor ( e_WidgetItems pItem ) const

overrideprotectedvirtual

Returns the color of one of the items in a window.

Parameters

pItem

The item type (a member of the e_WidgetItems enumeration

see cxWidgetItems.h)

Returns: A member of the e_cxColors enumeration representing the color of the item (see cxColors.h)

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eBROWN_BLACK, cx::eBROWN_BLUE, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eGRAY_BLACK, cx::eGRAY_BLUE, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, cx::eWHITE_BLACK, cx::eWHITE_BLUE, cx::eYELLOW_BLACK, cx::eYELLOW_BLUE, cx::cxWindow::getItemColor(), mDataEditableAttrs, mDataReadonlyAttrs, and mLabelAttrs.

Referenced by getLabelColor(), and getValueColor().

◆ getLabel()

string cx::cxInput::getLabel ( ) const

virtual

Returns the label for the input

Returns: The label associated with the input

References cx::cxWindow::mMessageLines.

Referenced by setBorderStyle().

◆ getLabelColor()

e_cxColors cx::cxInput::getLabelColor ( ) const

Gets the label color

Returns: A value from the e_cxColors enumeration representing the label color

References cx::eMESSAGE, and getItemColor().

◆ getMaskChar()

char cx::cxInput::getMaskChar ( ) const

inline

Accessor for the masking character

Returns: The masking character

◆ getMasked()

bool cx::cxInput::getMasked ( ) const

inline

Accessor for mMasked

Returns: Whether to mask input (display asterisks, not text, in input field)

◆ getMaxInputLength()

int cx::cxInput::getMaxInputLength ( ) const

Returns the currently-set maximum input length.

Returns: The currently-set maximum input length

◆ getMustFill()

bool cx::cxInput::getMustFill ( ) const

Accessor for mMustFill

Returns: Returns whether mMustFill is set

◆ getParent()

cxWindow * cx::cxInput::getParent ( ) const

overridevirtual

Returns a pointer to the parent window. If the cxInput.

has a parent cxMultiLineInput, a pointer to that will be

returned; otherwise, a pointer to the parent cxWindow

will be returned.

Returns: A pointer to the parent window

Reimplemented from cx::cxWindow.

References cx::cxWindow::getParent().

◆ getTimeout()

int cx::cxInput::getTimeout ( ) const

Returns the amount of time that the.

Returns

◆ getValidateOnReverse()

bool cx::cxInput::getValidateOnReverse ( ) const

virtual

Returns whether or not the validator function will.

run when the user wants to move in reverse.

Returns: Whether or not the validator funtion will run when the user wants to move in reverse

◆ getValidatorStr()

const string & cx::cxInput::getValidatorStr ( ) const

Returns the validator string

Returns: The validator string

References cx::cxTextValidator::getValidatorStr().

Referenced by singleLineInput().

◆ getValue()

string cx::cxInput::getValue	(	bool	pRemoveLeadingSpaces = `false`,
		bool	pRemoveTrailingSpaces = `false`
	)		const

virtual

Returns the user's input

Parameters

pRemoveLeadingSpaces	Whether or not to remove leading spaces. Defaults to false.
pRemoveTrailingSpaces	Whether or not to remove trailing spaces. Defaults to false.

Returns: The user's input

References cx::cxTextValidator::addImpliedChars().

Referenced by cxInputBorderChange(), cxInputMasking(), cx::cxGrid::getCellValue(), main(), setInputLabel(), setValue(), singleLineInput(), testInput1(), and testInput2().

◆ getValueColor()

e_cxColors cx::cxInput::getValueColor ( ) const

Gets the value color

Returns: A value from the e_cxColors enumeration representing the label color

References cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eDEFAULT, cx::eINPUT_EDITABLE, cx::eINPUT_READONLY, and getItemColor().

◆ handleFunctionForLastKey()

bool cx::cxInput::handleFunctionForLastKey	(	bool *	pFunctionExists = `nullptr`,
		bool *	pRunOnLeaveFunction = `nullptr`
	)

overrideprotectedvirtual

Looks for a function tied to the last keypress and.

runs it, if one exists. If one exists, the return

value of the function may be set in the input if its

mUseReturnValue is true.

Parameters

pFunctionExists	A pointer to a bool (if non-null, it will store whether or not a function existed for the key). Defaults to nullptr.
pRunOnLeaveFunction	A pointer to a bool: If non-NUL, it will store whether or not to run the onLeave function when the window exits (this is an option for cxFunction).

Returns: Whether or not the input loop should continue

Reimplemented from cx::cxWindow.

References cx::cxWindow::getLastKey(), cx::cxWindow::mKeyFunctions, and cx::cxWindow::mWindow.

◆ hasFocus()

bool cx::cxInput::hasFocus ( ) const

overridevirtual

Returns whether or not the input currently has focus.

Returns: Whether or not the input currently has focus

Reimplemented from cx::cxWindow.

◆ inputLoopEnabled()

bool cx::cxInput::inputLoopEnabled ( ) const

virtual

Returns whether the input loop is enabled.

Returns

Referenced by isEditable().

◆ isEditable()

bool cx::cxInput::isEditable ( ) const

Returns whether or not the input is editable. An input is editable if it passes the 3 following criteria:

Its kind is not eINPUT_READONLY
It is enabled (see cxWindow::setEnabled() and cxWindow::isEnabled())
Its input loop is enabled

Returns: Whether or not the input is editable

References cx::eINPUT_READONLY, getInputOption(), inputLoopEnabled(), and cx::cxWindow::isEnabled().

◆ isFull()

bool cx::cxInput::isFull ( ) const

virtual

Returns whether the value in the input takes up the maximum possible space in the input.

Returns: Whether or not the value in the input takes up the maximum possible space

◆ maxValueLen()

int cx::cxInput::maxValueLen ( ) const

virtual

Returns the maximum length of the value that may be set.

Returns: The maximum length of the value that may be set.

◆ modalGetsKeypress()

bool cx::cxInput::modalGetsKeypress ( ) const

overridevirtual

Returns whether or not a call to showModal() will wait for a.

keypress from the user. This will be true if the input

is enabled and the input type is eINPUT_EDITABLE; it will be

false otherwise.

Returns: Whether or not a call to showModal() will wait for a keypress from the user.

Reimplemented from cx::cxWindow.

References cx::eINPUT_EDITABLE, getInputOption(), and cx::cxWindow::isEnabled().

◆ move()

bool cx::cxInput::move	(	int	pNewRow,
		int	pNewCol,
		bool	pRefresh = `true`
	)

overridevirtual

Changes the window's position, based on a new upper-left corner

Parameters

pNewRow	The new topmost row of the form
pNewCol	The new leftmost column of the form
pRefresh	Whether or not to refresh the window (defaults to true)

Returns: Whether or not the move succeeded or not (true/false)

Reimplemented from cx::cxWindow.

References cx::cxWindow::move(), cx::cxWindow::right(), and show().

Referenced by testInput1().

◆ onKeyFunctionEnabled()

bool cx::cxInput::onKeyFunctionEnabled ( ) const

virtual

Returns whether or not the onKey function will be run.

Returns: Whether or not the onKey function will be run

◆ refreshValue()

void cx::cxInput::refreshValue ( bool pRefresh = true )

virtual

Refreshes just the value portion of the input.

Parameters

pRefresh Whether or not to refresh the window after re-drawing the value (defaults to true).

References cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eINPUT_EDITABLE, cx::eINPUT_READONLY, enableAttrs(), cx::cxWindow::mWindow, cx::updateWindows(), and cx::cxObject::useColors.

Referenced by clearValue().

◆ removeAttr()

void cx::cxInput::removeAttr	(	e_WidgetItems	pItem,
		attr_t	pAttr
	)

overridevirtual

Removes an ncurses attribute from one of the item lists.

Parameters

pItem	The item to remove the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses attribute to remove

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, mDataEditableAttrs, mDataReadonlyAttrs, mLabelAttrs, and cx::cxWindow::removeAttr().

◆ removeAttrs()

void cx::cxInput::removeAttrs ( e_WidgetItems pItem )

overridevirtual

Removes all attributes for a given window item.

Parameters

pItem The item to remove attributes for (see the e_WidgetItems enumeration).

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, mDataEditableAttrs, mDataReadonlyAttrs, mLabelAttrs, and cx::cxWindow::removeAttrs().

Referenced by testInput1().

◆ resize()

void cx::cxInput::resize	(	int	pNewHeight,
		int	pNewWidth,
		bool	pRefresh = `true`
	)

overridevirtual

Changes the input's width. The upper-left coordinate stays.

the same. Note that pNewHeight is not used; that parameter is

only here so that this method will override cxWindow's resize()

method. The height is always 1.

Parameters

pNewHeight	Not used (always uses a height of 1)
pNewWidth	The new width
pRefresh	Whether or not to refresh the window (defaults to true)

Reimplemented from cx::cxWindow.

References cx::cxWindow::hasBorder(), cx::cxWindow::resize(), cx::cxWindow::right(), and cx::cxWindow::width().

Referenced by setBorderStyle().

◆ runOnFocusFunction()

bool cx::cxInput::runOnFocusFunction ( std::string * pFunctionRetval = nullptr )

overridevirtual

Runs the onFocus function, if it's set. If the.

onFocus function's mUseReturnVal is true, the return

value of the onFocus function will be set in the

input.

Parameters

pFunctionRetval If not nullptr, the string that this points to will contain the return value of the onFocus function. Defaults to nullptr.

Returns: Whether the input loop should exit (returns the value of the onFocus function's mExitAfterRun, or false if the onFocus function isn't set).

Reimplemented from cx::cxWindow.

References cx::cxWindow::mOnFocusFunction, cx::cxWindow::onFocusFunctionIsSet(), and setValue().

Referenced by showModal().

◆ runValidatorFunction()

string cx::cxInput::runValidatorFunction ( ) const

virtual

Runs the input's validator function and returns its return.

value. If the validator function is not set, this returns

a blank string.

Returns: The return value of the validator function, or a blank string if the validator function is not set.

Referenced by showModal().

◆ setAttr()

void cx::cxInput::setAttr	(	e_WidgetItems	pItem,
		attr_t	pAttr
	)

overridevirtual

Sets the ncurses attribute to use for one of the items in the.

window (see the e_WidgetItems enumeration). Clears the current

set of attributes for the item and inserts the given attribute

into the set.

Parameters

pItem	The item to apply the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses atribute to apply.

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, mDataEditableAttrs, mDataReadonlyAttrs, mLabelAttrs, and cx::cxWindow::setAttr().

◆ setBorderStyle()

void cx::cxInput::setBorderStyle ( eBorderStyle pBorderStyle )

overridevirtual

Sets the border style.

Parameters

pBorderStyle A eBorderStyle enumeration value (see cxBorderStyles.h)

Reimplemented from cx::cxWindow.

References cx::cxWindow::getBorderStyle(), getLabel(), cx::cxWindow::hasBorder(), resize(), cx::cxWindow::setBorderStyle(), cx::visualStrLen(), and cx::cxWindow::width().

Referenced by cxInputBorderChange().

◆ setCanBeEditable()

void cx::cxInput::setCanBeEditable ( bool pCanBeEditable )

Sets whether the input can be set editable.

Parameters

pCanBeEditable If true, the input can be set editable; if false, the input will always be read-only.

References cx::eINPUT_READONLY, and setInputOption().

◆ setColor()

void cx::cxInput::setColor	(	e_WidgetItems	pItem,
		e_cxColors	pColor
	)

overridevirtual

Sets the color of one of the window items.

Parameters

pItem	The item to set the color of (see the e_WidgetItems enumeration in cxWidgetItems.h).
pColor	The color to set the item to (see the e_cxColors enumeration in cxColors.h)

Reimplemented from cx::cxWindow.

References cx::eBORDER, cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eHOTKEY, cx::eLABEL, cx::eMENU_SELECTION, cx::eMESSAGE, cx::eSTATUS, cx::eTITLE, cx::cxWindow::setColor(), setLabelColor(), and setValueColor().

◆ setCursorLeftAlign()

void cx::cxInput::setCursorLeftAlign ( bool pCursorLeftAlign )

virtual

Sets whether the cursor should be left-aligned when the.

input is shown modally.

Parameters

pCursorLeftAlign Whether or not the cursor should be left-aligned when the input is shown modally.

◆ setCursorX()

void cx::cxInput::setCursorX ( int pCursorX )

Sets the horizontal (x) cursor position

Parameters

pCursorX Horizontal cursor position

References cx::cxWindow::hasBorder(), and cx::cxWindow::mWindow.

◆ setExitOnArrowAtBoundary()

void cx::cxInput::setExitOnArrowAtBoundary ( bool pExitOnArrowAtBoundary )

Sets whether the input should exit its input loop when the.

left arrow key is pressed at position 0 or the right arrow

key is pressed at the end of the text. Useful for grid cells

where arrow keys should navigate between cells at text boundaries.

◆ setExitOnBackspaceAtFront()

void cx::cxInput::setExitOnBackspaceAtFront ( bool pExitOnBackspaceAtFront )

Sets whether the input should exit the input loop when the.

user presses backspace in the first input position.

Parameters

pExitOnBackspaceAtFront Whether or not the input should exit the input loop when the user presses backspace in the first input position.

◆ setExitOnFKey()

void cx::cxInput::setExitOnFKey ( bool pExitOnFunctionKey )

Sets whether or not to exit upon use of a function key.

Parameters

pExitOnFunctionKey Whether to exit on function key press

◆ setExitOnFull()

void cx::cxInput::setExitOnFull ( bool pExitOnFull )

Sets whether the input should leave the input loop when it's.

full.

Parameters

pExitOnFull Whether setFocus() should return when the input is full

Referenced by testInput1().

◆ setExitOnMouseOutside()

void cx::cxInput::setExitOnMouseOutside ( bool pExitOnMouseOutside )

overridevirtual

Sets whether the input should exit its input loop when a.

mouse click occurs outside the input window. This is useful

for container widgets like cxGrid that need to redirect

focus to a different cell when the user clicks elsewhere.

Parameters

pExitOnMouseOutside Whether to exit on outside mouse clicks

Reimplemented from cx::cxWindow.

◆ setExtValue()

void cx::cxInput::setExtValue	(	std::string *	pExtVal,
		bool	pRefresh = `false`
	)

Setter for the "external" user value variable pointer.

Parameters

pExtVal	The new pointer to the external variable
pRefresh	Whether or not to refresh the input

References setValue(), and show().

◆ setForceUpper()

void cx::cxInput::setForceUpper ( bool pForceUpper )

Toggles the option to force text to be upper-case.

Parameters

pForceUpper true if text should be upper-case, or false if not.

◆ setInputOption()

void cx::cxInput::setInputOption ( eInputOptions pInputOption )

Sets the input editability (i.e., eINPUT_EDITABLE, eINPUT_READONLY) -.

See the eInputOptions enumeration in cxInputOptions.h

Parameters

pInputOption The new editability option

References cx::eINPUT_READONLY.

Referenced by setCanBeEditable(), and showModal().

◆ setLabel()

void cx::cxInput::setLabel ( const std::string & pLabel )

virtual

Sets the label for the input

Parameters

pLabel The new label

References cx::cxWindow::hasBorder(), cx::cxWindow::mMessageLines, cx::cxWindow::setMessage(), cx::visualStrLen(), and cx::cxWindow::width().

Referenced by setInputLabel().

◆ setLabelColor()

void cx::cxInput::setLabelColor ( e_cxColors pColor )

Sets the label color.

Parameters

pColor A member of the e_cxColors enumeration from cxColors.h

References cx::cxWindow::setMessageColor().

Referenced by inputsWithDifferentColors(), and setColor().

◆ setLastKey()

void cx::cxInput::setLastKey ( int pLastKey )

overridevirtual

Sets the last keypress.

Parameters

pLastKey A key (represented by an int)

Reimplemented from cx::cxWindow.

References cx::cxWindow::setLastKey(), and cx::cxMultiLineInput::setLastKey().

◆ setMaskChar()

void cx::cxInput::setMaskChar ( char pMaskChar )

inline

Mutator for the masking character

Parameters

pMaskChar The new masking character to use

◆ setMaxInputLength()

void cx::cxInput::setMaxInputLength ( int pLength )

Sets the maximum text length that can be accepted by the input.

Parameters

pLength The maximum text length that can be accepted by the input

◆ setMustFill()

void cx::cxInput::setMustFill ( bool pMustFill )

Mutator for mMustFill

Parameters

pMustFill New value for mMustFill; boolean

◆ setOnKeyFunction() [1/4]

virtual bool cx::cxInput::setOnKeyFunction ( const std::shared_ptr< cxFunction > & pFunction )

virtual

Sets a function to be run whenever a key is pressed (referred.

to as the "onKey" function).

Parameters

pFunction Function to point to

Returns: true if the function was set, or false if not

◆ setOnKeyFunction() [2/4]

bool cx::cxInput::setOnKeyFunction ( funcPtr0 pFunction )

virtual

Sets a function to be run whenever a key is pressed (referred.

to as the "onKey" function).

Parameters

pFunction	Function to point to–must have signature string func()
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

Returns: true if the function was set, or false if not

References clearOnKeyFunction().

◆ setOnKeyFunction() [3/4]

bool cx::cxInput::setOnKeyFunction	(	funcPtr2	pFunction,
		void *	p1,
		void *	p2
	)

virtual

Sets a function to be run whenever a key is pressed (referred.

to as the "onKey" function).

Parameters

pFunction	Function to point to–must have signature string func(void, void)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

Returns: true if the function was set, or false if not

References clearOnKeyFunction().

◆ setOnKeyFunction() [4/4]

bool cx::cxInput::setOnKeyFunction	(	funcPtr4	pFunction,
		void *	p1,
		void *	p2,
		void *	p3,
		void *	p4
	)

virtual

Sets a function to be run whenever a key is pressed (referred.

to as the "onKey" function).

Parameters

pFunction	Function to point to–must have signature string func(void, void, void, void)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

Returns: true if the function was set, or false if not

References clearOnKeyFunction().

◆ setReadOnlyOnLeave()

void cx::cxInput::setReadOnlyOnLeave ( bool pReadOnlyOnLeave )

virtual

Sets whether the input should go read-only when setFocus() exits.

Parameters

pReadOnlyOnLeave If true, the input will change to read-only when setFocus() exits.

◆ setTimeout()

virtual void cx::cxInput::setTimeout ( int pTimeout )

virtual

Sets the amount of time (in seconds) that the input should.

wait when idle before exiting the input loop (0 = no timeout).

Parameters

pTimeout The amount of time (in seconds) that the input should wait when idle before exiting the input loop (0 = no timeout).

◆ setValidateOnReverse()

void cx::cxInput::setValidateOnReverse ( bool pValidateOnReverse )

virtual

Sets whether or not to run the validator function.

when the user wants to move in reverse (i.e., by

pressing shift-tab or the up arrow to exit the

input). The default behavior is true when a

cxMultiLineInput is created.

Parameters

pValidateOnReverse Whether or not to run the validator function when the user wants to move in reverse

◆ setValidator()

void cx::cxInput::setValidator ( const std::string & pVString )

Sets the validator string

Parameters

pVString The new validator string

References cx::cxTextValidator::setValidatorStr().

Referenced by singleLineInput().

◆ setValidatorFunction() [1/3]

bool cx::cxInput::setValidatorFunction ( funcPtr0 pFunction )

Sets a validator function to be run before focus is lost. If the function returns a blank string, it is assumed that the text is valid; if the function returns a non-blank string, it is assumed that the text was incorrect.

Parameters

pFunction Function to point to–must have signature string func()

Returns: true if the function was set, or false if not.

References clearValidatorFunction().

◆ setValidatorFunction() [2/3]

bool cx::cxInput::setValidatorFunction	(	funcPtr2	pFunction,
		void *	p1,
		void *	p2
	)

Sets a validator function to be run before focus is lost. If the function returns a blank string, it is assumed that the text is valid; if the function returns a non-blank string, it is assumed that the text was incorrect.

Parameters

pFunction	Function to point to–must have signature string func(void, void)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function

Returns: true if the function was set, or false if not.

References clearValidatorFunction().

◆ setValidatorFunction() [3/3]

bool cx::cxInput::setValidatorFunction	(	funcPtr4	pFunction,
		void *	p1,
		void *	p2,
		void *	p3,
		void *	p4
	)

Sets a validator function to be run before focus is lost. If the function returns a blank string, it is assumed that the text is valid; if the function returns a non-blank string, it is assumed that the text was incorrect.

Parameters

pFunction	Function to point to–must have signature string func(void, void, void, void)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

Returns: true if the function was set, or false if not.

References clearValidatorFunction().

◆ setValue()

bool cx::cxInput::setValue	(	const std::string &	pValue,
		bool	pRefresh = `false`
	)

virtual

Sets the input text

Parameters

pValue	The text of the input
pRefresh	Whether or not to refresh the input (defaults to false)

Returns: Whether or not the new value is valid.

References getValue(), and show().

Referenced by clearInput(), cxInput(), cxInput(), inputsWithDifferentColors(), main(), runOnFocusFunction(), cx::cxGrid::setCellValue(), setExtValue(), and show().

◆ setValueColor()

void cx::cxInput::setValueColor ( e_cxColors pColor )

Sets the color of the value typed into the input.

Parameters

pColor A member of the e_cxColors enumeration from cxColors.h

References addAttr(), cx::eDATA_EDITABLE, cx::eDATA_READONLY, and cx::cxWindow::setElementColor().

Referenced by inputsWithDifferentColors(), and setColor().

◆ show()

long cx::cxInput::show	(	bool	pBringToTop = `false`,
		bool	pShowSubwindows = `false`
	)

overridevirtual

Shows the window, along with the user's input.

Parameters

pBringToTop	Whether or not to bring this window to the top. Defaults to false.
pShowSubwindows	Whether or not to show sub-windows also. Always uses false.

Returns: The return value of cxWindow::show()

Reimplemented from cx::cxWindow.

References cx::cxFIRST_AVAIL_RETURN_CODE, cx::cxWindow::hide(), cx::cxWindow::isEnabled(), setValue(), cx::cxWindow::show(), and cx::updateWindows().

Referenced by clearInput(), inputsWithDifferentColors(), move(), setExtValue(), setValue(), showModal(), and testInput2().

◆ showModal()

long cx::cxInput::showModal	(	bool	pShowSelf = `true`,
		bool	pBringToTop = `true`,
		bool	pShowSubwindows = `false`
	)

overridevirtual

Handles user input for the form.

Parameters

pShowSelf	Whether or not to show the window before running the input loop. Defaults to true.
pBringToTop	Whether or not to bring the window to the top (always uses true).
pShowSubwindows	Whether or not to show sub-windows also. Always uses false.

Returns: The return code, based on the user's input (returns cxID_QUIT if the user pressed ESC to quit out, or cxID_EXIT otherwise).

Reimplemented from cx::cxWindow.

References cx::cxTextValidator::addImpliedChars(), cx::cxFIRST_AVAIL_RETURN_CODE, cx::cxID_EXIT, cx::cxID_QUIT, disableAttrs(), cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eINPUT_EDITABLE, cx::eINPUT_READONLY, enableAttrs(), cx::cxWindow::getLastKey(), cx::cxWindow::getLeaveNow(), cx::cxWindow::getReturnCode(), cx::cxWindow::hasExitKey(), cx::cxWindow::isEnabled(), cx::cxWindow::mIsModal, cx::cxWindow::mWindow, runOnFocusFunction(), cx::cxWindow::runOnLeaveFunction(), runValidatorFunction(), setInputOption(), cx::cxWindow::setReturnCode(), SHIFT_TAB, show(), and cx::cxObject::useColors.

Referenced by cxInputBorderChange(), cxInputMasking(), main(), setInputLabel(), singleLineInput(), testInput1(), and testInput2().

◆ textIsValid() [1/2]

bool cx::cxInput::textIsValid ( ) const

virtual

Returns whether the text entered into the input is valid.

Returns: Whether or not the text entered is valid

References cx::cxTextValidator::textIsValid().

◆ textIsValid() [2/2]

virtual bool cx::cxInput::textIsValid ( const std::string & pText ) const

virtual

Returns whether some text is valid according to the input's validator.

Parameters

pText The text to be validated

Returns: Whether or not the text is valid

◆ toggleCursor()

void cx::cxInput::toggleCursor ( bool pShowCursor )

Enables/disables the display of the cursor.

Parameters

pShowCursor Whether or not to show the cursor (true/false).

◆ toggleMasking()

void cx::cxInput::toggleMasking ( bool pMasking )

inline

Enables/disables masking

Parameters

pMasking Whether to mask input (display asterisks, not text, in input field)

Referenced by cxInputMasking().

◆ toggleOnKeyFunction()

void cx::cxInput::toggleOnKeyFunction ( bool pRunOnKeyFunction )

virtual

Sets whether the onKey function should be fired or not.

Parameters

pRunOnKeyFunction Whether or not the onKey function should be fired

◆ trapNonAssignedFKeys()

void cx::cxInput::trapNonAssignedFKeys ( bool pTrapNonAssignedFKeys )

Sets whether non-assigned function keys should.

be trapped within the input loop and not cause

the input to stop its input loop.

Parameters

pTrapNonAssignedFKeys If true, pressing function keys that are not assigned (when modal) will do nothing. If false, pressing non-assigned function keys while focus is set will cause the input to exit the input loop.

Friends And Related Symbol Documentation

◆ cxMultiLineInput

friend class cxMultiLineInput

friend

Member Data Documentation

◆ inputClearKey

int cx::cxInput::inputClearKey = KEY_F(10)

static

inputClearKey is a default key to be used to clear inputs.

Referenced by cx::cxMultiLineInput::doInputLoop().

◆ mDataEditableAttrs

std::set<attr_t> cx::cxInput::mDataEditableAttrs

protected

Editable data attributes.

Referenced by addAttr(), disableAttrs(), enableAttrs(), getAttrs(), getItemColor(), removeAttr(), removeAttrs(), and setAttr().

◆ mDataReadonlyAttrs

std::set<attr_t> cx::cxInput::mDataReadonlyAttrs

protected

Read-only data attributes.

Referenced by addAttr(), disableAttrs(), enableAttrs(), getAttrs(), getItemColor(), removeAttr(), removeAttrs(), and setAttr().

◆ mLabelAttrs

std::set<attr_t> cx::cxInput::mLabelAttrs

protected

Label attributes.

Referenced by addAttr(), disableAttrs(), enableAttrs(), getAttrs(), getItemColor(), removeAttr(), removeAttrs(), and setAttr().

The documentation for this class was generated from the following files:

/home/erico/projects/cxWidgets/src/cxInput.h
/home/erico/projects/cxWidgets/src/cxInput.cpp

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ cxInput() [1/3]

◆ cxInput() [2/3]

◆ cxInput() [3/3]

◆ ~cxInput()

Member Function Documentation

◆ addAttr()

◆ canBeEditable()

◆ clear()

◆ clearInput()

◆ clearOnKeyFunction()

◆ clearValidatorFunction()

◆ clearValue()

◆ cxTypeStr()

◆ disableAttrs()

◆ enableAttrs()

◆ enableInputLoop()

◆ getAttrs()

◆ getCursorLeftAlign()

◆ getExitOnArrowAtBoundary()

◆ getExitOnBackspaceAtFront()

◆ getExitOnFull()

◆ getExitOnMouseOutside()

◆ getExtValue()

◆ getForceUpper()

◆ getInputLen()

◆ getInputOption()

◆ getItemColor()

◆ getLabel()

◆ getLabelColor()

◆ getMaskChar()

◆ getMasked()

◆ getMaxInputLength()

◆ getMustFill()

◆ getParent()

◆ getTimeout()

◆ getValidateOnReverse()

◆ getValidatorStr()

◆ getValue()

◆ getValueColor()

◆ handleFunctionForLastKey()

◆ hasFocus()

◆ inputLoopEnabled()

◆ isEditable()

◆ isFull()

◆ maxValueLen()

◆ modalGetsKeypress()

◆ move()

◆ onKeyFunctionEnabled()

◆ refreshValue()

◆ removeAttr()

◆ removeAttrs()

◆ resize()

◆ runOnFocusFunction()

◆ runValidatorFunction()

◆ setAttr()

◆ setBorderStyle()

◆ setCanBeEditable()

◆ setColor()

◆ setCursorLeftAlign()

◆ setCursorX()

◆ setExitOnArrowAtBoundary()

◆ setExitOnBackspaceAtFront()

◆ setExitOnFKey()

◆ setExitOnFull()

◆ setExitOnMouseOutside()

◆ setExtValue()

◆ setForceUpper()

◆ setInputOption()

◆ setLabel()

◆ setLabelColor()

◆ setLastKey()
