cx::cxMultiForm Class Reference

Represents a form that can. More...

#include <cxMultiForm.h>

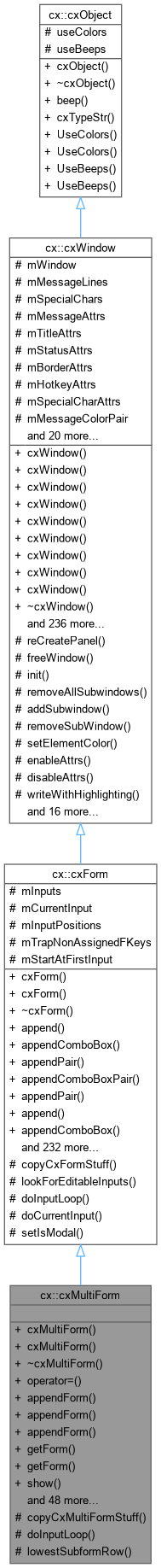

Inheritance diagram for cx::cxMultiForm:

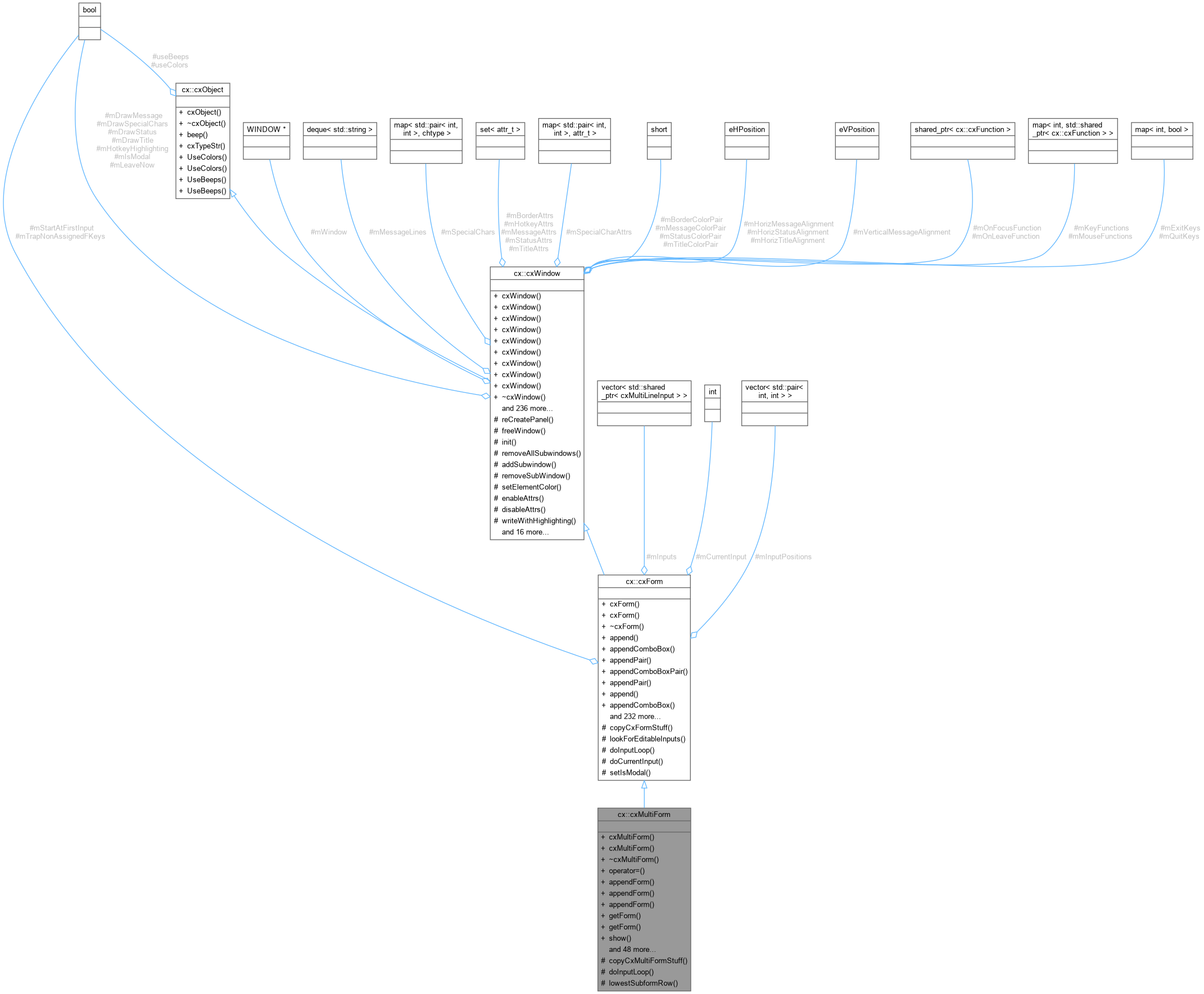

Collaboration diagram for cx::cxMultiForm:

Public Member Functions
	cxMultiForm (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pAutoExit=false, bool pStacked=false)
	cxMultiForm (const cxMultiForm &pThatMultiForm)
virtual	~cxMultiForm ()
cxMultiForm &	operator= (const cxMultiForm &pThatMultiForm)
	Assignment operator.
virtual std::shared_ptr< cxForm >	appendForm (int pRow, int pCol, int pHeight, int pWidth, const std::string &pTitle="", eBorderStyle pBorderStyle=eBS_NOBORDER, bool pStacked=false)
	Appends a subform to the form.
virtual bool	appendForm (std::shared_ptr< cxForm > &pForm, int pRow, int pCol, bool *pMoved=nullptr)
	Appends a subform to the form via a pointer.
virtual bool	appendForm (std::shared_ptr< cxForm > &pForm)
	Appends a subform to the form via a pointer (without.
virtual std::shared_ptr< cxForm >	getForm (unsigned pIndex) const
	Returns a pointer to one of the subforms (by index), or.
virtual std::shared_ptr< cxForm >	getForm (const std::string &pTitle) const
	Returns a pointer to one of the subforms (by title), or.
virtual long	show (bool pBringToTop=false, bool pShowSubwindows=true) override
virtual long	showModal (bool pShowSelf=true, bool pBringToTop=false, bool pShowSubwindows=true) override
	Shows the form and waits for input.
virtual void	showAllSubforms (bool pBringToTop=true, bool pSkipCurrentForm=false) const
	Shows (refreshes) all inputs.
virtual bool	removeSubform (unsigned pIndex)
	Removes a subform (by index).
virtual bool	removeSubform (const std::string &pTitle)
	Removes a subform (by title).
virtual std::string	getValue (unsigned pFormIndex, int pInputIndex) const
	Gets the value of an input on one of the subforms (by indexes)
virtual std::string	getValue (int pIndex) const override
	Returns the value associated with a particular input (by index).
virtual std::string	getValue (const std::string &pStr, bool pIsLabel=true) const override
	Returns the value associated with a particular input (by label or name).
virtual std::string	getValue (unsigned pFormIndex, const std::string &pLabel, bool pIsLabel=true) const
	Gets the value of an input on one of the subforms (by.
virtual std::string	getValue (const std::string &pTitle, int pInputIndex) const
	Gets the value of an input on one of the subforms (by.
virtual std::string	getValue (const std::string &pTitle, const std::string &pLabel, bool pIsLabel=true) const
	Gets the value of an input on one of the subforms (by.
virtual bool	setValue (unsigned pFormIndex, int pInputIndex, const std::string &pValue, bool pRefresh=false)
	Sets a value of an input on one of the subforms.
virtual bool	setValue (unsigned pFormIndex, const std::string &pLabel, const std::string &pValue, bool pIsLabel=true, bool pRefresh=false)
	Sets a value of an input on one of the subforms.
virtual bool	setValue (const std::string &pTitle, int pInputIndex, const std::string &pValue, bool pRefresh=false)
	Sets a value of an input on one of the subforms.
virtual bool	setValue (const std::string &pTitle, const std::string &pLabel, const std::string &pValue, bool pIsLabel=true, bool pRefresh=false)
	Sets a value of an input on one of the subforms.
virtual bool	setValue (int pIndex, const std::string &pValue, bool pRefresh=false) override
virtual bool	setValue (const std::string &pLabel, const std::string &pValue, bool pIsLabel=true, bool pRefresh=false) override
size_t	numSubforms () const
	Returns the number of subforms on the form.
virtual int	getLastKey () const override
	Returns the last key typed by the user.
bool	hasEditableSubforms () const
	Returns whether any of the subforms contain.
virtual bool	move (int pNewRow, int pNewCol, bool pRefresh=true) override
virtual void	hide (bool pHideSubwindows=true) override
	Hides the form.
virtual void	unhide (bool pUnhideSubwindows=true) override
	Un-hides the form.
virtual bool	setKeyFunction (int pKey, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true) override
virtual bool	setKeyFunction (int pKey, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true) override
virtual bool	setKeyFunction (int pKey, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true) override
virtual bool	setCurrentSubform (int pIndex)
	Changes which subform is to have the focus (by index).
virtual bool	setCurrentSubform (const std::string &pTitle)
	Changes which subform is to have the focus (by title).
virtual bool	setCurrentSubformByPtr (const std::shared_ptr< cxForm > &pForm)
	Changes which subform is to have the focus (by pointer).
virtual bool	setCurrentSubformByPtr (cxForm *pForm)
virtual int	getCurrentForm () const
	Returns the index of the current form.
virtual int	getSubformIndex (const std::shared_ptr< cxForm > &pForm) const
	Returns the index of a subform on the.
virtual int	getSubformIndex (cxForm *pForm) const
virtual bool	hasChanged () const override
	Returns whether or not any inputs on the form,.
virtual void	setChanged (bool pDataChanged) override
	Setter for whether or not data should be considered changed.
virtual void	setSubformEnabled (unsigned pIndex, bool pEnabled)
	Enables or disables one of the subforms (by index).
virtual void	setSubformEnabled (const std::string &pTitle, bool pEnabled)
	Enables or disables one of the subforms (by title).
virtual bool	subformIsEnabled (unsigned pIndex) const
	Returns whether one of the subforms is.
virtual bool	subformIsEnabled (const std::string &pTitle) const
	Returns whether one of the subforms is.
virtual bool	addQuitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false) override
	Adds a key that will cause the form to quit and.
virtual void	removeQuitKey (int pKey) override
	Removes a quit key (but doesn't work for ESC)
virtual bool	addExitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false) override
	Adds a key that will cause the form to quit and.
virtual void	removeExitKey (int pKey) override
	Removes an exit key.
virtual void	setDisableCursorOnShow (bool pDisableCursorOnShow) override
	Sets whether the window should disable the cursor.
virtual void	clear (bool pRefresh=false) override
	Clears the multiForm and all the subforms.
void	setAssumeMovingBackwards (bool pAssumeMovingBackwards)
	Normally, if the cursor is on the last form when a cxMultiForm.
bool	getAssumeMovingBackwards () const
	Returns whether it will be assumed that the user is moving.
virtual void	setEnabled (bool pEnabled) override
	Enables or disables the multiForm. Enabling/disabling a.
virtual std::string	cxTypeStr () const override
	Returns the name of the cxWidgets class. This can be used to.
Public Member Functions inherited from cx::cxForm
	cxForm (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pAutoExit=false, bool pStacked=false)
	cxForm (const cxForm &pThatForm)
virtual	~cxForm ()
virtual std::shared_ptr< cxMultiLineInput >	append (int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue=nullptr, int pRightLabelOffset=0, int pRightLabelHeight=1, int pRightLabelWidth=7, bool pShowRightLabel=false, eInputType pInputType=eIT_CXMULTILINEINPUT)
	Adds an input to the form. Applies the A_STANDOUT attribute.
virtual std::shared_ptr< cxComboBox >	appendComboBox (int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue=nullptr, int pRightLabelOffset=0, int pRightLabelHeight=1, int pRightLabelWidth=7, bool pShowRightLabel=false)
	Adds a combo box to the form. Applies the A_STANDOUT attribute.
virtual cxMLInputPtrPair	appendPair (int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue1=nullptr, std::string *pExtValue2=nullptr, int pRightLabel1Offset=0, int pRightLabel1Height=1, int pRightLabel1Width=7, bool pShowRightLabel1=false, int pRightLabel2Offset=0, int pRightLabel2Height=1, int pRightLabel2Width=7, bool pShowRightLabel2=false, eInputType pInput1Type=eIT_CXMULTILINEINPUT, eInputType pInput2Type=eIT_CXMULTILINEINPUT)
	Appends a pair of inputs to a form, one to the right of the.
virtual cxComboBoxPtrPair	appendComboBoxPair (int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue1=nullptr, std::string *pExtValue2=nullptr, int pRightLabel1Offset=0, int pRightLabel1Height=1, int pRightLabel1Width=7, bool pShowRightLabel1=false, int pRightLabel2Offset=0, int pRightLabel2Height=1, int pRightLabel2Width=7, bool pShowRightLabel2=false)
	Appends a pair of cxComboBoxes to a form, one to the right of.
virtual void	appendPair (std::shared_ptr< cxMultiLineInput > &pInput1, std::shared_ptr< cxMultiLineInput > &pInput2, int pRow, int pCol, const std::string &pName="")
	Appends 2 inputs to the form, one to the right of the other.
virtual std::shared_ptr< cxMultiLineInput >	append (int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue=nullptr, int pRightLabelOffset=0, int pRightLabelHeight=1, int pRightLabelWidth=7, bool pShowRightLabel=false, eInputType pInputType=eIT_CXMULTILINEINPUT)
	Appends an input to the form below the last item currently in.
virtual std::shared_ptr< cxComboBox >	appendComboBox (int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue=nullptr, int pRightLabelOffset=0, int pRightLabelHeight=1, int pRightLabelWidth=7, bool pShowRightLabel=false)
	Appends a combo box to the form below the last.
virtual std::shared_ptr< cxMultiLineInput >	append (const cxMultiLineInput &pInput)
	Appends a copy of an input to a form.
virtual void	append (std::shared_ptr< cxMultiLineInput > &pInput, int pRow, int pCol, bool *pMoved=nullptr)
	Appends a cxMultiLineInput to the form via a pointer.
virtual void	remove (unsigned int pIndex)
virtual void	remove (const std::string &pLabel, bool pIsLabel=true)
virtual void	remove (const std::shared_ptr< cxMultiLineInput > &pInput)
virtual void	remove (cxMultiLineInput *pInput)
virtual void	removeAll ()
	Removes all inputs from the form.
virtual void	setFieldKeyFunction (const std::string &pLabel, int pFunctionKey, const std::shared_ptr< cxFunction > &pFieldFunction, bool pIsLabel=true)
virtual void	setFieldKeyFunction (const std::string &pLabel, int pFunctionKey, funcPtr4 pFieldFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pExitAfterRun=false, bool pIsLabel=true)
virtual void	setFieldKeyFunction (unsigned pIndex, int pFunctionKey, funcPtr4 pFieldFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pExitAfterRun=false)
virtual void	setFieldKeyFunction (const std::string &pLabel, int pFunctionKey, funcPtr2 pFieldFunction, void *p1, void *p2, bool pUseVal, bool pExitAfterRun=false, bool pIsLabel=true)
virtual void	setFieldKeyFunction (unsigned int pIndex, int pFunctionKey, const std::shared_ptr< cxFunction > &pFieldFunction)
virtual void	setFieldKeyFunction (unsigned int pIndex, int pFunctionKey, funcPtr2 pFieldFunction, void *p1, void *p2, bool pUseVal, bool pExitAfterRun=false)
virtual void	setOnFocusFunction (const std::shared_ptr< cxFunction > &pFunction) override
	Sets the form window's "on focus" function.
virtual void	setOnFocusFunction (const std::string &pLabel, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
virtual void	setOnFocusFunction (unsigned pIndex, const std::shared_ptr< cxFunction > &pFunction)
virtual void	setOnFocusFunction (const std::string &pLabel, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pIsLabel=true)
virtual void	setOnFocusFunction (unsigned pIndex, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal)
virtual void	setOnLeaveFunction (const std::shared_ptr< cxFunction > &pFunction) override
	Sets the form window's "on leave" function.
virtual void	setOnLeaveFunction (const std::string &pLabel, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
virtual void	setOnLeaveFunction (unsigned pIndex, const std::shared_ptr< cxFunction > &pFunction)
virtual void	setOnLeaveFunction (const std::string &pLabel, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pIsLabel=true)
virtual void	setOnLeaveFunction (unsigned pIndex, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
virtual void	setFieldLabel (unsigned pIndex, const std::string &pLabel)
virtual void	setFieldLabel (const std::string &pName, const std::string &pLabel)
virtual void	setFieldName (unsigned pIndex, const std::string &pName)
virtual void	setFieldName (const std::string &pLabel, const std::string &pName)
	Sets a field name (by label)
virtual void	enableInputLoop (const std::string &pLabel, bool pDoInputLoop, bool pIsLabel=true)
	Enables or disables the input loop for one of the.
virtual void	enableInputLoop (unsigned pIndex, bool pDoInputLoop)
	Enables or disables the input loop for one of the.
virtual void	setAutoExit (bool pAutoExit)
	Sets whether the form should automatically exit when the user.
bool	getAutoExit () const
	Returns the set value of whether the form should exit upon.
virtual void	setStartAtFirstInput (bool pStartAtFirstInput)
	Sets whether or not to always start at the first editable.
bool	getStartAtFirstInput () const
	Returns whether or not the form will always start at the first.
void	setApplyAttrDefaults (bool pApplyAttrDefaults)
	Sets whether to apply the default attributes to the inputs when.
bool	getApplyAttrDefaults () const
	Returns whether default attributes are applied to new inputs.
virtual bool	modalGetsKeypress () const override
	Returns whether or not a call to showModal() will wait for a.
size_t	numInputs () const
	Returns the number of inputs in the form.
virtual std::string	getLabel (int pIndex) const
	Returns the label of one of the inputs (by index).
virtual std::string	getName (int pIndex) const
	Returns the name of one of the inputs (by index).
virtual std::string	getName (const std::string &pLabel) const
	Returns the name of one of the inputs (by label).
virtual std::string	getStatus (int pIndex) const
	Returns the status text of one of the inputs (by index).
virtual std::string	getStatus (const std::string &pLabel, bool pIsLabel=true) const
	Returns the status text of one of the inputs (by label/name).
virtual int	refreshInput (unsigned pIndex)
virtual int	refreshInput (const std::string &pStr, bool pIsLabel=true)
bool	setMaskChar (int pIndex, char pMaskChar)
bool	setMaskChar (const std::string &pLabel, char pMaskChar, bool pIsLabel=true)
	Sets the masking character for an input (by label).
bool	getMasked (int pIndex)
bool	getMasked (const std::string &pLabel, bool pIsLabel=true)
virtual bool	toggleMasking (int pIndex, bool pMasking)
virtual bool	toggleMasking (const std::string &pLabel, bool pMasking, bool pIsLabel=true)
	Enables/disables masking for an input (by label).
virtual bool	setCurrentInput (int pIndex)
	Changes which input on the form should have focus (by index).
virtual bool	setCurrentInput (const std::string &pLabel, bool pIsLabel=true)
	Changes which input on the form should have focus (by label/name).
virtual bool	setCurrentInputByPtr (const std::shared_ptr< cxMultiLineInput > &pInput)
	Changes which input on the form should have focus (by pointer).
virtual bool	setCurrentInputByPtr (const cxMultiLineInput *const pInput)
virtual bool	setKeyFunction (int pKey, const std::shared_ptr< cxFunction > &pFunction) override
	Sets a function to be called when a key is pressed.
virtual void	clearKeyFunction (int pKey) override
	Removes a function pointer for a keypress for the form so that it will no.
virtual bool	setKeyFunction (int pIndex, int pKey, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called when a key is pressed.
virtual bool	setKeyFunction (const std::string &pLabel, int pKey, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
	Sets a function to be called when a key is pressed.
virtual bool	setKeyFunction (int pIndex, int pKey, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (const std::string &pLabel, int pKey, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator, bool pIsLabel=true)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (int pIndex, int pKey, funcPtr2 pFunction, void *p1, void *p2, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (const std::string &pLabel, int pKey, funcPtr2 pFunction, void *p1, void *p2, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator, bool pIsLabel=true)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (int pIndex, int pKey, funcPtr0 pFunction, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (const std::string &pLabel, int pKey, funcPtr0 pFunction, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator, bool pIsLabel=true)
	Adds a function to call when the user presses some key for.
bool	allFieldsBlank () const
void	setLabelColor (const int &pIndex, e_cxColors pColor)
	Sets the color of the label of one of the inputs (by index)
void	setLabelColor (const std::string &pLabel, e_cxColors pColor, bool pIsLabel=true)
	Sets the color of the label of one of the inputs (by label/name)
void	setAllLabelColor (e_cxColors pColor)
	Sets the color of the labels on all inputs.
int	getLabelColor (const int &pIndex) const
	Returns the label color of one of the inputs (by index).
int	getLabelColor (const std::string &pLabel, bool pIsLabel=true) const
	Returns the label color of one of the inputs (by label/name).
void	setValueColor (const int &pIndex, e_cxColors pColor)
	Sets the color of the value section of one of the inputs (by index)
void	setValueColor (const std::string &pLabel, e_cxColors pColor, bool pIsLabel=true)
	Sets the color of the value section of one of the inputs (by label/name)
void	setAllValueColor (e_cxColors pColor)
	Sets the color of the value section of all inputs on the form.
int	getValueColor (const int &pIndex) const
	Returns the color of the value section of one of the inputs (by index).
int	getValueColor (const std::string &pLabel, bool pIsLabel=true) const
	Returns the color of the value section of one of the inputs (by label/name).
void	setAllColors (e_cxColors pLabelColor, e_cxColors pValueColor)
	Sets the label & value colors of all inputs on the form.
virtual void	setColor (e_WidgetItems pItem, e_cxColors pColor) override
	Sets the color of one of the window items. For label & value.
int	inputTopRow (int pIndex) const
	Returns the top row of an input (by index), or -1 if the given.
int	inputTopRow (const std::string &pLabel, bool pIslabel=true) const
	Returns the top row of an input (by label/name), or -1 if there is no.
int	inputLeftCol (int pIndex) const
	Returns the left column of an input (by index), or -1 if the given.
int	inputLeftCol (const std::string &pLabel, bool pIsLabel=true) const
	Returns the left column of an input (by label/name), or -1 if there are.
int	inputHeight (int pIndex) const
	Returns the height of an input (by index), or -1 if the given index.
int	inputHeight (const std::string &pLabel, bool pIsLabel=true) const
	Returns the height of an input (by label/name), or -1 if there is no input.
int	inputWidth (int pIndex) const
	Returns the width of an input (by index), or -1 if the given index.
int	inputWidth (const std::string &pLabel, bool pIsLabel=true) const
	Returns the width of an input (by label/name), or -1 if there is.
int	maxInputLen (int pIndex) const
	Returns the maximum length of input accepted by an input (by index),.
int	maxInputLen (const std::string &pLabel, bool pIsLabel=true) const
	Returns the maximum length of input accepted by an input (by index),.
std::string	inputLabel (int pIndex) const
	Returns the label of an input at a given index.
std::string	inputLabel (const std::string &pName) const
	Returns the label of an input.
std::string	inputName (int pIndex) const
	Returns the name of an input at a given index.
std::string	inputName (const std::string &pLabel) const
	Returns the name of an input.
virtual void	scrollInputs (int pVScrollAmt, int pHScrollAmt, bool pRefresh=false, bool pBringToTop=false)
	Scrolls (moves) the inputs in the window.
virtual void	toggleCursor (int pIndex, bool pShowCursor)
	Toggles the display of the cursor for an input (by index).
virtual void	toggleCursor (const std::string &pLabel, bool pShowCursor, bool pIsLabel=true)
	Toggles the display of the cursor for an input (by label/name).
virtual void	toggleCursor (bool pShowCursor)
	Toggles the display of the cursor on all inputs.
std::shared_ptr< cxMultiLineInput >	getInput (int pIndex) const
	Returns a pointer to an input at a given index, or nullptr if the index.
std::shared_ptr< cxMultiLineInput >	getInput (const std::string &pLabel, bool pIsLabel=true) const
	Returns a pointer to an input with a given label/name, or.
std::shared_ptr< cxMultiLineInput >	getCurrentInput () const
	Returns a pointer to the current input. If there are no inputs.
virtual int	getInputOption (int pIndex) const
	Returns the editability option for an input (by index).
virtual int	getInputOption (const std::string &pLabel, bool pIsLabel=true) const
	Returns the editability option for an input (by label/name).
virtual void	setInputOption (int pIndex, eInputOptions pInputOption, bool pRefresh=true)
	Sets the input kind for one of the inputs (by index).
virtual void	setInputOption (const std::string &pLabel, eInputOptions pInputOption, bool pIsLabel=true, bool pRefresh=true)
	Sets the input kind for one of the inputs (by label/name).
virtual void	setAllInputOption (eInputOptions pInputOption, bool pRefresh=true)
	Sets the input kind for all inputs on the form.
virtual void	setStatus (const std::string &pStatus, bool pRefreshStatus=true) override
	Mutator for the status line text. After this method.
virtual void	disableCustomStatus (bool pRefreshStatus=true)
	Turns off the custom status text set with setStatus.
virtual void	setValidatorFunction (int pIndex, const std::shared_ptr< cxFunction > &pFunction)
	Sets a validator function to be run before focus is lost for one.
virtual void	setValidatorFunction (int pIndex, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
	Sets a validator function to be run before focus is lost for one.
virtual void	setValidatorFunction (const std::string &pLabel, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
	Sets a validator function to be run before focus is lost for one.
virtual void	setValidatorFunction (const std::string &pLabel, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pIsLabel=true)
	Sets a validator function to be run before focus is lost for one.
virtual void	showInputsOnBorder (bool pShowInputsOnBorder)
	Toggles whether to show inputs if they're on.
virtual void	setOnKeyFunction (int pIndex, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be run whenever a key is pressed in an input (by index).
virtual void	setOnKeyFunction (int pIndex, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
	Sets a function to be run whenever a key is pressed in an input (by index).
virtual void	setOnKeyFunction (const std::string &pLabel, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
	Sets a function to be run whenever a key is pressed in an.
virtual void	setOnKeyFunction (const std::string &pLabel, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pIsLabel=true)
	Sets a function to be run whenever a key is pressed in an.
virtual void	setOnKeyFunction (int pIndex, funcPtr2 pFunction, void *p1, void *p2)
	Sets a function to be run whenever a key is pressed in an input (by index).
virtual void	setOnKeyFunction (const std::string &pLabel, funcPtr2 pFunction, void *p1, void *p2, bool pIsLabel=true)
	Sets a function to be run whenever a key is pressed in an.
virtual void	setOnKeyFunction (int pIndex, funcPtr0 pFunction)
	Sets a function to be run whenever a key is pressed in an input (by index).
virtual void	setOnKeyFunction (const std::string &pLabel, funcPtr0 pFunction, bool pIsLabel=true)
	Sets a function to be run whenever a key is pressed in an.
virtual void	setAllOnKeyFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be run whenever a key is pressed, in all.
virtual void	setAllOnKeyFunction (funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
	Sets a function to be run whenever a key is pressed, in all.
virtual void	setAllOnKeyFunction (funcPtr2 pFunction, void *p1, void *p2)
	Sets a function to be run whenever a key is pressed, in all.
virtual void	setAllOnKeyFunction (funcPtr0 pFunction)
	Sets a function to be run whenever a key is pressed, in all.
virtual void	toggleOnKeyFunction (int pIndex, bool pRunOnKeyFunction)
	Sets whether or not an onKey function should run for one of the.
virtual void	toggleOnKeyFunction (const std::string &pLabel, bool pRunOnKeyFunction, bool pIsLabel=true)
	Sets whether or not an onKey function should run for one of the.
virtual void	toggleAllOnKeyFunction (bool pRunOnKeyFunction)
	Sets whether or not the onKey function for all inputs should.
virtual bool	onKeyFunctionEnabled (int pIndex) const
	Returns whether the onKey function is enabled for one of the.
virtual bool	onKeyFunctionEnabled (const std::string &pLabel, bool pIsLabel=true) const
	Returns whether the onKey function is enabled for one of the.
cxForm &	operator= (const cxForm &pThatForm)
	Assignment operator.
virtual bool	addInputJumpKey (int pKey, int pIndex)
virtual bool	addInputJumpKey (int pKey, const std::string &pLabel, bool pIsLabel=true)
	Adds a hotkey for the form that will cause the.
virtual int	getCurrentInputIndex () const
	Returns the index of the input that currently has focus.
virtual std::string	getCurrentInputLabel () const
	Returns the label of the input that currently has focus.
virtual std::string	getCurrentInputName () const
	Returns the name of the input that currently has focus.
virtual int	getInputIndex (const std::string &pLabel, bool pIsLabel=true) const
	Returns the index of an input, based on its label or name.
virtual int	getInputIndex (const std::shared_ptr< cxMultiLineInput > &pInput) const
	Returns the index of an input based on a pointer. May.
virtual int	getInputIndex (const cxMultiLineInput *pInput) const
virtual void	setInputJumpKey (int pInputJumpKey)
	Sets the hotkey to be used to bring up the menu to choose.
virtual int	getInputJumpKey () const
	Returns which key is being used as the jump hotkey.
virtual void	setCanBeEditable (int pIndex, bool pCanBeEditable)
	Sets whether an input can be set editable (by index). If.
virtual void	setCanBeEditable (const std::string &pLabel, bool pCanBeEditable, bool pIsLabel=true)
	Sets whether an input can be set editable (by label/name). For.
virtual void	setAllCanBeEditable (bool pCanBeEditable)
	Sets the ability of all inputs to be able to be editable.
virtual bool	canBeEditable (int pIndex) const
	Returns whether or not an input can be set editable.
virtual bool	canBeEditable (const std::string &pLabel, bool pIsLabel=true) const
	Returns whether or not an input can be set editable.
virtual bool	anyInputsCanBeEditable () const
	Returns whether any input on the form (at least 1) can be set editable.
virtual void	setAllowQuit (bool pAllowQuit)
	Sets whether the form should allow the user to quit.
virtual bool	getAllowQuit () const
	Returns whether the user is able to quit out of the form.
virtual void	setAllowExit (bool pAllowExit)
	Sets whether the form should allow the user to exit.
virtual bool	getAllowExit () const
	Returns whether the user is able to exit out of the form.
virtual void	setOnFocusFunction (funcPtr4 pFuncPtr, void *p1, void *p2, void *p3, void *p4, bool pUseVal=false, bool pExitAfterRun=false) override
	Sets a function to be run when focus is gained (at.
virtual void	setOnFocusFunction (funcPtr2 pFuncPtr, void *p1, void *p2, bool pUseVal=false, bool pExitAfterRun=false) override
	Sets a function to be run when focus is gained (at.
virtual void	setOnFocusFunction (funcPtr0 pFuncPtr, bool pUseVal=false, bool pExitAfterRun=false) override
	Sets a function to be run when focus is gained (at.
virtual void	setLoopStartFunction (const std::shared_ptr< cxFunction > &pFuncPtr)
	Sets a function to be run at the start of each.
virtual void	setLoopEndFunction (const std::shared_ptr< cxFunction > &pFuncPtr)
	Sets a function to be run at the end of each.
virtual void	setOnLeaveFunction (funcPtr4 pFuncPtr, void *p1, void *p2, void *p3, void *p4) override
	Sets a function to be run when focus is lost.
virtual void	setOnLeaveFunction (funcPtr2 pFuncPtr, void *p1, void *p2) override
	Sets a function to be run when focus is lost.
virtual void	setOnLeaveFunction (funcPtr0 pFuncPtr) override
	Sets a function to be run when focus is lost.
virtual void	showAllInputs (bool pBringToTop=true, bool pSkipCurrentInput=false) const
	Shows (refreshes) all inputs.
virtual bool	formKeyIsSet (int pKey) const
	Returns whether a key is set as a form function.
virtual bool	isStacked () const
	Returns whether or not the form is in 'stacked'.
virtual bool	getExitOnLeaveFirst () const
	Returns whether the form is set to exit its showModal() when.
virtual void	setExitOnLeaveFirst (bool pExitOnLeaveFirst)
	Sets whether the form should exit when the user leaves.
virtual bool	hasEditableInputs () const
	Returns whether the form has any inputs that are.
virtual int	firstEditableInput () const
	Returns the index of the first editable input in.
virtual int	lastEditableInput () const
	Returns the index of the last editable input in.
virtual void	bringToTop (bool pRefresh=true) override
	Brings the window to the top.
virtual void	trapNonAssignedFKeys (bool pTrapNonAssignedFKeys)
	Sets whether non-assigned function keys should.
cxMultiForm *	getParentMultiForm () const
	Returns the parent cxMultiForm pointer.
virtual void	setParentMultiForm (cxMultiForm *pParentMultiForm)
	Sets the parent cxMultiForm that this cxForm is associated with.
virtual bool	runLoopStartFunction ()
	Runs the loop start function, if it's set.
virtual bool	runLoopEndFunction ()
	Runs the loop end function, if it's set.
virtual int	maxValueLen (int pIndex) const
	Returns the maximum length of the value that may be set for an.
virtual int	maxValueLen (const std::string &pLabel, bool pIsLabel=true)
	Returns the maximum length of the value that may be set for an.
virtual bool	isEditable (int pIndex) const
	Returns whether one of the inputs on.
virtual bool	isEditable (const std::string &pLabel, bool pIsLabel=true) const
	Returns whether one of the inputs on.
virtual void	setWaitForInputIfEmpty (bool pWaitForInputIfEmpty)
	Toggles whether or not the form should wait for.
virtual bool	getWaitForInputIfEmpty () const
	Returns whether or not the form will wait for.
virtual void	clearInputs (bool pRefresh=false, bool pOnlyEditable=false)
	Clears the values of all the inputs on the form.
virtual void	getValues (std::map< std::string, std::string > &pValues, bool pUseLabels=true, bool pSkipBlankIDs=false) const
	Gets the values from the form in the form of a map of input.
virtual void	setValues (const std::map< std::string, std::string > &pValues, bool pUseLabels=true, bool pRefresh=false, bool pDisableValidatorFunctions=false)
	Sets the values in the form with a map of input labels/names.
virtual void	useInputStatus (bool pUseInputStatus)
	Toggles whether or not to use the status text of the inputs.
virtual bool	hasInput (const std::string &pStr, bool pIsLabel=true) const
	Returns whether or not the form has an input with a given.
virtual cxWindow *	getParent () const override
	Returns a pointer to the parent window. If the cxForm.
virtual void	addAttr (e_WidgetItems pItem, attr_t pAttr) override
	Returns the index of the next editable input after a given.
virtual void	setAttr (e_WidgetItems pItem, attr_t pAttr) override
	Sets the ncurses attribute to use for one of the items in the.
virtual void	removeAttr (e_WidgetItems pItem, attr_t pAttr) override
	Removes an ncurses attribute from one of the item lists. For.
virtual void	removeAttrs (e_WidgetItems pItem) override
	Removes all attributes for a given window item. For eLABEL,.
virtual void	getAttrs (e_WidgetItems pItem, std::set< attr_t > &pAttrs) const override
	Returns the set of ncurses attributes for a given item.
virtual void	getNavKeys (std::set< int > &pNavKeys) const
	Gathers a set of keys considered to be "navigational" keys from.
virtual void	getNavKeyStrings (std::set< std::string > &pNavKeyStrings) const
	Creates a set of string representations of keys considered to.
virtual bool	hasNavKey (int pKey) const
	Returns whether at least one of the inputs on the form has.
virtual void	setLastKey (int pLastKey) override
	Sets the last keypress.
virtual void	quitNow () override
	This causes the form to exit its input loop with a code of.
virtual void	exitNow () override
	This causes the form to exit its input loop with a code of.
virtual void	setExtendedHelpKey (int pKey)
	Sets a single key to use to display extended help for all.
virtual void	addExtendedHelpKey (int pKey)
	Adds an additional key to be used to display the extended.
virtual std::set< int >	getExtendedHelpKeys () const
	Returns the keys used to display extended help for the inputs.
std::string	getExtendedHelpKeyStrings () const
	Returns a comma-separated list of strings representing the.
virtual void	clearExtendedHelpKeys ()
	Removes all extended help keys.
virtual void	setUseExtendedHelpKeys (bool pUseExtendedHelpKeys)
	Sets whether or not to use the extended help keys.
virtual bool	getUseExtendedHelpKeys () const
	Returns whether or not the extended help keys are enabled.
virtual std::string	getExtendedHelp (int pIndex) const
	Gets the extended help string from one of the inputs (by.
virtual std::string	getExtendedHelp (const std::string &pIDStr, bool pIsLabel=true) const
	Returns the extended help string from one of the inputs (by.
virtual void	setExtendedHelp (int pIndex, const std::string &pExtendedHelp)
	Sets the extended help for one of the inputs (by index).
virtual void	setExtendedHelp (const std::string &pIDStr, const std::string &pExtendedHelp, bool pIsLabel=true)
	Sets the extended help for one of the inputs (by label/name).
virtual void	validateOnJumpKey (int pIndex, bool pValidate)
	Sets whether or not the validator function should run for an.
virtual void	validateOnJumpKey (const std::string &pID, bool pValidate, bool pIsLabel=true)
	Sets whether or not the validator function should run for an.
virtual void	allValidateOnJumpKey (bool pValidate)
	Sets whether or not the validator function should run for all.
virtual bool	swap (int pInput1Index, int pInput2Index)
	Swaps the order of 2 inputs (by index). If both indexes.
virtual bool	swap (std::shared_ptr< cxWindow > &pInput1, std::shared_ptr< cxWindow > &pInput2)
	Swaps the order of 2 inputs (by pointer). If both pointers.
std::string	getName () const
std::string	getStatus () const
	Accessor for the status line text.
Public Member Functions inherited from cx::cxWindow
	cxWindow (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", const std::string &pMessage="", const std::string &pStatus="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Default constructor.
	cxWindow (cxWindow *pParentWindow, int pRow, int pCol, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, eHPosition pHPosition, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Lets you specify the horizontal position.
	cxWindow (const cxWindow &pThatWindow)
	Copy constructor.
virtual	~cxWindow ()
virtual void	centerHoriz (bool pRefresh=true)
	Centers the window horizontally on the screen.
virtual void	alignHoriz (eHPosition pPosition, bool pRefresh=true)
	Aligns the window horizontally on the screen.
virtual void	centerVert (bool pRefresh=true)
	Centers the window vertically on the screen.
virtual void	alignVert (eVPosition pPosition, bool pRefresh=true)
	Aligns the window vertically on the screen.
virtual void	center (bool pRefresh=true)
	Centers the window on the screen.
virtual std::string	getTitle () const
	Accessor for title text - Returns the first string in the.
virtual void	setTitle (const std::string &pTitle, bool pRefreshTitle=true)
	Setter for the title text - This sets the first string in the.
std::string	getStatus () const
	Accessor for the status line text.
std::string	getMessage () const
	Returns the message that appears in the window, concatenating all message lines together.
virtual void	setMessage (const std::string &pMessage)
	Sets the text that appears within the window.
virtual void	addMessageLineBelow (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesBelow (const std::vector< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::list< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::deque< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLineAbove (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesAbove (const std::vector< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::list< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::deque< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	setMessageLines (const std::vector< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::list< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::deque< std::string > &pLines)
	Sets the message lines in the window.
virtual void	removeMessageLine (unsigned pIndex)
	Removes a line from the text inside the window (by index).
virtual void	setMessageLine (unsigned pIndex, const std::string &pLine)
	Modifies one of the lines displayed in the window.
void	setHorizTitleAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the title text.
eHPosition	getHorizTitleAlignment () const
	Accessor for the title text alignment.
void	setHorizMessageAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the message text.
eHPosition	getHorizMessageAlignment () const
	Accessor for the horizontal message text alignment.
void	setHorizStatusAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the status text.
eHPosition	getHorizStatusAlignment () const
	Accessor for the horizontal status text alignment.
void	setVerticalMessageAlignment (eVPosition pVAlignment)
	Sets the vertical alignment of the message text.
eVPosition	getVerticalMessageAlignment () const
	Accessor for the vertical message text alignment.
void	setExtTitleWindow (cxWindow *pWindow, bool pRefreshTitle=true)
	Sets an external cxWindow object to be used for the title, rather.
cxWindow *	getExtTitleWindow () const
	Accessor for the external title window pointer.
void	setExtStatusWindow (cxWindow *pWindow, bool pRefreshStatus=true)
	Sets an external cxWindow object to be used for status, rather.
cxWindow *	getExtStatusWindow () const
	Accessor for the external status window pointer.
bool	isHidden () const
	Returns whether or not the window is hidden.
virtual long	setFocus (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true)
	Alias for showModal()
virtual void	setFocusColors ()
	Turns on the ncurses attribute A_REVERSE for the window to.
virtual void	setFocusColors (attr_t pAttr)
	Turns on the ncurses attribute pAttr for the window to.
virtual void	unSetFocusColors ()
	Disables focus for this window and unhighlights the message.
virtual void	unSetFocusColors (attr_t pAttr)
	Disables focus for this window and un-highlights the message (using pAttr)
virtual void	erase (bool pEraseSubwindows=true)
	Erases the window.
virtual void	bringToBottom (bool pRefresh=false)
	Puts the window on the bottom of all other windows.
virtual bool	isOnTop () const
	Returns whether the window is on top of all other windows.
virtual bool	isOnBottom () const
	Returns whether the window is on the bottom of all other windows.
virtual bool	isAbove (const cxWindow &pThatWindow) const
	Returns whether the window is above another window.
virtual bool	isBelow (const cxWindow &pThatWindow) const
	Returns whether a window is below another window.
void	touchWindow ()
	Marks the window's entire content as dirty so that the next.
virtual void	drawBorder (int pRow, int pCol, int pHeight, int pWidth, bool pTop=true, bool pBottom=true, bool pLeft=true, bool pRight=true)
	Draws the border (based on the border style)
virtual void	drawBorder (int pHeight, int pWidth)
	Draws a box in the window.
virtual void	drawBorder ()
	Draws a box for the window border.
virtual int	top () const
	Returns the top row of the window.
virtual int	centerRow () const
	Returns the center row of the window.
virtual int	bottom () const
	Returns the bottom row of the window.
virtual int	left () const
	Returns the left column of the window.
virtual int	centerCol () const
	Returns the center column of the window.
virtual int	right () const
	Returns the right column of the window.
virtual int	width (int pWidth)
	Changes the width of the window.
virtual int	width () const
	Returns the width of the window.
virtual int	height (int pHeight)
	Changes the height of the window.
virtual int	height () const
	Returns the height of the window.
virtual void	getRect (int &pTop, int &pLeft, int &pBottom, int &pRight)
	Returns the coordinates of the rectangle defining the window.
virtual bool	pointIsInWindow (int pY, int pX) const
	Returns whether a screen location is in the window (including.
virtual bool	pointIsInTitle (int pY, int pX) const
	Returns whether a screen location is in the title of the window.
virtual void	getSize (int &pHeight, int &pWidth)
	Returns the height & width of the window.
virtual void	resize (int pNewHeight, int pNewWidth, bool pRefresh=true)
	Changes the window's width and height. The window's upper-left.
virtual bool	moveRelative (int pVerticalOffset, int pHorizOffset, bool pRefresh=true)
	Changes the window's position via vertical & horizontal offsets.
unsigned	numSubWindows ()
	Returns the number of subwindows in this window.
void	setSubWinMessage (unsigned pIndex, const std::string &pMessage)
	Sets the message of one of the subwindows (by index).
void	setSubWinMessage (const std::string &pTitle, const std::string &pMessage)
	Sets the message of one of the subwindows (by title).
virtual bool	hasFocus () const
	Returns true if window has focus, false otherwise.
virtual void	setBorderStyle (eBorderStyle pBorderStyle)
	Sets the border style.
eBorderStyle	getBorderStyle () const
	Returns the border style.
bool	hasBorder () const
	Does this window have a border?
void	setParent (cxWindow *pNewParent)
	Changes the pointer to the parent window; changes the parent window.
virtual void	dump (std::string &pResult)
	Returns a string containing all the characters.
virtual void	showSubwindows (bool pBringToTop=true, bool pShowSubwindows=true)
	Shows the subwindows for the window.
cxWindow &	operator= (const cxWindow &pThatWindow)
	Assignment operator.
virtual void	writeText (int pRow, int pCol, const std::string &pText, bool pRefresh=true)
	Writes text on the window. Note that the text is not permanant, so.
virtual void	setHotkeyHighlighting (bool pHotkeyHighlighting)
	Enables/disables the use of hotkey attributes when writing the message.
bool	getHotkeyHighlighting () const
	Returns whether hotkey attributes are used when writing the message.
virtual bool	isEnabled () const
	Returns whether or not the window is enabled.
virtual bool	getDisableCursorOnShow () const
	Returns whether or not the window will disable.
virtual bool	getExitOnMouseOutside () const
	Returns whether the window exits its modal input loop when.
virtual void	setExitOnMouseOutside (bool pExitOnMouseOutside)
	Sets whether the window should exit its modal input loop.
virtual bool	lastKeyWasMouseEvt () const
	Returns whether or not the last keypress was a mouse event.
virtual void	getLastMouseEvtCoords (int &pY, int &pX)
	Returns the coordinates of the last mouse event in the window.
virtual bool	getChangeColorsOnFocus () const
	Returns whether the window will change.
virtual void	setChangeColorsOnFocus (bool pChangeColorsOnFocus)
	Sets whether colors should change when focus.
virtual bool	runOnFocusFunction (std::string *pFunctionRetval=nullptr)
	Runs the onFocus function, if it's set.
virtual bool	runOnLeaveFunction (std::string *pFunctionRetval=nullptr)
	Runs the onLeave function, if it's set. However, if the last.
virtual void	toggleOnFocusFunction (bool pRunOnFocus)
	Sets whether or not the onFocus function should run.
virtual void	toggleOnLeaveFunction (bool pRunOnLeave)
	Sets whether or not the onLeave function should run.
virtual bool	onFocusFunctionEnabled () const
	Returns whether or not the onFocus function is set to run.
virtual bool	onLeaveFunctionEnabled () const
	Returns whether or not the onLeave function is set to run.
virtual const std::shared_ptr< cxFunction > &	getOnFocusFunction () const
	Accessor for the onFocus function.
virtual const std::shared_ptr< cxFunction > &	getOnLeaveFunction () const
	Accessor for the onLeave function.
virtual bool	isModal () const
	Returns whether or not the window is currently.
virtual void	clearKeyFunctionByPtr (funcPtr4 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr2 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr0 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctions ()
	Clears the list of external functions fired by hotkeys.
virtual bool	hasKeyFunction (int pKey) const
	Returns whether an external function exists for a keypress.
virtual bool	setMouseFunction (int pMouseState, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state. This.
virtual void	clearMouseFunction (int pMouseState)
	Removes a function pointer for a mouse event so that it will.
virtual void	clearMouseFunctions ()
	Clears the list of external functions fired by mouse events.
virtual bool	hasMouseFunction (int pMouseState) const
	Returns whether an external function exists for a mouse event.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_begin ()
	Returns a begin iterator to the map of cxFunction pointers.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_end ()
	Returns an end iterator to the map of cxFunction pointers.
virtual void	getFunctionKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual void	getFunctionKeys (std::vector< int > &pKeys) const
	Populates a collection with integers representing the keys.
virtual void	setShowSubwinsForward (bool pShowSubwinsForward)
	Toggles the order in which subwindows will be shown.
virtual bool	getShowSubwinsForward () const
	Returns whether or not the subwindows will be shown.
virtual void	setShowSelfBeforeSubwins (bool pShowSelfBeforeSubwins)
	Sets whether the window will show itself before.
virtual bool	getShowSelfBeforeSubwins () const
	Returns whether or not the window will show itself before.
virtual long	getReturnCode () const
	Returns the return code set by the last call to.
virtual bool	addTitleString (int pHPos, const std::string &pStr, bool pRefreshTitle=false)
	Adds/sets a string to appear in the title at.
virtual std::string	getTitleString (int pHPos) const
	Returns the title string set at a given horizontal position.
virtual std::map< int, std::string >	getTitleStrings () const
	Returns the map of title strings for the window.
virtual void	getTitleStrings (std::map< int, std::string > &pTitleStrings) const
	Returns the map of title strings for the window (using an.
virtual void	setTitleStrings (const std::map< int, std::string > &pTitleStrings)
	Sets all the title strings via a map of horizontal.
virtual void	removeTitleString (int pHPos)
	Removes a title string at a given horizontal position.
virtual void	removeTitleStrings ()
	Removes all title strings.
virtual bool	addStatusString (int pHPos, const std::string &pStr, bool pRefreshStatus=false)
	Adds/sets a string to appear in the status line at.
virtual std::string	getStatusString (int pHPos) const
	Returns the status string set at a given horizontal position.
virtual std::map< int, std::string >	getStatusStrings () const
	Returns the map of status strings for the window.
virtual void	getStatusStrings (std::map< int, std::string > &pStatusStrings) const
	Returns the map of status strings for the window (using an.
virtual void	setStatusStrings (const std::map< int, std::string > &pStatusStrings)
	Sets all the status strings via a map of horizontal.
virtual void	removeStatusString (int pHPos)
	Removes a status string at a given horizontal position.
virtual void	removeStatusStrings ()
	Removes all status strings.
virtual void	removeQuitKeys ()
	Removes all quit keys.
virtual void	removeExitKeys ()
	Removes all exit keys.
virtual bool	hasExitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual bool	hasQuitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual void	getQuitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getQuitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual void	getExitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getExitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual std::map< int, bool >	getQuitKeys () const
	Returns the keys that will make the window quit its input.
virtual std::map< int, bool >	getExitKeys () const
	Returns the keys that will make the window exit is input.
void	toggleMessage (bool pDrawMessage)
	Sets whether or not to draw the message area (the area within.
void	toggleTitle (bool pDrawTitle)
	Sets whether or not to draw the title.
void	toggleStatus (bool pDrawStatus)
	Sets whether or not to draw the status line.
bool	messageWillDraw () const
	Returns whether the message will draw or not.
bool	titleWillDraw () const
	Returns whether the title will draw or not.
bool	statusWillDraw () const
	Returns whether the status line will draw or not.
void	toggleSpecialChars (bool pDrawSpecialChars)
	Sets whether or not to draw the "special" characters (these are.
bool	specialCharsWillDraw () const
	Returns whether the "special" characters will be drawn or.
virtual void	drawTitle ()
	Writes the title line.
virtual void	drawStatus ()
	Writes the status line.
virtual void	drawMessage ()
	Writes the message text (in the area within the borders)
virtual void	drawSpecialChars ()
	Writes the set of "special" characters to the window.
virtual void	setReturnCode (const long &pReturnCode)
	Explicitly sets the member return code for the window.
virtual void	setMessageColor (e_cxColors pColor)
	Returns the message color.
virtual void	setTitleColor (e_cxColors pColor)
	Sets the title color.
virtual void	setStatusColor (e_cxColors pColor)
	Sets the color of the status line at bottom of window.
virtual void	setBorderColor (e_cxColors pColor)
	Sets the color of the window border.
virtual bool	hasAttr (e_WidgetItems pItem, attr_t pAttr)
	Returns whether an attribute is set for a widget item.
bool	getLeaveNow () const
	Returns whether or not something told the window to leave now.
std::string	getName () const
virtual void	setName (const std::string &pName)
	Sets the name of the window. The name is an alternative means.
bool	mouseEvtWasInWindow () const
	Returns whether the current mouse information stored in the.
virtual bool	mouseEvtWasInTitle () const
	Returns whether the current mouse information stored in the.
virtual void	doMouseBehavior ()
	Triggers the window's mouse event behavior. This method can.
virtual void	doMouseBehavior (int pMouseY, int pMouseX)
	Triggers the window's mouse event behavior. Also sets the.
std::shared_ptr< cxFunction >	getKeyFunction (int pKey) const
	Returns a cxFunction pointer for a key.
std::shared_ptr< cxFunction0 >	getKeyFunctionAsFunction0 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction0.
std::shared_ptr< cxFunction2 >	getKeyFunctionAsFunction2 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction2.
std::shared_ptr< cxFunction4 >	getKeyFunctionAsFunction4 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction4.
bool	mouseEvtWasButtonEvt () const
	Returns whether or not the mouse event read in mMouse was.
bool	mouseButton1Pressed () const
	Returns whether or not the first mouse button was pressed.
bool	mouseButton1Released () const
	Returns whether or not the first mouse button was released.
bool	mouseButton1Clicked () const
	Returns whether or not the first mouse button was clicked.
bool	mouseButton1DoubleClicked () const
	Returns whether or not the first mouse button was double-clicked.
bool	mouseButton2Clicked () const
	Returns whether or not the second mouse button was clicked.
bool	mouseButton2DoubleClicked () const
	Returns whether or not the second mouse button was double-clicked.
bool	mouseButton3Clicked () const
	Returns whether or not the second mouse button was clicked.
virtual void	mouseButton1Click (int pY, int pX)
	Tells the window that mouse button 1 was clicked at a certain.
virtual void	mouseButton2Click (int pY, int pX)
	Tells the window that mouse button 2 was clicked at a certain.
virtual void	mouseButton3Click (int pY, int pX)
	Tells the window that mouse button 3 was clicked at a certain.
std::string	getString (int pRow, int pCol, int pNumber)
	Get the contents of a portion of the window. (for debugging/testing)
void	info ()
	Display information about a window (for debugging/testing)
virtual void	toggleBorderTop (bool pToggle)
	Sets whether or not to display the top border.
virtual void	toggleBorderBottom (bool pToggle)
	Sets whether or not to display the bottom border.
virtual void	toggleBorderLeft (bool pToggle)
	Sets whether or not to display the left border.
virtual void	toggleBorderRight (bool pToggle)
	Sets whether or not to display the right border.
virtual void	addSpecialChar (int pY, int pX, chtype pChar, attr_t pAttr=A_NORMAL)
	Adds a character to be written somewhere in the window. These.
virtual void	removeSpecialChar (int pY, int pX)
	Removes a character from the set of special characters (by.
virtual void	clearSpecialChars ()
	Clears the collection of special characters.
virtual bool	functionExistsForLastMouseState () const
	Returns whether an external function pointer exists for the.
int	getMouseState () const
	Returns the current mouse state as it was last captured by the.
std::string	getMouseStateStr () const
	Returns a string version of the current mouse state as it was.
virtual e_cxColors	getItemColor (e_WidgetItems pItem) const
	Returns the color of one of the items in a window.
Public Member Functions inherited from cx::cxObject
	cxObject ()
virtual	~cxObject ()
virtual void	beep ()

Protected Member Functions
void	copyCxMultiFormStuff (const cxMultiForm *pThatMultiForm)
	Makes a copy of a cxMultiForm's member variables.
long	doInputLoop (bool pShowSubforms)
	Handles the input loop. Returns cxID_QUIT or cxID_EXIT,.
int	lowestSubformRow (unsigned pIndex=0) const
	Returns the lowest row of any subform on the form, starting at.
Protected Member Functions inherited from cx::cxForm
void	copyCxFormStuff (const cxForm *pThatForm)
	Makes a copy of a cxForm's member variables.
void	lookForEditableInputs ()
	Scans all inputs to see if any are editable and updates.
long	doInputLoop (bool &pRunOnLeaveFunction)
	Handles the input loop. Returns cxID_QUIT or cxID_EXIT,.
virtual bool	doCurrentInput (long &pReturnCode, bool &pRunOnLeaveFunction, bool &pFunctionExists, bool pExitOverride=false)
	Gets input from the current input (for use in the input loop).
virtual void	setIsModal (bool pIsModal)
	Sets whether the form is modal or not.
Protected Member Functions inherited from cx::cxWindow
virtual void	reCreatePanel ()
	Creates mPanel (by calling new_panel()), then sets up.
void	freeWindow ()
	Frees the memory used by the ncurses window and.
virtual void	init (int pRow, int pCol, int pHeight, int pWidth, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pParentWindow=nullptr, bool pResizeVertically=true)
	Initializes the window parameters and sets up the internal.
virtual void	removeAllSubwindows ()
	Removes all subwindow pointers.
virtual void	addSubwindow (cxWindow *pSubWindow)
	Adds a subwindow to the window. Subwindows of a.
virtual void	removeSubWindow (const cxWindow *pSubWindow)
	Removes a window from the subwindow list.
virtual void	setElementColor (short &pColorPair, attr_t &pElementAttr, e_cxColors pColor)
	Sets the color (and attribute, if necessary) of a color element.
virtual void	enableAttrs (WINDOW *pWin, e_WidgetItems pItem)
	Enables the attributes for one of the m*Attrs sets for an ncurses window.
virtual void	disableAttrs (WINDOW *pWin, e_WidgetItems pItem)
	Disables the attributes for one of the m*Attrs sets for an ncurses window.
virtual void	writeWithHighlighting (WINDOW *pWindow, const std::string &pText, const int &pY, const int &pStartX, const int &pEndX, int pNormalTextItem=-1)
	Writes text to an ncurses WINDOW, highlighting any characters.
virtual void	copyCxWinStuff (const cxWindow *pThatWindow, bool pRecreateWin=true)
	Makes a copy of a cxWindow's member variables.
virtual void	getRowColBasedOn (cxWindow *pParentWindow, eHPosition pPosition, const std::string &pTitle, const std::string &pStatus, const std::string &pMessage, int &pRow, int &pCol)
	Figures out how to align text based on a title & message.
virtual bool	handleFunctionForLastKey (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last keypress and.
virtual bool	handleFunctionForLastMouseState (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last mouse state captured.
virtual void	draw ()
	Fills the member ncurses window structure with the current.
void	setKeyFunctions (const cxWindow &pWindow)
	Returns whether or not a mouse event location is within.
void	setFocusFunctions (const cxWindow &pWindow)
	Re-sets the onFocus and onLeave functions from another.
bool	parentIsCxPanel () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxForm () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxNotebook () const
	Returns whether or not the parent window, if there is one, is.
cxWindowPtrContainer::const_iterator	subWindows_begin () const
	Returns a const iterator to the first subwindow.
cxWindowPtrContainer::const_iterator	subWindows_end () const
	Returns a const iterator to the one past the last subwindow.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rbegin () const
	Returns a const reverse begin iterator for the subwindow collection.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rend () const
	Returns a const reverse end iterator for the subwindow collection.
bool	onFocusFunctionIsSet () const
	Returns whether or not the onFocus function is set (if.
bool	onLeaveFunctionIsSet () const
	Returns whether or not the onLeave function is set (if.

Additional Inherited Members
Static Public Member Functions inherited from cx::cxObject
static bool	UseColors ()
static void	UseColors (bool useIt)
static bool	UseBeeps ()
static void	UseBeeps (bool useIt)
Protected Types inherited from cx::cxForm
typedef std::vector< std::shared_ptr< cxMultiLineInput > >	inputPtrContainer
Protected Attributes inherited from cx::cxForm
inputPtrContainer	mInputs
int	mCurrentInput = 0
std::vector< std::pair< int, int > >	mInputPositions
bool	mTrapNonAssignedFKeys = true
	If mTrapNonAssignedFKeys is true, function keys that aren't.
bool	mStartAtFirstInput = false
	mStartAtFirstInput keeps track of whether or not the form
Protected Attributes inherited from cx::cxWindow
WINDOW *	mWindow = nullptr
	Everything in the window is written here; this is an nCurses window structure.
messageLineContainer	mMessageLines
	Contains the text to be shown inside the window (note: the.
std::map< std::pair< int, int >, chtype >	mSpecialChars
	Contains "special" characters which are added to the window.
std::set< attr_t >	mMessageAttrs
	Message attributes.
std::set< attr_t >	mTitleAttrs
	Title attributes.
std::set< attr_t >	mStatusAttrs
	Status attributes.
std::set< attr_t >	mBorderAttrs
	Border attributes.
std::set< attr_t >	mHotkeyAttrs
	Hotkey attributes.
std::map< std::pair< int, int >, attr_t >	mSpecialCharAttrs
	Attributes for the "special" characters (which are added to.
short	mMessageColorPair = eWHITE_BLUE
short	mTitleColorPair = eGRAY_BLUE
short	mStatusColorPair = eBROWN_BLUE
short	mBorderColorPair = eGRAY_BLUE
eHPosition	mHorizTitleAlignment = eHP_LEFT
eHPosition	mHorizMessageAlignment = eHP_LEFT
eHPosition	mHorizStatusAlignment = eHP_LEFT
eVPosition	mVerticalMessageAlignment = eVP_TOP
bool	mDrawMessage = true
bool	mDrawTitle = true
bool	mDrawStatus = true
bool	mDrawSpecialChars = true
std::shared_ptr< cxFunction >	mOnFocusFunction = nullptr
std::shared_ptr< cxFunction >	mOnLeaveFunction = nullptr
bool	mIsModal = false
bool	mLeaveNow = false
std::map< int, std::shared_ptr< cxFunction > >	mKeyFunctions
std::map< int, std::shared_ptr< cxFunction > >	mMouseFunctions
std::map< int, bool >	mQuitKeys
std::map< int, bool >	mExitKeys
bool	mHotkeyHighlighting
Static Protected Attributes inherited from cx::cxObject
static bool	useColors
	Whether or not to use colors.
static bool	useBeeps
	Whether or not to enable beeping.

Detailed Description

Represents a form that can.

contain subforms (forms within the

form). Note that this class uses dynamic memory when subforms are added and stores the pointers to the subforms in member data. getForm() can be used to return a pointer to one of the subforms so that you can perform operations on one of the subforms; however, you should never use the 'delete' operator on one of the pointers returned by getForm() because the destructor of this class takes care of freeing the memory used by the subforms.

Constructor & Destructor Documentation

cxMultiForm() [1/2]

cx::cxMultiForm::cxMultiForm ( cxWindow *  pParentWindow = nullptr, int  pRow = 0, int  pCol = 0, int  pHeight = DEFAULT_HEIGHT, int  pWidth = DEFAULT_WIDTH, const std::string &  pTitle = "", eBorderStyle  pBorderStyle = eBS_SINGLE_LINE, cxWindow *  pExtTitleWindow = nullptr, cxWindow *  pExtStatusWindow = nullptr, bool  pAutoExit = false, bool  pStacked = false  )

explicit

Default constructor. All parameters have default values.

Parameters

pParentWindow	Pointer to parent window; default nullptr
pRow	Y location of form; default 0
pCol	X location of form; default 0
pHeight	Height of form, in lines; defaults to 24
pWidth	Width of form; defaults to 80
pTitle	Title of form; defaults to empty string
pBorderStyle	The type of border to use - can be eBS_SINGLE_LINE for a single-line border or eBS_NOBORDER for no border.
pExtTitleWindow	A pointer to another cxWindow in which to display the window title.
pExtStatusWindow	A pointer to another cxWindow in which to display the status.
pAutoExit	Whether or not to exit the form when the user tries to go to the next input from the last input. Defaults to false.
pStacked	If true, the form will behave assuming each input is on its own line.

cxMultiForm() [2/2]

cx::cxMultiForm::cxMultiForm

(

const cxMultiForm &

pThatMultiForm

)

Copy constructor

Parameters

pThatMultiForm

Another cxForm object to be copied

References copyCxMultiFormStuff(), cx::height(), cx::left(), cx::cxForm::setIsModal(), cx::top(), and cx::width().

~cxMultiForm()

cx::cxMultiForm::~cxMultiForm ( )

virtual

Member Function Documentation

addExitKey()

bool cx::cxMultiForm::addExitKey ( int  pKey, bool  pRunOnLeaveFunction = true, bool  pOverride = false  )

overridevirtual

Adds a key that will cause the form to quit and.

return cxID_EXIT. Normally, if the key already exists

as a function key, it will not be added as an exit key.

Parameters

pKey	The key to add
pRunOnLeaveFunction	Whether or not to run the onLeave functions when the multiForm exits. Defaults to true. Note that this affects both the onLeave function for the multiForm, as well as the current subform when the multiForm is modal.
pOverride	If true, then the key will be added as an exit key regardless if the key exists as a function key. This defaults to false.

Returns

Whether or not the key was added

Reimplemented from cx::cxForm.

References cx::cxForm::addExitKey(), and cx::cxWindow::removeQuitKey().

addQuitKey()

bool cx::cxMultiForm::addQuitKey ( int  pKey, bool  pRunOnLeaveFunction = true, bool  pOverride = false  )

overridevirtual

Adds a key that will cause the form to quit and.

return cxID_QUIT. Normally, if the key already exists

as a function key, it will not be added as an exit key.

Parameters

pKey	The key to add
pRunOnLeaveFunction	Whether or not to run the onLeave functions when the multiForm exits. Defaults to true. Note that this affects both the onLeave function for the multiForm, as well as the current subform when the multiForm is modal.
pOverride	If true, then the key will be added as an exit key regardless if the key exists as a function key. This defaults to false.

Returns

Whether or not the key was added

Reimplemented from cx::cxForm.

References cx::cxForm::addQuitKey(), and cx::cxWindow::removeExitKey().

appendForm() [1/3]

virtual std::shared_ptr< cxForm > cx::cxMultiForm::appendForm ( int  pRow, int  pCol, int  pHeight, int  pWidth, const std::string &  pTitle = "", eBorderStyle  pBorderStyle = eBS_NOBORDER, bool  pStacked = false  )

virtual

Appends a subform to the form.

Parameters

pRow	The row of the subform (relative to the parent form)
pCol	The column of the subform (relative to the parent form)
pHeight	The height of the subform
pWidth	The width of the subform
pBorderStyle	The type of border for the subform (defaults to eBS_NOBORDER) - See cxBorderStyles.h for border types
pTitle	The title for the subform (defaults to blank) - Note that this will only appear if the subform has a border.
pStacked	Whether or not the subform should be in 'stacked' mode (with each input above the next).

Returns

A pointer to the subform

Referenced by multiForm(), multiForm2(), and multiFormWithDisabledSubform().

appendForm() [2/3]

virtual bool cx::cxMultiForm::appendForm ( std::shared_ptr< cxForm > &  pForm )

virtual

Appends a subform to the form via a pointer (without.

moving it). The pointer that is passed in must

point to a dynamically-created cxForm object created

with the 'new' operator, because cxMultiForm

cleans up its subform pointers in the destructor with

the 'delete' operator.

Parameters

pForm

A pointer to a cxForm (or a deriving object)

Returns

Whether or not the subform got appended (true/false)

appendForm() [3/3]

virtual bool cx::cxMultiForm::appendForm ( std::shared_ptr< cxForm > &  pForm, int  pRow, int  pCol, bool *  pMoved = nullptr  )

virtual

Appends a subform to the form via a pointer.

The pointer that is passed in must point to a

dynamically-created cxForm object created with

the 'new' operator, because cxMultiForm cleans

up its subform pointers in the destructor with

the 'delete' operator.

Parameters

pForm	A pointer to a cxForm (or a deriving object)
pRow	The row on the form where you want the subform to be located
pCol	The column on the form where you want the subform to be located
pMoved	If non-null, the boolean pointed to by this variable will store whether or not the subform was able to be moved.

Returns

Whether or not the subform got appended (true/false)

clear()

void cx::cxMultiForm::clear ( bool  pRefresh = false )

overridevirtual

Clears the multiForm and all the subforms.

Parameters

pRefresh

Whether or not to refresh the multiForm and the subforms as they are cleared (defaults to false).

Reimplemented from cx::cxWindow.

References cx::cxWindow::clear().

copyCxMultiFormStuff()

void cx::cxMultiForm::copyCxMultiFormStuff ( const cxMultiForm *  pThatMultiForm )

protected

Makes a copy of a cxMultiForm's member variables.

Parameters

pThatMultiForm

A pointer to another cxMultiForm whose members to copy

References cx::cxForm::copyCxFormStuff(), cx::cxWindow::freeWindow(), getLastKey(), cx::cxForm::setIsModal(), and cx::cxForm::setLastKey().

Referenced by cxMultiForm(), and operator=().

cxTypeStr()

string cx::cxMultiForm::cxTypeStr ( ) const

overridevirtual

Returns the name of the cxWidgets class. This can be used to.

determine the type of cxWidgets object that deriving classes

derive from in applications.

Returns

The name of the cxWidgets class.

Reimplemented from cx::cxForm.

doInputLoop()

long cx::cxMultiForm::doInputLoop ( bool  pShowSubforms )

protected

Handles the input loop. Returns cxID_QUIT or cxID_EXIT,.

depending on the user's input. This function is meant

not to be virtual, since it is specifically for

cxMultiForm.

Parameters

pShowSubforms

Whether or not to have the subforms show themselves before running their input loops.

Returns

A return code (cxID_QUIT or cxID_EXIT, depending on the user's input).

References cx::cxID_EXIT, cx::cxID_QUIT, cx::cxForm::getAllowQuit(), cx::cxForm::getAutoExit(), getLastKey(), cx::cxForm::getWaitForInputIfEmpty(), cx::cxWindow::handleFunctionForLastMouseState(), cx::cxForm::hasEditableInputs(), hasEditableSubforms(), cx::messageBox(), cx::cxWindow::mLeaveNow, cx::cxWindow::mouseButton1Clicked(), cx::cxWindow::mouseEvtWasInWindow(), cx::cxWindow::mWindow, cx::cxWindow::parentIsCxPanel(), cx::cxForm::runLoopEndFunction(), cx::cxForm::runLoopStartFunction(), cx::cxWindow::runOnFocusFunction(), and cx::cxForm::setLastKey().

Referenced by showModal().

getAssumeMovingBackwards()

bool cx::cxMultiForm::getAssumeMovingBackwards

(

)

const

Returns whether it will be assumed that the user is moving.

backwards through the subforms when the cxMultiForm gains

focus (see setAssumeMovingBackwards())

Returns

Whether or not to assume the user is moving backwards and to set the cursor on the last input of the last subform.

getCurrentForm()

int cx::cxMultiForm::getCurrentForm ( ) const

virtual

Returns the index of the current form.

Returns

The index of the current form

getForm() [1/2]

virtual std::shared_ptr< cxForm > cx::cxMultiForm::getForm ( const std::string &  pTitle ) const

virtual

Returns a pointer to one of the subforms (by title), or.

nullptr if there is no subform with the given title.

Parameters

pTitle

The title of the subform

Returns

A pointer to the subform, or nullptr if there is no subform with the given title. The return value should always be checked against nullptr before it's used.

getForm() [2/2]

shared_ptr< cxForm > cx::cxMultiForm::getForm ( unsigned  pIndex ) const

virtual

Returns a pointer to one of the subforms (by index), or.

nullptr if the index is out of bounds.

Parameters

pIndex

The index of the subform

Returns

A pointer to the subform, or nullptr if pIndex is out of bounds. The return value should always be checked against nullptr before it's used.

References form().

Referenced by multiForm2_goToForm1_Input1(), and multiForm2_goToForm3_Input1().

getLastKey()

int cx::cxMultiForm::getLastKey ( ) const

overridevirtual

Returns the last key typed by the user.

Returns

The last key typed by the user

Reimplemented from cx::cxWindow.

References cx::cxWindow::getLastKey().

Referenced by copyCxMultiFormStuff(), and doInputLoop().

getSubformIndex() [1/2]

int cx::cxMultiForm::getSubformIndex ( const std::shared_ptr< cxForm > &  pForm ) const

virtual

Returns the index of a subform on the.

form, given a cxForm pointer.

Parameters

pForm

A pointer to a cxForm

Returns

The index of the subform, or -1 if the given cxForm pointer isn't a subform on this form.

References getSubformIndex().

Referenced by getSubformIndex().

getSubformIndex() [2/2]

int cx::cxMultiForm::getSubformIndex ( cxForm *  pForm ) const

virtual

References numSubforms().

getValue() [1/6]

virtual std::string cx::cxMultiForm::getValue ( const std::string &  pStr, bool  pIsLabel = true  ) const

overridevirtual

Returns the value associated with a particular input (by label or name).

Overridden from cxForm to prevent hiding.

Reimplemented from cx::cxForm.

getValue() [2/6]

virtual std::string cx::cxMultiForm::getValue ( const std::string &  pTitle, const std::string &  pLabel, bool  pIsLabel = true  ) const

virtual

Gets the value of an input on one of the subforms (by.

title & label/name).

Parameters

pTitle	The title of the subform
pLabel	The label/name of the input on the subfrom
pIsLabel	If true (default), pLabel specifies the label of the input. If false, pLabel specifies the name of the input.

Returns

The value stored in the input, or a blank string if there is no subform with the given title or if there is no input on the subform with the given label/name.

getValue() [3/6]

virtual std::string cx::cxMultiForm::getValue ( const std::string &  pTitle, int  pInputIndex  ) const

virtual

Gets the value of an input on one of the subforms (by.

title & input index)

Parameters

pTitle	The title of the subform
pInputIndex	The index of the input on the subform

Returns

The value stored in the input, or a blank string if there is no subform with the given title or pInputIndex is out of bounds.

getValue() [4/6]

string cx::cxMultiForm::getValue ( int  pIndex ) const

overridevirtual

Returns the value associated with a particular input (by index).

Overridden from cxForm to prevent hiding.

Reimplemented from cx::cxForm.

References cx::cxForm::getValue().

getValue() [5/6]

virtual std::string cx::cxMultiForm::getValue ( unsigned  pFormIndex, const std::string &  pLabel, bool  pIsLabel = true  ) const

virtual

Gets the value of an input on one of the subforms (by.

index & label/name)

Parameters

pFormIndex	The subform index
pLabel	The label/name of the input on the subform
pIsLabel	If true (default), pLabel specifies the label of the input on the form. If false, pLabel specifies the name of the input.

Returns

The value stored in the input, or a blank string if pFormIndex is out of bounds or there is no input on the subform with the given label/name.

getValue() [6/6]

string cx::cxMultiForm::getValue ( unsigned  pFormIndex, int  pInputIndex  ) const

virtual

Gets the value of an input on one of the subforms (by indexes)

Parameters

pFormIndex	The subform index
pInputIndex	The index of the input on the subform

Returns

The value stored in the input, or a blank string if the indexes are out of bounds.

hasChanged()

bool cx::cxMultiForm::hasChanged ( ) const

overridevirtual

Returns whether or not any inputs on the form,.

or any inputs on any of the subforms, have changed.

Returns

true if the values of any inputs on the form or on any of the subforms have changed; returns false if nothing has changed.

Reimplemented from cx::cxForm.

References cx::cxForm::hasChanged().

hasEditableSubforms()

bool cx::cxMultiForm::hasEditableSubforms

(

)

const

Returns whether any of the subforms contain.

inputs that are currently editable.

Returns

Whether or not any of the subforms contain inputs that are currently editable.

Referenced by doInputLoop().

hide()

void cx::cxMultiForm::hide ( bool  pHideSubwindows = true )

overridevirtual

Hides the form.

Parameters

pHideSubwindows

Whether or not to also hide the subwindows (defaults to true)

Reimplemented from cx::cxForm.

References cx::cxForm::hide().

Referenced by show().

lowestSubformRow()

int cx::cxMultiForm::lowestSubformRow ( unsigned  pIndex = 0 ) const

protected

Returns the lowest row of any subform on the form, starting at.

a given index. Returns -1 if there are no subforms or if

the given index is out of bounds.

Parameters

pIndex

The index at which to start. Defaults to 0.

Returns

The lowest row (relative to the form) of the subforms, or -1 if there are no inputs or pIndex is out of bounds.

References cx::top().

move()

bool cx::cxMultiForm::move ( int  pNewRow, int  pNewCol, bool  pRefresh = true  )

overridevirtual

Changes the window's position (based on a new upper-left corner). Also moves the input windows.

Parameters

pNewRow	The new topmost row of the form
pNewCol	The new leftmost column of the form
pRefresh	Whether or not to refrseh the window (defaults to true)

Returns

Whether or not the move succeeded or not (true/false)

Reimplemented from cx::cxForm.

References cx::left(), cx::cxForm::move(), show(), and cx::top().

Referenced by multiForm().

numSubforms()

size_t cx::cxMultiForm::numSubforms

(

)

const

Returns the number of subforms on the form.

Returns

The number of subforms on the form

Referenced by cx::cxPanel::exitNow(), getSubformIndex(), cx::cxPanel::quitNow(), and setCurrentSubformByPtr().

operator=()

cxMultiForm & cx::cxMultiForm::operator=

(

const cxMultiForm &

pThatMultiForm

)

Assignment operator.

Parameters

pThatMultiForm

Another cxMultiForm to be copied

Returns

References copyCxMultiFormStuff().

removeExitKey()

void cx::cxMultiForm::removeExitKey ( int  pKey )

overridevirtual

Removes an exit key.

Parameters

pKey	The key to remove from the list of exit keys

Reimplemented from cx::cxForm.

References cx::cxForm::removeExitKey().

removeQuitKey()

void cx::cxMultiForm::removeQuitKey ( int  pKey )

overridevirtual

Removes a quit key (but doesn't work for ESC)

Parameters

pKey	The key to remove from the list of quit keys

Reimplemented from cx::cxForm.

References cx::cxForm::removeQuitKey().

removeSubform() [1/2]

virtual bool cx::cxMultiForm::removeSubform ( const std::string &  pTitle )

virtual

Removes a subform (by title).

Parameters

pTitle

The title of the subform

Returns

True if the remove succeeded, or false if not (i.e., if there were no subforms with the given title).

removeSubform() [2/2]

bool cx::cxMultiForm::removeSubform ( unsigned  pIndex )

virtual

Removes a subform (by index).

Parameters

pIndex

The index of the subform

Returns

True if the remove succeeded, or false if not (i.e., if pIndex is out of bounds).

setAssumeMovingBackwards()

void cx::cxMultiForm::setAssumeMovingBackwards

(

bool

pAssumeMovingBackwards

)

Normally, if the cursor is on the last form when a cxMultiForm.

gains focus, the cursor will be set to the last input on that

form, assuming the user is moving backwards through the

subforms. This method can turn that off.

Parameters

pAssumeMovingBackwards

Whether or not to assume the user is moving backwards and to set the cursor on the last input of the last subform.

setChanged()

void cx::cxMultiForm::setChanged ( bool  pDataChanged )

overridevirtual

Setter for whether or not data should be considered changed.

Parameters

pDataChanged

Whether or not data should be considered changed (true/false)

Reimplemented from cx::cxForm.

References cx::cxForm::setChanged().

setCurrentSubform() [1/2]

virtual bool cx::cxMultiForm::setCurrentSubform ( const std::string &  pTitle )

virtual

Changes which subform is to have the focus (by title).

Parameters

pTitle

The title of the subform that should next get focus

Returns

True if successful or false if not

setCurrentSubform() [2/2]

bool cx::cxMultiForm::setCurrentSubform ( int  pIndex )

virtual

Changes which subform is to have the focus (by index).

Parameters

pIndex

The index of the subform that should next get focus

Returns

True if successful or false if not

References cx::cxWindow::mIsModal.

Referenced by multiForm2_goToForm1_Input1(), and multiForm2_goToForm3_Input1().

setCurrentSubformByPtr() [1/2]

virtual bool cx::cxMultiForm::setCurrentSubformByPtr ( const std::shared_ptr< cxForm > &  pForm )

virtual

Changes which subform is to have the focus (by pointer).

This has a different function name so as not to be

ambiguous to the compiler.

Parameters

pForm

A pointer to a cxForm (if it exists in the multiForm, it will then be the current window).

Returns

True if successful or false if not

setCurrentSubformByPtr() [2/2]

bool cx::cxMultiForm::setCurrentSubformByPtr ( cxForm *  pForm )

virtual

References cx::cxWindow::mIsModal, and numSubforms().

setDisableCursorOnShow()

void cx::cxMultiForm::setDisableCursorOnShow ( bool  pDisableCursorOnShow )

overridevirtual

Sets whether the window should disable the cursor.

when it's shown (this is the default behavior).

Parameters

pDisableCursorOnShow

Whether or not to disable the cursor when shown

Reimplemented from cx::cxForm.

References cx::cxForm::setDisableCursorOnShow().

setEnabled()

void cx::cxMultiForm::setEnabled ( bool  pEnabled )

overridevirtual

Enables or disables the multiForm. Enabling/disabling a.

cxMultiForm consequently also enables/disables all the inputs

and subforms.

Parameters

pEnabled

Whether the multiForm should be enabled or not (true/false)

Reimplemented from cx::cxForm.

References cx::cxForm::setEnabled().

setKeyFunction() [1/3]

bool cx::cxMultiForm::setKeyFunction ( int  pKey, funcPtr0  pFunction, bool  pUseReturnVal = false, bool  pExitAfterRun = false, bool  pRunOnLeaveFunction = true  )

overridevirtual

Adds a function to call when the user presses some key. Note that the function key is expected to be F1-F10 (the setFocus() function only expects these keys for running functions).

Parameters

pKey	An int representing a function key
pFunction	The function to be run - Must have signature string func()
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxForm will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.

Returns

True if the key & function was added or false if not

Reimplemented from cx::cxForm.

References cx::cxForm::setKeyFunction().

setKeyFunction() [2/3]

bool cx::cxMultiForm::setKeyFunction ( int  pKey, funcPtr2  pFunction, void *  p1, void *  p2, bool  pUseReturnVal = false, bool  pExitAfterRun = false, bool  pRunOnLeaveFunction = true  )

overridevirtual

Adds a function to call when the user presses some key. Note that the function key is expected to be F1-F10 (the setFocus() function only expects these keys for running functions).

Parameters

pKey	An int representing a function key
pFunction	The function to be run - Must have signature string func(void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxForm will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.

Returns

True if the key & function was added or false if not

Reimplemented from cx::cxForm.

References cx::cxForm::setKeyFunction().

setKeyFunction() [3/3]

bool cx::cxMultiForm::setKeyFunction ( int  pKey, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pUseReturnVal = false, bool  pExitAfterRun = false, bool  pRunOnLeaveFunction = true  )

overridevirtual

Adds a function to call when the user presses some key. Note that the function key is expected to be F1-F10 (the setFocus() function only expects these keys for running functions). Note that functions added with this method take precedence over functions with 2 void parameters.

Parameters

pKey	An int representing a function key
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function *
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxForm will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.

Returns

True if the key & function was added or false if not

Reimplemented from cx::cxForm.

References cx::cxForm::setKeyFunction().

Referenced by multiForm2().

setSubformEnabled() [1/2]

virtual void cx::cxMultiForm::setSubformEnabled ( const std::string &  pTitle, bool  pEnabled  )

virtual

Enables or disables one of the subforms (by title).

Parameters

pTitle	The title of the subform
pEnabled	Whether the subform should be enabled or not (true/false)

setSubformEnabled() [2/2]

void cx::cxMultiForm::setSubformEnabled ( unsigned  pIndex, bool  pEnabled  )

virtual

Enables or disables one of the subforms (by index).

Parameters

pIndex	The index of the subform
pEnabled	Whether the subform should be enabled or not (true/false)

Referenced by multiFormWithDisabledSubform().

setValue() [1/6]

virtual bool cx::cxMultiForm::setValue ( const std::string &  pLabel, const std::string &  pValue, bool  pIsLabel = true, bool  pRefresh = false  )

overridevirtual

Sets the value of one of the inputs on the form (by label/name).

Parameters

pLabel	The label of the input
pValue	The new string value for the input
pIsLabel	If true (default), pLabel specifies the label of the input. If false, pLabel specifies the name of the input.
pRefresh	Whether or not to refresh the input (defaults to false)

Returns

True if successful or false if not

Reimplemented from cx::cxForm.

setValue() [2/6]

virtual bool cx::cxMultiForm::setValue ( const std::string &  pTitle, const std::string &  pLabel, const std::string &  pValue, bool  pIsLabel = true, bool  pRefresh = false  )

virtual

Sets a value of an input on one of the subforms.

Parameters

pTitle	The title of the subform
pLabel	The label/name of the input on the subform
pValue	The value to set in the input
pIsLabel	If true (default), pLabel specifies the label of the input. If false, pLabel specifies the name of the input.
pRefresh	Whether or not to refresh the input (defaults to false)

Returns

true if successful or false if not

setValue() [3/6]

virtual bool cx::cxMultiForm::setValue ( const std::string &  pTitle, int  pInputIndex, const std::string &  pValue, bool  pRefresh = false  )

virtual

Sets a value of an input on one of the subforms.

Parameters

pTitle	The title of the subform
pInputIndex	The index of the input on the subform
pValue	The value to set in the input
pRefresh	Whether or not to refresh the input after the value is set

Returns

true if successful or false if not

setValue() [4/6]

virtual bool cx::cxMultiForm::setValue ( int  pIndex, const std::string &  pValue, bool  pRefresh = false  )

overridevirtual

Sets the value of one of the inputs on the form (by index).

Parameters

pIndex	The index of the input
pValue	The value to be placed at that index.
pRefresh	Whether or not to refresh the input (defaults to false)

Returns

True if successful or false if not

Reimplemented from cx::cxForm.

setValue() [5/6]

virtual bool cx::cxMultiForm::setValue ( unsigned  pFormIndex, const std::string &  pLabel, const std::string &  pValue, bool  pIsLabel = true, bool  pRefresh = false  )

virtual

Sets a value of an input on one of the subforms.

Parameters

pFormIndex	The index of the subform
pLabel	The label/name of the input on the subform
pValue	The value to set in the input
pIsLabel	If true (default), pLabel specifies the label of the input. If false, pLabel specifies the name of the input.
pRefresh	Whether or not to refresh the input (defaults to false)

Returns

true if successful or false if not

setValue() [6/6]

virtual bool cx::cxMultiForm::setValue ( unsigned  pFormIndex, int  pInputIndex, const std::string &  pValue, bool  pRefresh = false  )

virtual

Sets a value of an input on one of the subforms.

Parameters

pFormIndex	The index of the subform
pInputIndex	The index of the input on the subform
pValue	The value to set in the input
pRefresh	Whether or not to refresh the input after the value is set

Returns

true if successful or false if not

show()

long cx::cxMultiForm::show ( bool  pBringToTop = false, bool  pShowSubwindows = true  )

overridevirtual

Shows the form

Parameters

pBringToTop	Whether or not to bring this window to the top. Defaults to false.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true. Note that the subforms are considered subwindows, so if this parameter is false and the first parameter is true, the subforms won't show.

Returns

The return value of cxForm::show()

Reimplemented from cx::cxForm.

References cx::cxFIRST_AVAIL_RETURN_CODE, cx::cxWindow::getShowSelfBeforeSubwins(), hide(), cx::cxWindow::isEnabled(), cx::cxWindow::show(), cx::cxForm::show(), and showAllSubforms().

Referenced by move(), and showModal().

showAllSubforms()

void cx::cxMultiForm::showAllSubforms ( bool  pBringToTop = true, bool  pSkipCurrentForm = false  ) const

virtual

Shows (refreshes) all inputs.

Parameters

pBringToTop	Whether or not to bring the inputs to the top (defaults to true)
pSkipCurrentForm	Whether or not to skip the current form (defaults to false)

References cx::cxWindow::isBelow().

Referenced by show().

showModal()

long cx::cxMultiForm::showModal ( bool  pShowSelf = true, bool  pBringToTop = false, bool  pShowSubwindows = true  )

overridevirtual

Shows the form and waits for input.

Parameters

pShowSelf	Whether or not to show the window before running the input loop. Defaults to true.
pBringToTop	Whether or not to bring this window to the top. Defaults to false.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true. Note that the subforms are considered subwindows, so if this parameter is false and the first parameter is true, the subforms won't show.

Returns

A return code based on user input; see the eReturnCodes enumeration in cxReturnCodes.h

Reimplemented from cx::cxForm.

References cx::cxID_EXIT, doInputLoop(), cx::cxWindow::getLeaveNow(), cx::cxWindow::getReturnCode(), cx::cxWindow::isEnabled(), cx::cxWindow::mIsModal, cx::cxWindow::runOnFocusFunction(), cx::cxWindow::runOnLeaveFunction(), cx::cxWindow::setReturnCode(), and show().

Referenced by multiForm(), multiForm2(), and multiFormWithDisabledSubform().

subformIsEnabled() [1/2]

virtual bool cx::cxMultiForm::subformIsEnabled ( const std::string &  pTitle ) const

virtual

Returns whether one of the subforms is.

enabled (by title).

Parameters

pTitle

The title of the subform

Returns

Whether the subform is enabled or not (true/false). Returns false if there is no subform with the given title.

subformIsEnabled() [2/2]

bool cx::cxMultiForm::subformIsEnabled ( unsigned  pIndex ) const

virtual

Returns whether one of the subforms is.

enabled (by index).

Parameters

pIndex

The index of the subform

Returns

Whether the subform is enabled or not (true/false). Returns false if pIndex is out of bounds.

References cx::cxWindow::isEnabled().

unhide()

void cx::cxMultiForm::unhide ( bool  pUnhideSubwindows = true )

overridevirtual

Un-hides the form.

Parameters

pUnhideSubwindows

Whether or not to also unhide the subwindows (defaults to true)

Reimplemented from cx::cxForm.

References cx::cxWindow::isEnabled(), and cx::cxForm::unhide().

---

The documentation for this class was generated from the following files:

• /home/erico/projects/cxWidgets/src/cxMultiForm.h
• /home/erico/projects/cxWidgets/src/cxMultiForm.cpp
