cx::cxForm Class Reference

Represents a form that contains text inputs. The user can move forward between the inputs on the form using the TAB and down arrow, and backward using SHIFT-TAB or the up arrow. The tab order is is based on the order in which the inputs are appended to the form. The input indexes also match the order in which the inputs are appended to the form, and they are zero-based.
It is a good idea to use unique labels for the inputs or unique names, since many of cxForm's methods access the fields the fields by label/name; in particular, getValues() populates a map of field labels/names and values, and if there are duplicate labels or names, it would not return the values of all the fields on the form.
The function getInput() can be used to get a pointer to one of the inputs, but one caveat of cxForm is that some operations shouldn't be performed on inputs added to a cxForm:
More...

#include <cxForm.h>

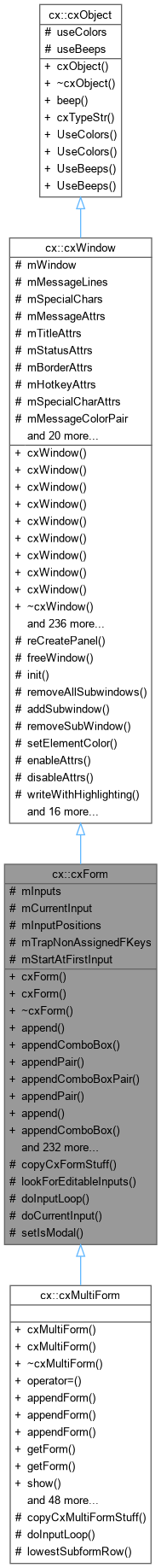

Inheritance diagram for cx::cxForm:

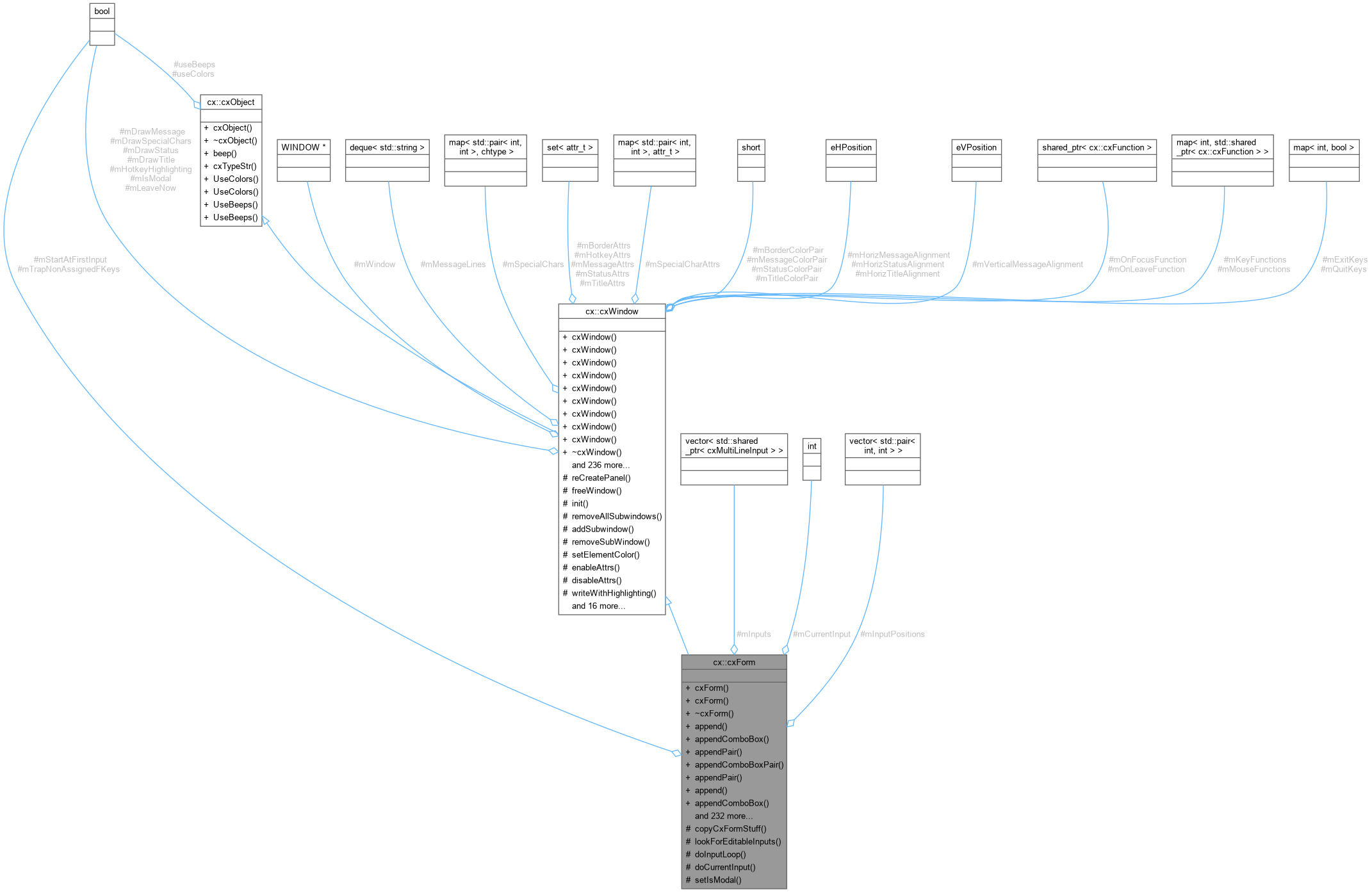

Collaboration diagram for cx::cxForm:

Public Member Functions
	cxForm (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pAutoExit=false, bool pStacked=false)
	cxForm (const cxForm &pThatForm)
virtual	~cxForm ()
virtual std::shared_ptr< cxMultiLineInput >	append (int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue=nullptr, int pRightLabelOffset=0, int pRightLabelHeight=1, int pRightLabelWidth=7, bool pShowRightLabel=false, eInputType pInputType=eIT_CXMULTILINEINPUT)
	Adds an input to the form. Applies the A_STANDOUT attribute.
virtual std::shared_ptr< cxComboBox >	appendComboBox (int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue=nullptr, int pRightLabelOffset=0, int pRightLabelHeight=1, int pRightLabelWidth=7, bool pShowRightLabel=false)
	Adds a combo box to the form. Applies the A_STANDOUT attribute.
virtual cxMLInputPtrPair	appendPair (int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue1=nullptr, std::string *pExtValue2=nullptr, int pRightLabel1Offset=0, int pRightLabel1Height=1, int pRightLabel1Width=7, bool pShowRightLabel1=false, int pRightLabel2Offset=0, int pRightLabel2Height=1, int pRightLabel2Width=7, bool pShowRightLabel2=false, eInputType pInput1Type=eIT_CXMULTILINEINPUT, eInputType pInput2Type=eIT_CXMULTILINEINPUT)
	Appends a pair of inputs to a form, one to the right of the.
virtual cxComboBoxPtrPair	appendComboBoxPair (int pRow, int pCol, int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue1=nullptr, std::string *pExtValue2=nullptr, int pRightLabel1Offset=0, int pRightLabel1Height=1, int pRightLabel1Width=7, bool pShowRightLabel1=false, int pRightLabel2Offset=0, int pRightLabel2Height=1, int pRightLabel2Width=7, bool pShowRightLabel2=false)
	Appends a pair of cxComboBoxes to a form, one to the right of.
virtual void	appendPair (std::shared_ptr< cxMultiLineInput > &pInput1, std::shared_ptr< cxMultiLineInput > &pInput2, int pRow, int pCol, const std::string &pName="")
	Appends 2 inputs to the form, one to the right of the other.
virtual std::shared_ptr< cxMultiLineInput >	append (int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue=nullptr, int pRightLabelOffset=0, int pRightLabelHeight=1, int pRightLabelWidth=7, bool pShowRightLabel=false, eInputType pInputType=eIT_CXMULTILINEINPUT)
	Appends an input to the form below the last item currently in.
virtual std::shared_ptr< cxComboBox >	appendComboBox (int pHeight, int pWidth, const std::string &pLabel, const std::string &pValidator="", const std::string &pHelpString="", eInputOptions pInputOption=eINPUT_EDITABLE, const std::string &pName="", std::string *pExtValue=nullptr, int pRightLabelOffset=0, int pRightLabelHeight=1, int pRightLabelWidth=7, bool pShowRightLabel=false)
	Appends a combo box to the form below the last.
virtual std::shared_ptr< cxMultiLineInput >	append (const cxMultiLineInput &pInput)
	Appends a copy of an input to a form.
virtual void	append (std::shared_ptr< cxMultiLineInput > &pInput, int pRow, int pCol, bool *pMoved=nullptr)
	Appends a cxMultiLineInput to the form via a pointer.
virtual void	remove (unsigned int pIndex)
virtual void	remove (const std::string &pLabel, bool pIsLabel=true)
virtual void	remove (const std::shared_ptr< cxMultiLineInput > &pInput)
virtual void	remove (cxMultiLineInput *pInput)
virtual void	removeAll ()
	Removes all inputs from the form.
virtual void	setFieldKeyFunction (const std::string &pLabel, int pFunctionKey, const std::shared_ptr< cxFunction > &pFieldFunction, bool pIsLabel=true)
virtual void	setFieldKeyFunction (const std::string &pLabel, int pFunctionKey, funcPtr4 pFieldFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pExitAfterRun=false, bool pIsLabel=true)
virtual void	setFieldKeyFunction (unsigned pIndex, int pFunctionKey, funcPtr4 pFieldFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pExitAfterRun=false)
virtual void	setFieldKeyFunction (const std::string &pLabel, int pFunctionKey, funcPtr2 pFieldFunction, void *p1, void *p2, bool pUseVal, bool pExitAfterRun=false, bool pIsLabel=true)
virtual void	setFieldKeyFunction (unsigned int pIndex, int pFunctionKey, const std::shared_ptr< cxFunction > &pFieldFunction)
virtual void	setFieldKeyFunction (unsigned int pIndex, int pFunctionKey, funcPtr2 pFieldFunction, void *p1, void *p2, bool pUseVal, bool pExitAfterRun=false)
virtual void	setOnFocusFunction (const std::shared_ptr< cxFunction > &pFunction) override
	Sets the form window's "on focus" function.
virtual void	setOnFocusFunction (const std::string &pLabel, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
virtual void	setOnFocusFunction (unsigned pIndex, const std::shared_ptr< cxFunction > &pFunction)
virtual void	setOnFocusFunction (const std::string &pLabel, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pIsLabel=true)
virtual void	setOnFocusFunction (unsigned pIndex, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal)
virtual void	setOnLeaveFunction (const std::shared_ptr< cxFunction > &pFunction) override
	Sets the form window's "on leave" function.
virtual void	setOnLeaveFunction (const std::string &pLabel, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
virtual void	setOnLeaveFunction (unsigned pIndex, const std::shared_ptr< cxFunction > &pFunction)
virtual void	setOnLeaveFunction (const std::string &pLabel, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pIsLabel=true)
virtual void	setOnLeaveFunction (unsigned pIndex, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
virtual void	setFieldLabel (unsigned pIndex, const std::string &pLabel)
virtual void	setFieldLabel (const std::string &pName, const std::string &pLabel)
virtual void	setFieldName (unsigned pIndex, const std::string &pName)
virtual void	setFieldName (const std::string &pLabel, const std::string &pName)
	Sets a field name (by label)
virtual void	enableInputLoop (const std::string &pLabel, bool pDoInputLoop, bool pIsLabel=true)
	Enables or disables the input loop for one of the.
virtual void	enableInputLoop (unsigned pIndex, bool pDoInputLoop)
	Enables or disables the input loop for one of the.
virtual void	setAutoExit (bool pAutoExit)
	Sets whether the form should automatically exit when the user.
bool	getAutoExit () const
	Returns the set value of whether the form should exit upon.
virtual void	setStartAtFirstInput (bool pStartAtFirstInput)
	Sets whether or not to always start at the first editable.
bool	getStartAtFirstInput () const
	Returns whether or not the form will always start at the first.
void	setApplyAttrDefaults (bool pApplyAttrDefaults)
	Sets whether to apply the default attributes to the inputs when.
bool	getApplyAttrDefaults () const
	Returns whether default attributes are applied to new inputs.
virtual long	show (bool pBringToTop=false, bool pShowSubwindows=true) override
	Shows the form.
virtual long	showModal (bool pShowSelf=true, bool pBringToTop=false, bool pShowSubwindows=true) override
	Shows the form and waits for input.
virtual bool	modalGetsKeypress () const override
	Returns whether or not a call to showModal() will wait for a.
virtual void	hide (bool pHideSubwindows=true) override
virtual void	unhide (bool pUnhideSubwindows=true) override
virtual bool	move (int pNewRow, int pNewCol, bool pRefresh=true) override
size_t	numInputs () const
	Returns the number of inputs in the form.
virtual std::string	getValue (int pIndex) const
virtual std::string	getValue (const std::string &pStr, bool pIsLabel=true) const
virtual std::string	getLabel (int pIndex) const
	Returns the label of one of the inputs (by index).
virtual std::string	getName (int pIndex) const
	Returns the name of one of the inputs (by index).
virtual std::string	getName (const std::string &pLabel) const
	Returns the name of one of the inputs (by label).
virtual std::string	getStatus (int pIndex) const
	Returns the status text of one of the inputs (by index).
virtual std::string	getStatus (const std::string &pLabel, bool pIsLabel=true) const
	Returns the status text of one of the inputs (by label/name).
virtual bool	setValue (int pIndex, const std::string &pValue, bool pRefresh=false)
virtual bool	setValue (const std::string &pLabel, const std::string &pValue, bool pIsLabel=true, bool pRefresh=false)
virtual int	refreshInput (unsigned pIndex)
virtual int	refreshInput (const std::string &pStr, bool pIsLabel=true)
bool	setMaskChar (int pIndex, char pMaskChar)
bool	setMaskChar (const std::string &pLabel, char pMaskChar, bool pIsLabel=true)
	Sets the masking character for an input (by label).
bool	getMasked (int pIndex)
bool	getMasked (const std::string &pLabel, bool pIsLabel=true)
virtual bool	toggleMasking (int pIndex, bool pMasking)
virtual bool	toggleMasking (const std::string &pLabel, bool pMasking, bool pIsLabel=true)
	Enables/disables masking for an input (by label).
virtual bool	setCurrentInput (int pIndex)
	Changes which input on the form should have focus (by index).
virtual bool	setCurrentInput (const std::string &pLabel, bool pIsLabel=true)
	Changes which input on the form should have focus (by label/name).
virtual bool	setCurrentInputByPtr (const std::shared_ptr< cxMultiLineInput > &pInput)
	Changes which input on the form should have focus (by pointer).
virtual bool	setCurrentInputByPtr (const cxMultiLineInput *const pInput)
virtual bool	setKeyFunction (int pKey, const std::shared_ptr< cxFunction > &pFunction) override
	Sets a function to be called when a key is pressed.
virtual void	clearKeyFunction (int pKey) override
	Removes a function pointer for a keypress for the form so that it will no.
virtual bool	setKeyFunction (int pKey, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true) override
	Adds a function to call when the user presses some key.
virtual bool	setKeyFunction (int pKey, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true) override
	Adds a function to call when the user presses some key.
virtual bool	setKeyFunction (int pKey, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true) override
	Adds a function to call when the user presses some key.
virtual bool	setKeyFunction (int pIndex, int pKey, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called when a key is pressed.
virtual bool	setKeyFunction (const std::string &pLabel, int pKey, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
	Sets a function to be called when a key is pressed.
virtual bool	setKeyFunction (int pIndex, int pKey, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (const std::string &pLabel, int pKey, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator, bool pIsLabel=true)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (int pIndex, int pKey, funcPtr2 pFunction, void *p1, void *p2, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (const std::string &pLabel, int pKey, funcPtr2 pFunction, void *p1, void *p2, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator, bool pIsLabel=true)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (int pIndex, int pKey, funcPtr0 pFunction, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator)
	Adds a function to call when the user presses some key for.
virtual bool	setKeyFunction (const std::string &pLabel, int pKey, funcPtr0 pFunction, bool pUseVal, bool pExitAfterRun, bool pRunOnLeaveFunction, bool pRunValidator, bool pIsLabel=true)
	Adds a function to call when the user presses some key for.
bool	allFieldsBlank () const
void	setLabelColor (const int &pIndex, e_cxColors pColor)
	Sets the color of the label of one of the inputs (by index)
void	setLabelColor (const std::string &pLabel, e_cxColors pColor, bool pIsLabel=true)
	Sets the color of the label of one of the inputs (by label/name)
void	setAllLabelColor (e_cxColors pColor)
	Sets the color of the labels on all inputs.
int	getLabelColor (const int &pIndex) const
	Returns the label color of one of the inputs (by index).
int	getLabelColor (const std::string &pLabel, bool pIsLabel=true) const
	Returns the label color of one of the inputs (by label/name).
void	setValueColor (const int &pIndex, e_cxColors pColor)
	Sets the color of the value section of one of the inputs (by index)
void	setValueColor (const std::string &pLabel, e_cxColors pColor, bool pIsLabel=true)
	Sets the color of the value section of one of the inputs (by label/name)
void	setAllValueColor (e_cxColors pColor)
	Sets the color of the value section of all inputs on the form.
int	getValueColor (const int &pIndex) const
	Returns the color of the value section of one of the inputs (by index).
int	getValueColor (const std::string &pLabel, bool pIsLabel=true) const
	Returns the color of the value section of one of the inputs (by label/name).
void	setAllColors (e_cxColors pLabelColor, e_cxColors pValueColor)
	Sets the label & value colors of all inputs on the form.
virtual void	setColor (e_WidgetItems pItem, e_cxColors pColor) override
	Sets the color of one of the window items. For label & value.
int	inputTopRow (int pIndex) const
	Returns the top row of an input (by index), or -1 if the given.
int	inputTopRow (const std::string &pLabel, bool pIslabel=true) const
	Returns the top row of an input (by label/name), or -1 if there is no.
int	inputLeftCol (int pIndex) const
	Returns the left column of an input (by index), or -1 if the given.
int	inputLeftCol (const std::string &pLabel, bool pIsLabel=true) const
	Returns the left column of an input (by label/name), or -1 if there are.
int	inputHeight (int pIndex) const
	Returns the height of an input (by index), or -1 if the given index.
int	inputHeight (const std::string &pLabel, bool pIsLabel=true) const
	Returns the height of an input (by label/name), or -1 if there is no input.
int	inputWidth (int pIndex) const
	Returns the width of an input (by index), or -1 if the given index.
int	inputWidth (const std::string &pLabel, bool pIsLabel=true) const
	Returns the width of an input (by label/name), or -1 if there is.
int	maxInputLen (int pIndex) const
	Returns the maximum length of input accepted by an input (by index),.
int	maxInputLen (const std::string &pLabel, bool pIsLabel=true) const
	Returns the maximum length of input accepted by an input (by index),.
std::string	inputLabel (int pIndex) const
	Returns the label of an input at a given index.
std::string	inputLabel (const std::string &pName) const
	Returns the label of an input.
std::string	inputName (int pIndex) const
	Returns the name of an input at a given index.
std::string	inputName (const std::string &pLabel) const
	Returns the name of an input.
virtual void	scrollInputs (int pVScrollAmt, int pHScrollAmt, bool pRefresh=false, bool pBringToTop=false)
	Scrolls (moves) the inputs in the window.
virtual void	toggleCursor (int pIndex, bool pShowCursor)
	Toggles the display of the cursor for an input (by index).
virtual void	toggleCursor (const std::string &pLabel, bool pShowCursor, bool pIsLabel=true)
	Toggles the display of the cursor for an input (by label/name).
virtual void	toggleCursor (bool pShowCursor)
	Toggles the display of the cursor on all inputs.
std::shared_ptr< cxMultiLineInput >	getInput (int pIndex) const
	Returns a pointer to an input at a given index, or nullptr if the index.
std::shared_ptr< cxMultiLineInput >	getInput (const std::string &pLabel, bool pIsLabel=true) const
	Returns a pointer to an input with a given label/name, or.
std::shared_ptr< cxMultiLineInput >	getCurrentInput () const
	Returns a pointer to the current input. If there are no inputs.
virtual int	getInputOption (int pIndex) const
	Returns the editability option for an input (by index).
virtual int	getInputOption (const std::string &pLabel, bool pIsLabel=true) const
	Returns the editability option for an input (by label/name).
virtual void	setInputOption (int pIndex, eInputOptions pInputOption, bool pRefresh=true)
	Sets the input kind for one of the inputs (by index).
virtual void	setInputOption (const std::string &pLabel, eInputOptions pInputOption, bool pIsLabel=true, bool pRefresh=true)
	Sets the input kind for one of the inputs (by label/name).
virtual void	setAllInputOption (eInputOptions pInputOption, bool pRefresh=true)
	Sets the input kind for all inputs on the form.
virtual void	setStatus (const std::string &pStatus, bool pRefreshStatus=true) override
	Mutator for the status line text. After this method.
virtual void	disableCustomStatus (bool pRefreshStatus=true)
	Turns off the custom status text set with setStatus.
virtual void	setValidatorFunction (int pIndex, const std::shared_ptr< cxFunction > &pFunction)
	Sets a validator function to be run before focus is lost for one.
virtual void	setValidatorFunction (int pIndex, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
	Sets a validator function to be run before focus is lost for one.
virtual void	setValidatorFunction (const std::string &pLabel, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
	Sets a validator function to be run before focus is lost for one.
virtual void	setValidatorFunction (const std::string &pLabel, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pIsLabel=true)
	Sets a validator function to be run before focus is lost for one.
virtual void	showInputsOnBorder (bool pShowInputsOnBorder)
	Toggles whether to show inputs if they're on.
virtual void	setOnKeyFunction (int pIndex, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be run whenever a key is pressed in an input (by index).
virtual void	setOnKeyFunction (int pIndex, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
	Sets a function to be run whenever a key is pressed in an input (by index).
virtual void	setOnKeyFunction (const std::string &pLabel, const std::shared_ptr< cxFunction > &pFunction, bool pIsLabel=true)
	Sets a function to be run whenever a key is pressed in an.
virtual void	setOnKeyFunction (const std::string &pLabel, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pIsLabel=true)
	Sets a function to be run whenever a key is pressed in an.
virtual void	setOnKeyFunction (int pIndex, funcPtr2 pFunction, void *p1, void *p2)
	Sets a function to be run whenever a key is pressed in an input (by index).
virtual void	setOnKeyFunction (const std::string &pLabel, funcPtr2 pFunction, void *p1, void *p2, bool pIsLabel=true)
	Sets a function to be run whenever a key is pressed in an.
virtual void	setOnKeyFunction (int pIndex, funcPtr0 pFunction)
	Sets a function to be run whenever a key is pressed in an input (by index).
virtual void	setOnKeyFunction (const std::string &pLabel, funcPtr0 pFunction, bool pIsLabel=true)
	Sets a function to be run whenever a key is pressed in an.
virtual void	setAllOnKeyFunction (const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be run whenever a key is pressed, in all.
virtual void	setAllOnKeyFunction (funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4)
	Sets a function to be run whenever a key is pressed, in all.
virtual void	setAllOnKeyFunction (funcPtr2 pFunction, void *p1, void *p2)
	Sets a function to be run whenever a key is pressed, in all.
virtual void	setAllOnKeyFunction (funcPtr0 pFunction)
	Sets a function to be run whenever a key is pressed, in all.
virtual void	toggleOnKeyFunction (int pIndex, bool pRunOnKeyFunction)
	Sets whether or not an onKey function should run for one of the.
virtual void	toggleOnKeyFunction (const std::string &pLabel, bool pRunOnKeyFunction, bool pIsLabel=true)
	Sets whether or not an onKey function should run for one of the.
virtual void	toggleAllOnKeyFunction (bool pRunOnKeyFunction)
	Sets whether or not the onKey function for all inputs should.
virtual bool	onKeyFunctionEnabled (int pIndex) const
	Returns whether the onKey function is enabled for one of the.
virtual bool	onKeyFunctionEnabled (const std::string &pLabel, bool pIsLabel=true) const
	Returns whether the onKey function is enabled for one of the.
cxForm &	operator= (const cxForm &pThatForm)
	Assignment operator.
virtual bool	addInputJumpKey (int pKey, int pIndex)
virtual bool	addInputJumpKey (int pKey, const std::string &pLabel, bool pIsLabel=true)
	Adds a hotkey for the form that will cause the.
virtual int	getCurrentInputIndex () const
	Returns the index of the input that currently has focus.
virtual std::string	getCurrentInputLabel () const
	Returns the label of the input that currently has focus.
virtual std::string	getCurrentInputName () const
	Returns the name of the input that currently has focus.
virtual int	getInputIndex (const std::string &pLabel, bool pIsLabel=true) const
	Returns the index of an input, based on its label or name.
virtual int	getInputIndex (const std::shared_ptr< cxMultiLineInput > &pInput) const
	Returns the index of an input based on a pointer. May.
virtual int	getInputIndex (const cxMultiLineInput *pInput) const
virtual void	setInputJumpKey (int pInputJumpKey)
	Sets the hotkey to be used to bring up the menu to choose.
virtual int	getInputJumpKey () const
	Returns which key is being used as the jump hotkey.
virtual void	setCanBeEditable (int pIndex, bool pCanBeEditable)
	Sets whether an input can be set editable (by index). If.
virtual void	setCanBeEditable (const std::string &pLabel, bool pCanBeEditable, bool pIsLabel=true)
	Sets whether an input can be set editable (by label/name). For.
virtual void	setAllCanBeEditable (bool pCanBeEditable)
	Sets the ability of all inputs to be able to be editable.
virtual bool	canBeEditable (int pIndex) const
	Returns whether or not an input can be set editable.
virtual bool	canBeEditable (const std::string &pLabel, bool pIsLabel=true) const
	Returns whether or not an input can be set editable.
virtual bool	anyInputsCanBeEditable () const
	Returns whether any input on the form (at least 1) can be set editable.
virtual void	setAllowQuit (bool pAllowQuit)
	Sets whether the form should allow the user to quit.
virtual bool	getAllowQuit () const
	Returns whether the user is able to quit out of the form.
virtual void	setAllowExit (bool pAllowExit)
	Sets whether the form should allow the user to exit.
virtual bool	getAllowExit () const
	Returns whether the user is able to exit out of the form.
virtual bool	addQuitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false) override
	Adds a key that will cause the form to quit and return.
virtual void	removeQuitKey (int pKey) override
	Removes a quit key (but doesn't work for ESC)
virtual bool	addExitKey (int pKey, bool pRunOnLeaveFunction=true, bool pOverride=false) override
	Adds a key that will cause the form to quit and return.
virtual void	removeExitKey (int pKey) override
	Removes an exit key.
virtual void	setOnFocusFunction (funcPtr4 pFuncPtr, void *p1, void *p2, void *p3, void *p4, bool pUseVal=false, bool pExitAfterRun=false) override
	Sets a function to be run when focus is gained (at.
virtual void	setOnFocusFunction (funcPtr2 pFuncPtr, void *p1, void *p2, bool pUseVal=false, bool pExitAfterRun=false) override
	Sets a function to be run when focus is gained (at.
virtual void	setOnFocusFunction (funcPtr0 pFuncPtr, bool pUseVal=false, bool pExitAfterRun=false) override
	Sets a function to be run when focus is gained (at.
virtual void	setLoopStartFunction (const std::shared_ptr< cxFunction > &pFuncPtr)
	Sets a function to be run at the start of each.
virtual void	setLoopEndFunction (const std::shared_ptr< cxFunction > &pFuncPtr)
	Sets a function to be run at the end of each.
virtual void	setOnLeaveFunction (funcPtr4 pFuncPtr, void *p1, void *p2, void *p3, void *p4) override
	Sets a function to be run when focus is lost.
virtual void	setOnLeaveFunction (funcPtr2 pFuncPtr, void *p1, void *p2) override
	Sets a function to be run when focus is lost.
virtual void	setOnLeaveFunction (funcPtr0 pFuncPtr) override
	Sets a function to be run when focus is lost.
virtual void	showAllInputs (bool pBringToTop=true, bool pSkipCurrentInput=false) const
	Shows (refreshes) all inputs.
virtual bool	formKeyIsSet (int pKey) const
	Returns whether a key is set as a form function.
virtual bool	isStacked () const
	Returns whether or not the form is in 'stacked'.
virtual bool	getExitOnLeaveFirst () const
	Returns whether the form is set to exit its showModal() when.
virtual void	setExitOnLeaveFirst (bool pExitOnLeaveFirst)
	Sets whether the form should exit when the user leaves.
virtual bool	hasEditableInputs () const
	Returns whether the form has any inputs that are.
virtual int	firstEditableInput () const
	Returns the index of the first editable input in.
virtual int	lastEditableInput () const
	Returns the index of the last editable input in.
virtual void	bringToTop (bool pRefresh=true) override
	Brings the window to the top.
virtual bool	hasChanged () const
	Returns whether or not any data on the form has changed.
virtual void	setChanged (bool pDataChanged)
	Setter for whether or not data should be considered changed.
virtual void	trapNonAssignedFKeys (bool pTrapNonAssignedFKeys)
	Sets whether non-assigned function keys should.
cxMultiForm *	getParentMultiForm () const
	Returns the parent cxMultiForm pointer.
virtual void	setParentMultiForm (cxMultiForm *pParentMultiForm)
	Sets the parent cxMultiForm that this cxForm is associated with.
virtual bool	runLoopStartFunction ()
	Runs the loop start function, if it's set.
virtual bool	runLoopEndFunction ()
	Runs the loop end function, if it's set.
virtual int	maxValueLen (int pIndex) const
	Returns the maximum length of the value that may be set for an.
virtual int	maxValueLen (const std::string &pLabel, bool pIsLabel=true)
	Returns the maximum length of the value that may be set for an.
virtual bool	isEditable (int pIndex) const
	Returns whether one of the inputs on.
virtual bool	isEditable (const std::string &pLabel, bool pIsLabel=true) const
	Returns whether one of the inputs on.
virtual void	setDisableCursorOnShow (bool pDisableCursorOnShow) override
	Sets whether the window should disable the cursor.
virtual void	setWaitForInputIfEmpty (bool pWaitForInputIfEmpty)
	Toggles whether or not the form should wait for.
virtual bool	getWaitForInputIfEmpty () const
	Returns whether or not the form will wait for.
virtual void	clearInputs (bool pRefresh=false, bool pOnlyEditable=false)
	Clears the values of all the inputs on the form.
virtual void	getValues (std::map< std::string, std::string > &pValues, bool pUseLabels=true, bool pSkipBlankIDs=false) const
	Gets the values from the form in the form of a map of input.
virtual void	setValues (const std::map< std::string, std::string > &pValues, bool pUseLabels=true, bool pRefresh=false, bool pDisableValidatorFunctions=false)
	Sets the values in the form with a map of input labels/names.
virtual void	setEnabled (bool pEnabled) override
	Enables or disables the form. Enabling/disabling a.
virtual void	useInputStatus (bool pUseInputStatus)
	Toggles whether or not to use the status text of the inputs.
virtual bool	hasInput (const std::string &pStr, bool pIsLabel=true) const
	Returns whether or not the form has an input with a given.
virtual cxWindow *	getParent () const override
	Returns a pointer to the parent window. If the cxForm.
virtual void	addAttr (e_WidgetItems pItem, attr_t pAttr) override
	Returns the index of the next editable input after a given.
virtual void	setAttr (e_WidgetItems pItem, attr_t pAttr) override
	Sets the ncurses attribute to use for one of the items in the.
virtual void	removeAttr (e_WidgetItems pItem, attr_t pAttr) override
	Removes an ncurses attribute from one of the item lists. For.
virtual void	removeAttrs (e_WidgetItems pItem) override
	Removes all attributes for a given window item. For eLABEL,.
virtual void	getAttrs (e_WidgetItems pItem, std::set< attr_t > &pAttrs) const override
	Returns the set of ncurses attributes for a given item.
virtual void	getNavKeys (std::set< int > &pNavKeys) const
	Gathers a set of keys considered to be "navigational" keys from.
virtual void	getNavKeyStrings (std::set< std::string > &pNavKeyStrings) const
	Creates a set of string representations of keys considered to.
virtual bool	hasNavKey (int pKey) const
	Returns whether at least one of the inputs on the form has.
virtual std::string	cxTypeStr () const override
	Returns the name of the cxWidgets class. This can be used to.
virtual void	setLastKey (int pLastKey) override
	Sets the last keypress.
virtual void	quitNow () override
	This causes the form to exit its input loop with a code of.
virtual void	exitNow () override
	This causes the form to exit its input loop with a code of.
virtual void	setExtendedHelpKey (int pKey)
	Sets a single key to use to display extended help for all.
virtual void	addExtendedHelpKey (int pKey)
	Adds an additional key to be used to display the extended.
virtual std::set< int >	getExtendedHelpKeys () const
	Returns the keys used to display extended help for the inputs.
std::string	getExtendedHelpKeyStrings () const
	Returns a comma-separated list of strings representing the.
virtual void	clearExtendedHelpKeys ()
	Removes all extended help keys.
virtual void	setUseExtendedHelpKeys (bool pUseExtendedHelpKeys)
	Sets whether or not to use the extended help keys.
virtual bool	getUseExtendedHelpKeys () const
	Returns whether or not the extended help keys are enabled.
virtual std::string	getExtendedHelp (int pIndex) const
	Gets the extended help string from one of the inputs (by.
virtual std::string	getExtendedHelp (const std::string &pIDStr, bool pIsLabel=true) const
	Returns the extended help string from one of the inputs (by.
virtual void	setExtendedHelp (int pIndex, const std::string &pExtendedHelp)
	Sets the extended help for one of the inputs (by index).
virtual void	setExtendedHelp (const std::string &pIDStr, const std::string &pExtendedHelp, bool pIsLabel=true)
	Sets the extended help for one of the inputs (by label/name).
virtual void	validateOnJumpKey (int pIndex, bool pValidate)
	Sets whether or not the validator function should run for an.
virtual void	validateOnJumpKey (const std::string &pID, bool pValidate, bool pIsLabel=true)
	Sets whether or not the validator function should run for an.
virtual void	allValidateOnJumpKey (bool pValidate)
	Sets whether or not the validator function should run for all.
virtual bool	swap (int pInput1Index, int pInput2Index)
	Swaps the order of 2 inputs (by index). If both indexes.
virtual bool	swap (std::shared_ptr< cxWindow > &pInput1, std::shared_ptr< cxWindow > &pInput2)
	Swaps the order of 2 inputs (by pointer). If both pointers.
std::string	getName () const
std::string	getStatus () const
	Accessor for the status line text.
Public Member Functions inherited from cx::cxWindow
	cxWindow (cxWindow *pParentWindow=nullptr, int pRow=0, int pCol=0, int pHeight=DEFAULT_HEIGHT, int pWidth=DEFAULT_WIDTH, const std::string &pTitle="", const std::string &pMessage="", const std::string &pStatus="", eBorderStyle pBorderStyle=eBS_SINGLE_LINE, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Default constructor.
	cxWindow (cxWindow *pParentWindow, int pRow, int pCol, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, const std::string &pStatus, int pHeight, int pWidth, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, const std::string &pMessage, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Centers the window in the middle of the screen.
	cxWindow (cxWindow *pParentWindow, eHPosition pHPosition, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pExtTitleWindow=nullptr, cxWindow *pExtStatusWindow=nullptr, bool pHotkeyHighlighting=false)
	Overloaded constructor - Lets you specify the horizontal position.
	cxWindow (const cxWindow &pThatWindow)
	Copy constructor.
virtual	~cxWindow ()
virtual void	centerHoriz (bool pRefresh=true)
	Centers the window horizontally on the screen.
virtual void	alignHoriz (eHPosition pPosition, bool pRefresh=true)
	Aligns the window horizontally on the screen.
virtual void	centerVert (bool pRefresh=true)
	Centers the window vertically on the screen.
virtual void	alignVert (eVPosition pPosition, bool pRefresh=true)
	Aligns the window vertically on the screen.
virtual void	center (bool pRefresh=true)
	Centers the window on the screen.
virtual std::string	getTitle () const
	Accessor for title text - Returns the first string in the.
virtual void	setTitle (const std::string &pTitle, bool pRefreshTitle=true)
	Setter for the title text - This sets the first string in the.
std::string	getStatus () const
	Accessor for the status line text.
std::string	getMessage () const
	Returns the message that appears in the window, concatenating all message lines together.
virtual void	setMessage (const std::string &pMessage)
	Sets the text that appears within the window.
virtual void	addMessageLineBelow (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesBelow (const std::vector< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::list< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLinesBelow (const std::deque< std::string > &pLines)
	Adds lines to the message below the current message text.
virtual void	addMessageLineAbove (const std::string &pLine)
	Adds a line to the message to be displayed in the window,.
virtual void	addMessageLinesAbove (const std::vector< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::list< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	addMessageLinesAbove (const std::deque< std::string > &pLines)
	Adds lines to the message above the current message text.
virtual void	setMessageLines (const std::vector< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::list< std::string > &pLines)
	Sets the message lines in the window.
virtual void	setMessageLines (const std::deque< std::string > &pLines)
	Sets the message lines in the window.
virtual void	removeMessageLine (unsigned pIndex)
	Removes a line from the text inside the window (by index).
virtual void	setMessageLine (unsigned pIndex, const std::string &pLine)
	Modifies one of the lines displayed in the window.
void	setHorizTitleAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the title text.
eHPosition	getHorizTitleAlignment () const
	Accessor for the title text alignment.
void	setHorizMessageAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the message text.
eHPosition	getHorizMessageAlignment () const
	Accessor for the horizontal message text alignment.
void	setHorizStatusAlignment (eHPosition pHAlignment)
	Sets the horizontal alignment of the status text.
eHPosition	getHorizStatusAlignment () const
	Accessor for the horizontal status text alignment.
void	setVerticalMessageAlignment (eVPosition pVAlignment)
	Sets the vertical alignment of the message text.
eVPosition	getVerticalMessageAlignment () const
	Accessor for the vertical message text alignment.
void	setExtTitleWindow (cxWindow *pWindow, bool pRefreshTitle=true)
	Sets an external cxWindow object to be used for the title, rather.
cxWindow *	getExtTitleWindow () const
	Accessor for the external title window pointer.
void	setExtStatusWindow (cxWindow *pWindow, bool pRefreshStatus=true)
	Sets an external cxWindow object to be used for status, rather.
cxWindow *	getExtStatusWindow () const
	Accessor for the external status window pointer.
bool	isHidden () const
	Returns whether or not the window is hidden.
virtual long	setFocus (bool pShowSelf=true, bool pBringToTop=true, bool pShowSubwindows=true)
	Alias for showModal()
virtual void	setFocusColors ()
	Turns on the ncurses attribute A_REVERSE for the window to.
virtual void	setFocusColors (attr_t pAttr)
	Turns on the ncurses attribute pAttr for the window to.
virtual void	unSetFocusColors ()
	Disables focus for this window and unhighlights the message.
virtual void	unSetFocusColors (attr_t pAttr)
	Disables focus for this window and un-highlights the message (using pAttr)
virtual void	erase (bool pEraseSubwindows=true)
	Erases the window.
virtual void	bringToBottom (bool pRefresh=false)
	Puts the window on the bottom of all other windows.
virtual bool	isOnTop () const
	Returns whether the window is on top of all other windows.
virtual bool	isOnBottom () const
	Returns whether the window is on the bottom of all other windows.
virtual bool	isAbove (const cxWindow &pThatWindow) const
	Returns whether the window is above another window.
virtual bool	isBelow (const cxWindow &pThatWindow) const
	Returns whether a window is below another window.
void	touchWindow ()
	Marks the window's entire content as dirty so that the next.
virtual void	drawBorder (int pRow, int pCol, int pHeight, int pWidth, bool pTop=true, bool pBottom=true, bool pLeft=true, bool pRight=true)
	Draws the border (based on the border style)
virtual void	drawBorder (int pHeight, int pWidth)
	Draws a box in the window.
virtual void	drawBorder ()
	Draws a box for the window border.
virtual int	top () const
	Returns the top row of the window.
virtual int	centerRow () const
	Returns the center row of the window.
virtual int	bottom () const
	Returns the bottom row of the window.
virtual int	left () const
	Returns the left column of the window.
virtual int	centerCol () const
	Returns the center column of the window.
virtual int	right () const
	Returns the right column of the window.
virtual int	width (int pWidth)
	Changes the width of the window.
virtual int	width () const
	Returns the width of the window.
virtual int	height (int pHeight)
	Changes the height of the window.
virtual int	height () const
	Returns the height of the window.
virtual void	getRect (int &pTop, int &pLeft, int &pBottom, int &pRight)
	Returns the coordinates of the rectangle defining the window.
virtual bool	pointIsInWindow (int pY, int pX) const
	Returns whether a screen location is in the window (including.
virtual bool	pointIsInTitle (int pY, int pX) const
	Returns whether a screen location is in the title of the window.
virtual void	getSize (int &pHeight, int &pWidth)
	Returns the height & width of the window.
virtual void	resize (int pNewHeight, int pNewWidth, bool pRefresh=true)
	Changes the window's width and height. The window's upper-left.
virtual bool	moveRelative (int pVerticalOffset, int pHorizOffset, bool pRefresh=true)
	Changes the window's position via vertical & horizontal offsets.
unsigned	numSubWindows ()
	Returns the number of subwindows in this window.
void	setSubWinMessage (unsigned pIndex, const std::string &pMessage)
	Sets the message of one of the subwindows (by index).
void	setSubWinMessage (const std::string &pTitle, const std::string &pMessage)
	Sets the message of one of the subwindows (by title).
virtual bool	hasFocus () const
	Returns true if window has focus, false otherwise.
virtual void	setBorderStyle (eBorderStyle pBorderStyle)
	Sets the border style.
eBorderStyle	getBorderStyle () const
	Returns the border style.
bool	hasBorder () const
	Does this window have a border?
void	setParent (cxWindow *pNewParent)
	Changes the pointer to the parent window; changes the parent window.
virtual void	dump (std::string &pResult)
	Returns a string containing all the characters.
virtual void	showSubwindows (bool pBringToTop=true, bool pShowSubwindows=true)
	Shows the subwindows for the window.
cxWindow &	operator= (const cxWindow &pThatWindow)
	Assignment operator.
virtual void	writeText (int pRow, int pCol, const std::string &pText, bool pRefresh=true)
	Writes text on the window. Note that the text is not permanant, so.
virtual void	setHotkeyHighlighting (bool pHotkeyHighlighting)
	Enables/disables the use of hotkey attributes when writing the message.
bool	getHotkeyHighlighting () const
	Returns whether hotkey attributes are used when writing the message.
virtual bool	isEnabled () const
	Returns whether or not the window is enabled.
virtual bool	getDisableCursorOnShow () const
	Returns whether or not the window will disable.
virtual bool	getExitOnMouseOutside () const
	Returns whether the window exits its modal input loop when.
virtual void	setExitOnMouseOutside (bool pExitOnMouseOutside)
	Sets whether the window should exit its modal input loop.
virtual int	getLastKey () const
	Returns the last key pressed by the user (for showModal(), etc.)
virtual bool	lastKeyWasMouseEvt () const
	Returns whether or not the last keypress was a mouse event.
virtual void	getLastMouseEvtCoords (int &pY, int &pX)
	Returns the coordinates of the last mouse event in the window.
virtual bool	getChangeColorsOnFocus () const
	Returns whether the window will change.
virtual void	setChangeColorsOnFocus (bool pChangeColorsOnFocus)
	Sets whether colors should change when focus.
virtual bool	runOnFocusFunction (std::string *pFunctionRetval=nullptr)
	Runs the onFocus function, if it's set.
virtual bool	runOnLeaveFunction (std::string *pFunctionRetval=nullptr)
	Runs the onLeave function, if it's set. However, if the last.
virtual void	toggleOnFocusFunction (bool pRunOnFocus)
	Sets whether or not the onFocus function should run.
virtual void	toggleOnLeaveFunction (bool pRunOnLeave)
	Sets whether or not the onLeave function should run.
virtual bool	onFocusFunctionEnabled () const
	Returns whether or not the onFocus function is set to run.
virtual bool	onLeaveFunctionEnabled () const
	Returns whether or not the onLeave function is set to run.
virtual const std::shared_ptr< cxFunction > &	getOnFocusFunction () const
	Accessor for the onFocus function.
virtual const std::shared_ptr< cxFunction > &	getOnLeaveFunction () const
	Accessor for the onLeave function.
virtual bool	isModal () const
	Returns whether or not the window is currently.
virtual void	clearKeyFunctionByPtr (funcPtr4 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr2 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctionByPtr (funcPtr0 pFunction)
	Removes a keypress function pointer.
virtual void	clearKeyFunctions ()
	Clears the list of external functions fired by hotkeys.
virtual bool	hasKeyFunction (int pKey) const
	Returns whether an external function exists for a keypress.
virtual bool	setMouseFunction (int pMouseState, const std::shared_ptr< cxFunction > &pFunction)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr4 pFunction, void *p1, void *p2, void *p3, void *p4, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr2 pFunction, void *p1, void *p2, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state.
virtual bool	setMouseFunction (int pMouseState, funcPtr0 pFunction, bool pUseReturnVal=false, bool pExitAfterRun=false, bool pRunOnLeaveFunction=true)
	Sets a function to be called for a certain mouse state. This.
virtual void	clearMouseFunction (int pMouseState)
	Removes a function pointer for a mouse event so that it will.
virtual void	clearMouseFunctions ()
	Clears the list of external functions fired by mouse events.
virtual bool	hasMouseFunction (int pMouseState) const
	Returns whether an external function exists for a mouse event.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_begin ()
	Returns a begin iterator to the map of cxFunction pointers.
std::map< int, std::shared_ptr< cxFunction > >::iterator	keyFunctions_end ()
	Returns an end iterator to the map of cxFunction pointers.
virtual void	getFunctionKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual void	getFunctionKeys (std::vector< int > &pKeys) const
	Populates a collection with integers representing the keys.
virtual void	setShowSubwinsForward (bool pShowSubwinsForward)
	Toggles the order in which subwindows will be shown.
virtual bool	getShowSubwinsForward () const
	Returns whether or not the subwindows will be shown.
virtual void	setShowSelfBeforeSubwins (bool pShowSelfBeforeSubwins)
	Sets whether the window will show itself before.
virtual bool	getShowSelfBeforeSubwins () const
	Returns whether or not the window will show itself before.
virtual long	getReturnCode () const
	Returns the return code set by the last call to.
virtual bool	addTitleString (int pHPos, const std::string &pStr, bool pRefreshTitle=false)
	Adds/sets a string to appear in the title at.
virtual std::string	getTitleString (int pHPos) const
	Returns the title string set at a given horizontal position.
virtual std::map< int, std::string >	getTitleStrings () const
	Returns the map of title strings for the window.
virtual void	getTitleStrings (std::map< int, std::string > &pTitleStrings) const
	Returns the map of title strings for the window (using an.
virtual void	setTitleStrings (const std::map< int, std::string > &pTitleStrings)
	Sets all the title strings via a map of horizontal.
virtual void	removeTitleString (int pHPos)
	Removes a title string at a given horizontal position.
virtual void	removeTitleStrings ()
	Removes all title strings.
virtual bool	addStatusString (int pHPos, const std::string &pStr, bool pRefreshStatus=false)
	Adds/sets a string to appear in the status line at.
virtual std::string	getStatusString (int pHPos) const
	Returns the status string set at a given horizontal position.
virtual std::map< int, std::string >	getStatusStrings () const
	Returns the map of status strings for the window.
virtual void	getStatusStrings (std::map< int, std::string > &pStatusStrings) const
	Returns the map of status strings for the window (using an.
virtual void	setStatusStrings (const std::map< int, std::string > &pStatusStrings)
	Sets all the status strings via a map of horizontal.
virtual void	removeStatusString (int pHPos)
	Removes a status string at a given horizontal position.
virtual void	removeStatusStrings ()
	Removes all status strings.
virtual void	removeQuitKeys ()
	Removes all quit keys.
virtual void	removeExitKeys ()
	Removes all exit keys.
virtual bool	hasExitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual bool	hasQuitKey (int pKey) const
	Returns whether or not a key exists in the.
virtual void	clear (bool pRefresh=false)
	Clears the text from the window.
virtual void	getQuitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getQuitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual void	getExitKeyStrings (std::vector< std::string > &pKeys) const
	Populates a collection of strings representing the keys.
virtual std::string	getExitKeyListString () const
	Returns a string containing a comma-separated list of the.
virtual std::map< int, bool >	getQuitKeys () const
	Returns the keys that will make the window quit its input.
virtual std::map< int, bool >	getExitKeys () const
	Returns the keys that will make the window exit is input.
void	toggleMessage (bool pDrawMessage)
	Sets whether or not to draw the message area (the area within.
void	toggleTitle (bool pDrawTitle)
	Sets whether or not to draw the title.
void	toggleStatus (bool pDrawStatus)
	Sets whether or not to draw the status line.
bool	messageWillDraw () const
	Returns whether the message will draw or not.
bool	titleWillDraw () const
	Returns whether the title will draw or not.
bool	statusWillDraw () const
	Returns whether the status line will draw or not.
void	toggleSpecialChars (bool pDrawSpecialChars)
	Sets whether or not to draw the "special" characters (these are.
bool	specialCharsWillDraw () const
	Returns whether the "special" characters will be drawn or.
virtual void	drawTitle ()
	Writes the title line.
virtual void	drawStatus ()
	Writes the status line.
virtual void	drawMessage ()
	Writes the message text (in the area within the borders)
virtual void	drawSpecialChars ()
	Writes the set of "special" characters to the window.
virtual void	setReturnCode (const long &pReturnCode)
	Explicitly sets the member return code for the window.
virtual void	setMessageColor (e_cxColors pColor)
	Returns the message color.
virtual void	setTitleColor (e_cxColors pColor)
	Sets the title color.
virtual void	setStatusColor (e_cxColors pColor)
	Sets the color of the status line at bottom of window.
virtual void	setBorderColor (e_cxColors pColor)
	Sets the color of the window border.
virtual bool	hasAttr (e_WidgetItems pItem, attr_t pAttr)
	Returns whether an attribute is set for a widget item.
bool	getLeaveNow () const
	Returns whether or not something told the window to leave now.
std::string	getName () const
virtual void	setName (const std::string &pName)
	Sets the name of the window. The name is an alternative means.
bool	mouseEvtWasInWindow () const
	Returns whether the current mouse information stored in the.
virtual bool	mouseEvtWasInTitle () const
	Returns whether the current mouse information stored in the.
virtual void	doMouseBehavior ()
	Triggers the window's mouse event behavior. This method can.
virtual void	doMouseBehavior (int pMouseY, int pMouseX)
	Triggers the window's mouse event behavior. Also sets the.
std::shared_ptr< cxFunction >	getKeyFunction (int pKey) const
	Returns a cxFunction pointer for a key.
std::shared_ptr< cxFunction0 >	getKeyFunctionAsFunction0 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction0.
std::shared_ptr< cxFunction2 >	getKeyFunctionAsFunction2 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction2.
std::shared_ptr< cxFunction4 >	getKeyFunctionAsFunction4 (int pKey) const
	Returns a cxFunction pointer for a key, casted to a cxFunction4.
bool	mouseEvtWasButtonEvt () const
	Returns whether or not the mouse event read in mMouse was.
bool	mouseButton1Pressed () const
	Returns whether or not the first mouse button was pressed.
bool	mouseButton1Released () const
	Returns whether or not the first mouse button was released.
bool	mouseButton1Clicked () const
	Returns whether or not the first mouse button was clicked.
bool	mouseButton1DoubleClicked () const
	Returns whether or not the first mouse button was double-clicked.
bool	mouseButton2Clicked () const
	Returns whether or not the second mouse button was clicked.
bool	mouseButton2DoubleClicked () const
	Returns whether or not the second mouse button was double-clicked.
bool	mouseButton3Clicked () const
	Returns whether or not the second mouse button was clicked.
virtual void	mouseButton1Click (int pY, int pX)
	Tells the window that mouse button 1 was clicked at a certain.
virtual void	mouseButton2Click (int pY, int pX)
	Tells the window that mouse button 2 was clicked at a certain.
virtual void	mouseButton3Click (int pY, int pX)
	Tells the window that mouse button 3 was clicked at a certain.
std::string	getString (int pRow, int pCol, int pNumber)
	Get the contents of a portion of the window. (for debugging/testing)
void	info ()
	Display information about a window (for debugging/testing)
virtual void	toggleBorderTop (bool pToggle)
	Sets whether or not to display the top border.
virtual void	toggleBorderBottom (bool pToggle)
	Sets whether or not to display the bottom border.
virtual void	toggleBorderLeft (bool pToggle)
	Sets whether or not to display the left border.
virtual void	toggleBorderRight (bool pToggle)
	Sets whether or not to display the right border.
virtual void	addSpecialChar (int pY, int pX, chtype pChar, attr_t pAttr=A_NORMAL)
	Adds a character to be written somewhere in the window. These.
virtual void	removeSpecialChar (int pY, int pX)
	Removes a character from the set of special characters (by.
virtual void	clearSpecialChars ()
	Clears the collection of special characters.
virtual bool	functionExistsForLastMouseState () const
	Returns whether an external function pointer exists for the.
int	getMouseState () const
	Returns the current mouse state as it was last captured by the.
std::string	getMouseStateStr () const
	Returns a string version of the current mouse state as it was.
virtual e_cxColors	getItemColor (e_WidgetItems pItem) const
	Returns the color of one of the items in a window.
Public Member Functions inherited from cx::cxObject
	cxObject ()
virtual	~cxObject ()
virtual void	beep ()

Protected Types
typedef std::vector< std::shared_ptr< cxMultiLineInput > >	inputPtrContainer

Protected Member Functions
void	copyCxFormStuff (const cxForm *pThatForm)
	Makes a copy of a cxForm's member variables.
void	lookForEditableInputs ()
	Scans all inputs to see if any are editable and updates.
long	doInputLoop (bool &pRunOnLeaveFunction)
	Handles the input loop. Returns cxID_QUIT or cxID_EXIT,.
virtual bool	doCurrentInput (long &pReturnCode, bool &pRunOnLeaveFunction, bool &pFunctionExists, bool pExitOverride=false)
	Gets input from the current input (for use in the input loop).
virtual void	setIsModal (bool pIsModal)
	Sets whether the form is modal or not.
Protected Member Functions inherited from cx::cxWindow
virtual void	reCreatePanel ()
	Creates mPanel (by calling new_panel()), then sets up.
void	freeWindow ()
	Frees the memory used by the ncurses window and.
virtual void	init (int pRow, int pCol, int pHeight, int pWidth, const std::string &pTitle, const std::string &pMessage, const std::string &pStatus, cxWindow *pParentWindow=nullptr, bool pResizeVertically=true)
	Initializes the window parameters and sets up the internal.
virtual void	removeAllSubwindows ()
	Removes all subwindow pointers.
virtual void	addSubwindow (cxWindow *pSubWindow)
	Adds a subwindow to the window. Subwindows of a.
virtual void	removeSubWindow (const cxWindow *pSubWindow)
	Removes a window from the subwindow list.
virtual void	setElementColor (short &pColorPair, attr_t &pElementAttr, e_cxColors pColor)
	Sets the color (and attribute, if necessary) of a color element.
virtual void	enableAttrs (WINDOW *pWin, e_WidgetItems pItem)
	Enables the attributes for one of the m*Attrs sets for an ncurses window.
virtual void	disableAttrs (WINDOW *pWin, e_WidgetItems pItem)
	Disables the attributes for one of the m*Attrs sets for an ncurses window.
virtual void	writeWithHighlighting (WINDOW *pWindow, const std::string &pText, const int &pY, const int &pStartX, const int &pEndX, int pNormalTextItem=-1)
	Writes text to an ncurses WINDOW, highlighting any characters.
virtual void	copyCxWinStuff (const cxWindow *pThatWindow, bool pRecreateWin=true)
	Makes a copy of a cxWindow's member variables.
virtual void	getRowColBasedOn (cxWindow *pParentWindow, eHPosition pPosition, const std::string &pTitle, const std::string &pStatus, const std::string &pMessage, int &pRow, int &pCol)
	Figures out how to align text based on a title & message.
virtual bool	handleFunctionForLastKey (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last keypress and.
virtual bool	handleFunctionForLastMouseState (bool *pFunctionExists=nullptr, bool *pRunOnLeaveFunction=nullptr)
	Looks for a function tied to the last mouse state captured.
virtual void	draw ()
	Fills the member ncurses window structure with the current.
void	setKeyFunctions (const cxWindow &pWindow)
	Returns whether or not a mouse event location is within.
void	setFocusFunctions (const cxWindow &pWindow)
	Re-sets the onFocus and onLeave functions from another.
bool	parentIsCxPanel () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxForm () const
	Returns whether or not the parent window, if there is one, is.
bool	parentIsCxNotebook () const
	Returns whether or not the parent window, if there is one, is.
cxWindowPtrContainer::const_iterator	subWindows_begin () const
	Returns a const iterator to the first subwindow.
cxWindowPtrContainer::const_iterator	subWindows_end () const
	Returns a const iterator to the one past the last subwindow.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rbegin () const
	Returns a const reverse begin iterator for the subwindow collection.
cxWindowPtrContainer::const_reverse_iterator	subWindows_rend () const
	Returns a const reverse end iterator for the subwindow collection.
bool	onFocusFunctionIsSet () const
	Returns whether or not the onFocus function is set (if.
bool	onLeaveFunctionIsSet () const
	Returns whether or not the onLeave function is set (if.

Protected Attributes
inputPtrContainer	mInputs
int	mCurrentInput = 0
std::vector< std::pair< int, int > >	mInputPositions
bool	mTrapNonAssignedFKeys = true
	If mTrapNonAssignedFKeys is true, function keys that aren't.
bool	mStartAtFirstInput = false
	mStartAtFirstInput keeps track of whether or not the form
Protected Attributes inherited from cx::cxWindow
WINDOW *	mWindow = nullptr
	Everything in the window is written here; this is an nCurses window structure.
messageLineContainer	mMessageLines
	Contains the text to be shown inside the window (note: the.
std::map< std::pair< int, int >, chtype >	mSpecialChars
	Contains "special" characters which are added to the window.
std::set< attr_t >	mMessageAttrs
	Message attributes.
std::set< attr_t >	mTitleAttrs
	Title attributes.
std::set< attr_t >	mStatusAttrs
	Status attributes.
std::set< attr_t >	mBorderAttrs
	Border attributes.
std::set< attr_t >	mHotkeyAttrs
	Hotkey attributes.
std::map< std::pair< int, int >, attr_t >	mSpecialCharAttrs
	Attributes for the "special" characters (which are added to.
short	mMessageColorPair = eWHITE_BLUE
short	mTitleColorPair = eGRAY_BLUE
short	mStatusColorPair = eBROWN_BLUE
short	mBorderColorPair = eGRAY_BLUE
eHPosition	mHorizTitleAlignment = eHP_LEFT
eHPosition	mHorizMessageAlignment = eHP_LEFT
eHPosition	mHorizStatusAlignment = eHP_LEFT
eVPosition	mVerticalMessageAlignment = eVP_TOP
bool	mDrawMessage = true
bool	mDrawTitle = true
bool	mDrawStatus = true
bool	mDrawSpecialChars = true
std::shared_ptr< cxFunction >	mOnFocusFunction = nullptr
std::shared_ptr< cxFunction >	mOnLeaveFunction = nullptr
bool	mIsModal = false
bool	mLeaveNow = false
std::map< int, std::shared_ptr< cxFunction > >	mKeyFunctions
std::map< int, std::shared_ptr< cxFunction > >	mMouseFunctions
std::map< int, bool >	mQuitKeys
std::map< int, bool >	mExitKeys
bool	mHotkeyHighlighting

Friends
class	cxMultiLineInput
class	cxMultiForm
class	cxPanel

Additional Inherited Members
Static Public Member Functions inherited from cx::cxObject
static bool	UseColors ()
static void	UseColors (bool useIt)
static bool	UseBeeps ()
static void	UseBeeps (bool useIt)
Static Protected Attributes inherited from cx::cxObject
static bool	useColors
	Whether or not to use colors.
static bool	useBeeps
	Whether or not to enable beeping.

Detailed Description

Represents a form that contains text inputs. The user can move forward between the inputs on the form using the TAB and down arrow, and backward using SHIFT-TAB or the up arrow. The tab order is is based on the order in which the inputs are appended to the form. The input indexes also match the order in which the inputs are appended to the form, and they are zero-based.
It is a good idea to use unique labels for the inputs or unique names, since many of cxForm's methods access the fields the fields by label/name; in particular, getValues() populates a map of field labels/names and values, and if there are duplicate labels or names, it would not return the values of all the fields on the form.
The function getInput() can be used to get a pointer to one of the inputs, but one caveat of cxForm is that some operations shouldn't be performed on inputs added to a cxForm:

• Don't free the memory used by the input (via delete/free()) - cxForm does that for you in its destructor.
• Don't call setFocus() or showModal() on an individual input that's on a cxForm - cxForm keeps track of which input is supposed to have focus and manages that in its input loop. If you want to change which input has focus in the input loop, use setCurrentInput().

A cxForm also has the ability to let the user jump to a specific input while the form is being shown modally. This is done with a hotkey, which is F4 by default, but the hotkey can be changed with setInputJumpKey(). When the user presses this key, a cxMenu is used to display a list of choices containing each input label, or the input name if the label is blank. When the user chooses an input, the input will be set editable, and it will get the focus. Note that inputs that can't be set editable won't appear in the menu.
Note: Many functions provided by this class that do work on one of the inputs provide access to the input by index or by label/name. Many of them are just pass-through methods that call the appropriate method in cxMultiLineInput.
By default, function keys that don't have any function pointer associated with them will cause a cxForm's input loop to exit if the user is on the last input, if they're allowed to exit. This behavior can be changed with a call to trapNonAssignedFKeys().

Member Typedef Documentation

inputPtrContainer

typedef std::vector<std::shared_ptr<cxMultiLineInput> > cx::cxForm::inputPtrContainer

protected

Constructor & Destructor Documentation

cxForm() [1/2]

cx::cxForm::cxForm ( cxWindow *  pParentWindow = nullptr, int  pRow = 0, int  pCol = 0, int  pHeight = DEFAULT_HEIGHT, int  pWidth = DEFAULT_WIDTH, const std::string &  pTitle = "", eBorderStyle  pBorderStyle = eBS_SINGLE_LINE, cxWindow *  pExtTitleWindow = nullptr, cxWindow *  pExtStatusWindow = nullptr, bool  pAutoExit = false, bool  pStacked = false  )

explicit

Default constructor. All parameters have default values.

Parameters

pParentWindow	Pointer to parent window; default nullptr
pRow	Y location of form; default 0
pCol	X location of form; default 0
pHeight	Height of form, in lines; defaults to 24
pWidth	Width of form; defaults to 80
pTitle	Title of form; defaults to empty string
pBorderStyle	The type of border to use - can be eBS_SINGLE_LINE for a single-line border or eBS_NOBORDER for no border.
pExtTitleWindow	A pointer to another cxWindow in which to display the window title.
pExtStatusWindow	A pointer to another cxWindow in which to display the status.
pAutoExit	Whether or not to exit the form when the user tries to go to the next input from the last input. Defaults to false.
pStacked	If true, the form will behave assuming each input is on its own line.

cxForm() [2/2]

cx::cxForm::cxForm

(

const cxForm &

pThatForm

)

Copy constructor

Parameters

pThatForm

Another cxForm object to be copied

References cx::cxWindow::copyCxWinStuff(), cx::height(), cx::left(), mInputs, cx::top(), and cx::width().

~cxForm()

cx::cxForm::~cxForm ( )

virtual

Destructor

References cx::cxInitialized(), and hide().

Member Function Documentation

addAttr()

void cx::cxForm::addAttr ( e_WidgetItems  pItem, attr_t  pAttr  )

overridevirtual

Returns the index of the next editable input after a given.

index. This can loop around - i.e., if a form has 10 inputs

and inputs 2 and 5 are editable, and 5 is passed to this

function, this function will return 2. Could also return -1

if there are no editable inputs or if the given input is out

of bounds.

Parameters

pIndex

An index of an input on the form

Returns

The index of the next editable input after pIndex. Could return -1 if there are no editable inputs, and could return the same index if the given input is the only editable input on the form.

Adds an ncurses attribute to use for one of the items in the

window (see the e_WidgetItems enumeration). For eLABEL,

eDATA_READONLY, and eDATA_EDITABLE, the attribute is added

to all inputs on the form. Other item types are added to

the form window.

Parameters

pItem	The item to add the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses atribute to add.

Reimplemented from cx::cxWindow.

References cx::cxWindow::addAttr(), cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eLABEL, and mInputs.

Referenced by formInputColors(), and main().

addExitKey()

bool cx::cxForm::addExitKey ( int  pKey, bool  pRunOnLeaveFunction = true, bool  pOverride = false  )

overridevirtual

Adds a key that will cause the form to quit and return.

cxID_EXIT. Normally, if the key already exists

as a function key, it will not be added as an exit key.

Parameters

pKey	The key to add
pRunOnLeaveFunction	Whether or not to run the onLeave functions when the form exits. Defaults to true. Note that this affects both the onLeave function for the form, as well as the current input on the form when it is modal.
pOverride	If true, then the key will be added as an exit key regardless if the key exists as a function key. This defaults to false.

Returns

Whether or not the key was added

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References cx::cxWindow::addExitKey(), mInputs, and cx::cxWindow::removeQuitKey().

Referenced by cx::cxMultiForm::addExitKey().

addExtendedHelpKey()

void cx::cxForm::addExtendedHelpKey ( int  pKey )

virtual

Adds an additional key to be used to display the extended.

help key for all inputs.

Parameters

pKey	A key to be used to display extended help

References mInputs.

Referenced by setExtendedHelpKey().

addInputJumpKey() [1/2]

virtual bool cx::cxForm::addInputJumpKey ( int  pKey, const std::string &  pLabel, bool  pIsLabel = true  )

virtual

Adds a hotkey for the form that will cause the.

focus to jump to another input during showModal().

For example:
  cxForm iForm(nullptr, 1, 0, 12, 65, "Test form");
  iForm.append(1, 1, 1, 25, "Input 1:");
  iForm.append(1, 27, 1, 25, "Input 2:");
  iForm.append(2, 1, 1, 25, "Input 3:");
  iForm.append(2, 27, 1, 25, "Input 4:");
  iForm.append(3, 1, 1, 25, "Input 5:");
  iForm.append(3, 27, 1, 25, "Input 6:");
  iForm.setAutoExit(true);
  iForm.addInputJumpKey('n', "Input 6:");
  iForm.showModal();
  This will cause the form to jump to the input with the label "Input 6:"
  when the user presses the 'n' key.

Parameters

pKey	The key to use as the hotkey
pLabel	The label/name of the input to which to jump
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Returns

True if successful, or false if not (i.e., if that hotkey is already set up for a form function, etc.)

addInputJumpKey() [2/2]

bool cx::cxForm::addInputJumpKey ( int  pKey, int  pIndex  )

virtual

     \brief Adds a hotkey for the form that will cause the
     \brief focus to jump to another input during showModal().
     \verbatim For example:
     cxForm iForm(nullptr, 1, 0, 12, 65, "Test form");
     iForm.append(1, 1, 1, 25, "Input 1:");
     iForm.append(1, 27, 1, 25, "Input 2:");
     iForm.append(2, 1, 1, 25, "Input 3:");
     iForm.append(2, 27, 1, 25, "Input 4:");
     iForm.append(3, 1, 1, 25, "Input 5:");
     iForm.append(3, 27, 1, 25, "Input 6:");
     iForm.setAutoExit(true);
     iForm.addInputJumpKey('n', 5);
     iForm.showModal();

This will cause the form to jump to the 5th input ("Input 6") when the user presses the 'n' key.

Parameters

pKey	The key to use as the hotkey
pIndex	The index of the input to which to jump

Returns

True if successful, or false if not (i.e., if that hotkey is already set up for a form function, etc.)

References mInputs, cx::cxWindow::mKeyFunctions, and setKeyFunction().

Referenced by formChangeInputFocusWhileModal().

addQuitKey()

bool cx::cxForm::addQuitKey ( int  pKey, bool  pRunOnLeaveFunction = true, bool  pOverride = false  )

overridevirtual

Adds a key that will cause the form to quit and return.

cxID_QUIT. Normally, if the key already exists

as a function key, it will not be added as an exit key.

Parameters

pKey	The key to add
pRunOnLeaveFunction	Whether or not to run the onLeave functions when the form exits. Defaults to true. Note that this affects both the onLeave function for the form, as well as the current input on the form when it is modal.
pOverride	If true, then the key will be added as an exit key regardless if the key exists as a function key. This defaults to false.

Returns

Whether or not the key was added

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References cx::cxWindow::addQuitKey(), mInputs, and cx::cxWindow::removeExitKey().

Referenced by cx::cxMultiForm::addQuitKey(), and inputQuitKeysOnForm().

allFieldsBlank()

bool cx::cxForm::allFieldsBlank

(

)

const

Returns whether all field values are blank.

Returns

whether or not all field values are blank

References mInputs.

allValidateOnJumpKey()

void cx::cxForm::allValidateOnJumpKey ( bool  pValidate )

virtual

Sets whether or not the validator function should run for all.

inputs when the user presses the input jump key. If not, the

user will always be able to jump from the inputs, whether or

not the input is valid.

Parameters

pValidate

If true, then the inputs will do validation when the user presses the jump key (possibly not allowing the user to jump if the input is not valid). If false, the user will be able to jump from the inputs whether or not the input is valid.

References mInputs.

Referenced by itemSales().

anyInputsCanBeEditable()

bool cx::cxForm::anyInputsCanBeEditable ( ) const

virtual

Returns whether any input on the form (at least 1) can be set editable.

Returns

Whether or not at least 1 input on the form can be set editable.

References mInputs.

append() [1/4]

shared_ptr< cxMultiLineInput > cx::cxForm::append ( const cxMultiLineInput &  pInput )

virtual

Appends a copy of an input to a form.

Parameters

pInput

A cxMultiLineInput object to be added to the form.

References lookForEditableInputs(), cx::cxWindow::mExitKeys, mInputPositions, mInputs, cx::cxWindow::mKeyFunctions, and cx::cxWindow::mQuitKeys.

append() [2/4]

virtual std::shared_ptr< cxMultiLineInput > cx::cxForm::append ( int  pHeight, int  pWidth, const std::string &  pLabel, const std::string &  pValidator = "", const std::string &  pHelpString = "", eInputOptions  pInputOption = eINPUT_EDITABLE, const std::string &  pName = "", std::string *  pExtValue = nullptr, int  pRightLabelOffset = 0, int  pRightLabelHeight = 1, int  pRightLabelWidth = 7, bool  pShowRightLabel = false, eInputType  pInputType = eIT_CXMULTILINEINPUT  )

virtual

Appends an input to the form below the last item currently in.

the form. Applies the A_STANDOUT attribute to the value

portion of the input.

Parameters

pHeight	The height (# of lines) of the item
pWidth	The width (# of characters) of the item
pLabel	The label to use with the input
pValidator	String to use to validate input; see README.txt for details; blank by default
pHelpString	A string to be displayed in the statusbar of the form when the input has focus
pInputOption	Defines the input option (i.e., normal, read-only, etc.); from eInputOptions enumeration in cxInput.h
pName	A name for the input (can be used as an alternative way to identify the input)
pExtValue	A pointer to a string to be linked to this input and used for its value. Defaults to nullptr for none.
pRightlabelOffset	The distance between the right edge of the input and the right label. Defaults to 0.
pRightLabelHeight	The height of the label to the right of the input (defaults to 1)
pRightLabelHeight	The width of the label to the right of the input (defaults to 7 so that there is room for "Invalid" if validation is on and the user enters an invalid value)
pShowRightLabel	Whether or not to show the right label. Defaults to false.
pInputType	The type of input to append (either cxMultiLineInput or cxComboBox). This can be either eIT_CXMULTILINEINPUT (for a cxMultiLineInput) or eIT_CXCOMBOBOX (for a cxComboBox). Defaults to eIT_CXMULTILINEINPUT. If eIT_CXCOMBOBOX is specified, then the return value should be casted to a cxComboBox* to make use of cxComboBox's extended functionality.

Returns

A pointer to the new cxMultiLineInput object that is created.

append() [3/4]

virtual std::shared_ptr< cxMultiLineInput > cx::cxForm::append ( int  pRow, int  pCol, int  pHeight, int  pWidth, const std::string &  pLabel, const std::string &  pValidator = "", const std::string &  pHelpString = "", eInputOptions  pInputOption = eINPUT_EDITABLE, const std::string &  pName = "", std::string *  pExtValue = nullptr, int  pRightLabelOffset = 0, int  pRightLabelHeight = 1, int  pRightLabelWidth = 7, bool  pShowRightLabel = false, eInputType  pInputType = eIT_CXMULTILINEINPUT  )

virtual

Adds an input to the form. Applies the A_STANDOUT attribute.

to the value portion of the input. Returns a pointer to the new input.

Parameters

pRow	Y location of the upper-left corner of the input, relative to the form
pCol	X location of the upper-left corner of the input, relative to the form
pHeight	The height of the input
pWidth	The width of the input
pLabel	The label to use with the input
pValidator	String to use to validate input; see README.txt for details; blank by default
pHelpString	A string to be displayed in the statusbar of the form when the input has focus; defaults to empty string
pInputOption	Defines the input option (i.e., normal, read-only, etc.); defaults to eINPUT_EDITABLE
pName	A name for the input (can be used as an alternative way to identify the input)
pExtValue	A pointer to a string to be linked to this input and used for its value. Defaults to nullptr for none.
pRightlabelOffset	The distance between the right edge of the input and the right label. Defaults to 0.
pRightLabelHeight	The height of the label to the right of the input (defaults to 1)
pRightLabelWidth	The width of the label to the right of the input (defaults to 7 so that there is room for "Invalid" if validation is on and the user enters an invalid value)
pShowRightLabel	Whether or not to show the right label. Defaults to false.
pInputType	The type of input to append (either cxMultiLineInput or cxComboBox). This can be either eIT_CXMULTILINEINPUT (for a cxMultiLineInput) or eIT_CXCOMBOBOX (for a cxComboBox). Defaults to eIT_CXMULTILINEINPUT. If eIT_CXCOMBOBOX is specified, then the return value should be casted to a cxComboBox* to make use of cxComboBox's extended functionality.

Returns

A pointer to the new cxMultiLineInput object that is created.

Referenced by allFormInputsGoReadOnly(), attributesSetter(), borderlessForm(), comboBoxOnForm(), cxFormAssignment(), cxFormClearOnlyEditable(), cxFormExtendedHelpKey(), cxFormMouseFunctionTest(), cxFormMultiLineInputFunctionKeyNoValidator(), cxFormNavKeys(), cxFormNoQuit(), cxFormStartAtFirstInput(), cxInputOnFormLoopDisabled(), cxMultiLineInputWithRightLabelOnForm(), enableDisableForm(), floatingPtValidateOnForm(), form(), formChangeInputFocusWhileModal(), formDataChanged(), formFunctionKeyNoOnLeave(), formFunctionKeys(), formInputColors(), formUpArrowFunction(), formWithFKeys(), formWithInputValueValidator(), formWithMenu(), getFormKeys(), inputQuitKeysOnForm(), inputWithoutBorder(), integerValidateOnForm(), itemSales(), keyFunctionAutoExitOnLastFormInput(), loneInputWithLoopDisabledOnForm(), main(), multiForm(), multiFormWithDisabledSubform(), setValFunc(), simpleForm1(), stackedFormScrolling(), stackedFormScrolling2(), testFormPos(), and testFormReadOnly().

append() [4/4]

virtual void cx::cxForm::append ( std::shared_ptr< cxMultiLineInput > &  pInput, int  pRow, int  pCol, bool *  pMoved = nullptr  )

virtual

Appends a cxMultiLineInput to the form via a pointer.

The pointer that is passed in must point to a

dynamically-created cxMultiLineInput object created with

the 'new' operator, because cxForm cleans up its

input pointers in the destructor with the 'delete'

operator.

Parameters

pInput	A pointer to a cxMultiLineInput (or a deriving object)
pRow	The row on the form where you want the input to be located
pCol	The column on the form where you want the input to be located
pMoved	If non-null, the boolean pointed to by this variable will store whether or not the input was able to be moved.

appendComboBox() [1/2]

virtual std::shared_ptr< cxComboBox > cx::cxForm::appendComboBox ( int  pHeight, int  pWidth, const std::string &  pLabel, const std::string &  pValidator = "", const std::string &  pHelpString = "", eInputOptions  pInputOption = eINPUT_EDITABLE, const std::string &  pName = "", std::string *  pExtValue = nullptr, int  pRightLabelOffset = 0, int  pRightLabelHeight = 1, int  pRightLabelWidth = 7, bool  pShowRightLabel = false  )

virtual

Appends a combo box to the form below the last.

item currently in the form. Applies the A_STANDOUT

attribute to the value portion of the input. The new

input will be as wide as the inner width of the form.

Parameters

pHeight	The height (# of lines) of the item
pWidth	The width (# of characters) of the item
pLabel	The label to use with the input
pValidator	String to use to validate input; see README.txt for details; blank by default
pHelpString	A string to be displayed in the statusbar of the form when the input has focus
pInputOption	Defines the input option (i.e., normal, read-only, etc.); from eInputOptions enumeration in cxInput.h
pName	A name for the input (can be used as an alternative way to identify the input)
pExtValue	A pointer to a string to be linked to this input and used for its value. Defaults to nullptr for none.
pRightlabelOffset	The distance between the right edge of the input and the right label. Defaults to 0.
pRightLabelHeight	The height of the label to the right of the input (defaults to 1)
pRightLabelHeight	The width of the label to the right of the input (defaults to 7 so that there is room for "Invalid" if validation is on and the user enters an invalid value)
pShowRightLabel	Whether or not to show the right label. Defaults to false.

Returns

A pointer to the new cxMultiLineInput object that is created.

appendComboBox() [2/2]

virtual std::shared_ptr< cxComboBox > cx::cxForm::appendComboBox ( int  pRow, int  pCol, int  pHeight, int  pWidth, const std::string &  pLabel, const std::string &  pValidator = "", const std::string &  pHelpString = "", eInputOptions  pInputOption = eINPUT_EDITABLE, const std::string &  pName = "", std::string *  pExtValue = nullptr, int  pRightLabelOffset = 0, int  pRightLabelHeight = 1, int  pRightLabelWidth = 7, bool  pShowRightLabel = false  )

virtual

Adds a combo box to the form. Applies the A_STANDOUT attribute.

to the value portion of the input. Returns a pointer to the new input.

Parameters

pRow	Y location of the upper-left corner of the input, relative to the form
pCol	X location of the upper-left corner of the input, relative to the form
pHeight	The height of the input
pWidth	The width of the input
pLabel	The label to use with the input
pValidator	String to use to validate input; see README.txt for details; blank by default
pHelpString	A string to be displayed in the statusbar of the form when the input has focus; defaults to empty string
pInputOption	Defines the input option (i.e., normal, read-only, etc.); defaults to eINPUT_EDITABLE
pName	A name for the input (can be used as an alternative way to identify the input)
pExtValue	A pointer to a string to be linked to this input and used for its value. Defaults to nullptr for none.
pRightlabelOffset	The distance between the right edge of the input and the right label. Defaults to 0.
pRightLabelHeight	The height of the label to the right of the input (defaults to 1)
pRightLabelWidth	The width of the label to the right of the input (defaults to 7 so there is room for "Invalid")
pShowRightLabel	Whether or not to show the right label. Defaults to false.

Returns

A pointer to the new cxMultiLineInput object that is created.

Referenced by comboBoxOnForm(), and main().

appendComboBoxPair()

cxComboBoxPtrPair cx::cxForm::appendComboBoxPair ( int  pRow, int  pCol, int  pHeight, int  pWidth, const std::string &  pLabel, const std::string &  pValidator = "", const std::string &  pHelpString = "", eInputOptions  pInputOption = eINPUT_EDITABLE, const std::string &  pName = "", std::string *  pExtValue1 = nullptr, std::string *  pExtValue2 = nullptr, int  pRightLabel1Offset = 0, int  pRightLabel1Height = 1, int  pRightLabel1Width = 7, bool  pShowRightLabel1 = false, int  pRightLabel2Offset = 0, int  pRightLabel2Height = 1, int  pRightLabel2Width = 7, bool  pShowRightLabel2 = false  )

virtual

Appends a pair of cxComboBoxes to a form, one to the right of.

the other. They will share similar names, and the words "_start"

and "_end" will be appended to the name for the first and

second inputs, respectively. Also, if the form doesn't have

enough room for the second input, it will not be appended.

Parameters

pRow	Y location of the upper-left corner of the inputs, relative to the form
pCol	X location of the upper-left corner of the inputs, relative to the form
pHeight	The height of each input
pWidth	The width of each input
pLabel	The label to use - This will only be used with the first input.
pValidator	String to use to validate inputs; see README.txt for details; blank by default
pHelpString	A string to be displayed in the statusbar of the form when the input has focus; defaults to empty string
pInputOption	Definse the input option (editable or read-only). Defaults to eINPUT_EDITABLE.
pName	A name for the inputs. Note that "low" and "high" will be appended to the input names, referring to the first and second inputs, respectively.
pExtValue1	A pointer to a string to be linked to the first input and used for its value. Defaults to nullptr for none.
pExtValue2	A pointer to a string to be linked to the second input and used for its value. Defaults to nullptr for none.
pRightlabel1Offset	The distance between the right edge of the first input and its right label. Defaults to 0.
pRightLabel1Height	The height of the first input's right label (defaults to 1)
pRightLabel1Width	The width of the first input's right label (defaults to 7 so that there is room for "Invalid" if validation is on and the user enters an invalid value)
pShowRightLabel1	Whether or not to show the right label for the first input. Defaults to false.
pRightlabel2Offset	The distance between the right edge of the second input and its right label. Defaults to 0.
pRightLabel2Height	The height of the second input's right label (defaults to 1)
pRightLabel2Width	The width of the second input's right label (defaults to 7 so that there is room for "Invalid" if validation is on and the user enters an invalid value)
pShowRightLabel2	Whether or not to show the right label for the second input. Defaults to false.
pRightlabel2Offset	The distance between the right edge of the second input and its right label. Defaults to 0.
pRightLabel2Height	The height of the second input's right label (defaults to 1)
pRightLabel2Width	The width of the second input's right label (defaults to 7 so that there is room for "Invalid" if validation is on and the user enters an invalid value)
pShowRightLabel2	Whether or not to show the right label for the second input. Defaults to false.

Returns

A pair of pointers to the cxComboBoxes appended to the form

References appendPair(), and cx::eIT_CXCOMBOBOX.

Referenced by cxFormAppendComboBoxPair().

appendPair() [1/2]

virtual cxMLInputPtrPair cx::cxForm::appendPair ( int  pRow, int  pCol, int  pHeight, int  pWidth, const std::string &  pLabel, const std::string &  pValidator = "", const std::string &  pHelpString = "", eInputOptions  pInputOption = eINPUT_EDITABLE, const std::string &  pName = "", std::string *  pExtValue1 = nullptr, std::string *  pExtValue2 = nullptr, int  pRightLabel1Offset = 0, int  pRightLabel1Height = 1, int  pRightLabel1Width = 7, bool  pShowRightLabel1 = false, int  pRightLabel2Offset = 0, int  pRightLabel2Height = 1, int  pRightLabel2Width = 7, bool  pShowRightLabel2 = false, eInputType  pInput1Type = eIT_CXMULTILINEINPUT, eInputType  pInput2Type = eIT_CXMULTILINEINPUT  )

virtual

Appends a pair of inputs to a form, one to the right of the.

other. They will share similar names, and the words "_start"

and "_end" will be appended to the name for the first and

second inputs, respectively. Also, if the form doesn't have

enough room for the second input, it will not be appended.

Parameters

pRow	Y location of the upper-left corner of the inputs, relative to the form
pCol	X location of the upper-left corner of the inputs, relative to the form
pHeight	The height of each input
pWidth	The width of each input
pLabel	The label to use - This will only be used with the first input.
pValidator	String to use to validate inputs; see README.txt for details; blank by default
pHelpString	A string to be displayed in the statusbar of the form when the input has focus; defaults to empty string
pInputOption	Defines the input option (editable or read-only). Defaults to eINPUT_EDITABLE.
pName	A name for the inputs. Note that "_low" and "_high" will be appended to the input names, referring to the first and second inputs, respectively.
pExtValue1	A pointer to a string to be linked to the first input and used for its value. Defaults to nullptr for none.
pExtValue2	A pointer to a string to be linked to the second input and used for its value. Defaults to nullptr for none.
pRightlabel1Offset	The distance between the right edge of the first input and its right label. Defaults to 0.
pRightLabel1Height	The height of the first input's right label (defaults to 1)
pRightLabel1Width	The width of the first input's right label (defaults to 7 so that there is room for "Invalid" if validation is on and the user enters an invalid value)
pShowRightLabel1	Whether or not to show the right label for the first input. Defaults to false.
pRightLabel2Height	The height of the second input's right label (defaults to 1)
pRightLabel2Width	The width of the second input's right label (defaults to 7 so that there is room for "Invalid" if validation is on and the user enters an invalid value)
pShowRightLabel2	Whether or not to show the right label for the second input. Defaults to false.
pRightlabel2Offset	The distance between the right edge of the second input and its right label. Defaults to 0.
pRightLabel2Height	The height of the second input's right label (defaults to 1)
pRightLabel2Width	The width of the second input's right label (defaults to 7 so that there is room for "Invalid" if validation is on and the user enters an invalid value)
pShowRightLabel2	Whether or not to show the right label for the second input. Defaults to false.
pInputType1	The type of input to append for the first input (either cxMultiLineInput or cxComboBox). This can be either eIT_CXMULTILINEINPUT (for a cxMultiLineInput) or eIT_CXCOMBOBOX (for a cxComboBox). Defaults to eIT_CXMULTILINEINPUT. If eIT_CXCOMBOBOX is specified, then the return value should be casted to a cxComboBox* to make use of cxComboBox's extended functionality.
pInputType2	The type of input to append for the second input.

Returns

A pair of pointers to the inputs appended to the form

Referenced by appendComboBoxPair(), cxFormAppendPair(), and itemSales().

appendPair() [2/2]

virtual void cx::cxForm::appendPair ( std::shared_ptr< cxMultiLineInput > &  pInput1, std::shared_ptr< cxMultiLineInput > &  pInput2, int  pRow, int  pCol, const std::string &  pName = ""  )

virtual

Appends 2 inputs to the form, one to the right of the other.

Their right labels will be moved one to the right of the other

with a "/" between them. The name of the first input will be

used for both, with "_start" and "_end" appended to the first

and second input name, respectively. The inputs need to be

created dynamically with the 'new' operator.

Parameters

pInput1	A pointer to the first input
pInput2	A pointer to the second input
pRow	The row on the form to append the inputs
pCol	The column on the form to append the inputs
pName	If this is non-blank, then this will be used for the input names.

bringToTop()

void cx::cxForm::bringToTop ( bool  pRefresh = true )

overridevirtual

Brings the window to the top.

Parameters

pRefresh

Whether to refresh the screen (defaults to true)

Reimplemented from cx::cxWindow.

References cx::cxWindow::bringToTop(), mInputs, and cx::updateWindows().

canBeEditable() [1/2]

virtual bool cx::cxForm::canBeEditable ( const std::string &  pLabel, bool  pIsLabel = true  ) const

virtual

Returns whether or not an input can be set editable.

Parameters

pLabel	The label/name of the input
pCanBeEditable	If true, the can be set editable. If false, the input will always be read-only.

Returns

Whether or not the input can be set editable

canBeEditable() [2/2]

bool cx::cxForm::canBeEditable ( int  pIndex ) const

virtual

Returns whether or not an input can be set editable.

Parameters

pIndex

The index of the input

Returns

Whether or not the input can be set editable

References mInputs.

Referenced by doInputLoop().

clearExtendedHelpKeys()

void cx::cxForm::clearExtendedHelpKeys ( )

virtual

Removes all extended help keys.

References mInputs.

Referenced by setExtendedHelpKey().

clearInputs()

void cx::cxForm::clearInputs ( bool  pRefresh = false, bool  pOnlyEditable = false  )

virtual

Clears the values of all the inputs on the form.

Parameters

pRefresh	Whether or not to refresh the inputs after clearing them (defaults to false)
pOnlyEditable	If true, then only the editable inputs on the form will be cleared. This defaults to false.

References mInputs.

Referenced by cxFormClearOnlyEditable(), and formInputColors().

clearKeyFunction()

void cx::cxForm::clearKeyFunction ( int  pKey )

overridevirtual

Removes a function pointer for a keypress for the form so that it will no.

longer fire a function.

Parameters

pKey	The hotkey for the function to remove

Reimplemented from cx::cxWindow.

References cx::cxWindow::clearKeyFunction(), and mInputs.

copyCxFormStuff()

void cx::cxForm::copyCxFormStuff ( const cxForm *  pThatForm )

protected

Makes a copy of a cxForm's member variables.

Parameters

pThatForm

A pointer to another cxForm whose members to copy

References cx::cxWindow::copyCxWinStuff(), cx::cxWindow::freeWindow(), cx::cxWindow::getBorderStyle(), cx::cxWindow::getExtStatusWindow(), cx::cxWindow::getExtTitleWindow(), cx::cxWindow::getMessage(), getStatus(), cx::cxWindow::getTitle(), cx::cxWindow::left(), mCurrentInput, mInputPositions, mInputs, move(), mStartAtFirstInput, mTrapNonAssignedFKeys, cx::cxWindow::setBorderStyle(), cx::cxWindow::setExtStatusWindow(), cx::cxWindow::setExtTitleWindow(), cx::cxWindow::setMessage(), setStatus(), cx::cxWindow::setTitle(), and cx::cxWindow::top().

Referenced by cx::cxMultiForm::copyCxMultiFormStuff(), and operator=().

cxTypeStr()

string cx::cxForm::cxTypeStr ( ) const

overridevirtual

Returns the name of the cxWidgets class. This can be used to.

determine the type of cxWidgets object that deriving classes

derive from in applications.

Returns

The name of the cxWidgets class.

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

disableCustomStatus()

void cx::cxForm::disableCustomStatus ( bool  pRefreshStatus = true )

virtual

Turns off the custom status text set with setStatus.

After a call to this function, the current status

text will be cleared, and the form will go back to

using the help messages from the inputs as status.

Parameters

pRefreshStatus

Whether or not to refresh the status area (defaults to true)

References cx::cxWindow::setStatus().

doCurrentInput()

bool cx::cxForm::doCurrentInput ( long &  pReturnCode, bool &  pRunOnLeaveFunction, bool &  pFunctionExists, bool  pExitOverride = false  )

protectedvirtual

Gets input from the current input (for use in the input loop).

Parameters

pReturnCode	This variable will hold the return code as a result of the user's interactions.
pRunOnLeaveFunction	This parameter will be set depending on whether the onLeave function should be run (this will be true unless the user presses a function key AND the form is on a parent multiForm).
pFunctionExists	This parameter will be set depending on whether a function existed for the key that was caught in the form. If a function did exist, it would be useful not to cycle to the next input the next time through the input loop.
pExitOverride	If true, this function will always return false when the user exits the last input (default). This is here to aid input loops in deriving classes.

Returns

Whether or not to continue the input loop

References cx::cxID_EXIT, cx::cxID_QUIT, cx::eINPUT_READONLY, ENTER, ESCAPE, getCurrentInputIndex(), getInputOption(), cx::cxWindow::getLastKey(), getValue(), cx::cxWindow::handleFunctionForLastKey(), cx::cxWindow::hasExitKey(), cx::cxWindow::hasQuitKey(), cx::cxWindow::isAbove(), lastEditableInput(), lookForEditableInputs(), mCurrentInput, mInputs, cx::cxWindow::mKeyFunctions, mTrapNonAssignedFKeys, cx::cxWindow::mWindow, NOKEY, setLastKey(), SHIFT_TAB, and TAB.

Referenced by doInputLoop().

doInputLoop()

long cx::cxForm::doInputLoop ( bool &  pRunOnLeaveFunction )

protected

Handles the input loop. Returns cxID_QUIT or cxID_EXIT,.

depending on the user's input. This function is meant

not to be virtual, since it is specifically for

cxForm.

Parameters

pRunOnLeaveFunction

This parameter will be set depending on whether the onLeave function should be run (this will be true unless the user presses a function key AND the form is on a parent multiForm).

Returns

A return code (cxID_QUIT or cxID_EXIT, depending on the user's input).

References canBeEditable(), cx::cxID_EXIT, cx::cxID_QUIT, doCurrentInput(), cx::eINPUT_EDITABLE, ESC, firstEditableInput(), cx::cxWindow::getLastKey(), cx::cxWindow::handleFunctionForLastKey(), cx::cxWindow::handleFunctionForLastMouseState(), hasEditableInputs(), cx::cxWindow::hasExitKey(), cx::cxWindow::hasQuitKey(), mCurrentInput, cx::messageBox(), mInputs, cx::cxWindow::mLeaveNow, cx::cxWindow::mouseButton1Clicked(), cx::cxWindow::mouseButton1Pressed(), cx::cxWindow::mouseButton1Released(), cx::cxWindow::mouseEvtWasButtonEvt(), cx::cxWindow::mouseEvtWasInTitle(), cx::cxWindow::mouseEvtWasInWindow(), cx::cxWindow::moveRelative(), cx::cxWindow::mQuitKeys, mStartAtFirstInput, cx::cxWindow::mWindow, NOKEY, cx::cxWindow::parentIsCxPanel(), cx::cxWindow::pointIsInWindow(), runLoopEndFunction(), runLoopStartFunction(), setCurrentInput(), setLastKey(), setStatus(), and cx::toggleCursor().

Referenced by showModal().

enableInputLoop() [1/2]

virtual void cx::cxForm::enableInputLoop ( const std::string &  pLabel, bool  pDoInputLoop, bool  pIsLabel = true  )

virtual

Enables or disables the input loop for one of the.

inputs (by label/name). When the input loop for

an input is disabled, its onFocus and onLeave

functions will still be run, but the input won't

wait for input.

Parameters

pLabel	The label/name of the input
pDoInputLoop	Whether to enable or disable the input loop for the input (true/false)
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Referenced by cxInputOnFormLoopDisabled().

enableInputLoop() [2/2]

void cx::cxForm::enableInputLoop ( unsigned  pIndex, bool  pDoInputLoop  )

virtual

Enables or disables the input loop for one of the.

inputs (by index). When the input loop for an

input is disabled, its onFocus and onLeave

functions will still be run, but the input won't

wait for input.

Parameters

pIndex	The index of the input
pDoInputLoop	Whether to enable or disable the input loop for the input (true/false)

References mInputs.

exitNow()

void cx::cxForm::exitNow ( )

overridevirtual

This causes the form to exit its input loop with a code of.

cxID_EXIT.

Reimplemented from cx::cxWindow.

References cx::cxWindow::exitNow(), getCurrentInputIndex(), and getInput().

firstEditableInput()

int cx::cxForm::firstEditableInput ( ) const

virtual

Returns the index of the first editable input in.

the form's collection of inputs, or -1 if there

are no editable inputs.

Returns

The index of the first editable input on the form

References isEditable(), mInputs, and numInputs().

Referenced by doInputLoop(), and form().

formKeyIsSet()

bool cx::cxForm::formKeyIsSet ( int  pKey ) const

virtual

Returns whether a key is set as a form function.

Parameters

pKey	The key to look for

Returns

true/false, whether or not pKey is associated with a function on the form (not on the inputs).

References cx::cxWindow::mKeyFunctions.

Referenced by cx::cxMultiLineInput::searchParentFormsForFKey().

getAllowExit()

bool cx::cxForm::getAllowExit ( ) const

virtual

Returns whether the user is able to exit out of the form.

Returns

Whether or not the use is able to exit out of the form

getAllowQuit()

bool cx::cxForm::getAllowQuit ( ) const

virtual

Returns whether the user is able to quit out of the form.

Returns

Whether or not the use is able to quit out of the form

Referenced by cx::cxMultiForm::doInputLoop().

getApplyAttrDefaults()

bool cx::cxForm::getApplyAttrDefaults

(

)

const

Returns whether default attributes are applied to new inputs.

Returns

The value of the default attributes setting

getAttrs()

void cx::cxForm::getAttrs ( e_WidgetItems  pItem, std::set< attr_t > &  pAttrs  ) const

overridevirtual

Returns the set of ncurses attributes for a given item.

Parameters

pItem	The item to retrieve attributes for (see the e_WidgetItems enumeration).
pAttrs	This will contain the attributes for the item.

Reimplemented from cx::cxWindow.

References cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eLABEL, cx::cxWindow::getAttrs(), and mInputs.

getAutoExit()

bool cx::cxForm::getAutoExit

(

)

const

Returns the set value of whether the form should exit upon.

exit of the last field.

Returns

whether the form should auto exit upon exit of the last field

Referenced by cx::cxMultiForm::doInputLoop().

getCurrentInput()

shared_ptr< cxMultiLineInput > cx::cxForm::getCurrentInput

(

)

const

Returns a pointer to the current input. If there are no inputs.

on the form or there is some other error, this method will

return nullptr.

Returns

A pointer to the current input on the form, or nullptr if there are no inputs or if there is an error.

References getCurrentInputIndex(), and mInputs.

getCurrentInputIndex()

int cx::cxForm::getCurrentInputIndex ( ) const

virtual

Returns the index of the input that currently has focus.

Returns

The index of the input that currently has focus

References mCurrentInput, and mInputs.

Referenced by doCurrentInput(), exitNow(), getCurrentInput(), getCurrentInputLabel(), getCurrentInputName(), and quitNow().

getCurrentInputLabel()

string cx::cxForm::getCurrentInputLabel ( ) const

virtual

Returns the label of the input that currently has focus.

Returns

The label of the input taht currently has focus

References getCurrentInputIndex(), getLabel(), and mInputs.

getCurrentInputName()

string cx::cxForm::getCurrentInputName ( ) const

virtual

Returns the name of the input that currently has focus.

Returns

The name of the input taht currently has focus

References getCurrentInputIndex(), getName(), and mInputs.

getExitOnLeaveFirst()

bool cx::cxForm::getExitOnLeaveFirst ( ) const

virtual

Returns whether the form is set to exit its showModal() when.

the user leaves the first input going backwards.

Returns

Whether or not the form is set to exit its showModal() when the user leaves the first input going backwards

getExtendedHelp() [1/2]

virtual std::string cx::cxForm::getExtendedHelp ( const std::string &  pIDStr, bool  pIsLabel = true  ) const

virtual

Returns the extended help string from one of the inputs (by.

label/name). If the input is not found, this will return a

blank string.

Parameters

pIDStr	The label/name of the input
pIsLabel	If true (default), then pIDStr will specify the label of the input. Otherwise, pIDStr will specify the name of the input.

Returns

The extended help for the input, or a blank string if the input is not found.

getExtendedHelp() [2/2]

string cx::cxForm::getExtendedHelp ( int  pIndex ) const

virtual

Gets the extended help string from one of the inputs (by.

index). If the given index is out of bounds, this will return

a blank string.

Parameters

pIndex

The index of the input

Returns

The extended help for the input, or a blank string if pIndex is out of bounds.

References mInputs.

getExtendedHelpKeys()

set< int > cx::cxForm::getExtendedHelpKeys ( ) const

virtual

Returns the keys used to display extended help for the inputs.

This returns the set of keys set in the form. This list is the

same for all inputs except when extended help keys are changed

on individual inputs.

Returns

The keys used to display extended help for the inputs

getExtendedHelpKeyStrings()

string cx::cxForm::getExtendedHelpKeyStrings

(

)

const

Returns a comma-separated list of strings representing the.

extended help keys for the form. This list is the

same for all inputs except when extended help keys are changed

on individual inputs.

Returns

A comma-separated list of strings representing the extended help keys for the input.

References cx::getKeyStr().

Referenced by cxFormExtendedHelpKey().

getInput() [1/2]

std::shared_ptr< cxMultiLineInput > cx::cxForm::getInput	(	const std::string &	pLabel,
		bool	pIsLabel = true
	)		const

Returns a pointer to an input with a given label/name, or.

nullptr if no input is found with the given label/name. Note

that inputs are dynamically allocated when they're appended

to a cxForm, and the memory is freed in the cxForm

destructor. Therefore, it is vital that if the return value

of this method is used, the 'delete' operator could be used

on it, but this should not be done; othewise, the

application could crash when the cxForm object is destroyed.

Parameters

pLabel	The label/name of the input
pIsLabel	True if pLabel specifies the label (default), or false if it specifies the name

Returns

A pointer to the input with the given label/name, or nullptr if none is found

getInput() [2/2]

shared_ptr< cxMultiLineInput > cx::cxForm::getInput

(

int

pIndex

)

const

Returns a pointer to an input at a given index, or nullptr if the index.

is not valid. Note that inputs are dynamically allocated when

they're appended to a cxForm, and the memory is freed in the cxForm

destructor. Therefore, it is vital that if the return value of this

method is used, the 'delete' operator could be used on it, but

this should not be done; othewise, the application could crash

when the cxForm object is destroyed.

Parameters

pIndex

The index of the input

Returns

A pointer to the input at pIndex, or nullptr if the input is not valid

References mInputs.

Referenced by allFormInputsGoReadOnly(), comboBoxOnForm(), cxFormAssignment(), exitNow(), form(), main(), quitNow(), and setValues().

getInputIndex() [1/3]

int cx::cxForm::getInputIndex ( const cxMultiLineInput *  pInput ) const

virtual

References mInputs, and numInputs().

getInputIndex() [2/3]

virtual int cx::cxForm::getInputIndex ( const std::shared_ptr< cxMultiLineInput > &  pInput ) const

virtual

Returns the index of an input based on a pointer. May.

return -1 if the input is not in the form.

Parameters

pInput

A pointer to an input

Returns

The index of the input on the form, or -1 if the input is not in the form.

getInputIndex() [3/3]

virtual int cx::cxForm::getInputIndex ( const std::string &  pLabel, bool  pIsLabel = true  ) const

virtual

Returns the index of an input, based on its label or name.

Parameters

pLabel	The label/name of the input
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Returns

The index of the input, or -1 if there was no input with the given label/name.

Referenced by cx::cxMultiLineInput::doInputLoop(), cx::cxMultiLineInput::exitNow(), cx::cxMultiLineInput::quitNow(), and setValues().

getInputJumpKey()

int cx::cxForm::getInputJumpKey ( ) const

virtual

Returns which key is being used as the jump hotkey.

Returns

The key currently being used as the jump hotkey

Referenced by cx::cxMultiLineInput::searchParentFormsForFKey().

getInputOption() [1/2]

virtual int cx::cxForm::getInputOption ( const std::string &  pLabel, bool  pIsLabel = true  ) const

virtual

Returns the editability option for an input (by label/name).

Parameters

pLabel	The label/name of the input
pIsLabel	If true (default), pLabel specifies the label. If false, pLabel specifies the name of the input.

Returns

The kind of the input - See the eInputOptions enumeration in cxInput.h. Returns eINPUT_READONLY if no matching input is found.

getInputOption() [2/2]

int cx::cxForm::getInputOption ( int  pIndex ) const

virtual

Returns the editability option for an input (by index).

Parameters

pIndex

The index of the input

Returns

The kind of the input - See the eInputOptions enumeration in cxInput.h. If pIndex is out of bounds, eINPUT_READONLY will be returned.

References cx::eINPUT_READONLY, and mInputs.

Referenced by doCurrentInput(), and setInputOption().

getLabel()

string cx::cxForm::getLabel ( int  pIndex ) const

virtual

Returns the label of one of the inputs (by index).

Parameters

pIndex

The index of the input

Returns

The label of the input, or a blank string if pIndex is out of bounds.

References mInputs.

Referenced by getCurrentInputLabel(), and inputLabel().

getLabelColor() [1/2]

int cx::cxForm::getLabelColor

(

const int &

pIndex

)

const

Returns the label color of one of the inputs (by index).

Parameters

pIndex

The index of the input

Returns

The label color of the input at pIndex, or eDEFAULT if not found.

References cx::eDEFAULT, and mInputs.

getLabelColor() [2/2]

int cx::cxForm::getLabelColor	(	const std::string &	pLabel,
		bool	pIsLabel = true
	)		const

Returns the label color of one of the inputs (by label/name).

Parameters

pLabel	The label/name of the input
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

Returns

The label color of the input at pIndex, or eDEFAULT if not found.

getMasked() [1/2]

bool cx::cxForm::getMasked	(	const std::string &	pLabel,
		bool	pIsLabel = true
	)

Returns whether or not an input is masked (by label).

Parameters

pLabel	The label of the input
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Returns

Whether or not the input is masked

getMasked() [2/2]

bool cx::cxForm::getMasked

(

int

pIndex

)

Returns whether or not an input is masked (by index).

Parameters

pIndex

The index of the input

Returns

Whether or not the input is masked

References mInputs.

getName() [1/3]

string cx::cxWindow::getName

(

)

const

Accessor for the name for this input

Returns

The alternate label for this input

References cx::cxWindow::getParent(), cx::cxWindow::getStatus(), cx::cxWindow::getTitle(), cx::cxWindow::height(), cx::cxWindow::init(), cx::cxWindow::left(), cx::cxWindow::top(), and cx::cxWindow::width().

Referenced by getCurrentInputName().

getName() [2/3]

virtual std::string cx::cxForm::getName ( const std::string &  pLabel ) const

virtual

Returns the name of one of the inputs (by label).

Parameters

pLabel

The label of the input

Returns

The name of the input, or a blank string if there is no input with the given label.

getName() [3/3]

string cx::cxForm::getName ( int  pIndex ) const

virtual

Returns the name of one of the inputs (by index).

Parameters

pIndex

The index of the input

Returns

The name of the input, or a blank string if pIndex is out of bounds.

References mInputs.

getNavKeys()

void cx::cxForm::getNavKeys ( std::set< int > &  pNavKeys ) const

virtual

Gathers a set of keys considered to be "navigational" keys from.

all the inputs on the form. Note that each input could have

a different list of navigational keys; this method gets all

of them.

Parameters

pNavKeys

This will contain the navigational keys gathered from all inputs on the form.

References mInputs.

Referenced by cxFormNavKeys(), and getNavKeyStrings().

getNavKeyStrings()

void cx::cxForm::getNavKeyStrings ( std::set< std::string > &  pNavKeyStrings ) const

virtual

Creates a set of string representations of keys considered to.

be "navigational" keys, gathered from all inputs on the form.

Parameters

pNavKeyStrings

This will contain string representations of the navigational keys, gathered from all inputs on the form.

References cx::getKeyStr(), and getNavKeys().

Referenced by cxFormNavKeys().

getParent()

cxWindow * cx::cxForm::getParent ( ) const

overridevirtual

Returns a pointer to the parent window. If the cxForm.

has a parent cxMultiForm, a pointer to that will be

returned; otherwise, a pointer to the parent cxWindow

will be returned.

Returns

A pointer to the parent window

Reimplemented from cx::cxWindow.

References cx::cxWindow::getParent().

Referenced by main(), and cx::cxMultiLineInput::searchParentFormsForFKey().

getParentMultiForm()

cxMultiForm * cx::cxForm::getParentMultiForm

(

)

const

Returns the parent cxMultiForm pointer.

Returns

The parent cxMultiForm pointer

Referenced by cx::cxMultiLineInput::searchParentFormsForFKey().

getStartAtFirstInput()

bool cx::cxForm::getStartAtFirstInput

(

)

const

Returns whether or not the form will always start at the first.

editable input when showModal() is called.

Returns

Whether or not the form will always start at the first input when showModal() is called.

References mStartAtFirstInput.

getStatus() [1/3]

string cx::cxWindow::getStatus

(

)

const

Accessor for the status line text.

Returns

The status line from the bottom row of window

References cx::cxID_EXIT, cx::eBS_SINGLE_LINE, and cx::init().

getStatus() [2/3]

virtual std::string cx::cxForm::getStatus ( const std::string &  pLabel, bool  pIsLabel = true  ) const

virtual

Returns the status text of one of the inputs (by label/name).

Parameters

pLabel	The label/name of the input
pIsLabel	If true (default), pLabel specifies the label of the input. If false, pLabel specifies the name of the input.

Returns

The status text of the input, or a blank string if there is no input with the given label/name.

getStatus() [3/3]

string cx::cxForm::getStatus ( int  pIndex ) const

virtual

Returns the status text of one of the inputs (by index).

Parameters

pIndex

The index of the input

Returns

The status text of the input, or a blank string if the given index is out of range.

References mInputs.

Referenced by copyCxFormStuff(), and main().

getUseExtendedHelpKeys()

bool cx::cxForm::getUseExtendedHelpKeys ( ) const

virtual

Returns whether or not the extended help keys are enabled.

Returns

Whether or not the extended help keys are enabled (true/false)

getValue() [1/2]

virtual std::string cx::cxForm::getValue ( const std::string &  pStr, bool  pIsLabel = true  ) const

virtual

Returns the value associated with a particular input (by label or name).

Parameters

pStr	The label/name of the input
pIsLabel	Whether pStr is a label or a name (true = label, false = name)

Returns

The input (string) associated with that label

Reimplemented in cx::cxMultiForm.

getValue() [2/2]

string cx::cxForm::getValue ( int  pIndex ) const

virtual

Returns the value associated with a particular input (by index).

Parameters

pIndex

The index of the input

Returns

The string at that index

Reimplemented in cx::cxMultiForm.

References getValue(), and mInputs.

Referenced by doCurrentInput(), form(), formWithFKeys(), getValue(), cx::cxMultiForm::getValue(), and main().

getValueColor() [1/2]

int cx::cxForm::getValueColor

(

const int &

pIndex

)

const

Returns the color of the value section of one of the inputs (by index).

Parameters

pIndex

The index of the input

Returns

The color of the value section of the input at pIndex, or A_NORMAL if not found.

References cx::eDEFAULT, and mInputs.

getValueColor() [2/2]

int cx::cxForm::getValueColor	(	const std::string &	pLabel,
		bool	pIsLabel = true
	)		const

Returns the color of the value section of one of the inputs (by label/name).

Parameters

pLabel	The label/name of the input
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

Returns

The color of the value section of the input at pIndex, or A_NORMAL if not found.

getValues()

void cx::cxForm::getValues ( std::map< std::string, std::string > &  pValues, bool  pUseLabels = true, bool  pSkipBlankIDs = false  ) const

virtual

Gets the values from the form in the form of a map of input.

labels/names and their values.

Parameters

pValues	This map will be populated with the labels/names of the inputs mapped to their values.
pUseLabels	If true (default), the values will be mapped by the input labels. If false, the values will be mapped by the input names.
pSkipBlankIDs	If true, then inputs with a blank label/name will not be added to the map. This defaults to false.

References mInputs.

Referenced by cxFormAppendPair().

getWaitForInputIfEmpty()

bool cx::cxForm::getWaitForInputIfEmpty ( ) const

virtual

Returns whether or not the form will wait for.

user input if there are no editable inputs.

Returns

Whether or not the form will wait for user input if there are no editable inputs.

Referenced by cx::cxMultiForm::doInputLoop().

hasChanged()

bool cx::cxForm::hasChanged ( ) const

virtual

Returns whether or not any data on the form has changed.

Returns

true if any data on the form has been changed, otherwise returns false.

Reimplemented in cx::cxMultiForm.

Referenced by formDataChanged(), and cx::cxMultiForm::hasChanged().

hasEditableInputs()

bool cx::cxForm::hasEditableInputs ( ) const

virtual

Returns whether the form has any inputs that are.

currently editable.

Returns

Whether or not the form has any inputs that are currently editable

References cx::eINPUT_READONLY, and mInputs.

Referenced by doInputLoop(), cx::cxMultiForm::doInputLoop(), and modalGetsKeypress().

hasInput()

bool cx::cxForm::hasInput ( const std::string &  pStr, bool  pIsLabel = true  ) const

virtual

Returns whether or not the form has an input with a given.

label/name.

Parameters

pStr	The label/name of the input
pIsLabel	If true, then pStr specifies the label; otherwise, pStr specifies the name of the input. Defaults to true.

Returns

true if the form has an input with the given label/name; false if not.

References mInputs.

hasNavKey()

bool cx::cxForm::hasNavKey ( int  pKey ) const

virtual

Returns whether at least one of the inputs on the form has.

a key in its list of navigational keys.

Parameters

pKey	The key to look for

References mInputs.

Referenced by cxFormNavKeys().

hide()

void cx::cxForm::hide ( bool  pHideSubwindows = true )

overridevirtual

Hides the form (along with all the inputs)

Parameters

pHideSubwindows

Whether or not to also hide the subwindows (defaults to true)

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References cx::cxWindow::hide(), and mInputs.

Referenced by cx::cxMultiForm::hide(), show(), and ~cxForm().

inputHeight() [1/2]

int cx::cxForm::inputHeight	(	const std::string &	pLabel,
		bool	pIsLabel = true
	)		const

Returns the height of an input (by label/name), or -1 if there is no input.

with the given label/name.

Parameters

pLabel	The label/name of the input
pIsLabel	If true (default), pLabel specifies the input's label. If false, pLabel specifies the input's name.

Returns

The height of the input, or -1 if there is no input with the given label.

inputHeight() [2/2]

int cx::cxForm::inputHeight

(

int

pIndex

)

const

Returns the height of an input (by index), or -1 if the given index.

is invalid.

Parameters

pIndex

The index of the input

Returns

The height of the input, or -1 if the index is out of bounds.

References mInputs.

Referenced by main().

inputLabel() [1/2]

std::string cx::cxForm::inputLabel

(

const std::string &

pName

)

const

Returns the label of an input.

Parameters

pName

The name of the input

Returns

The input's label, or a blank string if there is no input with the given name.

inputLabel() [2/2]

string cx::cxForm::inputLabel

(

int

pIndex

)

const

Returns the label of an input at a given index.

Parameters

index

The index of an input

Returns

The label of the input at the given index, or a blank string if the index is out of bounds.

References getLabel(), and mInputs.

Referenced by main().

inputLeftCol() [1/2]

int cx::cxForm::inputLeftCol	(	const std::string &	pLabel,
		bool	pIsLabel = true
	)		const

Returns the left column of an input (by label/name), or -1 if there are.

no inputs wit the given label/name.

Parameters

pLabel	The label/name of the input
pIsLabel	If true (default), pLabel specifies the input's label. If false, pLabel specifies the input's name.

Returns

The left column of the input, or -1 if there is no input with the given label.

inputLeftCol() [2/2]

int cx::cxForm::inputLeftCol

(

int

pIndex

)

const

Returns the left column of an input (by index), or -1 if the given.

index is out of bounds.

Parameters

pIndex

The index of the input

Returns

The left column of the input, or -1 if the given index is out of bounds.

References mInputs.

Referenced by main().

inputName() [1/2]

std::string cx::cxForm::inputName

(

const std::string &

pLabel

)

const

Returns the name of an input.

Parameters

pLabel

The label of the input

Returns

The input's name, or a blank string if there is no input with the given name.

inputName() [2/2]

string cx::cxForm::inputName

(

int

pIndex

)

const

Returns the name of an input at a given index.

Parameters

index

The index of an input

Returns

The name of the input at the given index, or a blank string if the index is out of bounds.

References mInputs.

inputTopRow() [1/2]

int cx::cxForm::inputTopRow	(	const std::string &	pLabel,
		bool	pIslabel = true
	)		const

Returns the top row of an input (by label/name), or -1 if there is no.

input with the given label/name.

Parameters

pLabel	The label of the input
pIsLabel	If true (default), pLabel specifies the input's label. If false, pLabel specifies the input's name.

Returns

The top row of the input, or -1 if there is no input with the given label.

inputTopRow() [2/2]

int cx::cxForm::inputTopRow

(

int

pIndex

)

const

Returns the top row of an input (by index), or -1 if the given.

index is out of bounds.

Parameters

pIndex

The index of the input

Returns

The top row of the input, or -1 if the given index is out of bounds.

References mInputs.

Referenced by main().

inputWidth() [1/2]

int cx::cxForm::inputWidth	(	const std::string &	pLabel,
		bool	pIsLabel = true
	)		const

Returns the width of an input (by label/name), or -1 if there is.

no input with the given label/name.

Parameters

pLabel	The label of the input
pIsLabel	If true (default), pLabel specifies the input's label. If false, pLabel specifies the input's name.

Returns

The width of the input, or -1 if there is no input with the given label.

inputWidth() [2/2]

int cx::cxForm::inputWidth

(

int

pIndex

)

const

Returns the width of an input (by index), or -1 if the given index.

is invalid.

Parameters

pIndex

The index of the input

Returns

The width of the input, or -1 if the given index is out of bounds.

References mInputs.

Referenced by main().

isEditable() [1/2]

virtual bool cx::cxForm::isEditable ( const std::string &  pLabel, bool  pIsLabel = true  ) const

virtual

Returns whether one of the inputs on.

the form is editable (by label/name)

Parameters

pLabel	The label/name of the input
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Returns

Whether or not the input is editable

isEditable() [2/2]

bool cx::cxForm::isEditable ( int  pIndex ) const

virtual

Returns whether one of the inputs on.

the form is editable (by index)

Parameters

pIndex

The index of the input

Returns

Whether or not the input is editable

References mInputs.

Referenced by firstEditableInput(), lastEditableInput(), and setCurrentInput().

isStacked()

bool cx::cxForm::isStacked ( ) const

virtual

Returns whether or not the form is in 'stacked'.

mode (which assumes each input is on top of the next).

Returns

Whether or not the form is in 'stacked' mode

lastEditableInput()

int cx::cxForm::lastEditableInput ( ) const

virtual

Returns the index of the last editable input in.

the form's collection of inputs, or -1 if there

are no editable inputs.

Returns

The index of the last editable input on the form

References isEditable(), and mInputs.

Referenced by doCurrentInput(), and form().

lookForEditableInputs()

void cx::cxForm::lookForEditableInputs ( )

protected

Scans all inputs to see if any are editable and updates.

mEditableInputsExist.

References cx::eINPUT_READONLY, and mInputs.

Referenced by append(), doCurrentInput(), remove(), remove(), and setInputOption().

maxInputLen() [1/2]

int cx::cxForm::maxInputLen	(	const std::string &	pLabel,
		bool	pIsLabel = true
	)		const

Returns the maximum length of input accepted by an input (by index),.

or 0 if the given index is invalid.

Parameters

pLabel	The label of the input
pIsLabel	If true (default), pLabel specifies the input's label. If false, pLabel specifies the input's name.

Returns

The maximum length of input accepted by the input, or 0 if there is no input with the given label/name.

maxInputLen() [2/2]

int cx::cxForm::maxInputLen

(

int

pIndex

)

const

Returns the maximum length of input accepted by an input (by index),.

or 0 if the given index is invalid.

Parameters

pIndex

The index of the input

Returns

The maximum length of input accepted by the input, or 0 if the given index is out of bounds.

References mInputs.

maxValueLen() [1/2]

virtual int cx::cxForm::maxValueLen ( const std::string &  pLabel, bool  pIsLabel = true  )

virtual

Returns the maximum length of the value that may be set for an.

input (by label/name).

Parameters

pLabel	The label/name of the input
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Returns

The maximum length of the value that may be set.

maxValueLen() [2/2]

int cx::cxForm::maxValueLen ( int  pIndex ) const

virtual

Returns the maximum length of the value that may be set for an.

input (by index).

Parameters

pIndex

The index of the input

Returns

The maximum length of the value that may be set.

References mInputs.

modalGetsKeypress()

bool cx::cxForm::modalGetsKeypress ( ) const

overridevirtual

Returns whether or not a call to showModal() will wait for a.

keypress from the user. A cxForm will wait for a keypress if

it is enabled and it has at least 1 editable input. If it is

enabled but does not have any editable inputs, it may or may

not wait for a keypress, depending on whether

setWaitForInputIfEmpty() has been called.

Returns

Whether or not a call to showModal() will wait for a keypress from the user.

Reimplemented from cx::cxWindow.

References hasEditableInputs(), and cx::cxWindow::isEnabled().

move()

bool cx::cxForm::move ( int  pNewRow, int  pNewCol, bool  pRefresh = true  )

overridevirtual

Changes the window's position (based on a new upper-left corner). Also moves the input windows.

Parameters

pNewRow	The new topmost row of the form
pNewCol	The new leftmost column of the form
pRefresh	Whether or not to refrseh the window (defaults to true)

Returns

Whether or not the move succeeded or not (true/false)

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References cx::cxWindow::left(), mInputPositions, mInputs, cx::cxWindow::move(), numInputs(), show(), and cx::cxWindow::top().

Referenced by copyCxFormStuff(), main(), and cx::cxMultiForm::move().

numInputs()

size_t cx::cxForm::numInputs

(

)

const

Returns the number of inputs in the form.

Returns

The number of inputs in the form

References mInputs.

Referenced by firstEditableInput(), getInputIndex(), main(), move(), remove(), scrollInputs(), setCurrentInputByPtr(), setInputJumpKey(), and showAllInputs().

onKeyFunctionEnabled() [1/2]

virtual bool cx::cxForm::onKeyFunctionEnabled ( const std::string &  pLabel, bool  pIsLabel = true  ) const

virtual

Returns whether the onKey function is enabled for one of the.

inputs (by label/name). If there are multiple inputs with the

same label/name, the onKey status of only the first one will

be returned.

Parameters

plabel	The label/name of the input
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Returns

Whether or not the onKey function is enabled for that input. If there is no input with the given label/name, this function will return false.

onKeyFunctionEnabled() [2/2]

bool cx::cxForm::onKeyFunctionEnabled ( int  pIndex ) const

virtual

Returns whether the onKey function is enabled for one of the.

inputs (by index).

Parameters

pIndex

The index of the input

Returns

Whether or not the onKey function is enabled for that input. If pIndex is out of bounds (< 0 or more than the number of inputs), this function will return false.

References mInputs.

operator=()

cxForm & cx::cxForm::operator=

(

const cxForm &

pThatForm

)

Assignment operator.

Parameters

pThatForm

Another cxForm to be copied

Returns

References copyCxFormStuff().

quitNow()

void cx::cxForm::quitNow ( )

overridevirtual

This causes the form to exit its input loop with a code of.

cxID_QUIT.

Reimplemented from cx::cxWindow.

References getCurrentInputIndex(), getInput(), and cx::cxWindow::quitNow().

Referenced by multiForm2_quit().

refreshInput() [1/2]

virtual int cx::cxForm::refreshInput ( const std::string &  pStr, bool  pIsLabel = true  )

virtual

Refreshes an input (by calling its show() method)

Parameters

pStr	The label of the input to refresh
pIsLabel	If true, pStr specifies the input label. If false, pStr specifies the input name.

Returns

The return value of the input's show() method (0)

refreshInput() [2/2]

int cx::cxForm::refreshInput ( unsigned  pIndex )

virtual

Refreshes an input (by calling its show() method)

Parameters

pIndex

The index of the input to refresh

Returns

The return value of the input's show() method (0)

References cx::cxWindow::isAbove(), and mInputs.

remove() [1/4]

virtual void cx::cxForm::remove ( const std::shared_ptr< cxMultiLineInput > &  pInput )

virtual

Removes an input from the form (by pointer)

Parameters

pInput

Pointer to the cxMultiLineInput object to remove

remove() [2/4]

virtual void cx::cxForm::remove ( const std::string &  pLabel, bool  pIsLabel = true  )

virtual

Removes an input from the form (by label or name)

Parameters

pLabel	Label of the input to be deleted
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

remove() [3/4]

void cx::cxForm::remove ( cxMultiLineInput *  pInput )

virtual

References cx::cxWindow::height(), lookForEditableInputs(), mCurrentInput, mInputPositions, mInputs, and numInputs().

remove() [4/4]

void cx::cxForm::remove ( unsigned int  pIndex )

virtual

Removes an input from the form (by index)

Parameters

pIndex

The index of the input to be deleted

References cx::cxWindow::height(), lookForEditableInputs(), mCurrentInput, mInputPositions, and mInputs.

Referenced by main().

removeAll()

void cx::cxForm::removeAll ( )

virtual

Removes all inputs from the form.

References mCurrentInput.

removeAttr()

void cx::cxForm::removeAttr ( e_WidgetItems  pItem, attr_t  pAttr  )

overridevirtual

Removes an ncurses attribute from one of the item lists. For.

eLABEL, eDATA_READONLY, and eDATA_EDITABLE, the attribute is

removed from all inputs on the form. Other item types are

removed from the form window.

Parameters

pItem	The item to remove the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses attribute to remove

Reimplemented from cx::cxWindow.

References cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eLABEL, mInputs, and cx::cxWindow::removeAttr().

Referenced by formInputColors().

removeAttrs()

void cx::cxForm::removeAttrs ( e_WidgetItems  pItem )

overridevirtual

Removes all attributes for a given window item. For eLABEL,.

eDATA_READONLY, and eDATA_EDITABLE, the attribute is removed

from all inputs on the form. Other item types are removed

from the form window.

Parameters

pItem

The item to remove attributes for (see the e_WidgetItems enumeration).

Reimplemented from cx::cxWindow.

References cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eLABEL, mInputs, and cx::cxWindow::removeAttrs().

Referenced by formInputColors().

removeExitKey()

void cx::cxForm::removeExitKey ( int  pKey )

overridevirtual

Removes an exit key.

Parameters

pKey	The key to remove from the list of exit keys

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References cx::cxWindow::mExitKeys, and mInputs.

Referenced by cx::cxMultiForm::removeExitKey(), setKeyFunction(), setKeyFunction(), and setKeyFunction().

removeQuitKey()

void cx::cxForm::removeQuitKey ( int  pKey )

overridevirtual

Removes a quit key (but doesn't work for ESC)

Parameters

pKey	The key to remove from the list of quit keys

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References mInputs, and cx::cxWindow::mQuitKeys.

Referenced by inputQuitKeysOnForm(), cx::cxMultiForm::removeQuitKey(), setKeyFunction(), setKeyFunction(), and setKeyFunction().

runLoopEndFunction()

bool cx::cxForm::runLoopEndFunction ( )

virtual

Runs the loop end function, if it's set.

Returns

The value of the loop end function's mExitAfterRun, or false if the loop start end isn't set.

Referenced by doInputLoop(), and cx::cxMultiForm::doInputLoop().

runLoopStartFunction()

bool cx::cxForm::runLoopStartFunction ( )

virtual

Runs the loop start function, if it's set.

Returns

The value of the loop start function's mExitAfterRun, or false if the loop start function isn't set.

Referenced by doInputLoop(), and cx::cxMultiForm::doInputLoop().

scrollInputs()

void cx::cxForm::scrollInputs ( int  pVScrollAmt, int  pHScrollAmt, bool  pRefresh = false, bool  pBringToTop = false  )

virtual

Scrolls (moves) the inputs in the window.

Parameters

pVScrollAmt	The amount by which to scroll vertically
pHScrollAmt	The amount by which to scroll horizontally
pRefresh	Whether or not to refresh the form (defaults to false).
pBringToTop	Whether or not to bring the window to the top when refreshing. Defaults to false.

References cx::cxWindow::bottom(), cx::eBS_NOBORDER, cx::cxWindow::getBorderStyle(), mInputPositions, mInputs, numInputs(), showAllInputs(), and cx::cxWindow::top().

setAllCanBeEditable()

void cx::cxForm::setAllCanBeEditable ( bool  pCanBeEditable )

virtual

Sets the ability of all inputs to be able to be editable.

Parameters

pCanBeEditable

If true, all inputs can be set editable. If false, all inputs will always be read-only.

References mInputs.

setAllColors()

void cx::cxForm::setAllColors	(	e_cxColors	pLabelColor,
		e_cxColors	pValueColor
	)

Sets the label & value colors of all inputs on the form.

Parameters

pLabelColor	The color to set for the labels
pValueColor	The color to set for the values

References cx::eDATA, cx::eLABEL, and mInputs.

Referenced by formInputColors().

setAllInputOption()

void cx::cxForm::setAllInputOption ( eInputOptions  pInputOption, bool  pRefresh = true  )

virtual

Sets the input kind for all inputs on the form.

Parameters

pInputOption	The new input kind
pRefresh	Whether or not to refresh the input on the screen, since its visual attributes will be changed. Defaults to true.

References cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eINPUT_EDITABLE, and mInputs.

Referenced by setAllInputsReadOnly().

setAllLabelColor()

void cx::cxForm::setAllLabelColor

(

e_cxColors

pColor

)

Sets the color of the labels on all inputs.

Parameters

pColor

The color to set

References mInputs.

setAllOnKeyFunction() [1/4]

virtual void cx::cxForm::setAllOnKeyFunction ( const std::shared_ptr< cxFunction > &  pFunction )

virtual

Sets a function to be run whenever a key is pressed, in all.

inputs on the form.

Parameters

pFunction

The function to be run

setAllOnKeyFunction() [2/4]

void cx::cxForm::setAllOnKeyFunction ( funcPtr0  pFunction )

virtual

Sets a function to be run whenever a key is pressed, in all.

inputs on the form.

Parameters

pFunction

The function to be run - Must have this signature: string func()

References mInputs.

setAllOnKeyFunction() [3/4]

void cx::cxForm::setAllOnKeyFunction ( funcPtr2  pFunction, void *  p1, void *  p2  )

virtual

Sets a function to be run whenever a key is pressed, in all.

inputs on the form.

Parameters

pFunction	The function to be run - Must have this signature: string func(void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function

References mInputs.

setAllOnKeyFunction() [4/4]

void cx::cxForm::setAllOnKeyFunction ( funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4  )

virtual

Sets a function to be run whenever a key is pressed, in all.

inputs on the form.

Parameters

pFunction	The function to be run - Must have this signature: string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

References mInputs.

setAllowExit()

void cx::cxForm::setAllowExit ( bool  pAllowExit )

virtual

Sets whether the form should allow the user to exit.

Parameters

pAllowExit

If true, the user will be able to exit out of the form; if false, the user won't be able to exit.

setAllowQuit()

void cx::cxForm::setAllowQuit ( bool  pAllowQuit )

virtual

Sets whether the form should allow the user to quit.

Parameters

pAllowQuit

If true, the user will be able to quit out of the form; if false, the user won't be able to quit.

Referenced by cxFormNoQuit().

setAllValueColor()

void cx::cxForm::setAllValueColor

(

e_cxColors

pColor

)

Sets the color of the value section of all inputs on the form.

Parameters

pColor

The color to set

References mInputs.

Referenced by borderlessForm().

setApplyAttrDefaults()

void cx::cxForm::setApplyAttrDefaults

(

bool

pApplyAttrDefaults

)

Sets whether to apply the default attributes to the inputs when.

appending inputs.

Parameters

pApplyAttrDefaults

A boolean value (true/false)

setAttr()

void cx::cxForm::setAttr ( e_WidgetItems  pItem, attr_t  pAttr  )

overridevirtual

Sets the ncurses attribute to use for one of the items in the.

window (see the e_WidgetItems enumeration). Clears the current

set of attributes for the item and inserts the given attribute

into the set. For eLABEL, eDATA_READONLY, and eDATA_EDITABLE,

the attribute is set in all inputs on the form. Other item

types are set in the form window.

Parameters

pItem	The item to apply the attribute for (see the e_WidgetItems enumeration).
pAttr	The ncurses atribute to apply.

Reimplemented from cx::cxWindow.

References cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eLABEL, mInputs, and cx::cxWindow::setAttr().

Referenced by attributesSetter().

setAutoExit()

void cx::cxForm::setAutoExit ( bool  pAutoExit )

virtual

Sets whether the form should automatically exit when the user.

presses enter/tab/etc. on the last field.

Parameters

pAutoExit

true/false; whether the form should automatically exit

Referenced by borderlessForm(), cxFormAppendPair(), cxFormAssignment(), cxFormClearOnlyEditable(), cxFormMultiLineInputFunctionKeyNoValidator(), cxFormNoQuit(), cxFormStartAtFirstInput(), enableDisableForm(), form(), formChangeInputFocusWhileModal(), formDataChanged(), formFunctionKeyNoOnLeave(), formWithMenu(), inputQuitKeysOnForm(), itemSales(), keyFunctionAutoExitOnLastFormInput(), loneInputWithLoopDisabledOnForm(), multiForm(), multiForm2(), and testFormReadOnly().

setCanBeEditable() [1/2]

virtual void cx::cxForm::setCanBeEditable ( const std::string &  pLabel, bool  pCanBeEditable, bool  pIsLabel = true  )

virtual

Sets whether an input can be set editable (by label/name). For.

example, if this is called with false, then the input will be

set read-only, and any calls to setInputOption() with eINPUT_EDITABLE,

which would normally set it editable, will not set it editable.

Parameters

pLabel	The label/name of the input
pCanBeEditable	If true, the can be set editable. If false, the input will always be read-only.
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setCanBeEditable() [2/2]

void cx::cxForm::setCanBeEditable ( int  pIndex, bool  pCanBeEditable  )

virtual

Sets whether an input can be set editable (by index). If.

this is called with false, then the input will be set

read-only, and any calls to setInputOption() with eINPUT_EDITABLE, which

would normally set it editable, will not set it editable.

Parameters

pIndex	The index of the input
pCanBeEditable	If true, the can be set editable. If false, the input will always be read-only.

References cx::eINPUT_EDITABLE, cx::eINPUT_READONLY, mInputs, and setInputOption().

Referenced by form().

setChanged()

void cx::cxForm::setChanged ( bool  pDataChanged )

virtual

Setter for whether or not data should be considered changed.

Parameters

pDataChanged

Whether or not data should be considered changed (true/false)

Reimplemented in cx::cxMultiForm.

Referenced by cx::cxMultiForm::setChanged(), and cx::cxMultiLineInput::setValue().

setColor()

void cx::cxForm::setColor ( e_WidgetItems  pItem, e_cxColors  pColor  )

overridevirtual

Sets the color of one of the window items. For label & value.

colors, sets those colors on all the inputs on the form; for

any other colors, sets those on the form.

Parameters

pItem	The item to set the color of (see the e_WidgetItems enumeration in cxWidgetItems.h).
pColor	The color to set the item to (see the e_cxColors enumeration in cxColors.h)

Reimplemented from cx::cxWindow.

References cx::eDATA, cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eLABEL, mInputs, and cx::cxWindow::setColor().

setCurrentInput() [1/2]

virtual bool cx::cxForm::setCurrentInput ( const std::string &  pLabel, bool  pIsLabel = true  )

virtual

Changes which input on the form should have focus (by label/name).

Parameters

pLabel	The label/name of which input on the form should get focus
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Returns

True if successful or false if not.

setCurrentInput() [2/2]

bool cx::cxForm::setCurrentInput ( int  pIndex )

virtual

Changes which input on the form should have focus (by index).

Parameters

pIndex

The index of the input that should have focus. If this is out of bounds, or if the input is not editable, then nothing will be changed.

Returns

True if successful or false if not.

References isEditable(), mCurrentInput, mInputs, and cx::cxWindow::mIsModal.

Referenced by doInputLoop(), cx::cxMultiLineInput::doInputLoop(), cx::cxMultiLineInput::exitNow(), and cx::cxMultiLineInput::quitNow().

setCurrentInputByPtr() [1/2]

bool cx::cxForm::setCurrentInputByPtr ( const cxMultiLineInput *const  pInput )

virtual

References mCurrentInput, mInputs, cx::cxWindow::mIsModal, and numInputs().

setCurrentInputByPtr() [2/2]

virtual bool cx::cxForm::setCurrentInputByPtr ( const std::shared_ptr< cxMultiLineInput > &  pInput )

virtual

Changes which input on the form should have focus (by pointer).

Parameters

pInput

A pointer to the input on the form that should have focus.

Returns

True if succeeded or false if not (i.e., will return false if the input is not on the form).

setDisableCursorOnShow()

void cx::cxForm::setDisableCursorOnShow ( bool  pDisableCursorOnShow )

overridevirtual

Sets whether the window should disable the cursor.

when it's shown (this is the default behavior).

Parameters

pDisableCursorOnShow

Whether or not to disable the cursor when shown

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References mInputs, and cx::cxWindow::setDisableCursorOnShow().

Referenced by cx::cxMultiForm::setDisableCursorOnShow().

setEnabled()

void cx::cxForm::setEnabled ( bool  pEnabled )

overridevirtual

Enables or disables the form. Enabling/disabling a.

cxForm consequently also enables/disables all the inputs

on the form.

Parameters

pEnabled

Whether the form should be enabled or not (true/false)

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References mInputs, and cx::cxWindow::setEnabled().

Referenced by enableDisableForm(), and cx::cxMultiForm::setEnabled().

setExitOnLeaveFirst()

void cx::cxForm::setExitOnLeaveFirst ( bool  pExitOnLeaveFirst )

virtual

Sets whether the form should exit when the user leaves.

the first input going backwards.

Parameters

pExitOnLeaveFirst

If true, the form will exit its showModal() when the user leaves the first input going backwards (normally, the form doesn't exit).

setExtendedHelp() [1/2]

virtual void cx::cxForm::setExtendedHelp ( const std::string &  pIDStr, const std::string &  pExtendedHelp, bool  pIsLabel = true  )

virtual

Sets the extended help for one of the inputs (by label/name).

Parameters

pIDStr	The label/name of the input
pExtendedHelp	The extended help text to set in the input
pIsLabel	If true (default), then pIDStr will specify the label of the input. Otherwise, pIDStr will specify the name of the input.

setExtendedHelp() [2/2]

virtual void cx::cxForm::setExtendedHelp ( int  pIndex, const std::string &  pExtendedHelp  )

virtual

Sets the extended help for one of the inputs (by index).

Parameters

pIndex	The index of the input
pExtendedHelp	The extended help text to set in the input

setExtendedHelpKey()

void cx::cxForm::setExtendedHelpKey ( int  pKey )

virtual

Sets a single key to use to display extended help for all.

inputs.

Parameters

pKey	A key to use to display extended help for the inputs

References addExtendedHelpKey(), and clearExtendedHelpKeys().

Referenced by cxFormExtendedHelpKey().

setFieldKeyFunction() [1/6]

virtual void cx::cxForm::setFieldKeyFunction ( const std::string &  pLabel, int  pFunctionKey, const std::shared_ptr< cxFunction > &  pFieldFunction, bool  pIsLabel = true  )

virtual

Sets a function to be executed via a keypress for one of the fields (by label). This version adds a pointer to a function with this signature: string func(void*, void*, void*, void*). Note that functions added with this method take precedence over functions with 2 void parameters.

Parameters

pLabel	The label of the input to add the function to
pFunctionKey	The key for the input to use to fire the function.
pFieldFunction	The function to add.
pExitAfterRun	Whether or not this field should exit from the input loop once the function is done.
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Referenced by allFormInputsGoReadOnly(), and formWithFKeys().

setFieldKeyFunction() [2/6]

virtual void cx::cxForm::setFieldKeyFunction ( const std::string &  pLabel, int  pFunctionKey, funcPtr2  pFieldFunction, void *  p1, void *  p2, bool  pUseVal, bool  pExitAfterRun = false, bool  pIsLabel = true  )

virtual

Sets a function to be executed via a keypress for one of the fields (by label).

Parameters

pLabel	The label of the input to add the function to
pFunctionKey	The key for the input to use to fire the function.
pFieldFunction	The name of the function to add. It must match this signature: string func(void*, void*)
p1	A pointer to the first parameter to use in the function
p2	A pointer to the second parameter to use in the function
pUseVal	Whether or not the function's return value should be set as the value in the field.
pExitAfterRun	Whether or not this field should exit from the input loop once the function is done.
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setFieldKeyFunction() [3/6]

virtual void cx::cxForm::setFieldKeyFunction ( const std::string &  pLabel, int  pFunctionKey, funcPtr4  pFieldFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pUseVal, bool  pExitAfterRun = false, bool  pIsLabel = true  )

virtual

Sets a function to be executed via a keypress for one of the fields (by label). This version adds a pointer to a function with this signature: string func(void*, void*, void*, void*). Note that functions added with this method take precedence over functions with 2 void parameters.

Parameters

pLabel	The label of the input to add the function to
pFunctionKey	The key for the input to use to fire the function.
pFieldFunction	The name of the function to add. It must match this signature: string func(void*, void*, void*, void*)
p1	A pointer to the first parameter to use in the function
p2	A pointer to the second parameter to use in the function
p3	A pointer to the 3rd parameter to use in the function
p4	A pointer to the 4th parameter to use in the function
pUseVal	Whether or not the function's return value should be set as the value in the field.
pExitAfterRun	Whether or not this field should exit from the input loop once the function is done.
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setFieldKeyFunction() [4/6]

virtual void cx::cxForm::setFieldKeyFunction ( unsigned int  pIndex, int  pFunctionKey, const std::shared_ptr< cxFunction > &  pFieldFunction  )

virtual

Sets a function to be executed via a keypress for one of the fields (by index).

Parameters

pIndex	The index of the input to add the function to
pFunctionKey	The key for the input to use to fire the function.
pFieldFunction	The function to add.

setFieldKeyFunction() [5/6]

virtual void cx::cxForm::setFieldKeyFunction ( unsigned int  pIndex, int  pFunctionKey, funcPtr2  pFieldFunction, void *  p1, void *  p2, bool  pUseVal, bool  pExitAfterRun = false  )

virtual

Sets a function to be executed via a keypress for one of the fields (by index).

Parameters

pIndex	The index of the input to add the function to
pFunctionKey	The key for the input to use to fire the function.
pFieldFunction	The name of the function to add. It must match this signature: string func(void*, void*)
p1	A pointer to the first parameter to use in the function
p2	A pointer to the second parameter to use in the function
pUseVal	Whether or not the function's return value should be set as the value in the field.
pExitAfterRun	Whether or not this field should exit from the input loop once the function is done.

setFieldKeyFunction() [6/6]

virtual void cx::cxForm::setFieldKeyFunction ( unsigned  pIndex, int  pFunctionKey, funcPtr4  pFieldFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pUseVal, bool  pExitAfterRun = false  )

virtual

Sets a function to be executed via a keypress for one of the fields (by index). This version adds a pointer to a function with this signature: string func(void*, void*, void*, void*). Note that functions added with this method take precedence over functions with 2 void parameters.

Parameters

pIndex	The index of the input to add the function to
pFunctionKey	The key for the input to use to fire the function.
pFieldFunction	The name of the function to add. It must match this signature: string func(void*, void*)
p1	A pointer to the first parameter to use in the function
p2	A pointer to the second parameter to use in the function
p3	A pointer to the 3rd parameter to use in the function
p4	A pointer to the 4th parameter to use in the function
pUseVal	Whether or not the function's return value should be set as the value in the field.
pExitAfterRun	Whether or not this field should exit from the input loop once the function is done.

setFieldLabel() [1/2]

virtual void cx::cxForm::setFieldLabel ( const std::string &  pName, const std::string &  pLabel  )

virtual

Sets a field label (by name)

Parameters

pName	The name of the field
pLabel	The label to be set in the field

setFieldLabel() [2/2]

virtual void cx::cxForm::setFieldLabel ( unsigned  pIndex, const std::string &  pLabel  )

virtual

Sets a field label (by index)

Parameters

pIndex	The index of the field
pLabel	The label to be set in the field

setFieldName() [1/2]

virtual void cx::cxForm::setFieldName ( const std::string &  pLabel, const std::string &  pName  )

virtual

Sets a field name (by label)

Parameters

pLabel	The label of the field
pName	The name to be set in the field

setFieldName() [2/2]

virtual void cx::cxForm::setFieldName ( unsigned  pIndex, const std::string &  pName  )

virtual

Sets a field name (by index)

Parameters

pIndex	The index of the field
pName	The name to be set in the field

setInputJumpKey()

void cx::cxForm::setInputJumpKey ( int  pInputJumpKey )

virtual

Sets the hotkey to be used to bring up the menu to choose.

which input to jump to.

Parameters

pInputJumpKey

The hotkey to use

References mInputs, and numInputs().

setInputOption() [1/2]

virtual void cx::cxForm::setInputOption ( const std::string &  pLabel, eInputOptions  pInputOption, bool  pIsLabel = true, bool  pRefresh = true  )

virtual

Sets the input kind for one of the inputs (by label/name).

Parameters

pLabel	The label/name of the input
pInputOption	The new input kind
pIsLabel	If true (default), pLabel specifies the label. If false, pLabel specifies the name of the input.
pRefresh	Whether or not to refresh the input on the screen, since its visual attributes will be changed. Defaults to true.

setInputOption() [2/2]

void cx::cxForm::setInputOption ( int  pIndex, eInputOptions  pInputOption, bool  pRefresh = true  )

virtual

Sets the input kind for one of the inputs (by index).

Parameters

pIndex	The index of the input
pInputOption	The new input kind
pRefresh	Whether or not to refresh the input on the screen, since its visual attributes will be changed. Defaults to true.

References cx::eDATA_EDITABLE, cx::eDATA_READONLY, cx::eINPUT_EDITABLE, getInputOption(), cx::cxWindow::isAbove(), lookForEditableInputs(), and mInputs.

Referenced by cxFormClearOnlyEditable(), setCanBeEditable(), and testFormReadOnly().

setIsModal()

void cx::cxForm::setIsModal ( bool  pIsModal )

protectedvirtual

Sets whether the form is modal or not.

Parameters

pIsModal

true if the form is modal, or false if not.

References cx::cxWindow::mIsModal.

Referenced by cx::cxMultiForm::copyCxMultiFormStuff(), and cx::cxMultiForm::cxMultiForm().

setKeyFunction() [1/12]

virtual bool cx::cxForm::setKeyFunction ( const std::string &  pLabel, int  pKey, const std::shared_ptr< cxFunction > &  pFunction, bool  pIsLabel = true  )

virtual

Sets a function to be called when a key is pressed.

Parameters

pIndex	The index of the input on the form
pLabel	The label/name of the input
pFunction	The function to call. This can be an instance of one of the derived cxFunction classes as well.
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

Returns

True if the key & function was added or false if not

setKeyFunction() [2/12]

virtual bool cx::cxForm::setKeyFunction ( const std::string &  pLabel, int  pKey, funcPtr0  pFunction, bool  pUseVal, bool  pExitAfterRun, bool  pRunOnLeaveFunction, bool  pRunValidator, bool  pIsLabel = true  )

virtual

Adds a function to call when the user presses some key for.

one of the inputs (by label/name).

Parameters

pLabel	The label/name of the input
pKey	The keypress to fire the function
pFunction	The function to be run - Must have this signature: string func(void*, void*)
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxWindow will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

Returns

True if the key & function was added or false if not

setKeyFunction() [3/12]

virtual bool cx::cxForm::setKeyFunction ( const std::string &  pLabel, int  pKey, funcPtr2  pFunction, void *  p1, void *  p2, bool  pUseVal, bool  pExitAfterRun, bool  pRunOnLeaveFunction, bool  pRunValidator, bool  pIsLabel = true  )

virtual

Adds a function to call when the user presses some key for.

one of the inputs (by label/name).

Parameters

pLabel	The label/name of the input
pKey	The keypress to fire the function
pFunction	The function to be run - Must have this signature: string func(void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxWindow will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

Returns

True if the key & function was added or false if not

setKeyFunction() [4/12]

virtual bool cx::cxForm::setKeyFunction ( const std::string &  pLabel, int  pKey, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pUseVal, bool  pExitAfterRun, bool  pRunOnLeaveFunction, bool  pRunValidator, bool  pIsLabel = true  )

virtual

Adds a function to call when the user presses some key for.

one of the inputs (by label/name).

Parameters

pLabel	The label/name of the input
pKey	The keypress to fire the function
pFunction	The function to be run - Must have this signature: string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxWindow will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

Returns

True if the key & function was added or false if not

setKeyFunction() [5/12]

virtual bool cx::cxForm::setKeyFunction ( int  pIndex, int  pKey, const std::shared_ptr< cxFunction > &  pFunction  )

virtual

Sets a function to be called when a key is pressed.

Parameters

pIndex	The index of the input on the form
pKey	The key to use for the function
pFunction	The function to call. This can be an instance of one of the derived cxFunction classes as well.

Returns

True if the key & function was added or false if not

setKeyFunction() [6/12]

bool cx::cxForm::setKeyFunction ( int  pIndex, int  pKey, funcPtr0  pFunction, bool  pUseVal, bool  pExitAfterRun, bool  pRunOnLeaveFunction, bool  pRunValidator  )

virtual

Adds a function to call when the user presses some key for.

one of the inputs (by index).

Parameters

pIndex	The index of the input on the form
pKey	The keypress to fire the function
pFunction	The function to be run - Must have this signature: string func()
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxWindow will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

Returns

True if the key & function was added or false if not

References mInputs.

setKeyFunction() [7/12]

bool cx::cxForm::setKeyFunction ( int  pIndex, int  pKey, funcPtr2  pFunction, void *  p1, void *  p2, bool  pUseVal, bool  pExitAfterRun, bool  pRunOnLeaveFunction, bool  pRunValidator  )

virtual

Adds a function to call when the user presses some key for.

one of the inputs (by index).

Parameters

pIndex	The index of the input on the form
pKey	The keypress to fire the function
pFunction	The function to be run - Must have this signature: string func(void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxWindow will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

Returns

True if the key & function was added or false if not

References mInputs.

setKeyFunction() [8/12]

bool cx::cxForm::setKeyFunction ( int  pIndex, int  pKey, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pUseVal, bool  pExitAfterRun, bool  pRunOnLeaveFunction, bool  pRunValidator  )

virtual

Adds a function to call when the user presses some key for.

one of the inputs (by index).

Parameters

pIndex	The index of the input on the form
pKey	The keypress to fire the function
pFunction	The function to be run - Must have this signature: string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxWindow will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

Returns

True if the key & function was added or false if not

References mInputs.

setKeyFunction() [9/12]

virtual bool cx::cxForm::setKeyFunction ( int  pKey, const std::shared_ptr< cxFunction > &  pFunction  )

overridevirtual

Sets a function to be called when a key is pressed.

Parameters

pKey	The key to use for the function
pFunction	The function to call. This can be an instance of one of the derived cxFunction classes as well.

Returns

True if the key & function was added or false if not

Reimplemented from cx::cxWindow.

Referenced by addInputJumpKey(), cxFormMultiLineInputFunctionKeyNoValidator(), formFunctionKeyNoOnLeave(), formFunctionKeys(), formUpArrowFunction(), formWithFKeys(), getFormKeys(), cx::cxMultiForm::setKeyFunction(), cx::cxMultiForm::setKeyFunction(), and cx::cxMultiForm::setKeyFunction().

setKeyFunction() [10/12]

bool cx::cxForm::setKeyFunction ( int  pKey, funcPtr0  pFunction, bool  pUseReturnVal = false, bool  pExitAfterRun = false, bool  pRunOnLeaveFunction = true  )

overridevirtual

Adds a function to call when the user presses some key.

Parameters

pKey	The keypress to fire the function
pFunction	The function to be run - Must have signature string func()
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxWindow will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.

Returns

True if the key & function was added or false if not

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References mInputs, removeExitKey(), removeQuitKey(), and cx::cxWindow::setKeyFunction().

setKeyFunction() [11/12]

bool cx::cxForm::setKeyFunction ( int  pKey, funcPtr2  pFunction, void *  p1, void *  p2, bool  pUseReturnVal = false, bool  pExitAfterRun = false, bool  pRunOnLeaveFunction = true  )

overridevirtual

Adds a function to call when the user presses some key.

Parameters

pKey	The keypress to fire the function
pFunction	The function to be run - Must have signature string func(void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxWindow will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.

Returns

True if the key & function was added or false if not

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References mInputs, removeExitKey(), removeQuitKey(), and cx::cxWindow::setKeyFunction().

setKeyFunction() [12/12]

bool cx::cxForm::setKeyFunction ( int  pKey, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pUseReturnVal = false, bool  pExitAfterRun = false, bool  pRunOnLeaveFunction = true  )

overridevirtual

Adds a function to call when the user presses some key.

Parameters

pKey	The keypress to fire the function
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function
pUseReturnVal	Whether or not to use the function's return value (not used by cxForm, but could be useful for deriving classes - this is here so that setKeyFunction() in cxWindow will be overridden). Defaults to false.
pExitAfterRun	Whether or not to exit the form after running the function (defaults to false)
pRunOnLeaveFunction	Whether or not to run the onLeave function when the window exits (if pExitAfterRun is true). Defaults to true.

Returns

True if the key & function was added or false if not

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References mInputs, removeExitKey(), removeQuitKey(), and cx::cxWindow::setKeyFunction().

setLabelColor() [1/2]

void cx::cxForm::setLabelColor	(	const int &	pIndex,
		e_cxColors	pColor
	)

Sets the color of the label of one of the inputs (by index)

Parameters

pIndex	The index of the input whose label color to set
pColor	The color to set

References mInputs.

Referenced by formInputColors().

setLabelColor() [2/2]

void cx::cxForm::setLabelColor	(	const std::string &	pLabel,
		e_cxColors	pColor,
		bool	pIsLabel = true
	)

Sets the color of the label of one of the inputs (by label/name)

Parameters

pLabel	The label/name of the input whose label color to set
pColor	The color to set
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

setLastKey()

void cx::cxForm::setLastKey ( int  pLastKey )

overridevirtual

Sets the last keypress.

Parameters

pLastKey

The last keypress

Reimplemented from cx::cxWindow.

References cx::cxWindow::setLastKey(), and setLastKey().

Referenced by cx::cxMultiForm::copyCxMultiFormStuff(), doCurrentInput(), doInputLoop(), cx::cxMultiForm::doInputLoop(), setLastKey(), and cx::cxMultiLineInput::setLastKey().

setLoopEndFunction()

void cx::cxForm::setLoopEndFunction ( const std::shared_ptr< cxFunction > &  pFuncPtr )

virtual

Sets a function to be run at the end of each.

cycle through the input loop. The return value

of the function is not used.

Parameters

pFuncPtr

A pointer to the function

setLoopStartFunction()

void cx::cxForm::setLoopStartFunction ( const std::shared_ptr< cxFunction > &  pFuncPtr )

virtual

Sets a function to be run at the start of each.

input loop. The return value of the function is

not used.

Parameters

pFuncPtr

A pointer to the function

setMaskChar() [1/2]

bool cx::cxForm::setMaskChar	(	const std::string &	pLabel,
		char	pMaskChar,
		bool	pIsLabel = true
	)

Sets the masking character for an input (by label).

Parameters

pLabel	The label of the input
pMaskChar	The character to use for masking
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

Returns

True if successful or false if not

setMaskChar() [2/2]

bool cx::cxForm::setMaskChar	(	int	pIndex,
		char	pMaskChar
	)

Sets the masking character for an input (by index).

Parameters

pIndex	The index of the input
pMaskChar	The character to use for masking

Returns

True if it successful or false if not

References mInputs.

setOnFocusFunction() [1/8]

virtual void cx::cxForm::setOnFocusFunction ( const std::shared_ptr< cxFunction > &  pFunction )

overridevirtual

Sets the form window's "on focus" function.

Parameters

pFunction

The function to be run

Reimplemented from cx::cxWindow.

Referenced by cxInputOnFormLoopDisabled(), and main().

setOnFocusFunction() [2/8]

virtual void cx::cxForm::setOnFocusFunction ( const std::string &  pLabel, const std::shared_ptr< cxFunction > &  pFunction, bool  pIsLabel = true  )

virtual

Sets the "on focus" function pointer for a field (by label). The function must have this signature: string func(void*, void*, void*, void*).

Parameters

pLabel	The label of the field
pFunction	The function to be run - Must have this signature: string func(void*, void*, void*, void*)
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setOnFocusFunction() [3/8]

virtual void cx::cxForm::setOnFocusFunction ( const std::string &  pLabel, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pUseVal, bool  pIsLabel = true  )

virtual

Sets the "on focus" function pointer for a field (by label). The function must have this signature: string func(void*, void*, void*, void*).

Parameters

pLabel	The label of the field
pFunction	The function to be run - Must have this signature: string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function
pUseVal	Whether or not the function's return value should be set as the value in the field
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setOnFocusFunction() [4/8]

void cx::cxForm::setOnFocusFunction ( funcPtr0  pFuncPtr, bool  pUseVal = false, bool  pExitAfterRun = false  )

overridevirtual

Sets a function to be run when focus is gained (at.

the start of setFocus() or showModal(). The return

value of the function is not used.

Parameters

pFuncPtr	A pointer to the function - Must have the signature string someFunc().
pUseVal	Whether or not the function's return value should be set as the value in the field (defaults to false)
pExitAfterRun	Whether or not to exit after the function runs (defaults to false; if true, the input loop won't be started).

Reimplemented from cx::cxWindow.

References cx::cxWindow::setOnFocusFunction().

setOnFocusFunction() [5/8]

void cx::cxForm::setOnFocusFunction ( funcPtr2  pFuncPtr, void *  p1, void *  p2, bool  pUseVal = false, bool  pExitAfterRun = false  )

overridevirtual

Sets a function to be run when focus is gained (at.

the start of setFocus() or showModal(). The return

value of the function is not used.

Parameters

pFuncPtr	A pointer to the function - Must have the signature string someFunc(void*, void).
p1	A pointer to the first argument
p2	A pointer to the 2nd argument
pUseVal	Whether or not the function's return value should be set as the value in the field (defaults to false)
pExitAfterRun	Whether or not to exit after the function runs (defaults to false; if true, the input loop won't be started).

Reimplemented from cx::cxWindow.

References cx::cxWindow::setOnFocusFunction().

setOnFocusFunction() [6/8]

void cx::cxForm::setOnFocusFunction ( funcPtr4  pFuncPtr, void *  p1, void *  p2, void *  p3, void *  p4, bool  pUseVal = false, bool  pExitAfterRun = false  )

overridevirtual

Sets a function to be run when focus is gained (at.

the start of setFocus() or showModal(). The return

value of the function is not used.

Parameters

pFuncPtr	A pointer to the function - Must have the signature string someFunc(void*, void*, void*, void).
p1	A pointer to the first argument
p2	A pointer to the 2nd argument
p3	A pointer to the 3rd argument
p4	A pointer to the 4th argument
pUseVal	Whether or not the function's return value should be set as the value in the field (defaults to false)
pExitAfterRun	Whether or not to exit after the function runs (defaults to false; if true, the input loop won't be started).

Reimplemented from cx::cxWindow.

References cx::cxWindow::setOnFocusFunction().

setOnFocusFunction() [7/8]

virtual void cx::cxForm::setOnFocusFunction ( unsigned  pIndex, const std::shared_ptr< cxFunction > &  pFunction  )

virtual

Sets the "on focus" function pointer for a field (by index). The function must have this signature: string func(void*, void*, void*, void*).

Parameters

pIndex	The index of the field
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)

setOnFocusFunction() [8/8]

void cx::cxForm::setOnFocusFunction ( unsigned  pIndex, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pUseVal  )

virtual

Sets the "on focus" function pointer for a field (by index). The function must have this signature: string func(void*, void*, void*, void*).

Parameters

pIndex	The index of the field
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function
pUseVal	Whether or not the function's return value should be set as the value in the field

References mInputs.

setOnKeyFunction() [1/8]

virtual void cx::cxForm::setOnKeyFunction ( const std::string &  pLabel, const std::shared_ptr< cxFunction > &  pFunction, bool  pIsLabel = true  )

virtual

Sets a function to be run whenever a key is pressed in an.

input (by label/name). Note: If there are multiple inputs with

the same label/name, all of them will be affected.

Parameters

pLabel	The label/name of the input
pFunction	The function to be run
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setOnKeyFunction() [2/8]

virtual void cx::cxForm::setOnKeyFunction ( const std::string &  pLabel, funcPtr0  pFunction, bool  pIsLabel = true  )

virtual

Sets a function to be run whenever a key is pressed in an.

input (by label/name). Note: If there are multiple inputs with

the same label/name, all of them will be affected.

Parameters

pLabel	The label/name of the input
pFunction	The function to be run - Must have this signature: string func(void*, void*)
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setOnKeyFunction() [3/8]

virtual void cx::cxForm::setOnKeyFunction ( const std::string &  pLabel, funcPtr2  pFunction, void *  p1, void *  p2, bool  pIsLabel = true  )

virtual

Sets a function to be run whenever a key is pressed in an.

input (by label/name). Note: If there are multiple inputs with

the same label/name, all of them will be affected.

Parameters

pLabel	The label/name of the input
pFunction	The function to be run - Must have this signature: string func(void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setOnKeyFunction() [4/8]

virtual void cx::cxForm::setOnKeyFunction ( const std::string &  pLabel, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pIsLabel = true  )

virtual

Sets a function to be run whenever a key is pressed in an.

input (by label/name). Note: If there are multiple inputs with

the same label/name, all of them will be affected.

Parameters

pLabel	The label/name of the input
pFunction	The function to be run - Must have this signature: string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setOnKeyFunction() [5/8]

virtual void cx::cxForm::setOnKeyFunction ( int  pIndex, const std::shared_ptr< cxFunction > &  pFunction  )

virtual

Sets a function to be run whenever a key is pressed in an input (by index).

Parameters

pIndex	The index of the input
pFunction	The function to be run

Referenced by comboBoxOnForm(), cxFormAssignment(), floatingPtValidateOnForm(), form(), and integerValidateOnForm().

setOnKeyFunction() [6/8]

void cx::cxForm::setOnKeyFunction ( int  pIndex, funcPtr0  pFunction  )

virtual

Sets a function to be run whenever a key is pressed in an input (by index).

Parameters

pIndex	The index of the input
pFunction	The function to be run - Must have this signature: string func()
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function

References mInputs.

setOnKeyFunction() [7/8]

void cx::cxForm::setOnKeyFunction ( int  pIndex, funcPtr2  pFunction, void *  p1, void *  p2  )

virtual

Sets a function to be run whenever a key is pressed in an input (by index).

Parameters

pIndex	The index of the input
pFunction	The function to be run - Must have this signature: string func(void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function

References mInputs.

setOnKeyFunction() [8/8]

void cx::cxForm::setOnKeyFunction ( int  pIndex, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4  )

virtual

Sets a function to be run whenever a key is pressed in an input (by index).

Parameters

pIndex	The index of the input
pFunction	The function to be run - Must have this signature: string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

References mInputs.

setOnLeaveFunction() [1/8]

virtual void cx::cxForm::setOnLeaveFunction ( const std::shared_ptr< cxFunction > &  pFunction )

overridevirtual

Sets the form window's "on leave" function.

Parameters

pFunction

The function to be run

Reimplemented from cx::cxWindow.

Referenced by cxFormMultiLineInputFunctionKeyNoValidator(), cxInputOnFormLoopDisabled(), formFunctionKeyNoOnLeave(), formUpArrowFunction(), formWithFKeys(), inputQuitKeysOnForm(), and setValFunc().

setOnLeaveFunction() [2/8]

virtual void cx::cxForm::setOnLeaveFunction ( const std::string &  pLabel, const std::shared_ptr< cxFunction > &  pFunction, bool  pIsLabel = true  )

virtual

Sets the "on leave" function pointer for a field (by label/name). The function must have this signature: string func(void*, void*, void*, void*).

Parameters

pLabel	The label/name of the field
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setOnLeaveFunction() [3/8]

virtual void cx::cxForm::setOnLeaveFunction ( const std::string &  pLabel, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pIsLabel = true  )

virtual

Sets the "on leave" function pointer for a field (by label/name). The function must have this signature: string func(void*, void*, void*, void*).

Parameters

pLabel	The label/name of the field
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setOnLeaveFunction() [4/8]

void cx::cxForm::setOnLeaveFunction ( funcPtr0  pFuncPtr )

overridevirtual

Sets a function to be run when focus is lost.

The return value of the function is not used.

Parameters

pFuncPtr	A pointer to the function - Must have the signature string someFunc().
p1	A pointer to the first argument
p2	A pointer to the 2nd argument

Reimplemented from cx::cxWindow.

References cx::cxWindow::setOnLeaveFunction().

setOnLeaveFunction() [5/8]

void cx::cxForm::setOnLeaveFunction ( funcPtr2  pFuncPtr, void *  p1, void *  p2  )

overridevirtual

Sets a function to be run when focus is lost.

The return value of the function is not used.

Parameters

pFuncPtr	A pointer to the function - Must have the signature string someFunc(void*, void).
p1	A pointer to the first argument
p2	A pointer to the 2nd argument

Reimplemented from cx::cxWindow.

References cx::cxWindow::setOnLeaveFunction().

setOnLeaveFunction() [6/8]

void cx::cxForm::setOnLeaveFunction ( funcPtr4  pFuncPtr, void *  p1, void *  p2, void *  p3, void *  p4  )

overridevirtual

Sets a function to be run when focus is lost.

The return value of the function is not used.

Parameters

pFuncPtr	A pointer to the function - Must have the signature string someFunc(void*, void*, void*, void).
p1	A pointer to the first argument
p2	A pointer to the 2nd argument
p3	A pointer to the 3rd argument
p4	A pointer to the 4th argument

Reimplemented from cx::cxWindow.

References cx::cxWindow::setOnLeaveFunction().

setOnLeaveFunction() [7/8]

virtual void cx::cxForm::setOnLeaveFunction ( unsigned  pIndex, const std::shared_ptr< cxFunction > &  pFunction  )

virtual

Sets the "on leave" function pointer for a field (by index). The function must have this signature: string func(void*, void*, void*, void*).

Parameters

pIndex	The index of the field
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

setOnLeaveFunction() [8/8]

void cx::cxForm::setOnLeaveFunction ( unsigned  pIndex, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4  )

virtual

Sets the "on leave" function pointer for a field (by index). The function must have this signature: string func(void*, void*, void*, void*).

Parameters

pIndex	The index of the field
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

References mInputs.

setParentMultiForm()

void cx::cxForm::setParentMultiForm ( cxMultiForm *  pParentMultiForm )

virtual

Sets the parent cxMultiForm that this cxForm is associated with.

Parameters

pParentMultiForm

A pointer to the form's parent cxMultiForm (or nullptr if there is no parent cxMultiForm)

setStartAtFirstInput()

void cx::cxForm::setStartAtFirstInput ( bool  pStartAtFirstInput )

virtual

Sets whether or not to always start at the first editable.

input when showModal() is called.

Parameters

pStartAtFirstInput

Whether or not to always start at the first editable input when showModal() is called.

References mStartAtFirstInput.

Referenced by cxFormStartAtFirstInput().

setStatus()

void cx::cxForm::setStatus ( const std::string &  pStatus, bool  pRefreshStatus = true  )

overridevirtual

Mutator for the status line text. After this method.

is called, the status provided with this method will

be used instead of the help messages from the inputs.

Parameters

pStatus	The new status message for window
pRefreshStatus	Whether or not to refresh the status area (defaults to true)

Reimplemented from cx::cxWindow.

References cx::cxWindow::setStatus().

Referenced by attributesSetter(), copyCxFormStuff(), doInputLoop(), and testFormReadOnly().

setUseExtendedHelpKeys()

void cx::cxForm::setUseExtendedHelpKeys ( bool  pUseExtendedHelpKeys )

virtual

Sets whether or not to use the extended help keys.

Parameters

pUseExtendedHelpKey

Whether or not to use the extended help keys (true/false)

References mInputs.

Referenced by cxFormExtendedHelpKey().

setValidatorFunction() [1/4]

virtual void cx::cxForm::setValidatorFunction ( const std::string &  pLabel, const std::shared_ptr< cxFunction > &  pFunction, bool  pIsLabel = true  )

virtual

Sets a validator function to be run before focus is lost for one.

of the inputs (by label/name).

Parameters

pLabel	The label/name of the input
pFunction	The function to be run
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setValidatorFunction() [2/4]

virtual void cx::cxForm::setValidatorFunction ( const std::string &  pLabel, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4, bool  pIsLabel = true  )

virtual

Sets a validator function to be run before focus is lost for one.

of the inputs (by label/name).

Parameters

pLabel	The label/name of the input
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

setValidatorFunction() [3/4]

virtual void cx::cxForm::setValidatorFunction ( int  pIndex, const std::shared_ptr< cxFunction > &  pFunction  )

virtual

Sets a validator function to be run before focus is lost for one.

of the inputs (by index).

Parameters

pIndex	The index of the input
pFunction	The function to be run

Referenced by formWithInputValueValidator(), and inputQuitKeysOnForm().

setValidatorFunction() [4/4]

void cx::cxForm::setValidatorFunction ( int  pIndex, funcPtr4  pFunction, void *  p1, void *  p2, void *  p3, void *  p4  )

virtual

Sets a validator function to be run before focus is lost for one.

of the inputs (by index).

Parameters

pIndex	The index of the input
pFunction	The function to be run - Must have signature string func(void*, void*, void*, void*)
p1	Pointer to the first parameter to be used for the function
p2	Pointer to the second parameter to be used for the function
p3	Pointer to the 3rd parameter to be used for the function
p4	Pointer to the 4th parameter to be used for the function

References mInputs.

setValue() [1/2]

virtual bool cx::cxForm::setValue ( const std::string &  pLabel, const std::string &  pValue, bool  pIsLabel = true, bool  pRefresh = false  )

virtual

Sets the value of an input (by label/name).

Parameters

pLabel	The label/name of the input
pValue	The new string value for the input
pIsLabel	If true (default), pLabel specifies the label of the input. If false, pLabel specifies the name of the input.
pRefresh	Whether or not to refresh the input (defaults to false)

Returns

True if successful or false if not

Reimplemented in cx::cxMultiForm.

setValue() [2/2]

virtual bool cx::cxForm::setValue ( int  pIndex, const std::string &  pValue, bool  pRefresh = false  )

virtual

Sets the value of an input (by index).

Parameters

pIndex	The index of the input
pValue	The value to be placed at that index.
pRefresh	Whether or not to refresh the input (defaults to false)

Returns

True if successful or false if not

Reimplemented in cx::cxMultiForm.

Referenced by attributesSetter(), cxFormAssignment(), cxFormClearOnlyEditable(), form(), formInputColors(), main(), setValFunc(), and setValues().

setValueColor() [1/2]

void cx::cxForm::setValueColor	(	const int &	pIndex,
		e_cxColors	pColor
	)

Sets the color of the value section of one of the inputs (by index)

Parameters

pIndex	The index of the input whose value color to set
pColor	The color to set

References mInputs.

Referenced by formInputColors().

setValueColor() [2/2]

void cx::cxForm::setValueColor	(	const std::string &	pLabel,
		e_cxColors	pColor,
		bool	pIsLabel = true
	)

Sets the color of the value section of one of the inputs (by label/name)

Parameters

pLabel	The label/name of the input whose value color to set
pColor	The color to set
pIsLabel	If true (default), pLabel is the input's label. If false, pLabel is the input's name.

setValues()

void cx::cxForm::setValues ( const std::map< std::string, std::string > &  pValues, bool  pUseLabels = true, bool  pRefresh = false, bool  pDisableValidatorFunctions = false  )

virtual

Sets the values in the form with a map of input labels/names.

and values.

Parameters

pValues	A map of input labels/names and values to be set in the form.
pUseLabels	If true (default), the map keys will be used as input labels; if false, the map keys will be used as input names.
pRefresh	Whether or not to refresh the inputs after setting their values. Defaults to false.
pDisableValidatorFunctions	Whether or not to temporarily disable each input's validator function before setting its value. This can be useful if you want to set the values to some defaults, but the default values would normally be considered invalid.

References getInput(), getInputIndex(), and setValue().

setWaitForInputIfEmpty()

void cx::cxForm::setWaitForInputIfEmpty ( bool  pWaitForInputIfEmpty )

virtual

Toggles whether or not the form should wait for.

user input if there are no editable inputs.

Parameters

pWaitForInputIfEmpty

Whether or not the form should wait for user input if there are no editable inputs.

show()

long cx::cxForm::show ( bool  pBringToTop = false, bool  pShowSubwindows = true  )

overridevirtual

Shows the form.

Parameters

pBringToTop	Whether or not to bring this window to the top. Defaults to false.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true.

Returns

The return value of cxWindow::show()

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References cx::cxID_EXIT, cx::cxWindow::getShowSelfBeforeSubwins(), hide(), cx::cxWindow::isEnabled(), cx::cxWindow::show(), and showAllInputs().

Referenced by attributesSetter(), move(), cx::cxMultiForm::show(), showModal(), and testFormReadOnly().

showAllInputs()

void cx::cxForm::showAllInputs ( bool  pBringToTop = true, bool  pSkipCurrentInput = false  ) const

virtual

Shows (refreshes) all inputs.

Parameters

pBringToTop	Whether or not to bring the inputs to the top (defaults to true)
pSkipCurrentInput	Whether or not to skip the current input (defaults to false)

References cx::cxWindow::bottom(), cx::eBS_NOBORDER, cx::cxWindow::getBorderStyle(), cx::cxWindow::isAbove(), cx::cxWindow::left(), mCurrentInput, mInputPositions, mInputs, numInputs(), cx::cxWindow::right(), and cx::cxWindow::top().

Referenced by scrollInputs(), and show().

showInputsOnBorder()

void cx::cxForm::showInputsOnBorder ( bool  pShowInputsOnBorder )

virtual

Toggles whether to show inputs if they're on.

a border if the form has a border.

Parameters

pShowInputsOnBorder

Whether or not to show inputs if they're on a border

References cx::eBS_NOBORDER, and cx::cxWindow::getBorderStyle().

showModal()

long cx::cxForm::showModal ( bool  pShowSelf = true, bool  pBringToTop = false, bool  pShowSubwindows = true  )

overridevirtual

Shows the form and waits for input.

Parameters

pShowSelf	Whether or not to show the window before running the input loop. Defaults to true.
pBringToTop	Whether or not to bring this window to the top. Defaults to false.
pShowSubwindows	Whether or not to show sub-windows also. Defaults to true.

Returns

A return code based on user input. Returns cxID_QUIT if the user presses ESC; otherwise, returns cxID_EXIT.

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References cx::cxID_EXIT, doInputLoop(), cx::cxWindow::getLeaveNow(), cx::cxWindow::getReturnCode(), cx::cxWindow::isEnabled(), cx::cxWindow::mIsModal, cx::cxWindow::runOnFocusFunction(), cx::cxWindow::runOnLeaveFunction(), cx::cxWindow::setReturnCode(), and show().

Referenced by allFormInputsGoReadOnly(), borderlessForm(), comboBoxOnForm(), cxFormAppendComboBoxPair(), cxFormAppendPair(), cxFormAssignment(), cxFormClearOnlyEditable(), cxFormExtendedHelpKey(), cxFormMouseFunctionTest(), cxFormMultiLineInputFunctionKeyNoValidator(), cxFormNoQuit(), cx::cxFormShowModal(), cxFormStartAtFirstInput(), cxInputOnFormLoopDisabled(), cxMultiLineInputWithRightLabelOnForm(), enableDisableForm(), floatingPtValidateOnForm(), form(), formChangeInputFocusWhileModal(), formDataChanged(), formFunctionKeyNoOnLeave(), formFunctionKeys(), formInputColors(), formUpArrowFunction(), formWithFKeys(), formWithInputValueValidator(), formWithMenu(), inputQuitKeysOnForm(), inputWithoutBorder(), integerValidateOnForm(), itemSales(), keyFunctionAutoExitOnLastFormInput(), loneInputWithLoopDisabledOnForm(), main(), setValFunc(), simpleForm1(), stackedFormScrolling(), stackedFormScrolling2(), testFormPos(), and testFormReadOnly().

swap() [1/2]

bool cx::cxForm::swap ( int  pInput1Index, int  pInput2Index  )

virtual

Swaps the order of 2 inputs (by index). If both indexes.

are the same, or one or both is out of bounds, nothing

will be changed. This does not refresh the screen.

Parameters

pInput1Index	The index of the first input
pInput2Index	The index of the second input

Returns

Whether or not the inputs got swapped

References mInputs.

swap() [2/2]

virtual bool cx::cxForm::swap ( std::shared_ptr< cxWindow > &  pInput1, std::shared_ptr< cxWindow > &  pInput2  )

virtual

Swaps the order of 2 inputs (by pointer). If both pointers.

are the same, or one or both don't exist in the panel, nothing

will be changed. This does not refresh the screen.

Parameters

pInput1	A pointer to the first input
pInput2	A pointer to the second input

Returns

Whether or not the inputs got swapped

toggleAllOnKeyFunction()

void cx::cxForm::toggleAllOnKeyFunction ( bool  pRunOnKeyFunction )

virtual

Sets whether or not the onKey function for all inputs should.

run.

Parameters

pRunOnKeyFunction

Whether or not the onKey function should run (for all inputs)

References mInputs.

toggleCursor() [1/3]

void cx::cxForm::toggleCursor ( bool  pShowCursor )

virtual

Toggles the display of the cursor on all inputs.

Parameters

pShowCursor

Whether or not the cursor should be shown on all inputs (true/false).

References mInputs.

toggleCursor() [2/3]

virtual void cx::cxForm::toggleCursor ( const std::string &  pLabel, bool  pShowCursor, bool  pIsLabel = true  )

virtual

Toggles the display of the cursor for an input (by label/name).

Parameters

pLabel	The label/name of the input for which to toggle the cursor display.
pShowCursor	Whether or not the input should show the cursor (true/false).
pIsLabel	If true, pLabel specifies the label; if false, pLabel specifies the name of the input.

toggleCursor() [3/3]

void cx::cxForm::toggleCursor ( int  pIndex, bool  pShowCursor  )

virtual

Toggles the display of the cursor for an input (by index).

Parameters

pIndex	The index of the input for which to toggle the cursor display.
pShowCursor	Whether or not the input should show the cursor (true/false).

References mInputs.

toggleMasking() [1/2]

virtual bool cx::cxForm::toggleMasking ( const std::string &  pLabel, bool  pMasking, bool  pIsLabel = true  )

virtual

Enables/disables masking for an input (by label).

Parameters

pLabel	The label of the input
pMasking	Whether or not the input should be masked (true/false)
pIsLabel	True if pStr is the label (default), or false if pStr is the name

Returns

True if successul or false if not

toggleMasking() [2/2]

bool cx::cxForm::toggleMasking ( int  pIndex, bool  pMasking  )

virtual

Enables/disables masking for an input (by index).

Parameters

pIndex	The index of the input
pMasking	Whether or not the input should be masked (true/false)

Returns

True if successul or false if not

References mInputs.

Referenced by formInputColors().

toggleOnKeyFunction() [1/2]

virtual void cx::cxForm::toggleOnKeyFunction ( const std::string &  pLabel, bool  pRunOnKeyFunction, bool  pIsLabel = true  )

virtual

Sets whether or not an onKey function should run for one of the.

inputs on the form (by label/name). Note: If there are

multiple inputs with the same label/name, they all will be

affected.

Parameters

pLabel	The label/name of the input
pRunOnKeyFunction	Whether or not the input's onKey function should run
pIsLabel	If true (default), pLabel specifies the input label. If false, pLabel specifies the name of the input.

toggleOnKeyFunction() [2/2]

void cx::cxForm::toggleOnKeyFunction ( int  pIndex, bool  pRunOnKeyFunction  )

virtual

Sets whether or not an onKey function should run for one of the.

inputs on the form (by index).

Parameters

pIndex	The index of the input
pRunOnKeyFunction	Whether or not the input's onKey function should run

References mInputs.

trapNonAssignedFKeys()

void cx::cxForm::trapNonAssignedFKeys ( bool  pTrapNonAssignedFKeys )

virtual

Sets whether non-assigned function keys should.

be trapped within the input loop and not cause

the input to stop its input loop.

Parameters

pTrapNonAssignedFKeys

If true, pressing function keys that are not assigned (when modal) will do nothing. If false, pressing non-assigned function keys while focus is set will cause the input to exit the input loop.

References mTrapNonAssignedFKeys.

unhide()

void cx::cxForm::unhide ( bool  pUnhideSubwindows = true )

overridevirtual

Un-hides the form (along with all the inputs).

Parameters

pUnhideSubwindows

Whether or not to also unhide the subwindows (defaults to true)

Reimplemented from cx::cxWindow.

Reimplemented in cx::cxMultiForm.

References cx::cxWindow::isEnabled(), mInputs, and cx::cxWindow::unhide().

Referenced by cx::cxMultiForm::unhide().

useInputStatus()

void cx::cxForm::useInputStatus ( bool  pUseInputStatus )

virtual

Toggles whether or not to use the status text of the inputs.

as the status text for the form (in the bottom border) when

the inputs gain focus. This is useful for inputs that have

help text.

Parameters

pUseInputStatus

Whether or not to use the status text of the inputs as the status text of the form.

References cx::eBS_NOBORDER, cx::cxWindow::getBorderStyle(), cx::cxWindow::height(), cx::cxWindow::isEnabled(), cx::cxWindow::isHidden(), cx::cxWindow::mWindow, and cx::cxWindow::width().

validateOnJumpKey() [1/2]

virtual void cx::cxForm::validateOnJumpKey ( const std::string &  pID, bool  pValidate, bool  pIsLabel = true  )

virtual

Sets whether or not the validator function should run for an.

input when the user presses the input jump key. If not, the

user will always be able to jump from that input, whether or

not the input is valid.

Parameters

pID	The label/name of the input
pValidate	If true, then the input will do validation when the user presses the jump key (possibly not allowing the user to jump if the input is not valid). If false, the user will be able to jump from the input whether or not the input is valid.
pIsLabel	If true (default), then pID specifies the input label. If false, then pID specifies the input name.

validateOnJumpKey() [2/2]

void cx::cxForm::validateOnJumpKey ( int  pIndex, bool  pValidate  )

virtual

Sets whether or not the validator function should run for an.

input when the user presses the input jump key. If not, the

user will always be able to jump from that input, whether or

not the input is valid.

Parameters

pIndex	The index of the input
pValidate	If true, then the input will do validation when the user presses the jump key (possibly not allowing the user to jump if the input is not valid). If false, the user will be able to jump from the input whether or not the input is valid.

References mInputs.

Friends And Related Symbol Documentation

cxMultiForm

friend class cxMultiForm

friend

cxMultiLineInput

friend class cxMultiLineInput

friend

cxPanel

friend class cxPanel

friend

Member Data Documentation

mCurrentInput

int cx::cxForm::mCurrentInput = 0

protected

Referenced by copyCxFormStuff(), doCurrentInput(), doInputLoop(), getCurrentInputIndex(), remove(), remove(), removeAll(), setCurrentInput(), setCurrentInputByPtr(), and showAllInputs().

mInputPositions

std::vector<std::pair<int, int> > cx::cxForm::mInputPositions

protected

Referenced by append(), copyCxFormStuff(), move(), remove(), remove(), scrollInputs(), and showAllInputs().

mInputs

inputPtrContainer cx::cxForm::mInputs

protected

Referenced by addAttr(), addExitKey(), addExtendedHelpKey(), addInputJumpKey(), addQuitKey(), allFieldsBlank(), allValidateOnJumpKey(), anyInputsCanBeEditable(), append(), bringToTop(), canBeEditable(), clearExtendedHelpKeys(), clearInputs(), clearKeyFunction(), copyCxFormStuff(), cxForm(), doCurrentInput(), doInputLoop(), enableInputLoop(), firstEditableInput(), getAttrs(), getCurrentInput(), getCurrentInputIndex(), getCurrentInputLabel(), getCurrentInputName(), getExtendedHelp(), getInput(), getInputIndex(), getInputOption(), getLabel(), getLabelColor(), getMasked(), getName(), getNavKeys(), getStatus(), getValue(), getValueColor(), getValues(), hasEditableInputs(), hasInput(), hasNavKey(), hide(), inputHeight(), inputLabel(), inputLeftCol(), inputName(), inputTopRow(), inputWidth(), isEditable(), lastEditableInput(), lookForEditableInputs(), maxInputLen(), maxValueLen(), move(), numInputs(), onKeyFunctionEnabled(), refreshInput(), remove(), remove(), removeAttr(), removeAttrs(), removeExitKey(), removeQuitKey(), scrollInputs(), setAllCanBeEditable(), setAllColors(), setAllInputOption(), setAllLabelColor(), setAllOnKeyFunction(), setAllOnKeyFunction(), setAllOnKeyFunction(), setAllValueColor(), setAttr(), setCanBeEditable(), setColor(), setCurrentInput(), setCurrentInputByPtr(), setDisableCursorOnShow(), setEnabled(), setInputJumpKey(), setInputOption(), setKeyFunction(), setKeyFunction(), setKeyFunction(), setKeyFunction(), setKeyFunction(), setKeyFunction(), setLabelColor(), setMaskChar(), setOnFocusFunction(), setOnKeyFunction(), setOnKeyFunction(), setOnKeyFunction(), setOnLeaveFunction(), setUseExtendedHelpKeys(), setValidatorFunction(), setValueColor(), showAllInputs(), swap(), toggleAllOnKeyFunction(), toggleCursor(), toggleCursor(), toggleMasking(), toggleOnKeyFunction(), unhide(), and validateOnJumpKey().

mStartAtFirstInput

bool cx::cxForm::mStartAtFirstInput = false

protected

mStartAtFirstInput keeps track of whether or not the form

should always start at the first editable input when

showModal() is called.

Referenced by copyCxFormStuff(), doInputLoop(), getStartAtFirstInput(), and setStartAtFirstInput().

mTrapNonAssignedFKeys

bool cx::cxForm::mTrapNonAssignedFKeys = true

protected

If mTrapNonAssignedFKeys is true, function keys that aren't.

assigned to anything won't cause the input to exit its

input loop.

Referenced by copyCxFormStuff(), doCurrentInput(), and trapNonAssignedFKeys().

---

The documentation for this class was generated from the following files:

• /home/erico/projects/cxWidgets/src/cxForm.h
• /home/erico/projects/cxWidgets/src/cxForm.cpp
